Shift Interlock

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

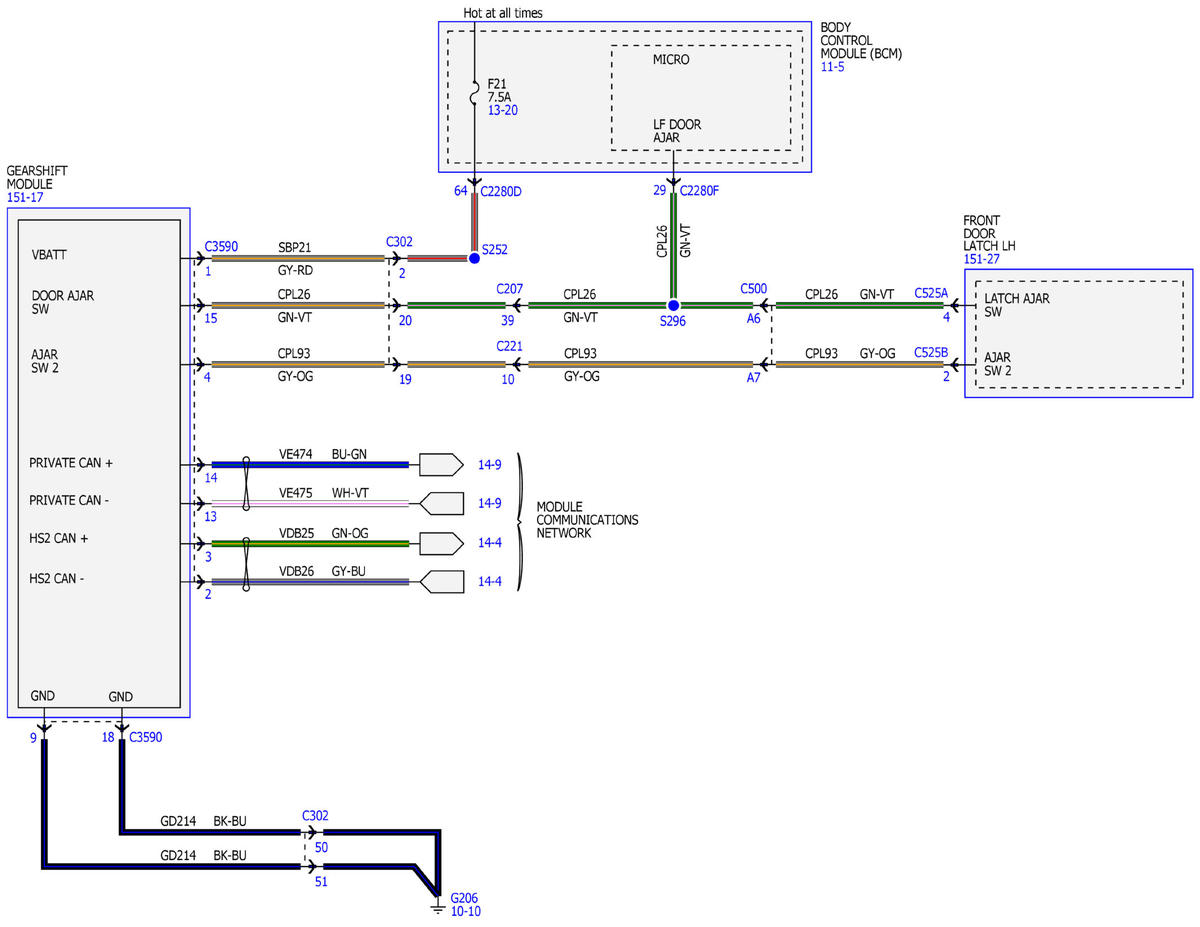

Fig 1: Shift Interlock Wiring Diagram
GFDWR175300Courtesy of FORD MOTOR COMPANY
