WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

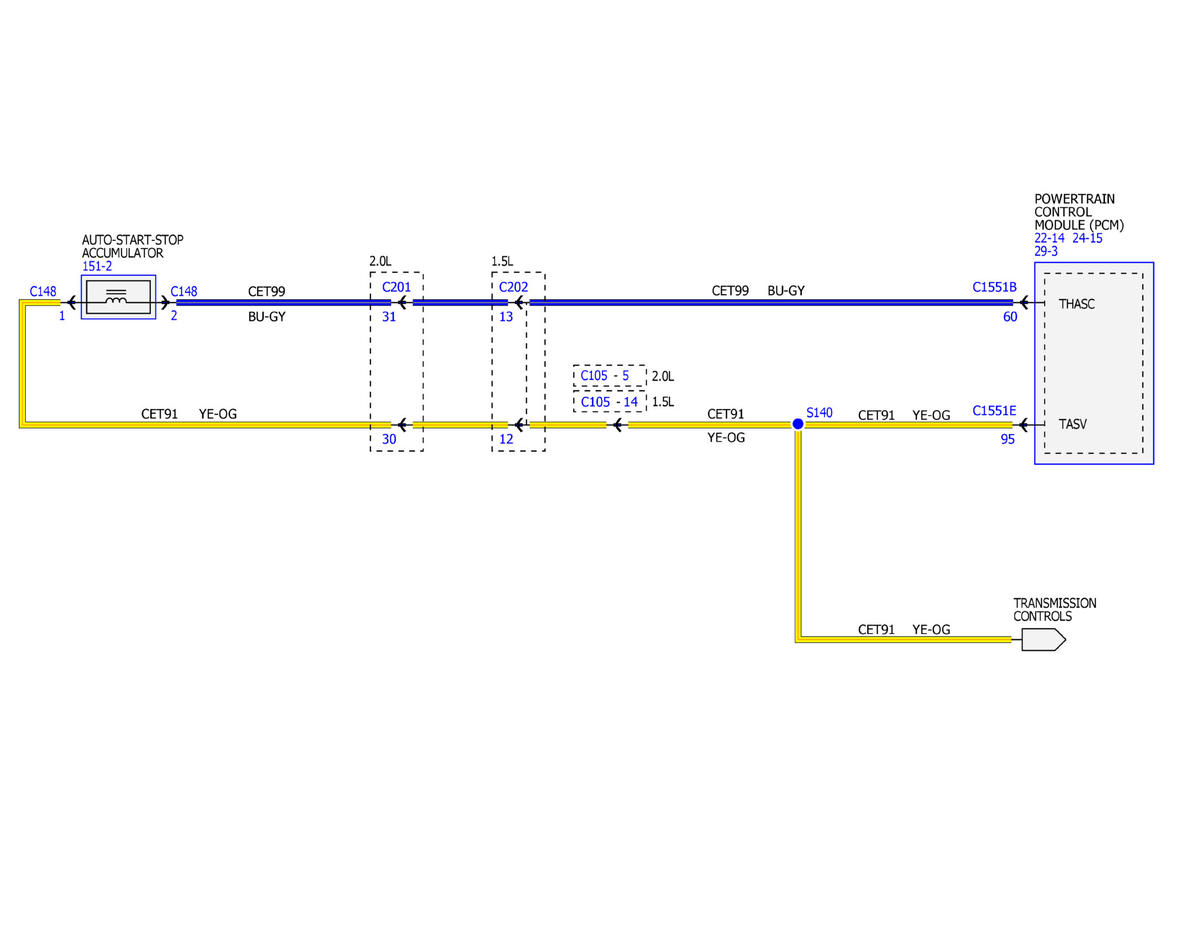

Fig 1: Auto-Start-Stop System Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR COMPANY

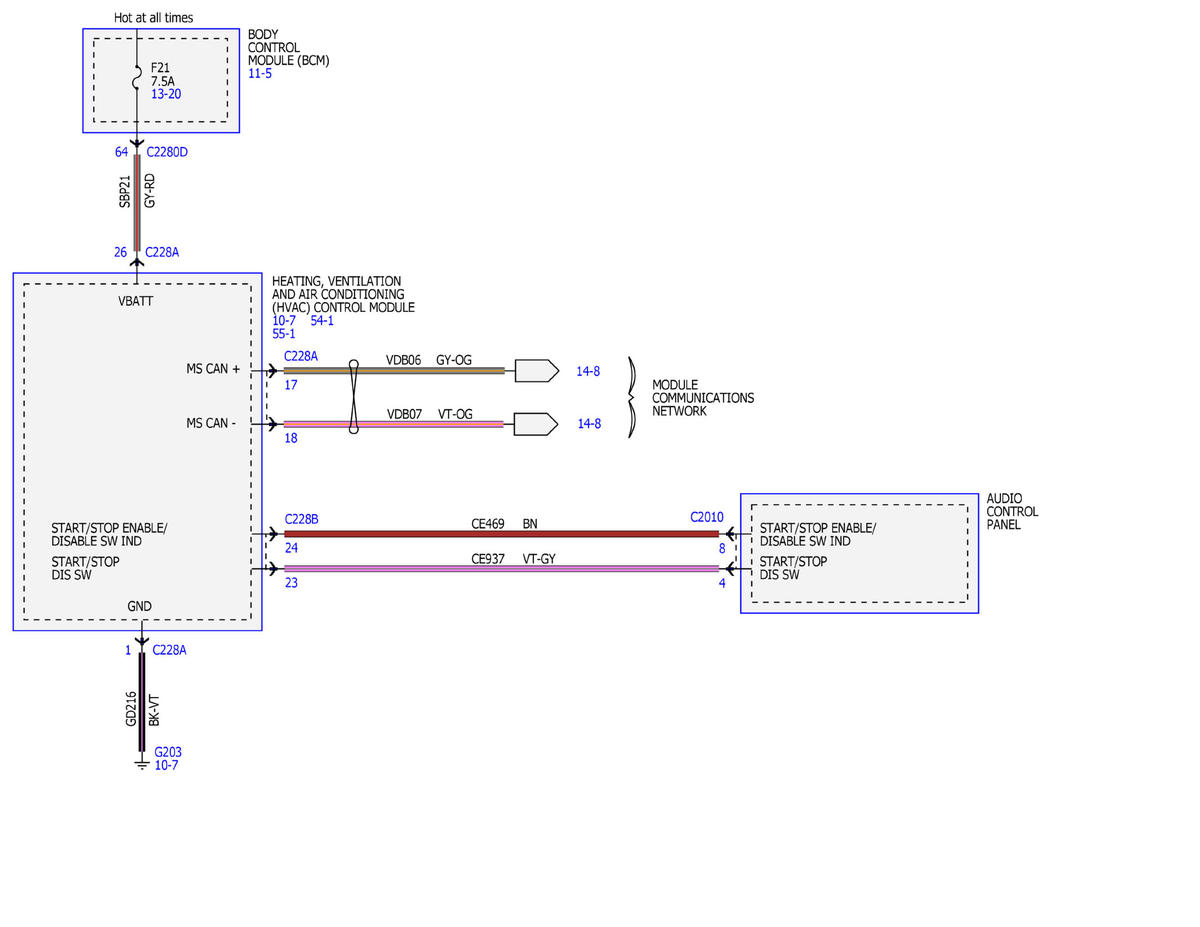

Fig 2: Auto-Start-Stop System Wiring Diagram (2 Of 2)
