Spring Front Hanger Bracket: Installation
WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
- Refer to: Joining Techniques
- Loosely clamp the replacement bracket in a preliminary position. Perform measurements to verify proper placement of the new bracket, then clamp firmly into position.

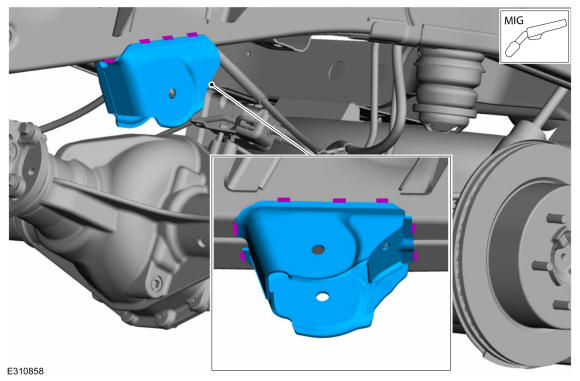

- With all measurements verified and the new spring front hanger bracket in proper position, tack-weld the new bracket in place to the frame crossmember. Use the General Equipment: MIG/MAG Welding Equipment Use the General Equipment: Locking Pliers

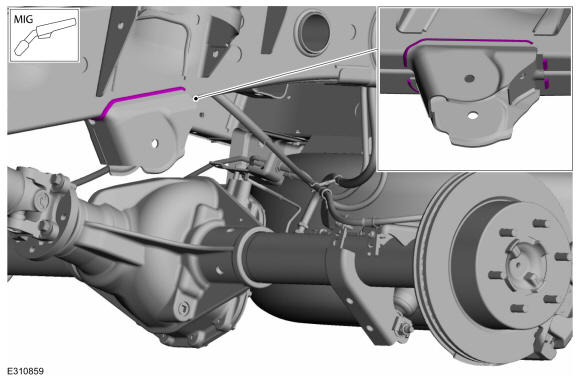

- Re-check measurements, then solid weld the spring front hanger bracket to the frame crossmember. Use the General Equipment: MIG/MAG Welding Equipment
- Metal finish the repair area using typical metal finishing techniques.
- Restore corrosion protection. Refer to: Corrosion Prevention
- Install the rear leaf spring assembly. Refer to: Spring .
