Driveshaft Slip Yoke: Disassembly

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear driveshaft assembly. Refer to: Rear Driveshaft .

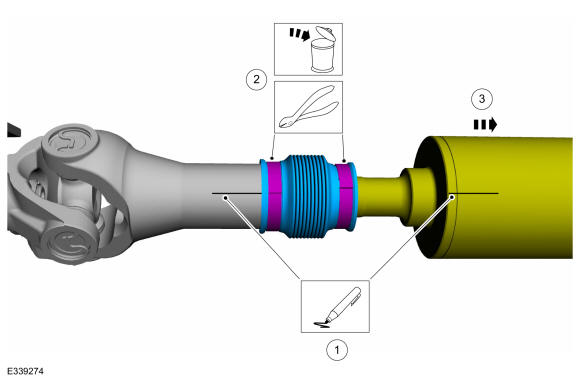

  2. Separate the slip yoke.

    1. Index mark the slip yoke.
    2. Cut and discard the clamps.
    3. Separate the slip yoke from the stub shaft and discard the boot.

GFD671995Courtesy of FORD MOTOR COMPANY
