WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

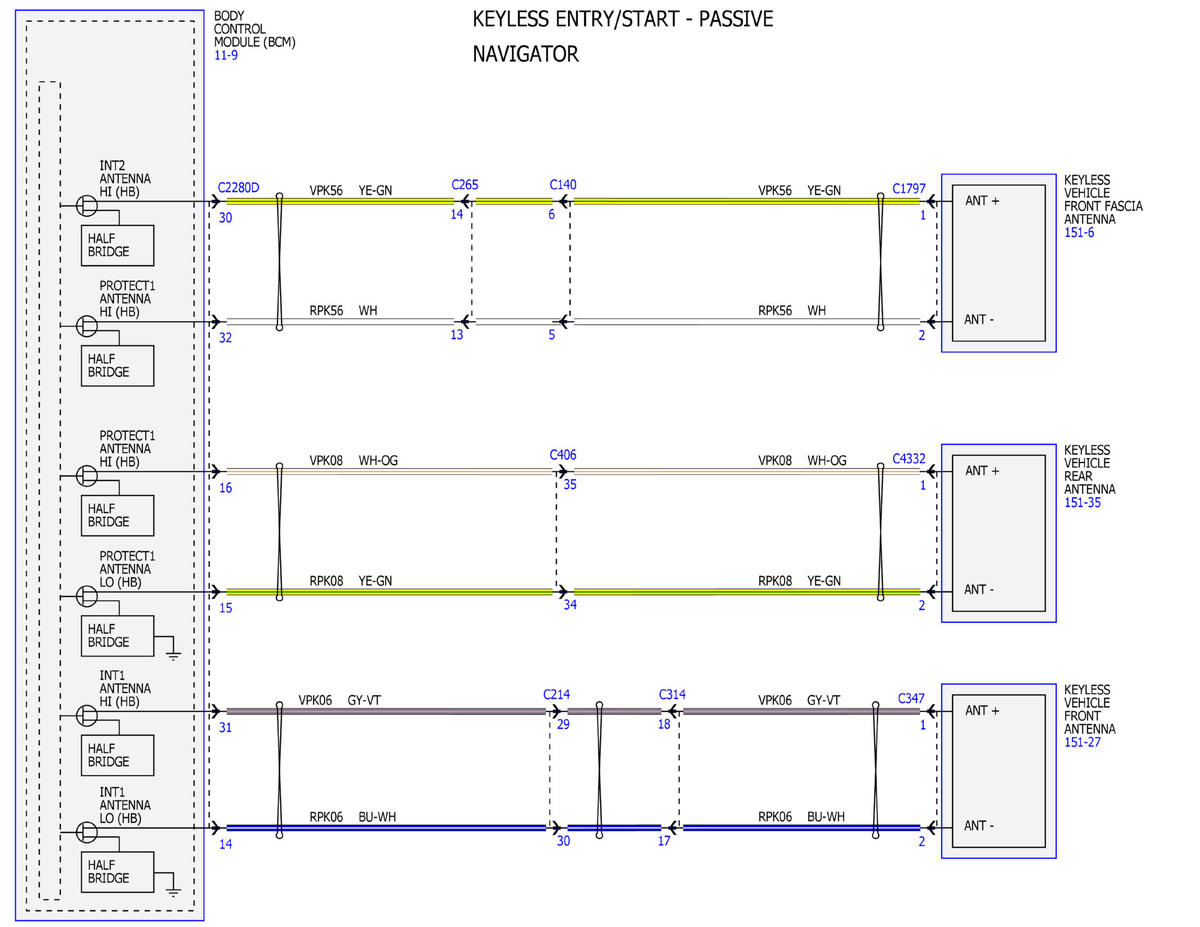

Fig 1: Passive Anti-Theft System Wiring Diagrams (1 Of 7)
Courtesy of FORD MOTOR COMPANY

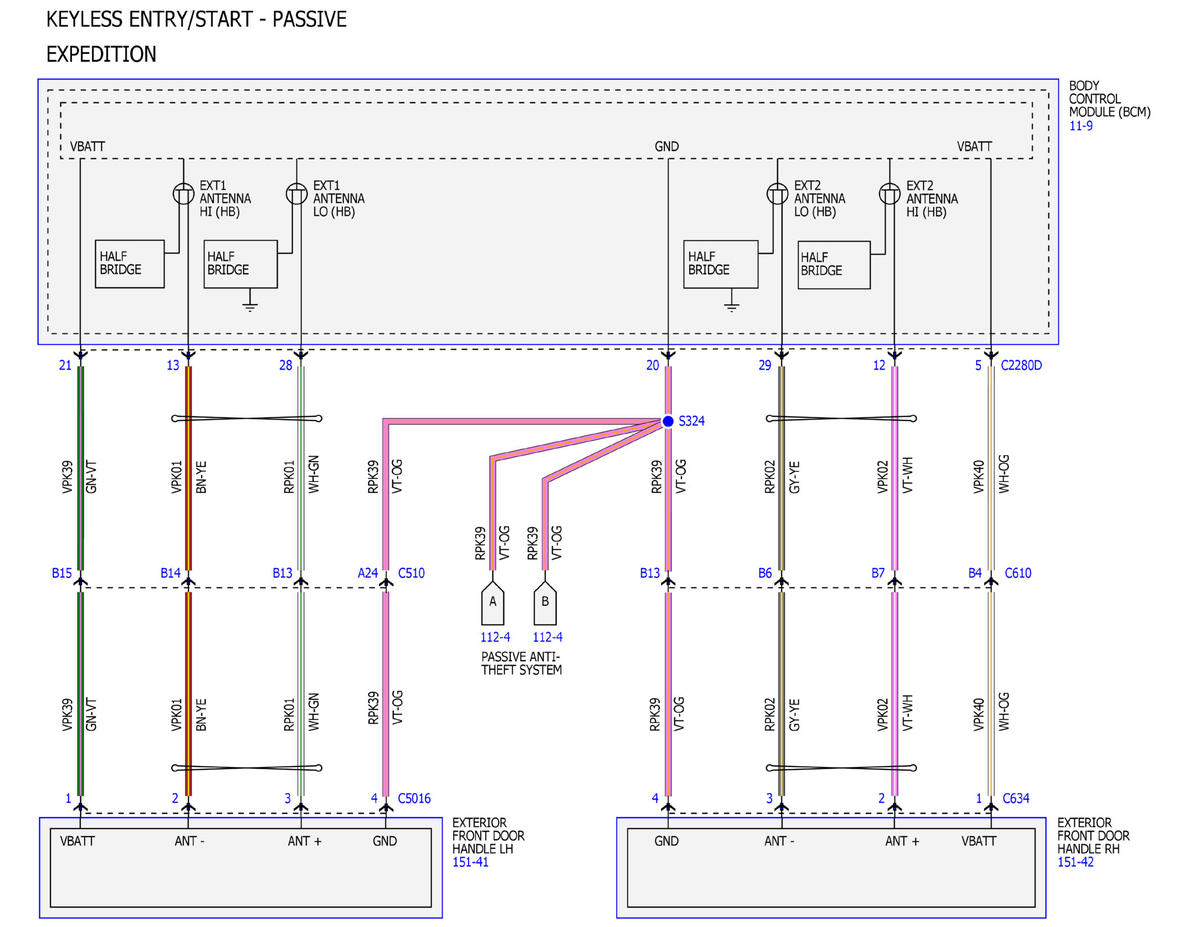

Fig 2: Passive Anti-Theft System Wiring Diagrams (2 Of 7)
Courtesy of FORD MOTOR COMPANY

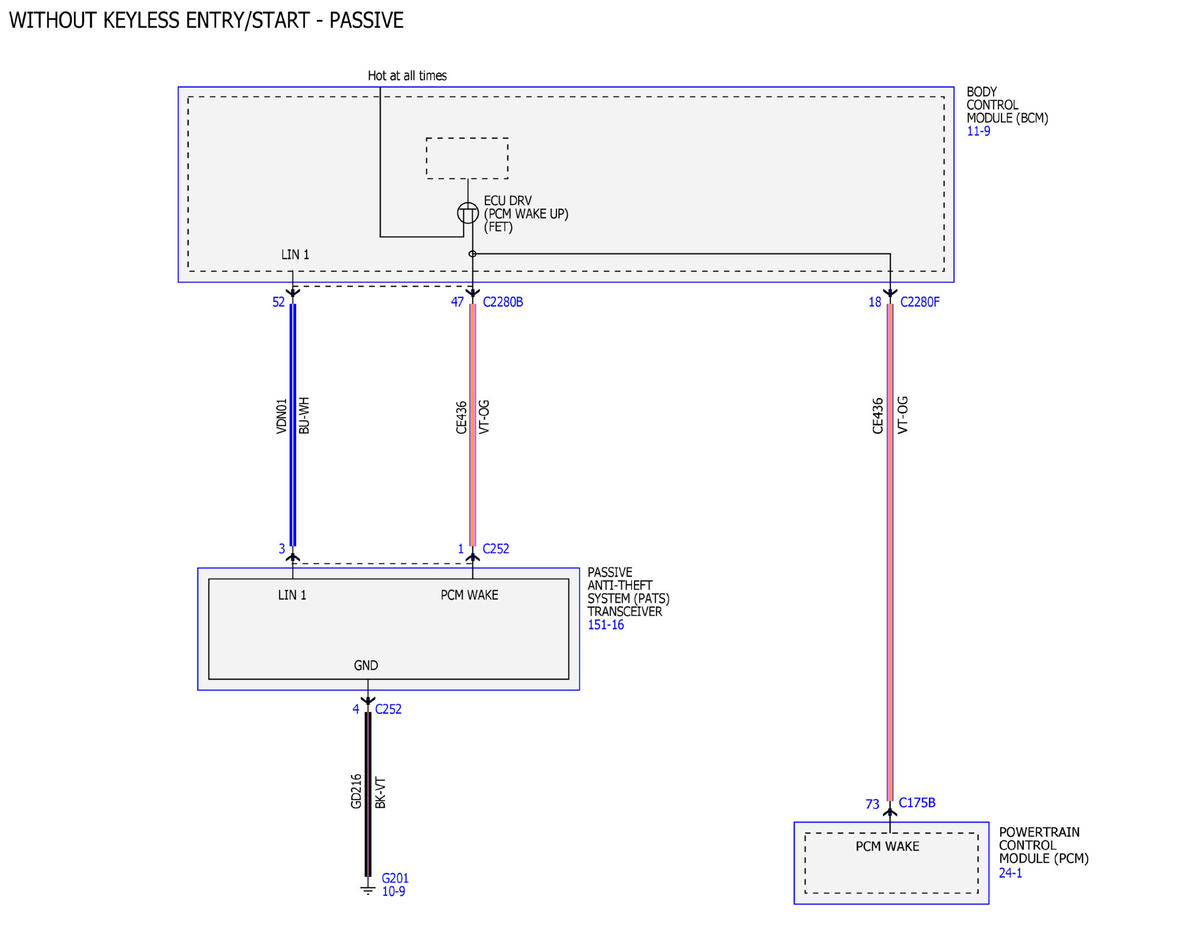

Fig 3: Passive Anti-Theft System Wiring Diagrams (3 Of 7)
Courtesy of FORD MOTOR COMPANY

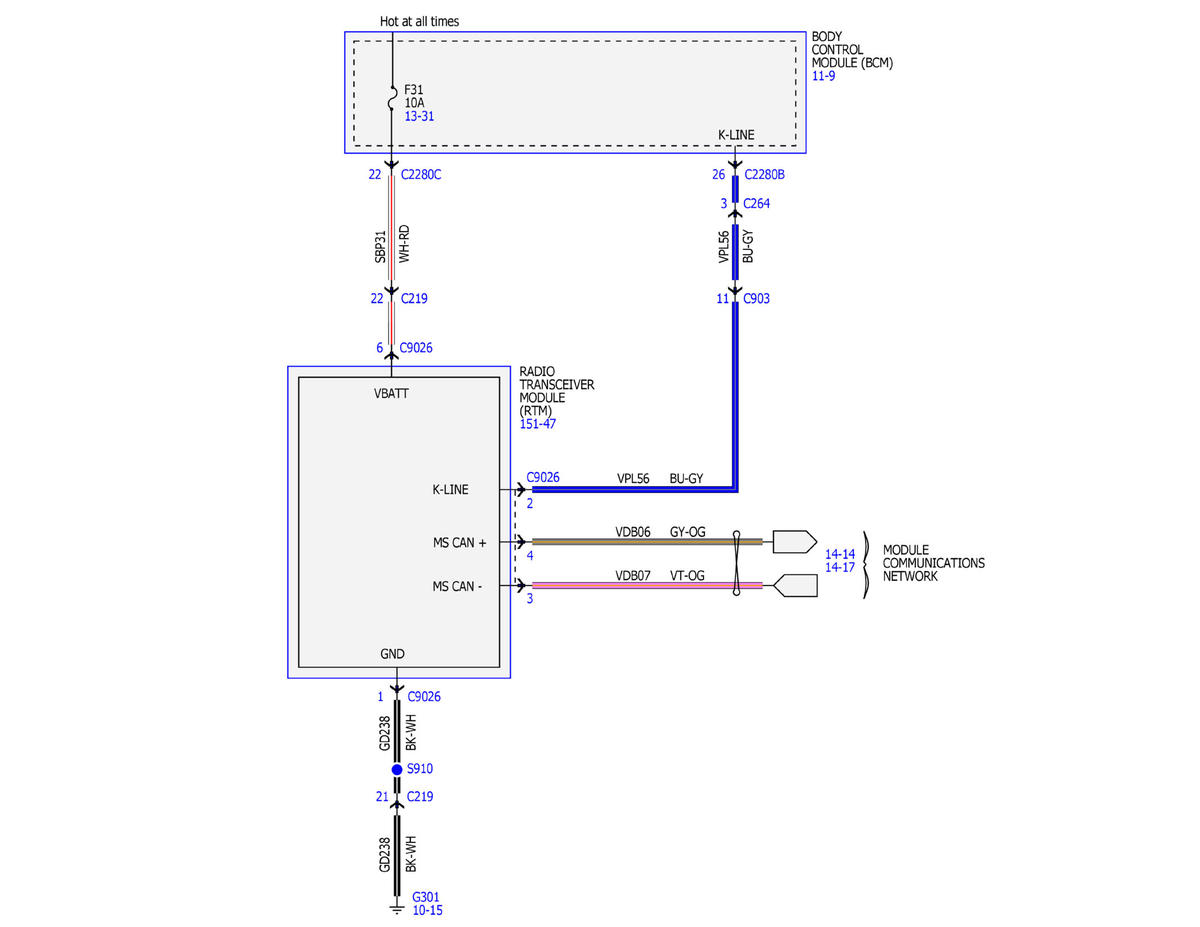

Fig 4: Passive Anti-Theft System Wiring Diagrams (4 Of 7)
Courtesy of FORD MOTOR COMPANY

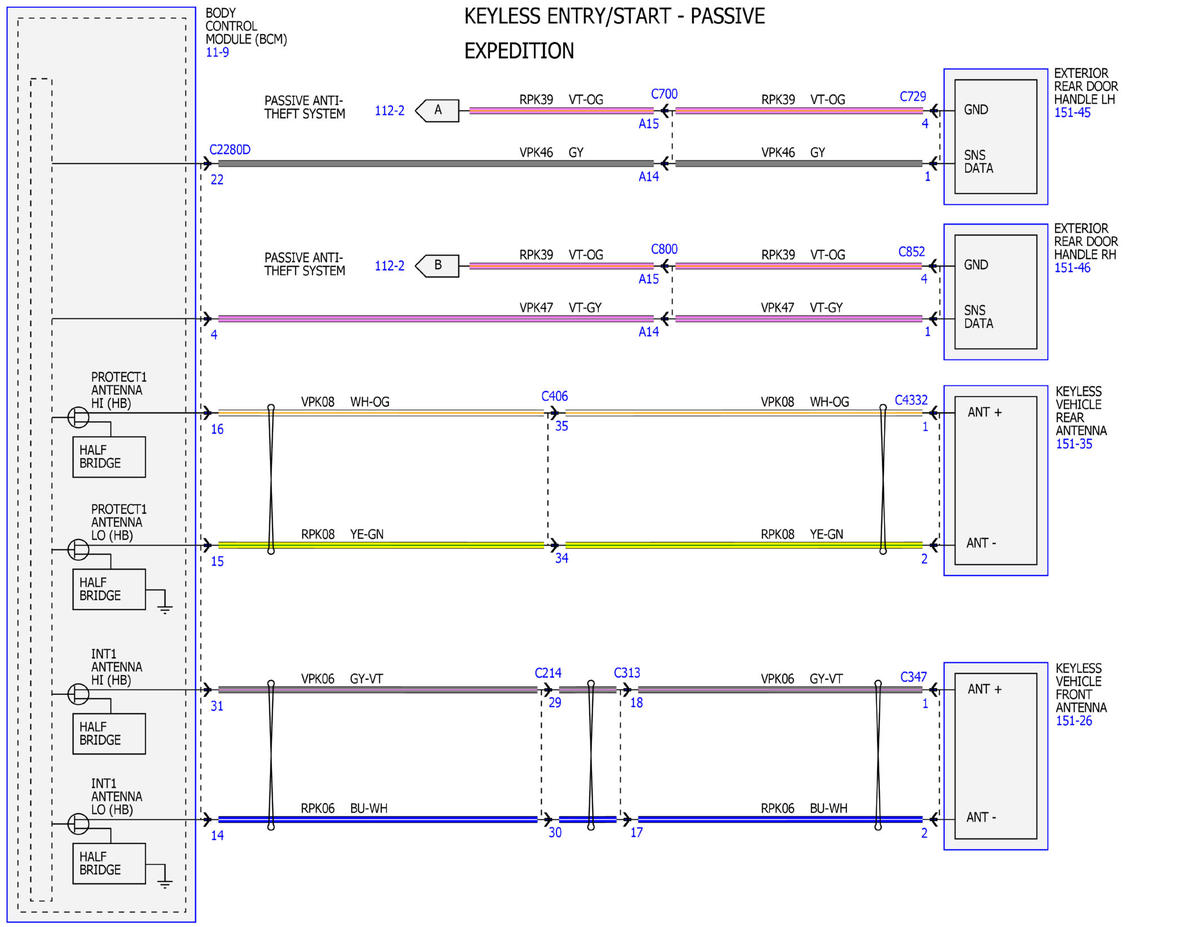

Fig 5: Passive Anti-Theft System Wiring Diagrams (5 Of 7)
Courtesy of FORD MOTOR COMPANY

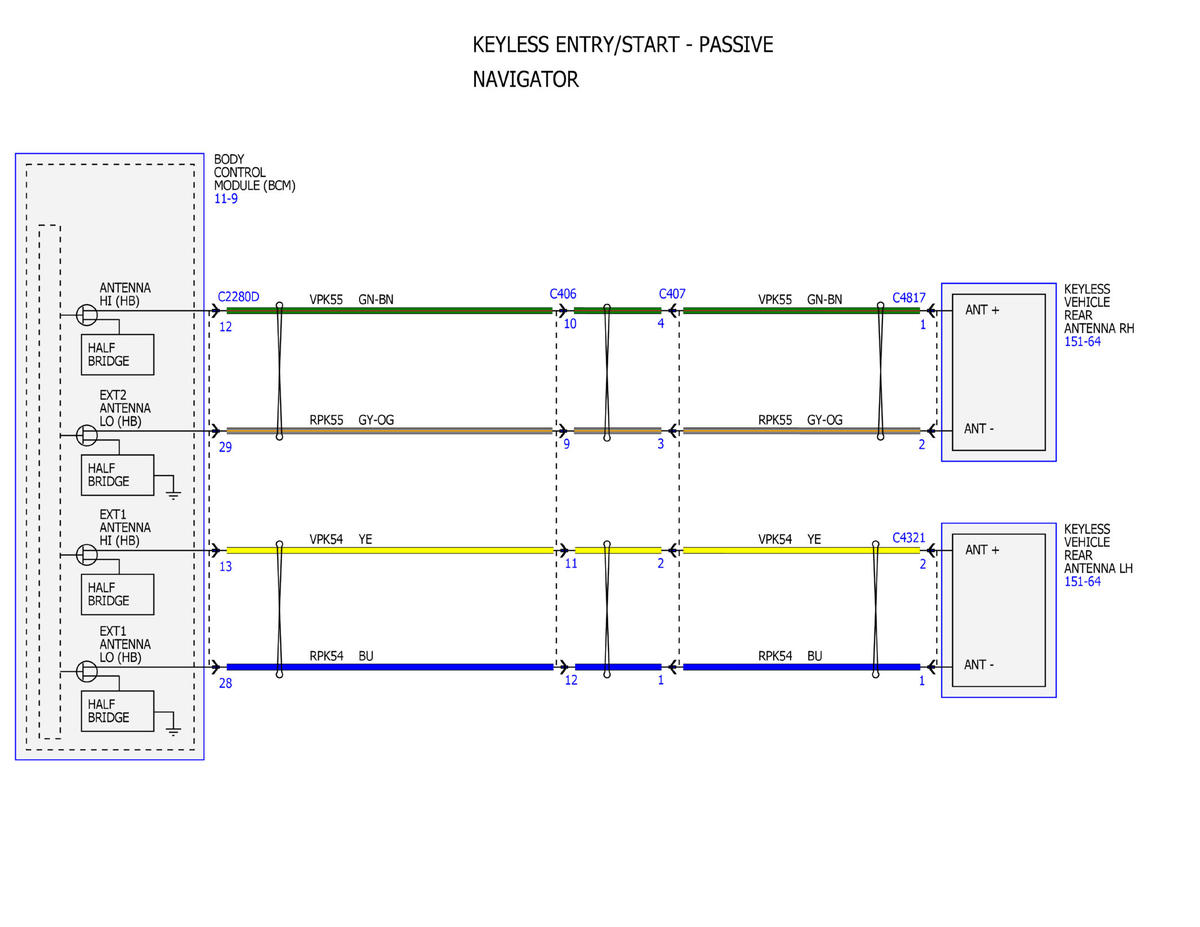

Fig 6: Passive Anti-Theft System Wiring Diagrams (6 Of 7)
Courtesy of FORD MOTOR COMPANY

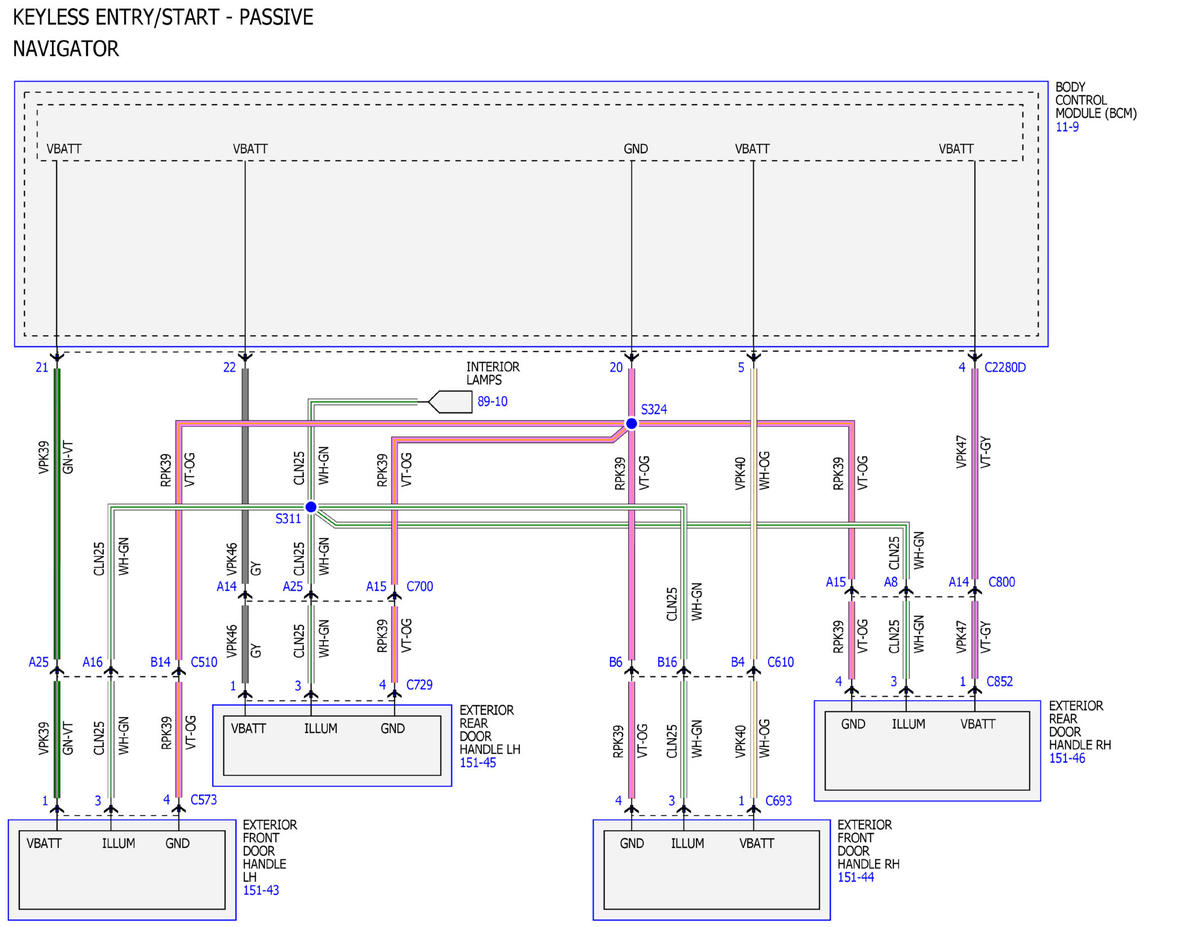

Fig 7: Passive Anti-Theft System Wiring Diagrams (7 Of 7)
