Component Testing

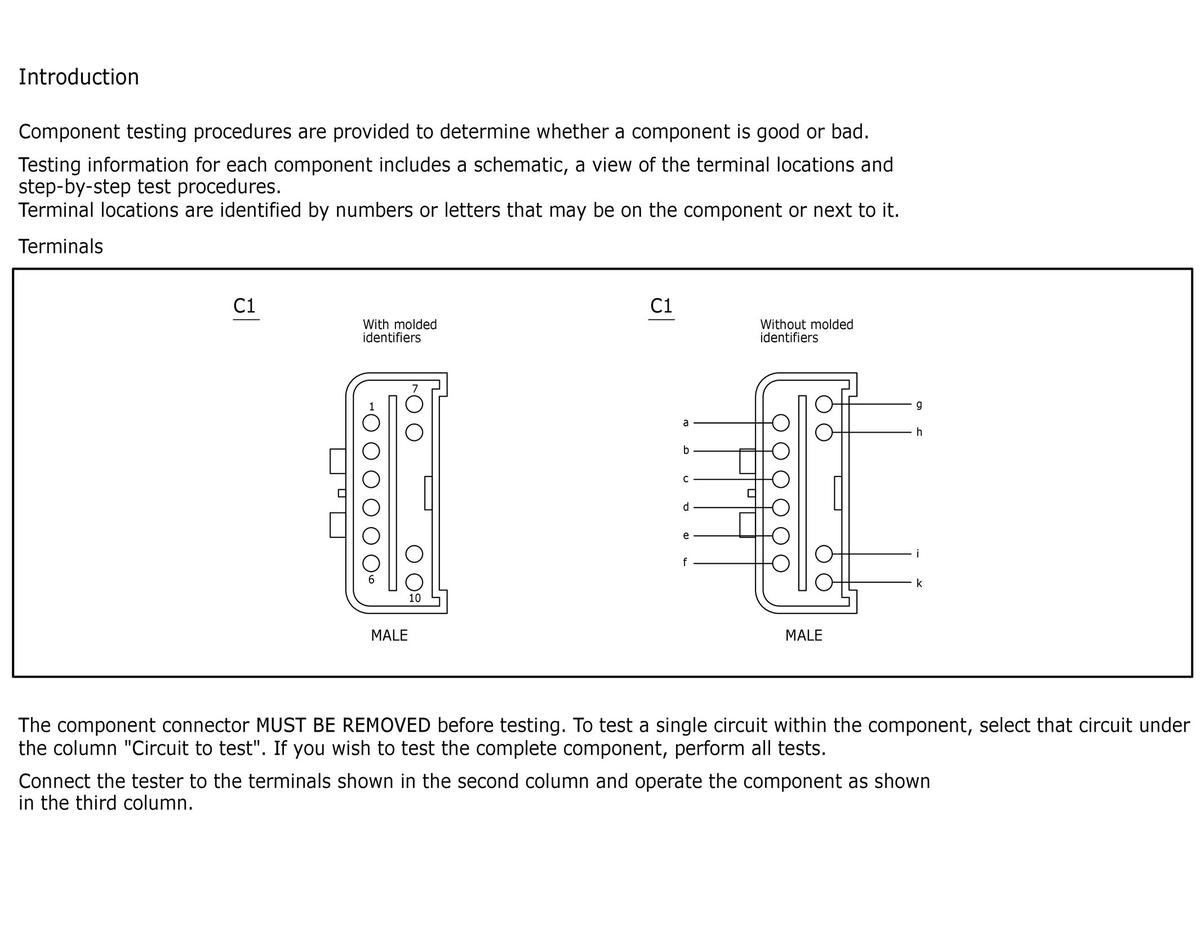

Fig 1: Introduction Component Testing

Courtesy of FORD MOTOR COMPANY

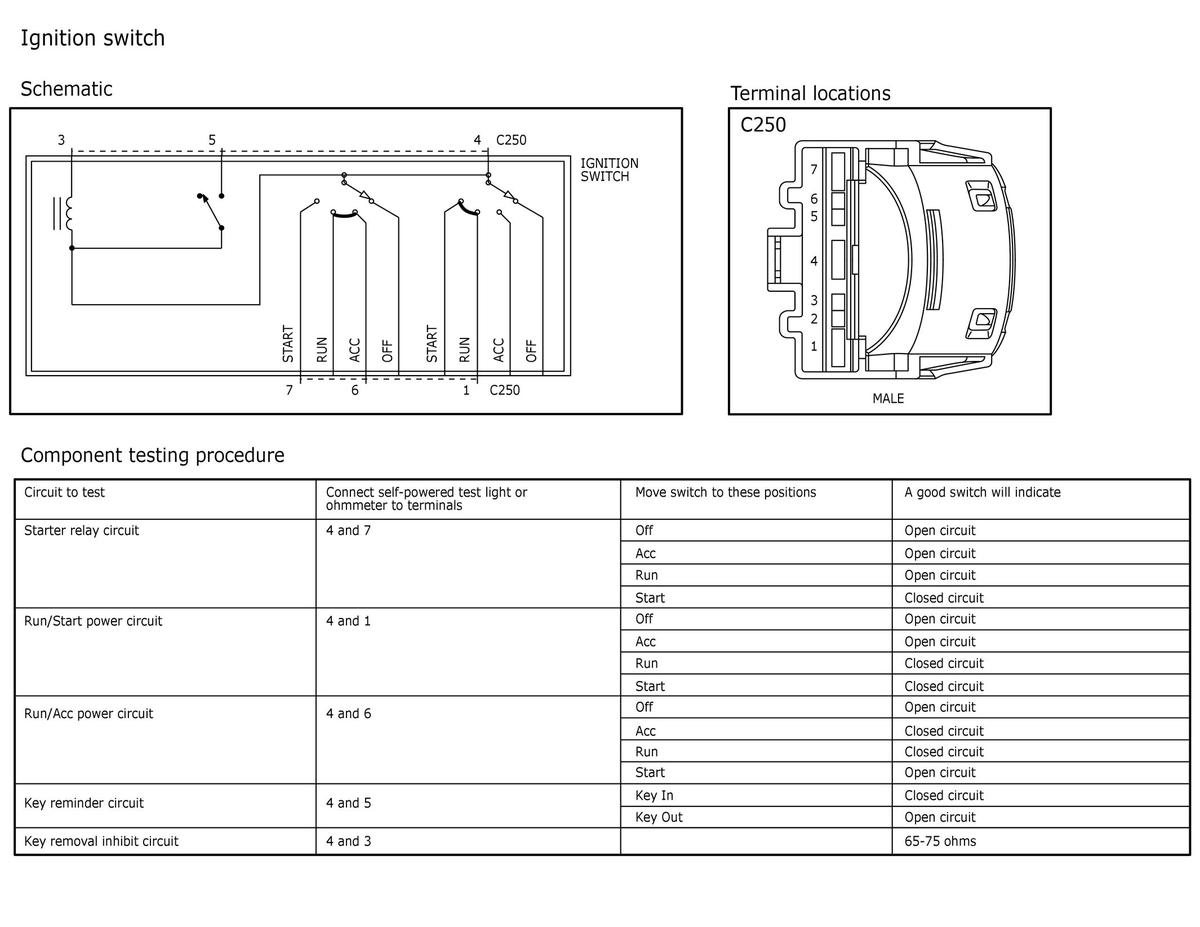

Fig 2: Ignition Switch Component Testing

Courtesy of FORD MOTOR COMPANY

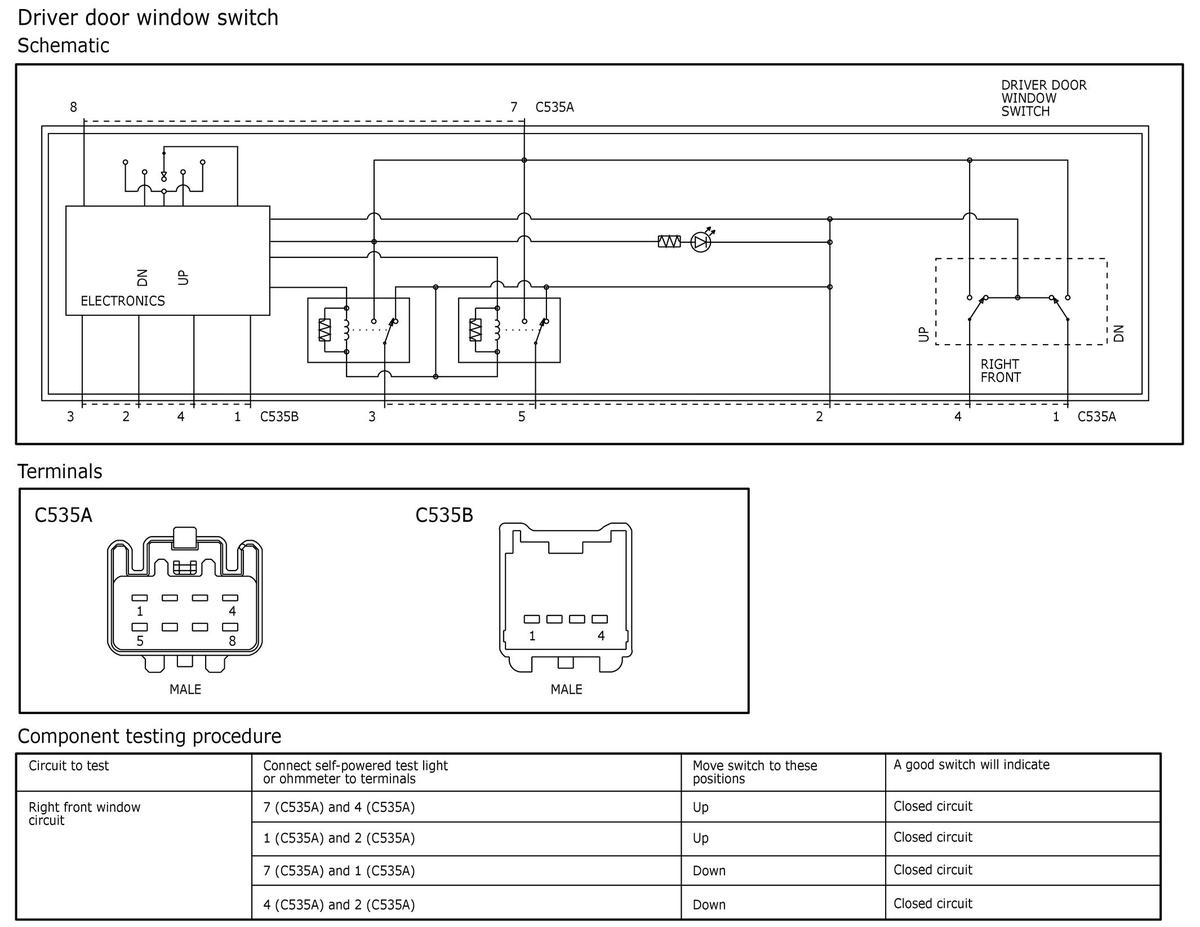

Fig 3: Driver Door Window Switch Component Testing

Courtesy of FORD MOTOR COMPANY

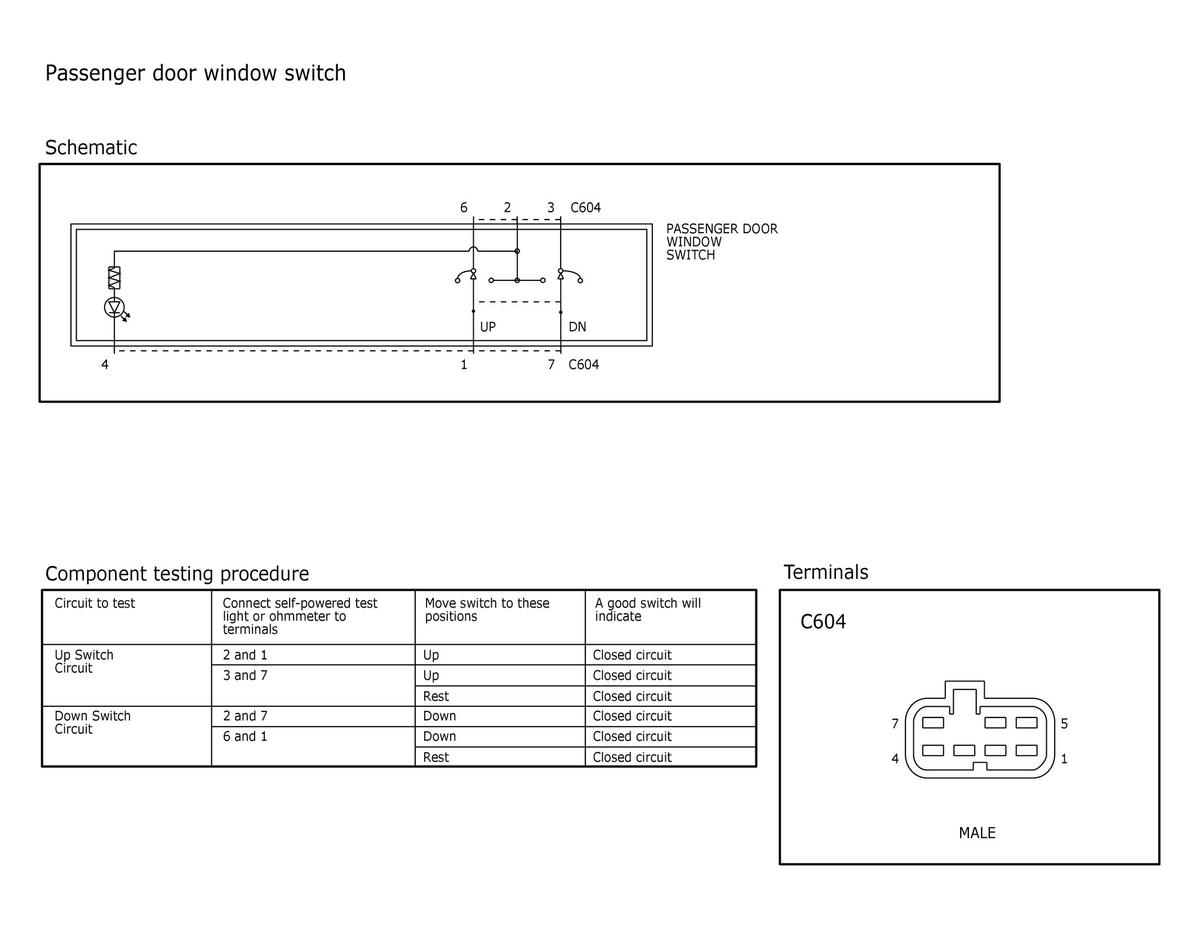

Fig 4: Passenger Door Window Switch Component Testing

Courtesy of FORD MOTOR COMPANY

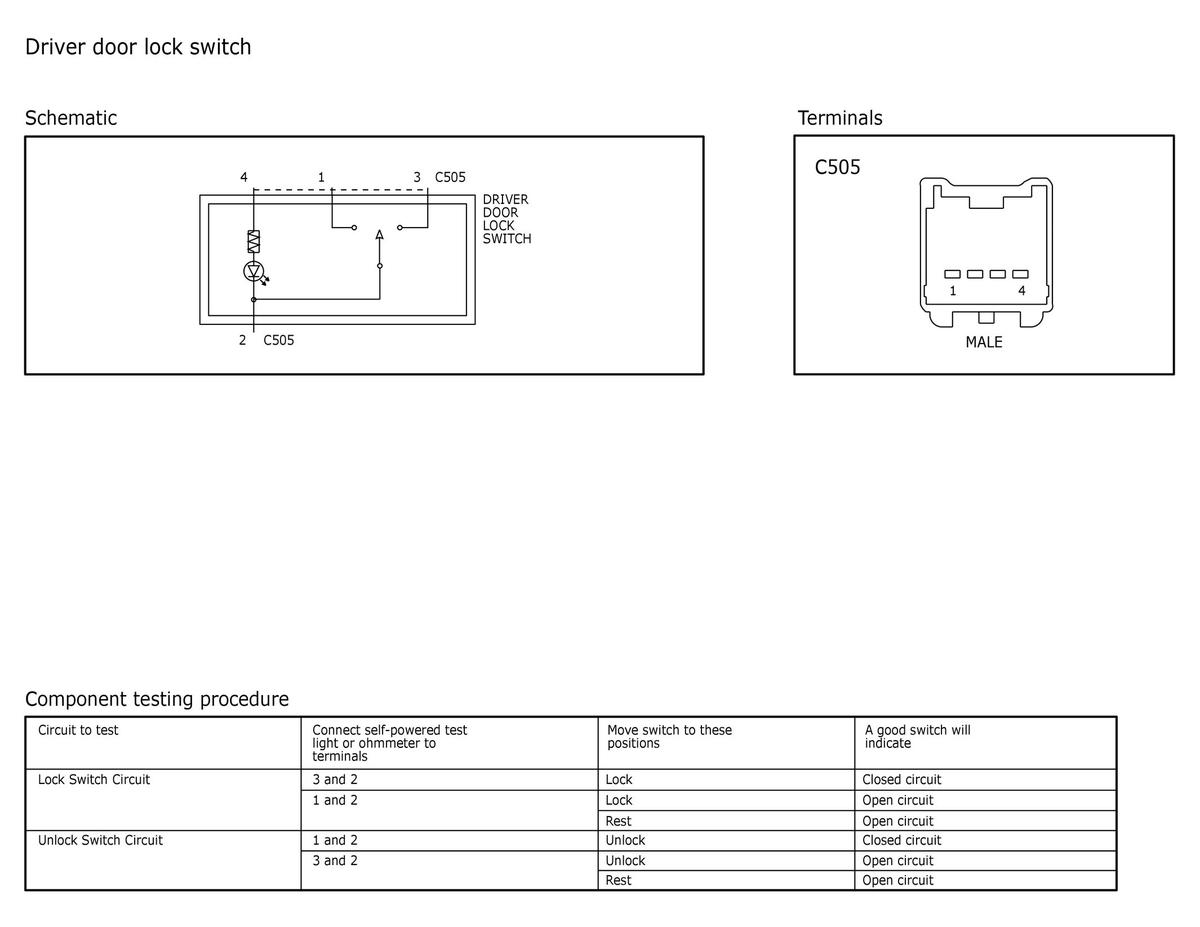

Fig 5: Driver Door Lock Switch Component Testing

Courtesy of FORD MOTOR COMPANY

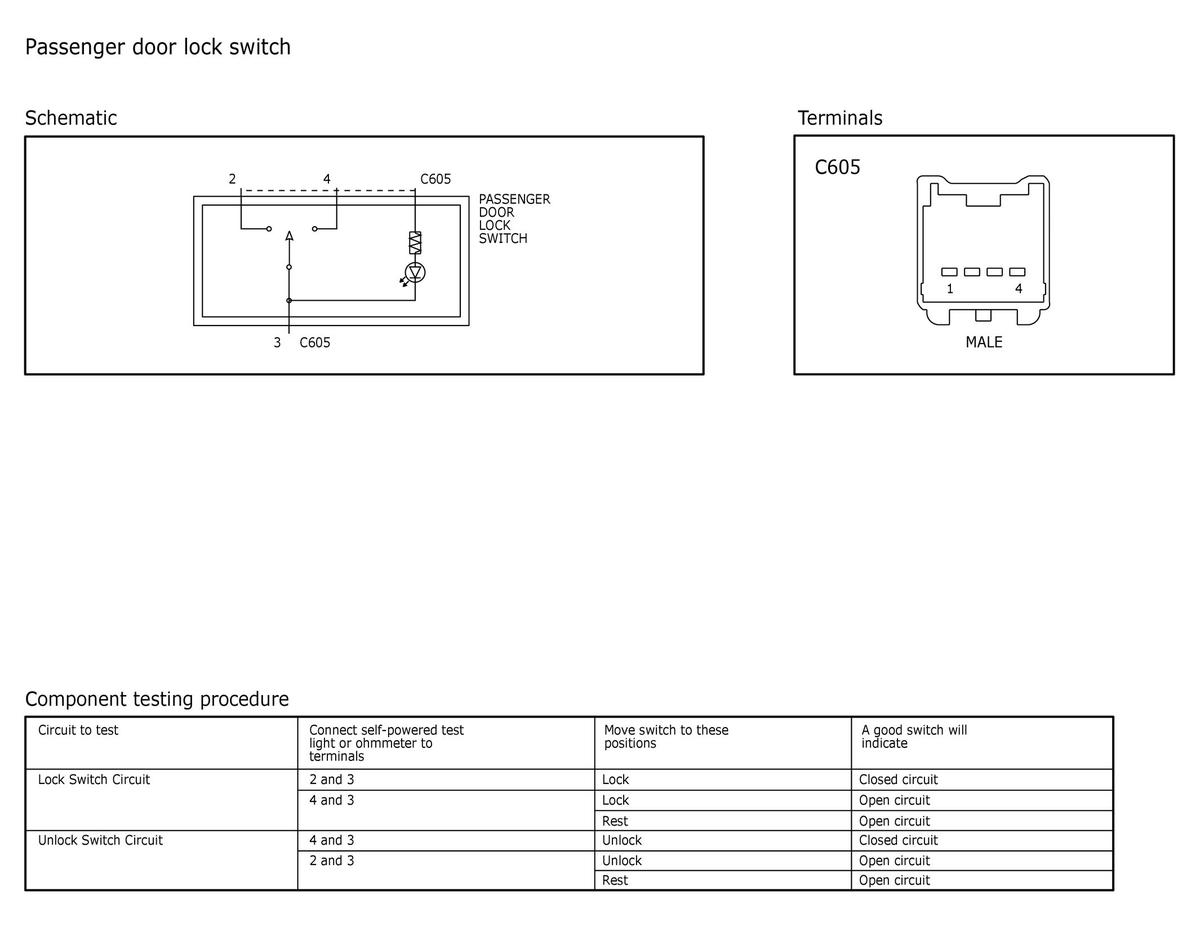

Fig 6: Passenger Door Lock Switch Component Testing

Courtesy of FORD MOTOR COMPANY

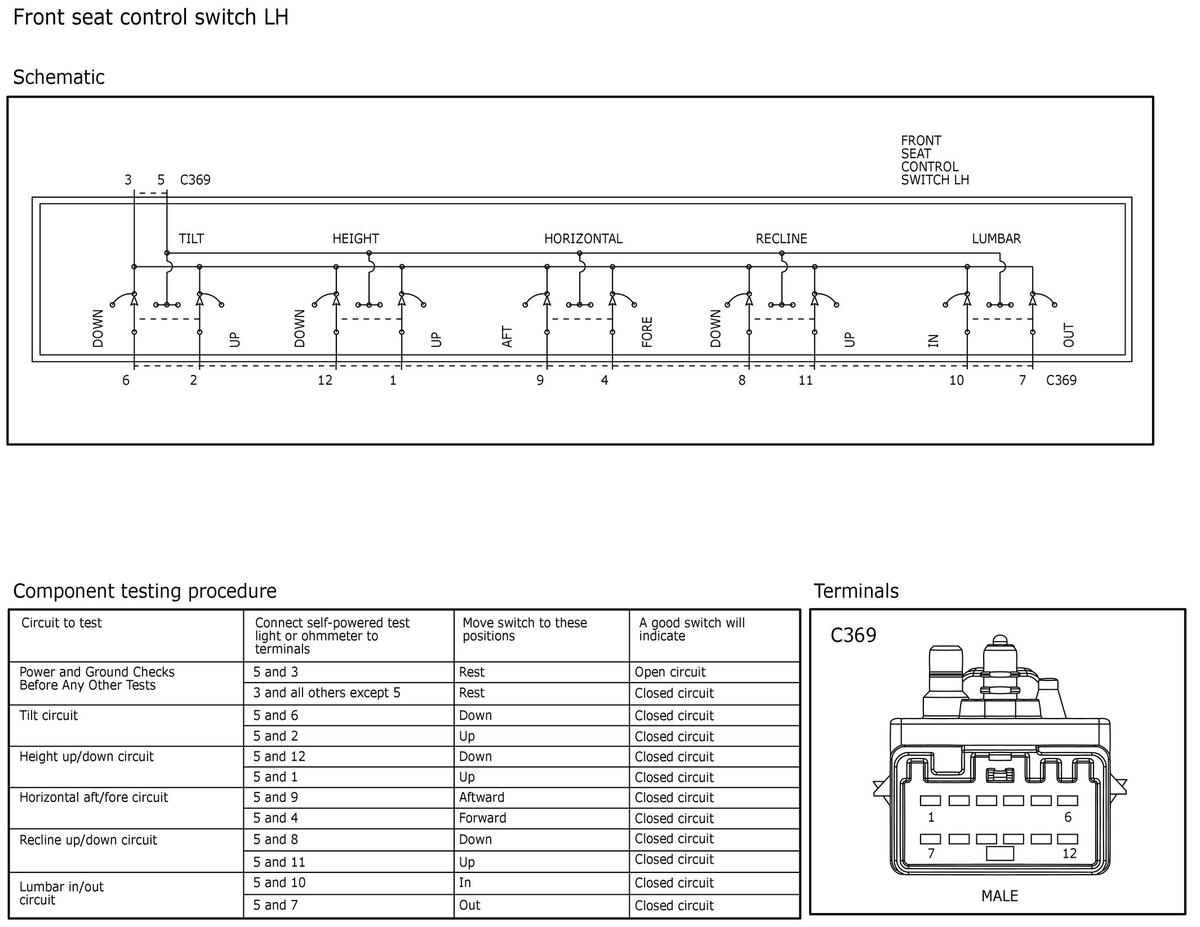

Fig 7: Front Seat Control Switch LH Component Testing

Courtesy of FORD MOTOR COMPANY

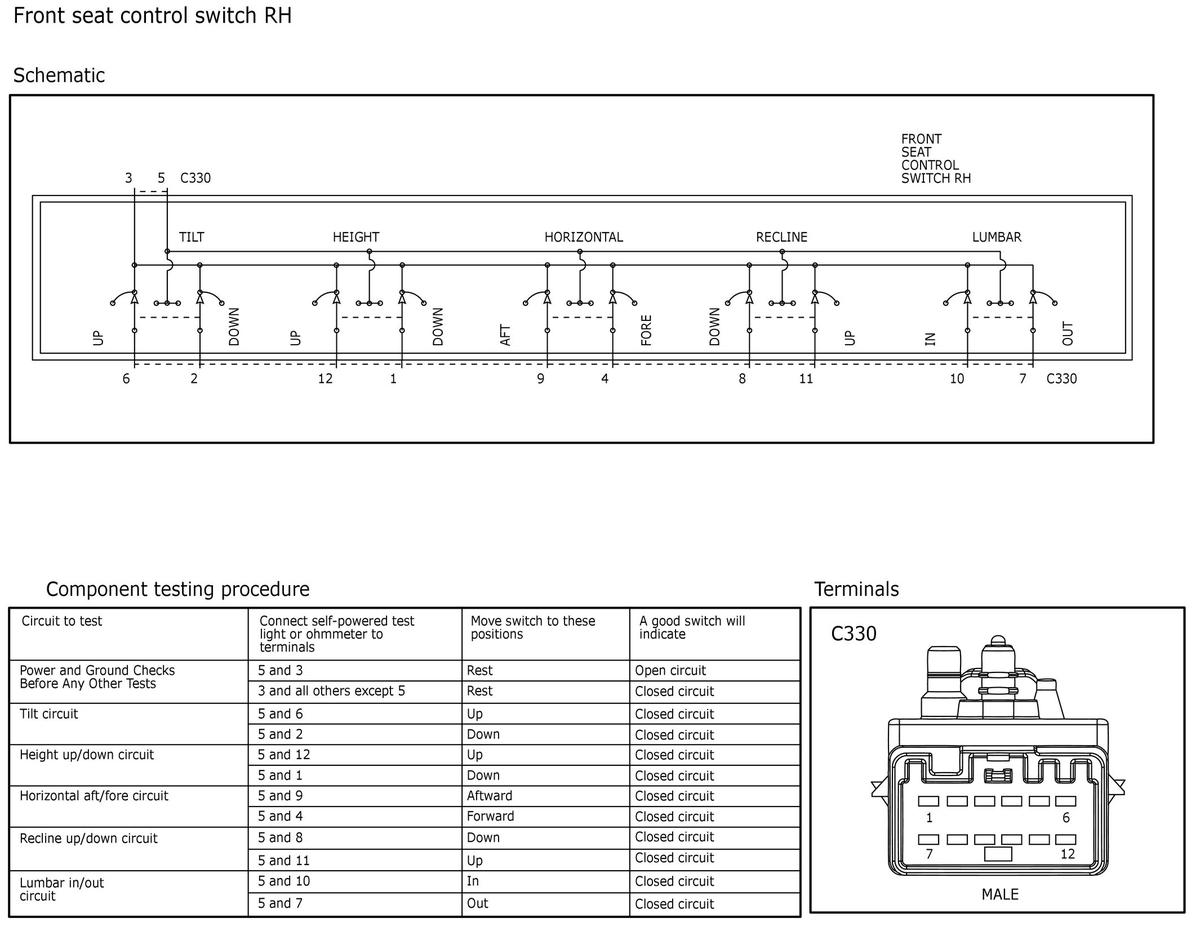

Fig 8: Front Seat Control Switch RH Component Testing

Courtesy of FORD MOTOR COMPANY

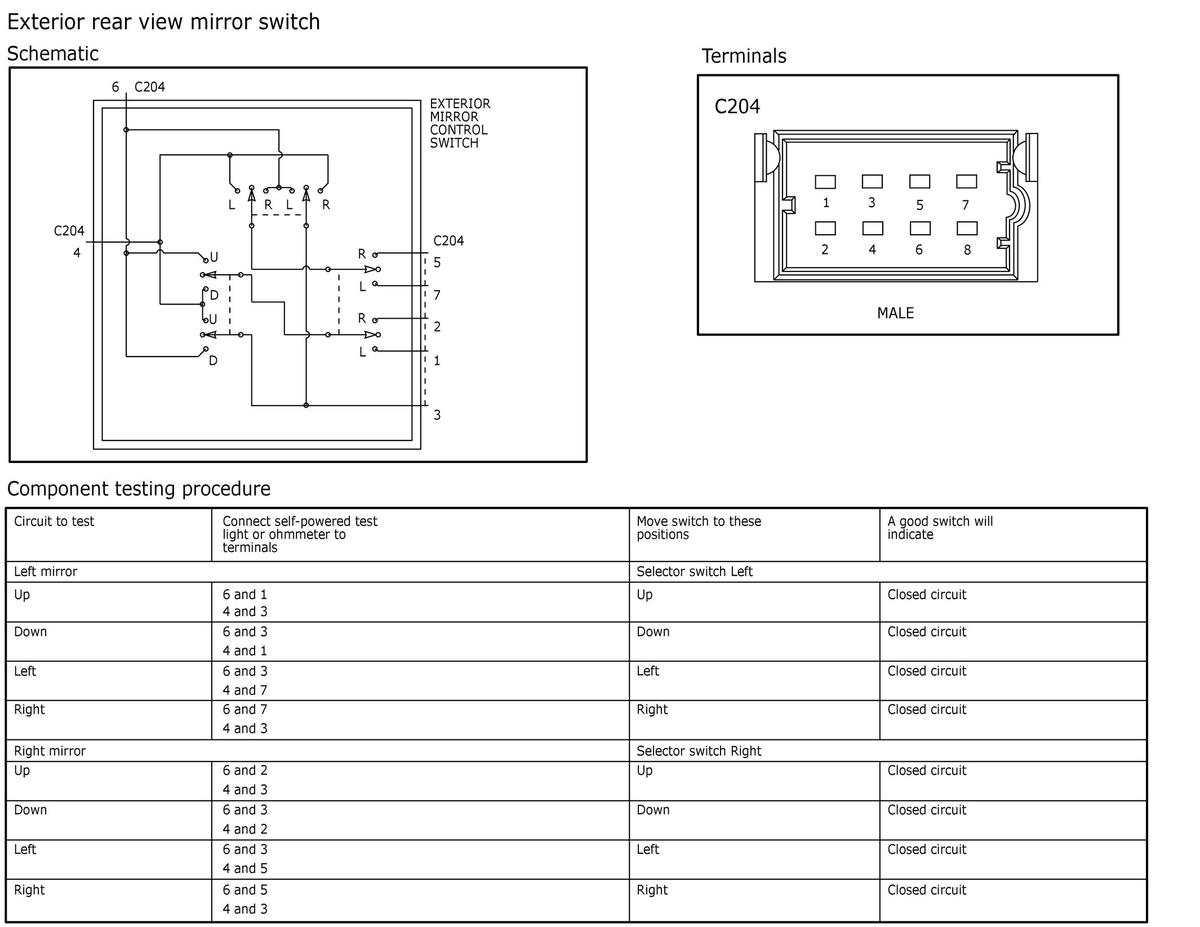

Fig 9: Exterior Rear View Mirror Switch Component Testing

Courtesy of FORD MOTOR COMPANY

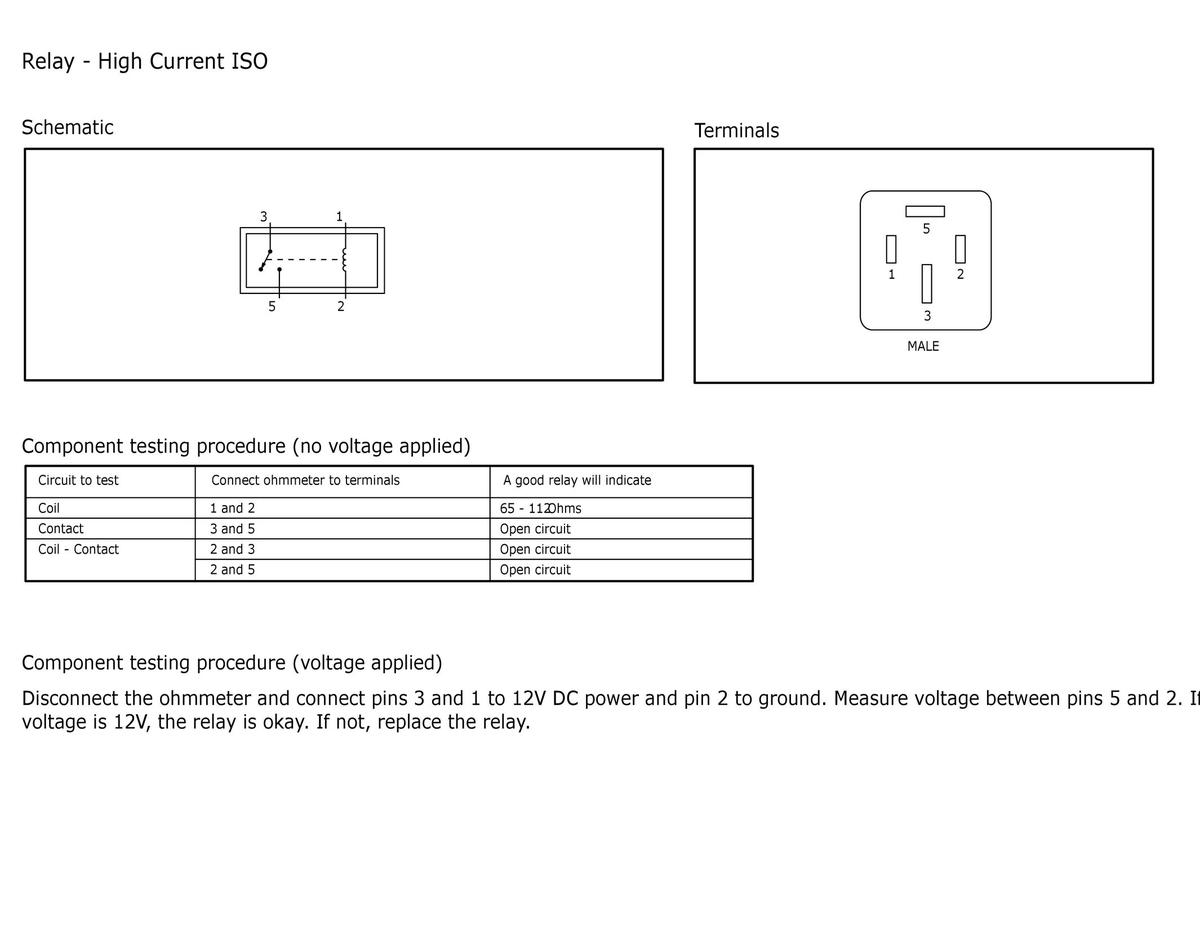

Fig 10: Relay - High Current ISO Component Testing

Courtesy of FORD MOTOR COMPANY

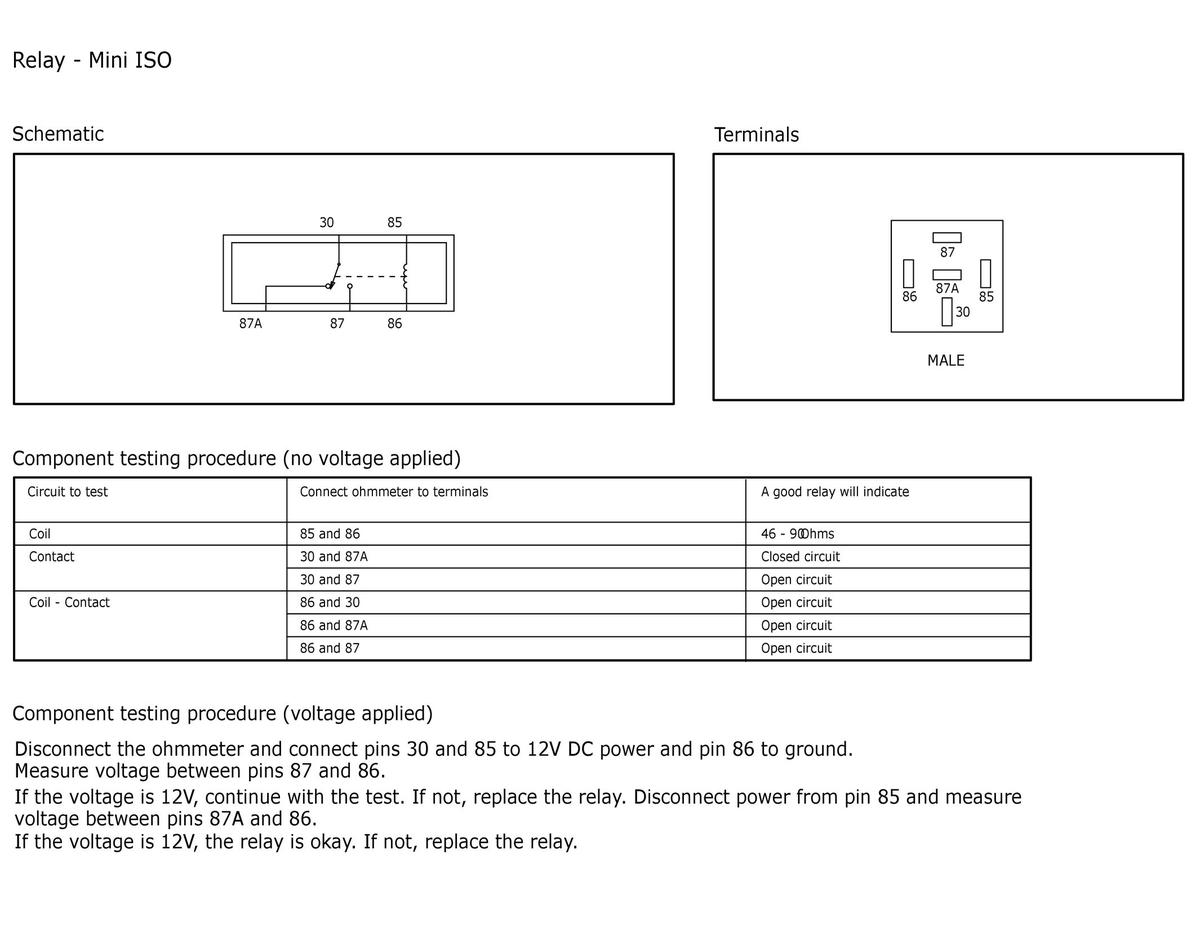

Fig 11: Relay - Mini ISO Component Testing

Courtesy of FORD MOTOR COMPANY

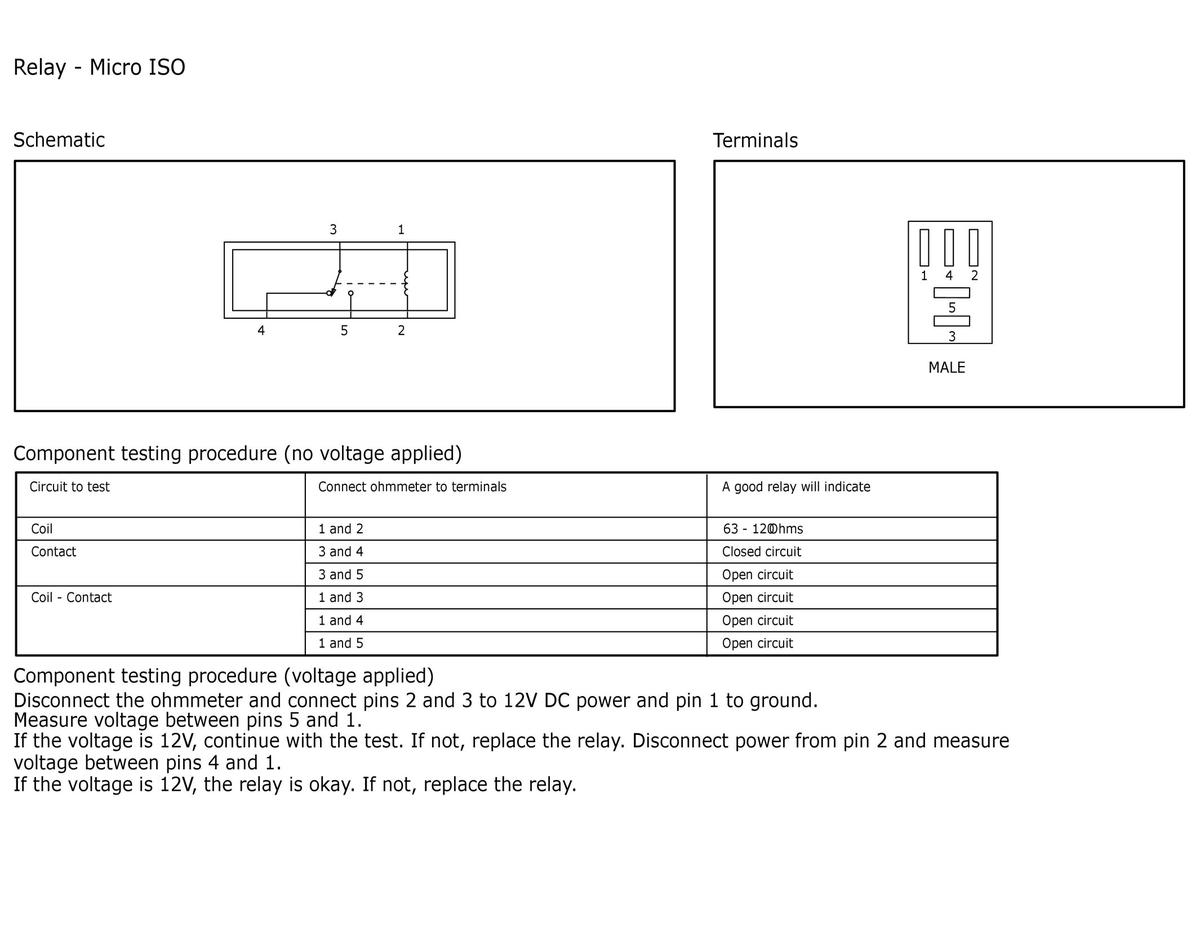

Fig 12: Relay - Micro ISO Component Testing

Courtesy of FORD MOTOR COMPANY
