Body Control Module (BCM): Removal

NOTE: Modules are not interchangeable between vehicles.
NOTE: When installing a new junction box, make sure that the contents match those of the removed junction box.
  1. If installing a new BCM, connect a battery charger to the battery to make sure it is charged to maintain proper battery voltage. Refer to: BATTERY CHARGING
  2. NOTE: This step is only necessary when installing a new component.

    Download the module information to the diagnostic tool using the Programmable Modules Installation PMI routine.

    General Equipment

    : Forddiagnostic scan tool

  3. Refer to: GENERAL PROCEDURES .
  4. Release the clips and remove the trim panel.

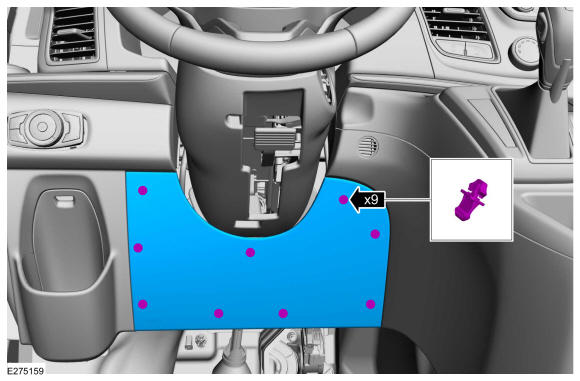

    GFD786481Courtesy of FORD MOTOR COMPANY
  5. Remove the cup holder assembly.

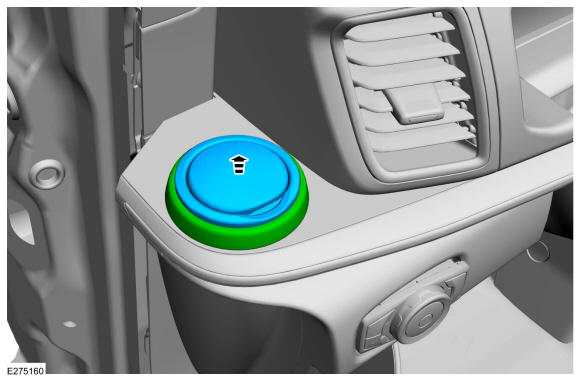

    GFD787550Courtesy of FORD MOTOR COMPANY
  6. Release the clip and remove the trim panel.

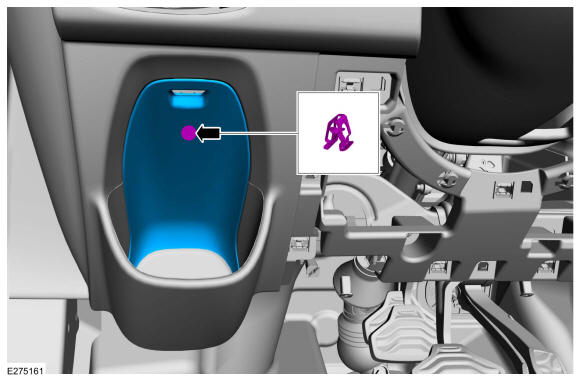

    GFD787552Courtesy of FORD MOTOR COMPANY
  7. Remove the retainers.

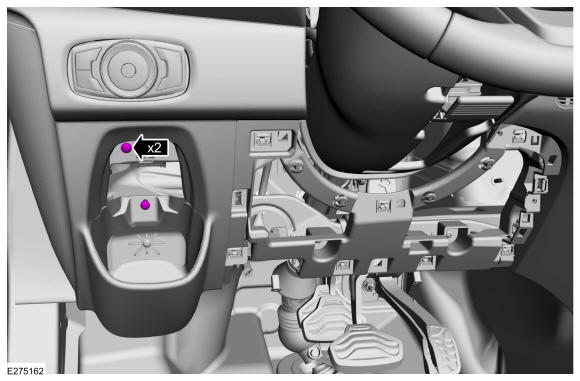

    GFD787553Courtesy of FORD MOTOR COMPANY

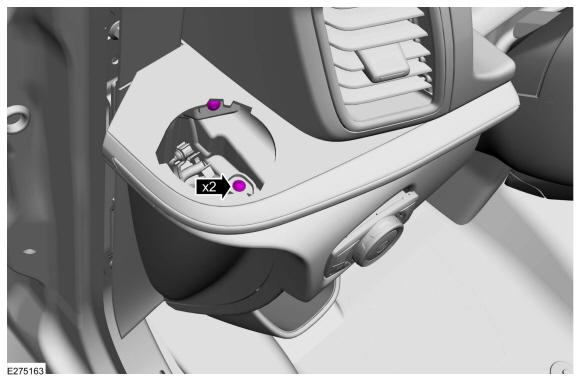

  8. Remove the retainers.
    GFD787551Courtesy of FORD MOTOR COMPANY
  9. Release the clips and position the LH trim panel to access the electrical connector.

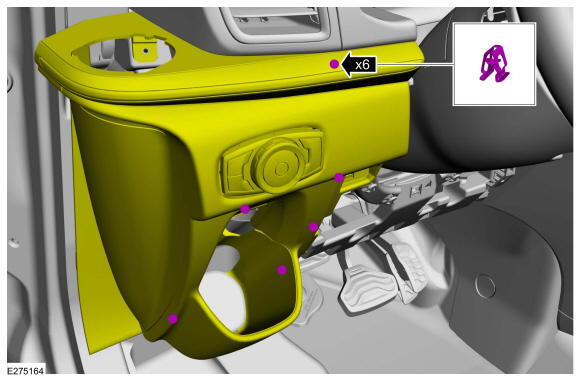

    GFD787811Courtesy of FORD MOTOR COMPANY
  10. Remove the screws and the panel.

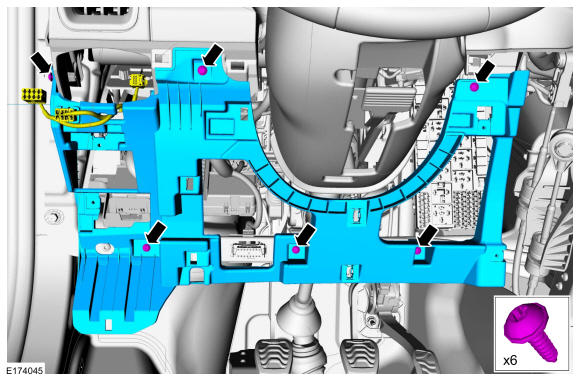

    GFD787812Courtesy of FORD MOTOR COMPANY
  11. Disconnect the BCM electrical connectors and wire harness retainers.

    1. Disconnect the BCM electrical connectors.
    2. Detach the BCM wiring harness retainers and position them aside.

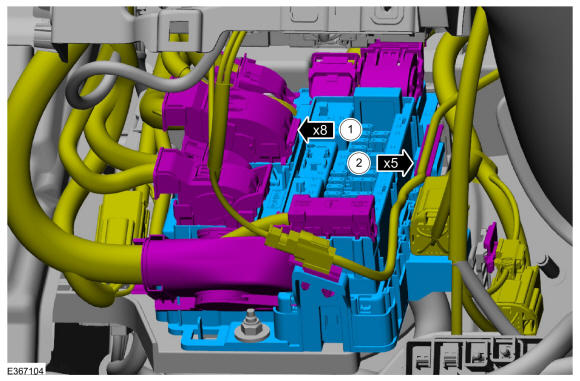

    GFD787813Courtesy of FORD MOTOR COMPANY
  12. Remove the BCM.

    1. Remove the bracket nut.

      Torque: 48 lb.in (5.4 Nm)

    2. Release the tab and by slightly lifting up, remove the BCM.

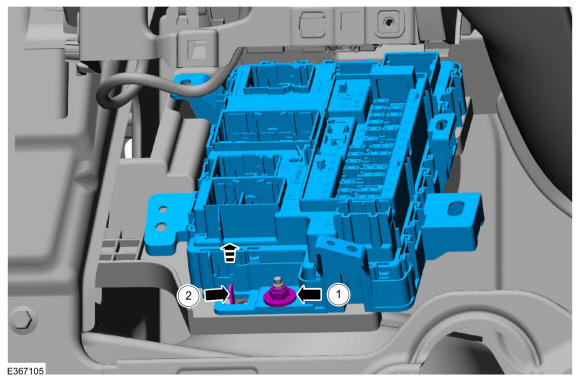

GFD787814Courtesy of FORD MOTOR COMPANY
