Component Testing: Relays

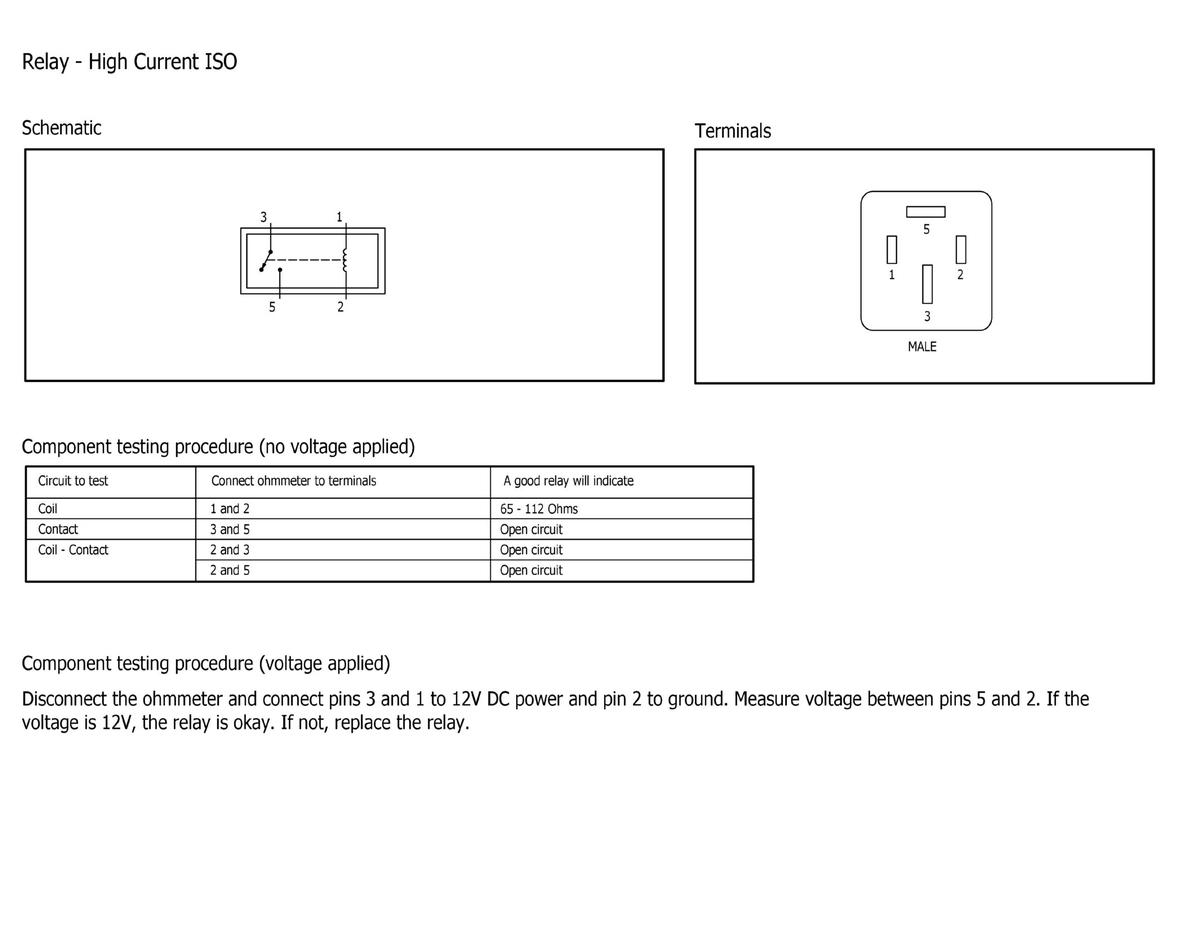

Fig 1: Relay - High Current ISO
GFDWR157760Courtesy of FORD MOTOR COMPANY

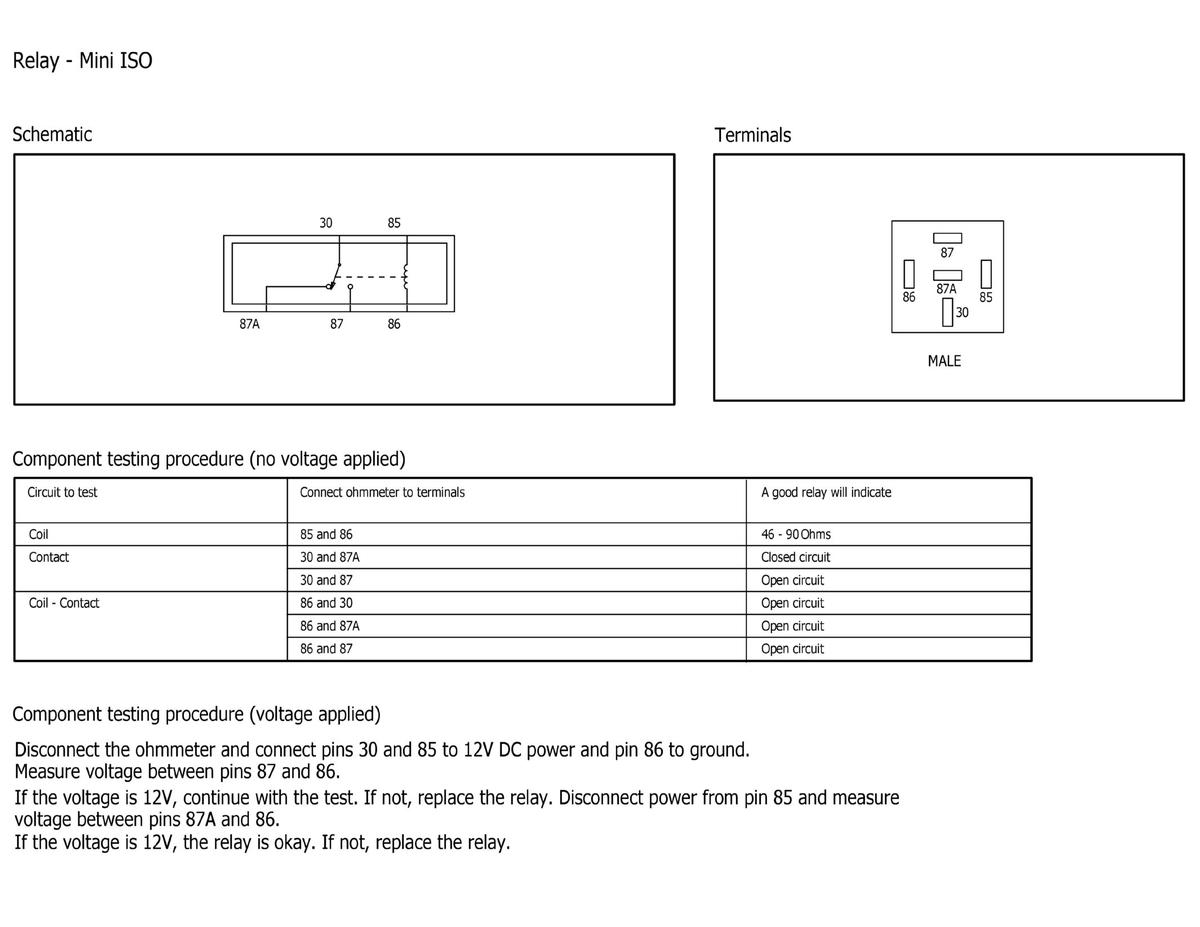

Fig 2: Relay - Mini ISO
GFDWR157761Courtesy of FORD MOTOR COMPANY

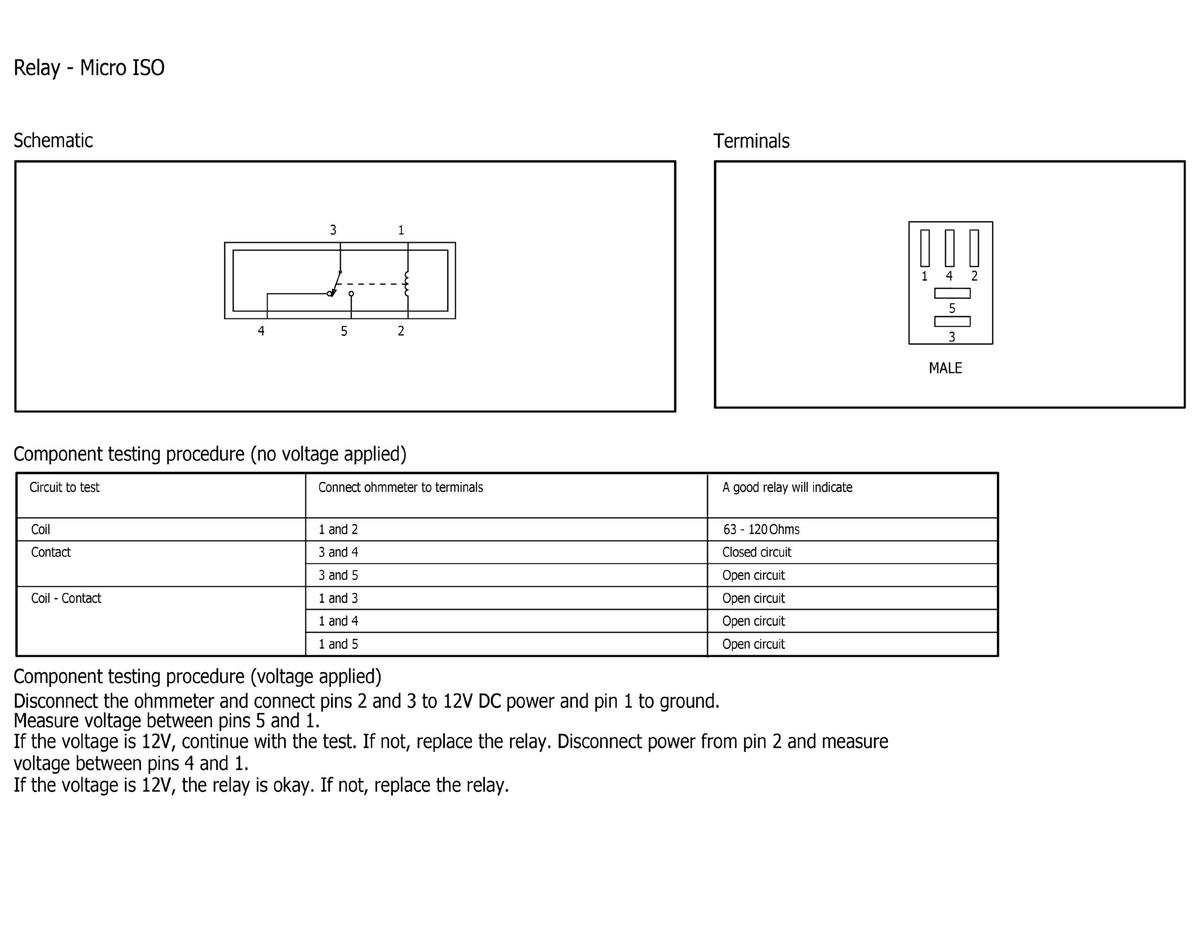

Fig 3: Relay - Micro ISO
GFDWR157762Courtesy of FORD MOTOR COMPANY
