Component Testing
>>
Door Window Switch
Door Window Switch

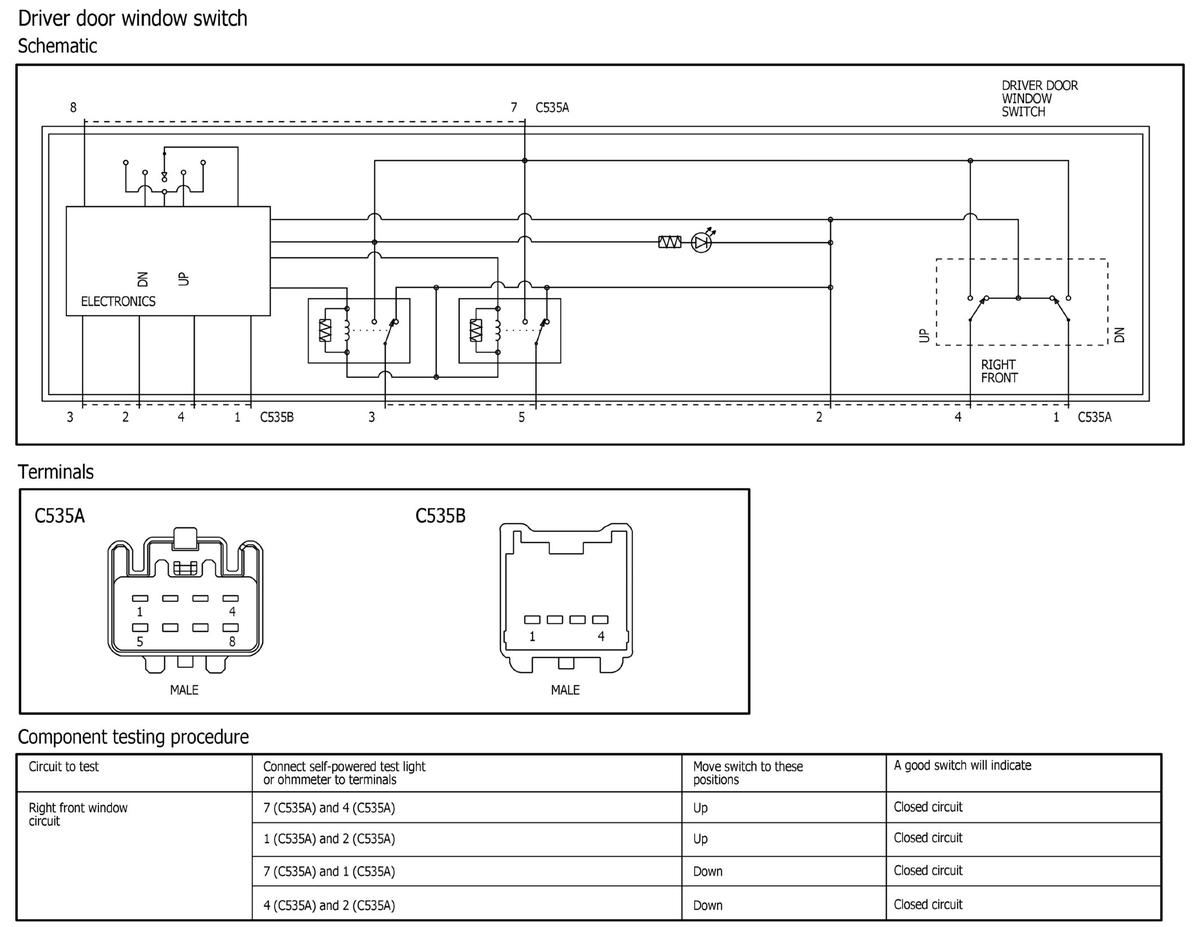

Fig 1: Driver Door Window Switch
Courtesy of FORD MOTOR COMPANY

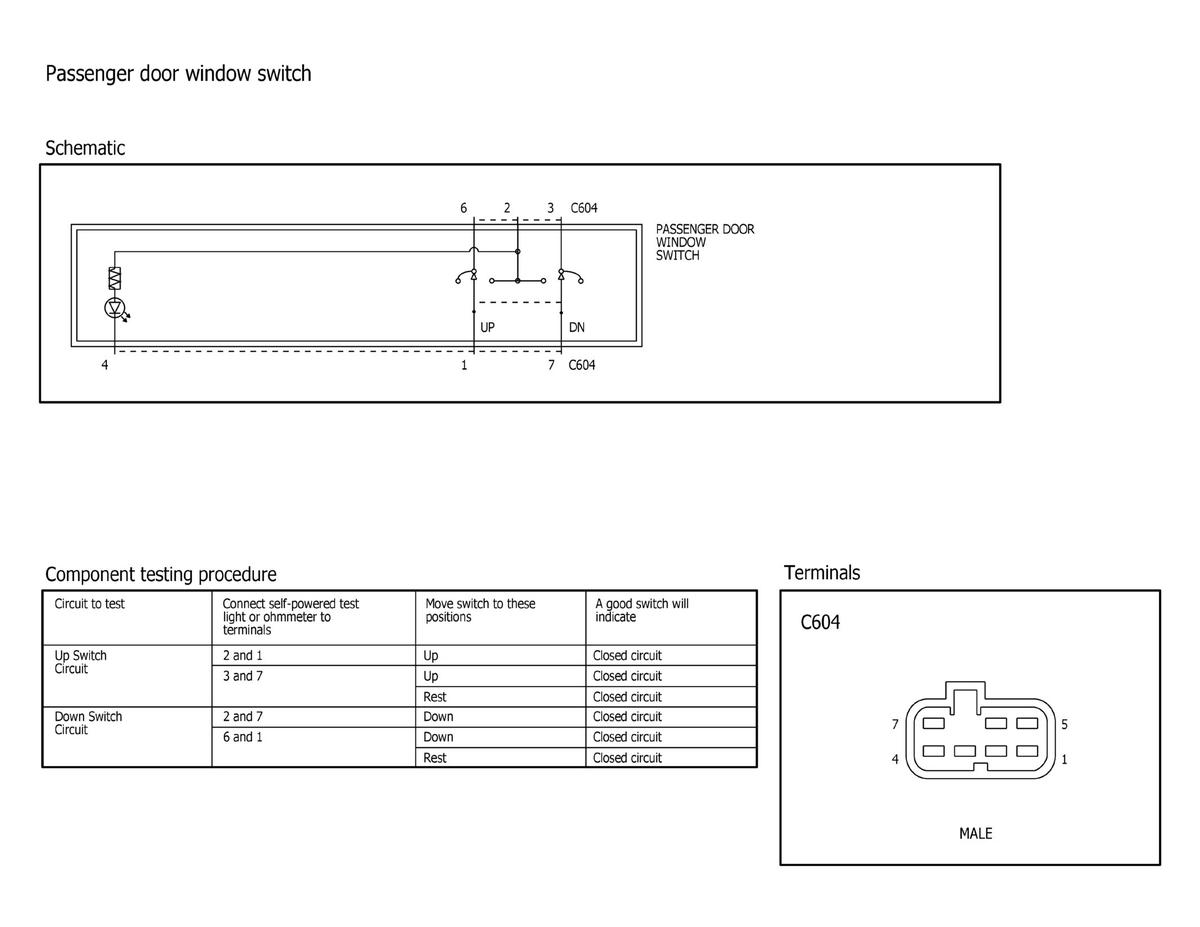

Fig 2: Passenger Door Window Switch
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
