Side Obstacle Detection Control Module D (SODCMD): Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the front bumper cover. Refer to: Front Bumper Cover .
Remove the horn. Refer to: Horn .

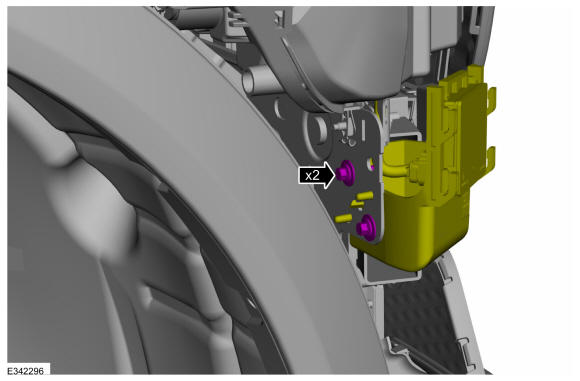

Remove the screws and position the SODCMD bracket aside.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

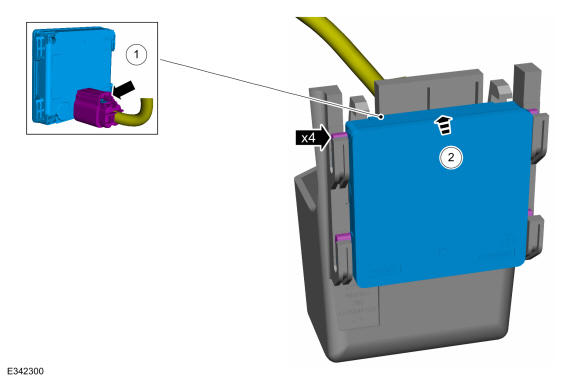

1. Disconnect the electrical connector.
2. Release the tabs and remove the SODCMD.

Courtesy of FORD MOTOR COMPANY
