Side Obstacle Detection Control Module (SODCM): Removal

Side obstacle detection control module

1. NOTE: This step is only necessary if the SODL or SODR is being replaced.

   Using a diagnostic scan tool, begin the PMI process for the SODL or SODR following the on-screen instructions.

2. Remove the rear bumper cover. Refer to: Rear Bumper Cover .

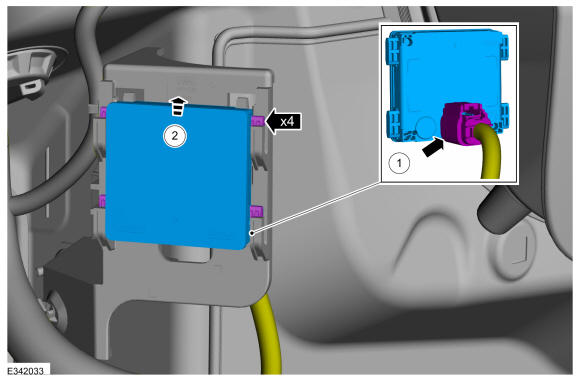

3. Remove the SODL or SODR.
   1. Disconnect the SODL or SODR electrical connector.
   2. Release the tabs and remove the SODL or SODR.

   Courtesy of FORD MOTOR COMPANY

   Side obstacle detection control module bracket

4. Remove the SODL or SODR.

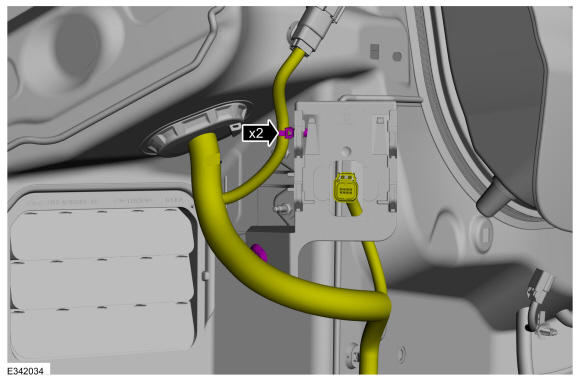

5. Disconnect the wiring harness retainers from the bracket.

   Courtesy of FORD MOTOR COMPANY

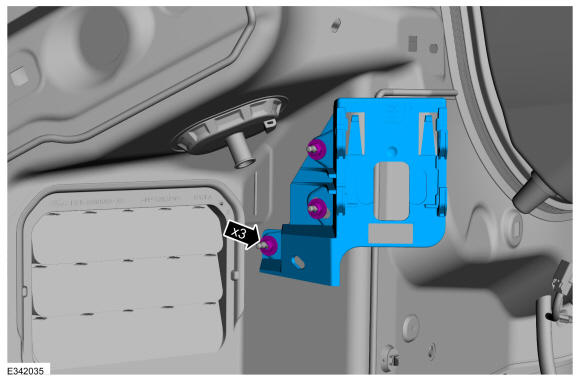

6. Remove the screws and the SODL or SODR bracket.

Courtesy of FORD MOTOR COMPANY
