Section 11 (OEM Ground Distribution): Grounds

WARNING: This page is about a different car, the 2020 Lincoln Corsair. However, it is still accessible from the selected car via links, so may be relevant.

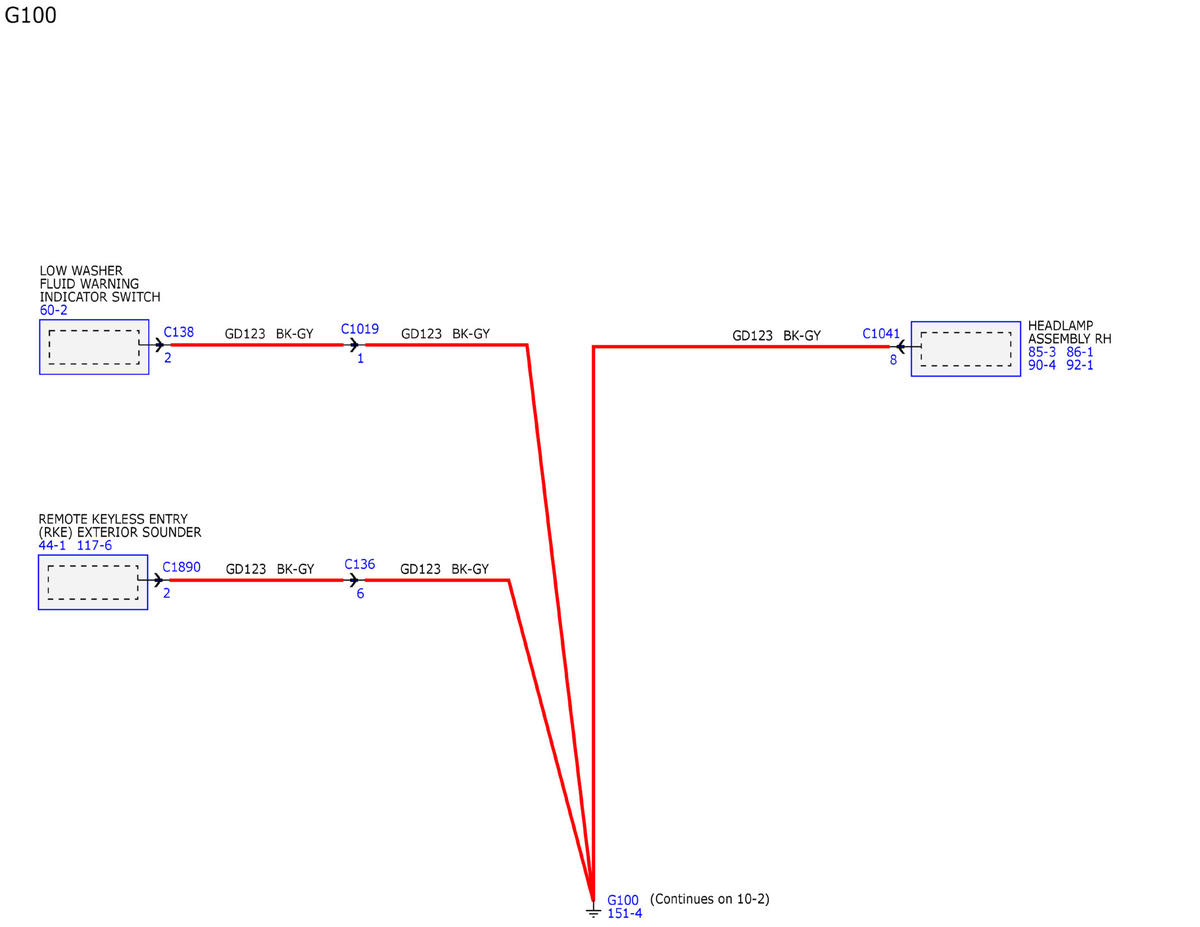

GFDWR117236Courtesy of FORD MOTOR COMPANY

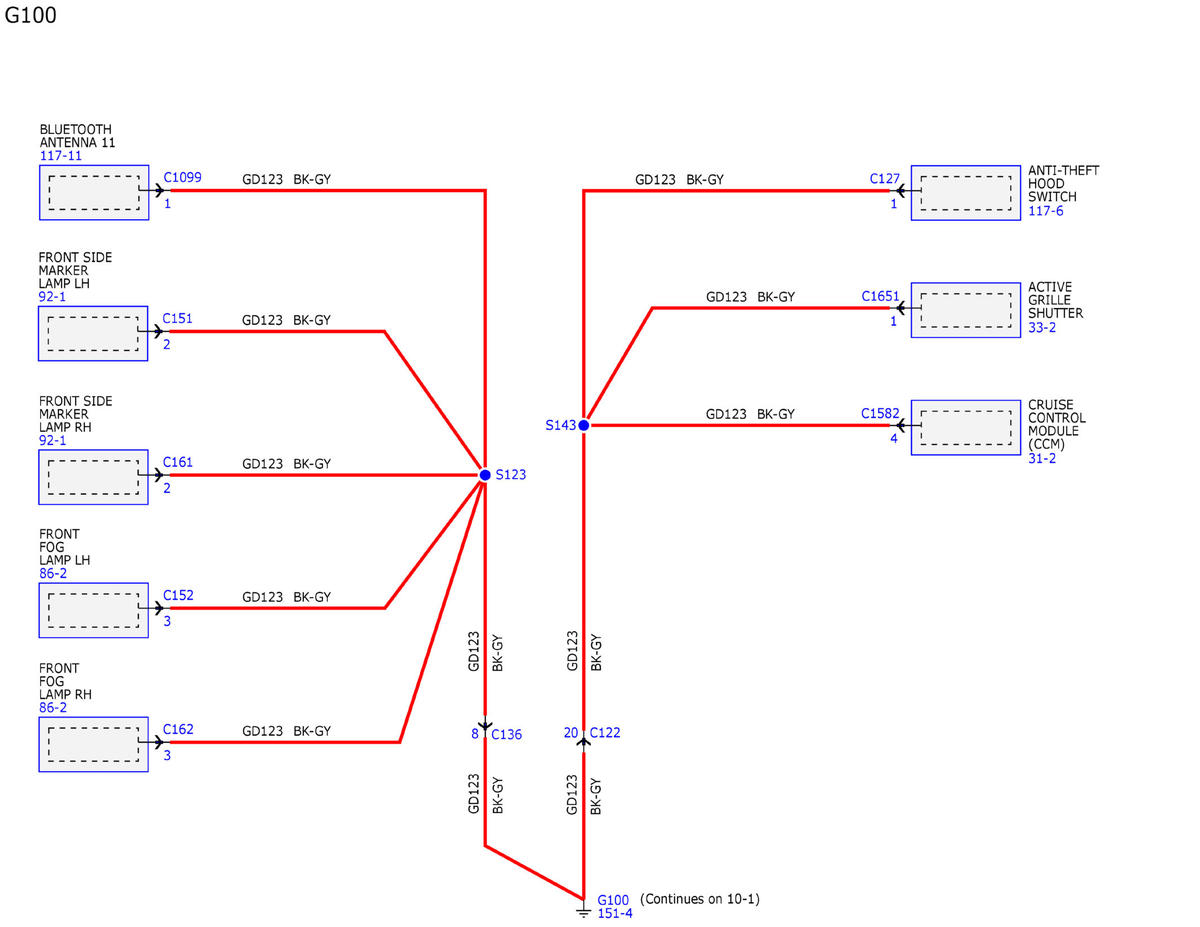

GFDWR117224Courtesy of FORD MOTOR COMPANY

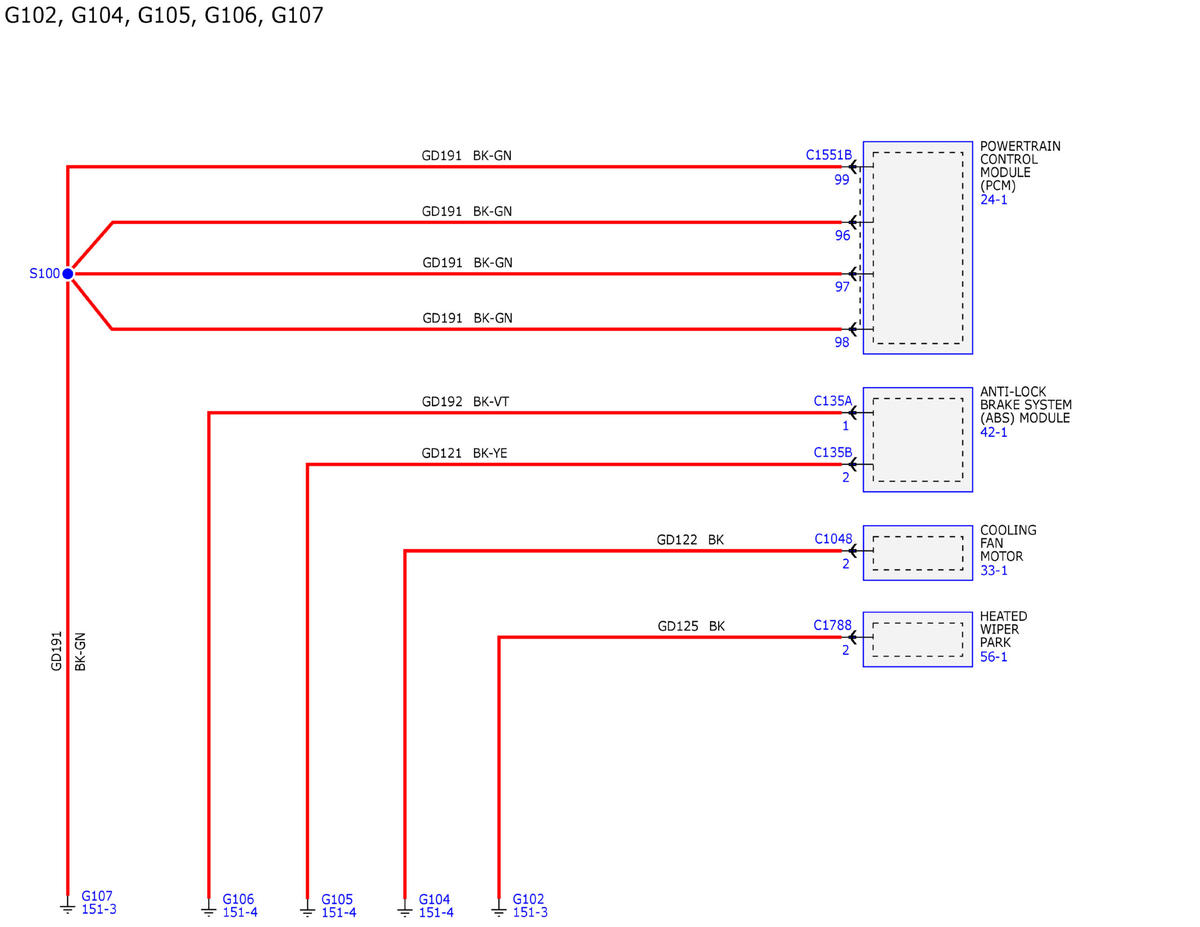

GFDWR117233Courtesy of FORD MOTOR COMPANY

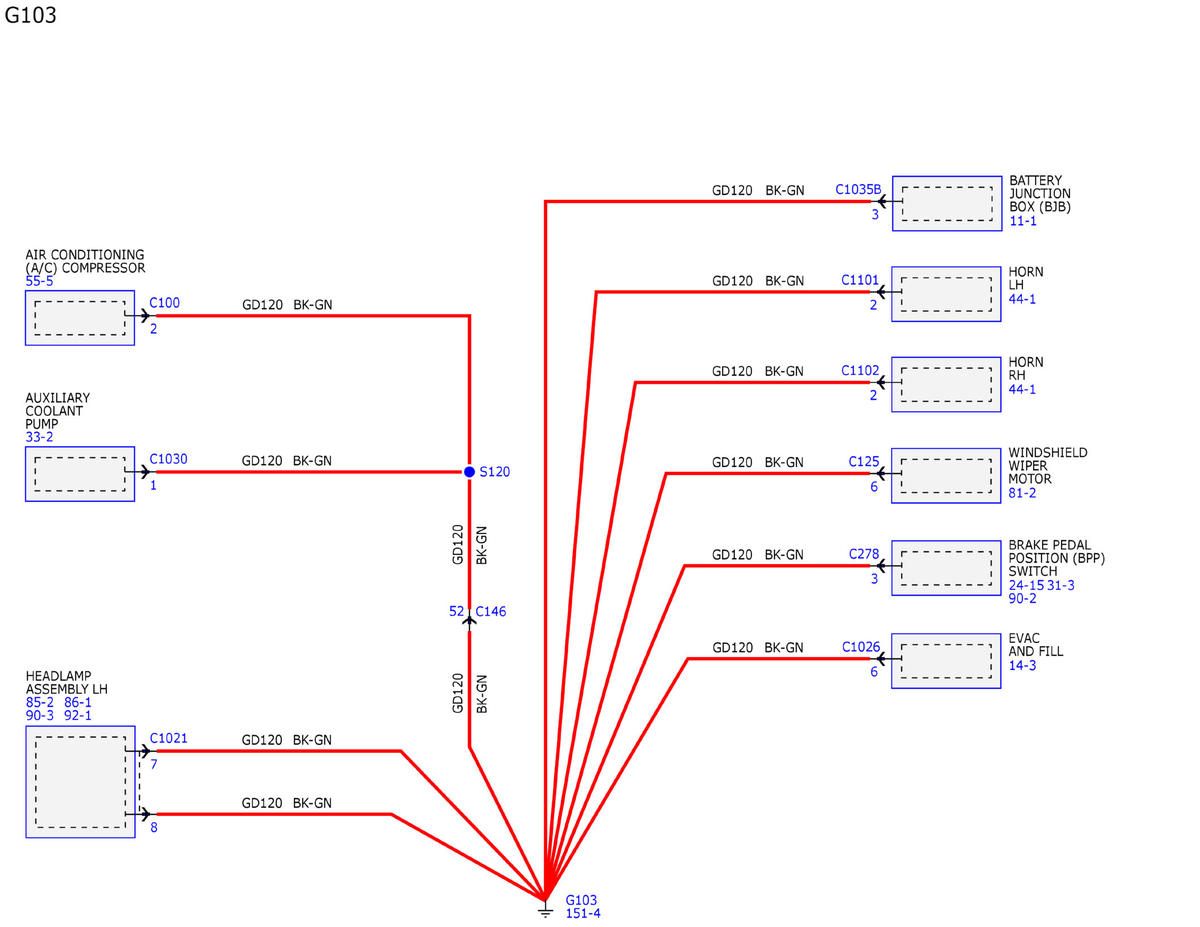

GFDWR117237Courtesy of FORD MOTOR COMPANY

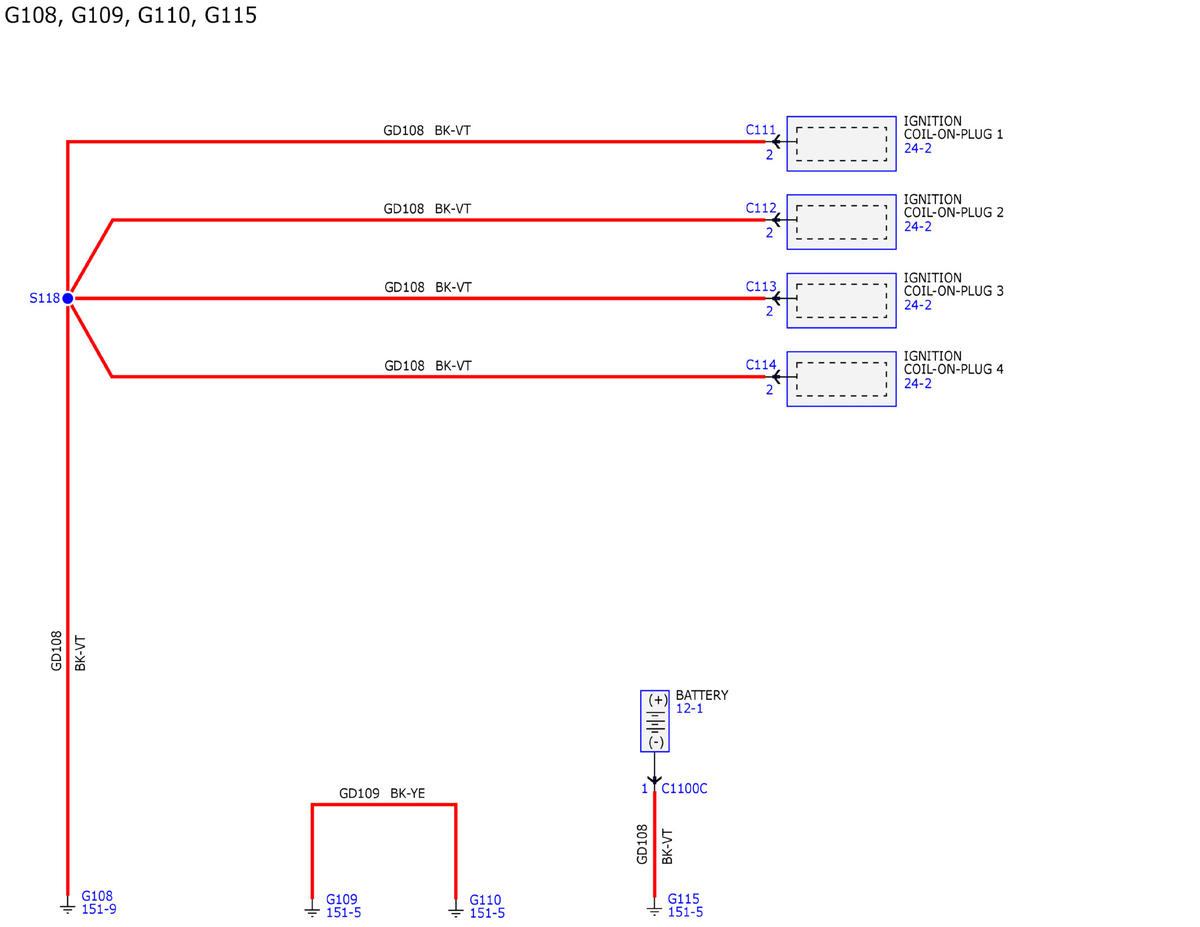

GFDWR117242Courtesy of FORD MOTOR COMPANY

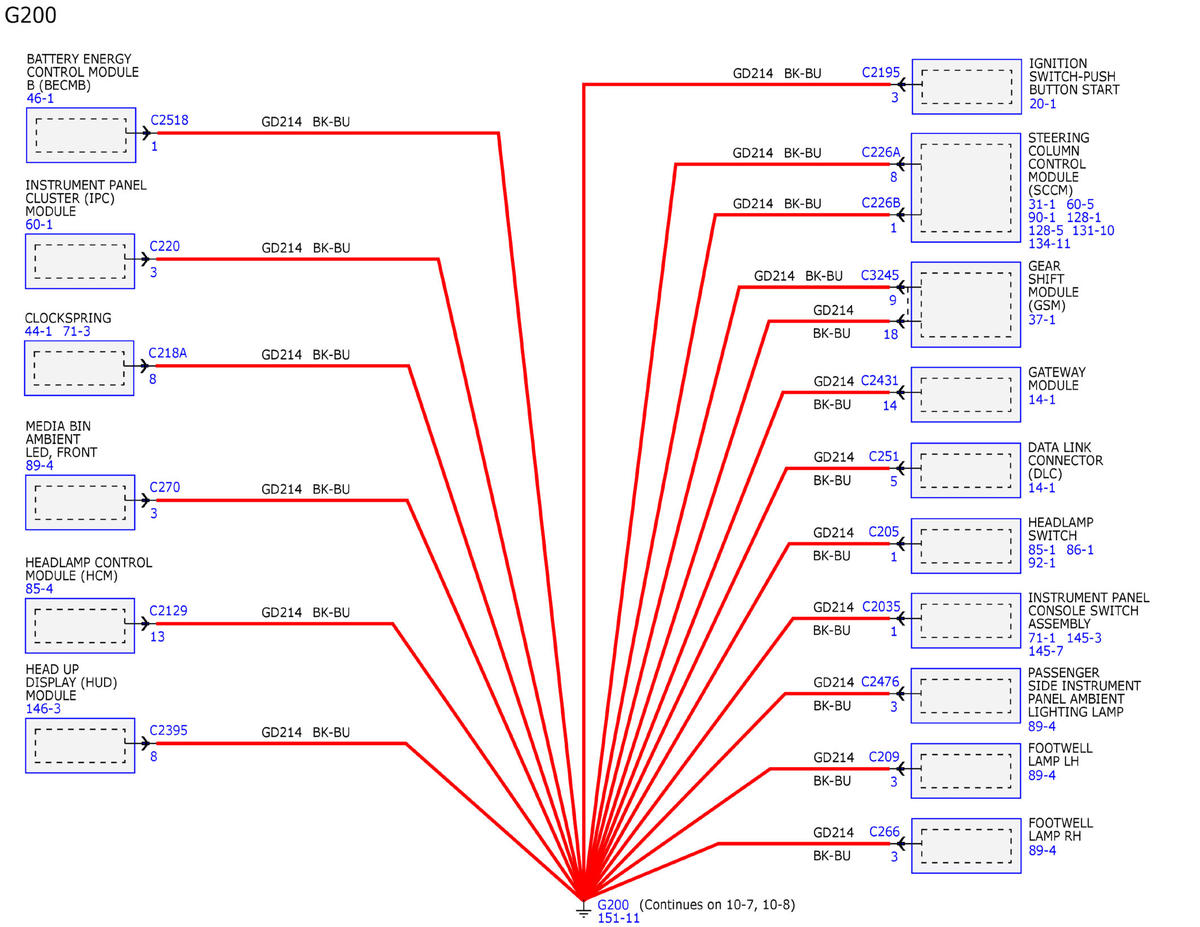

GFDWR117234Courtesy of FORD MOTOR COMPANY

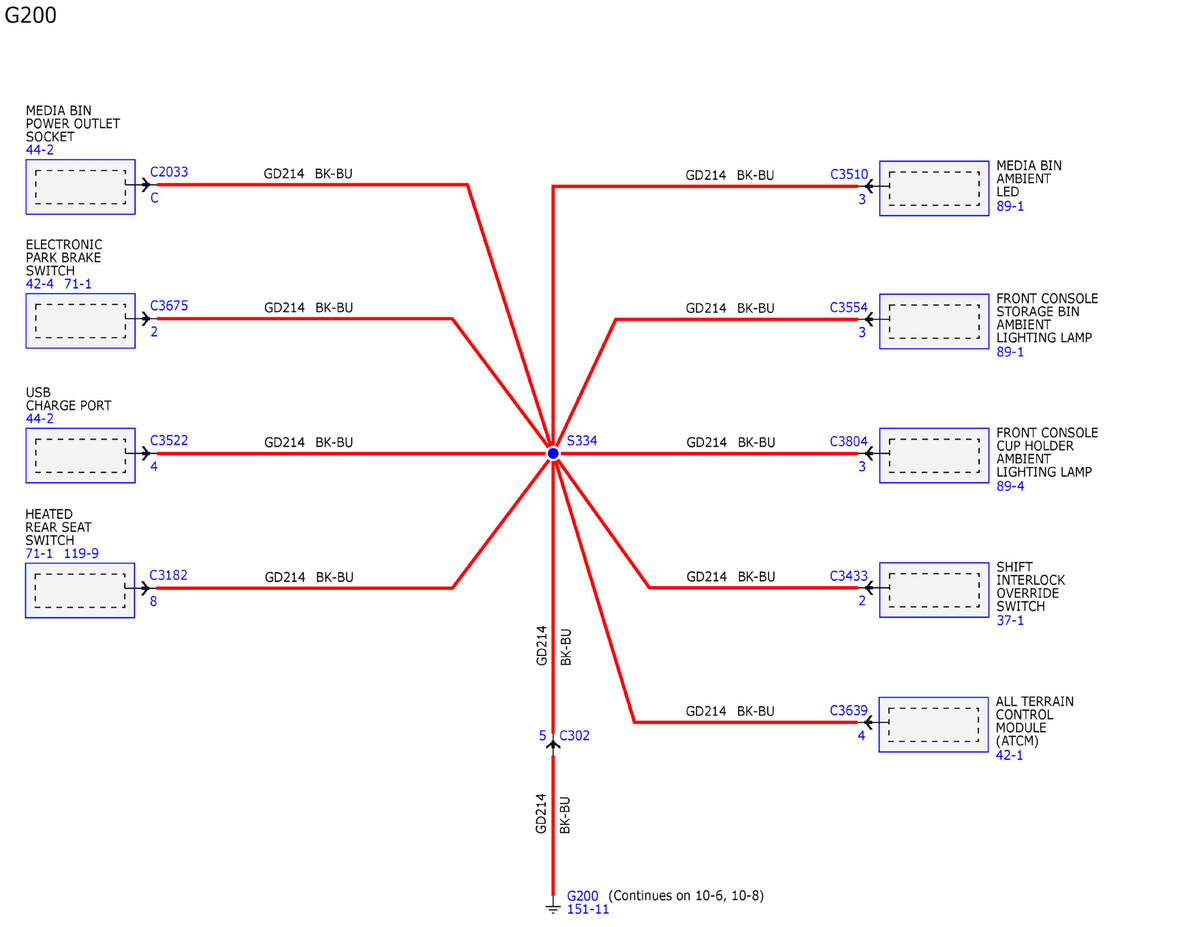

GFDWR117231Courtesy of FORD MOTOR COMPANY

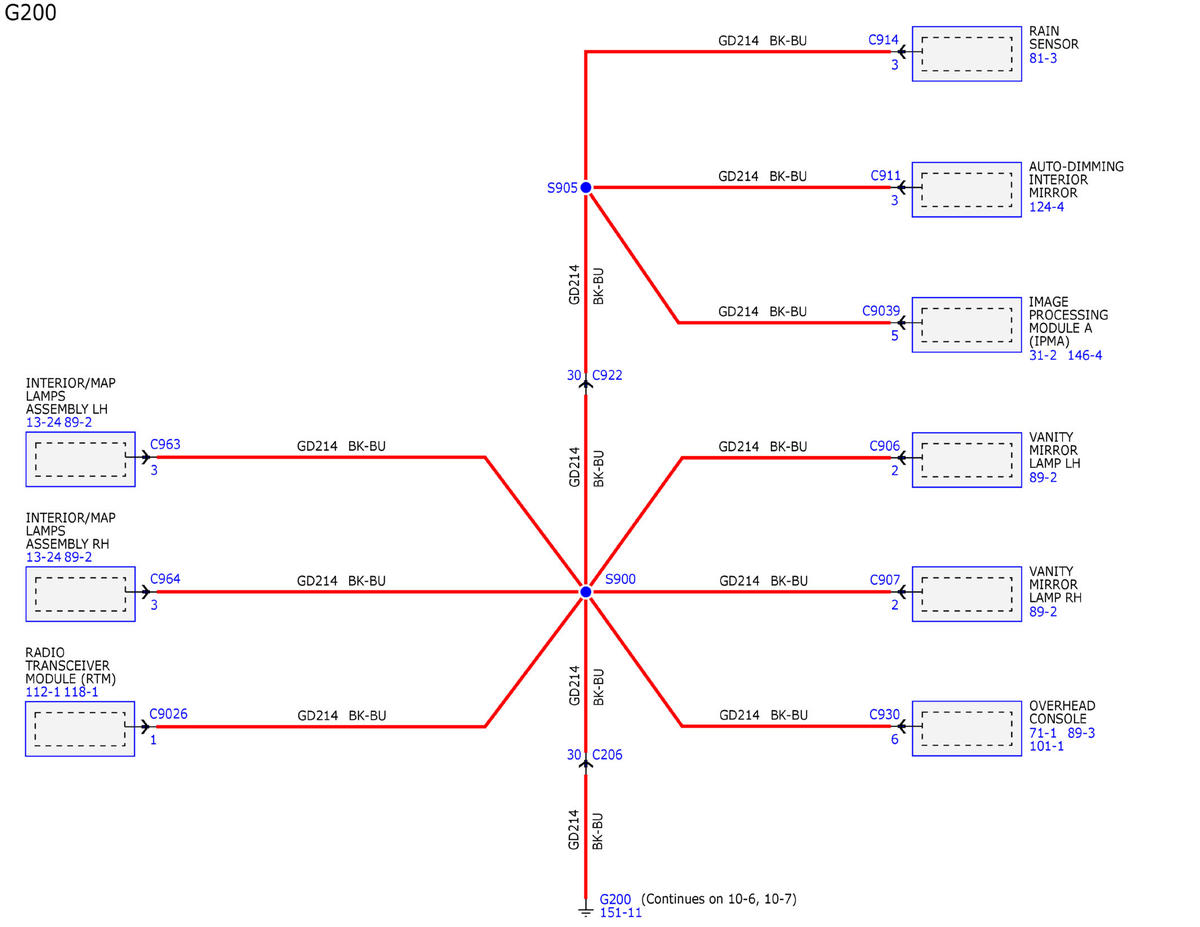

GFDWR117228Courtesy of FORD MOTOR COMPANY

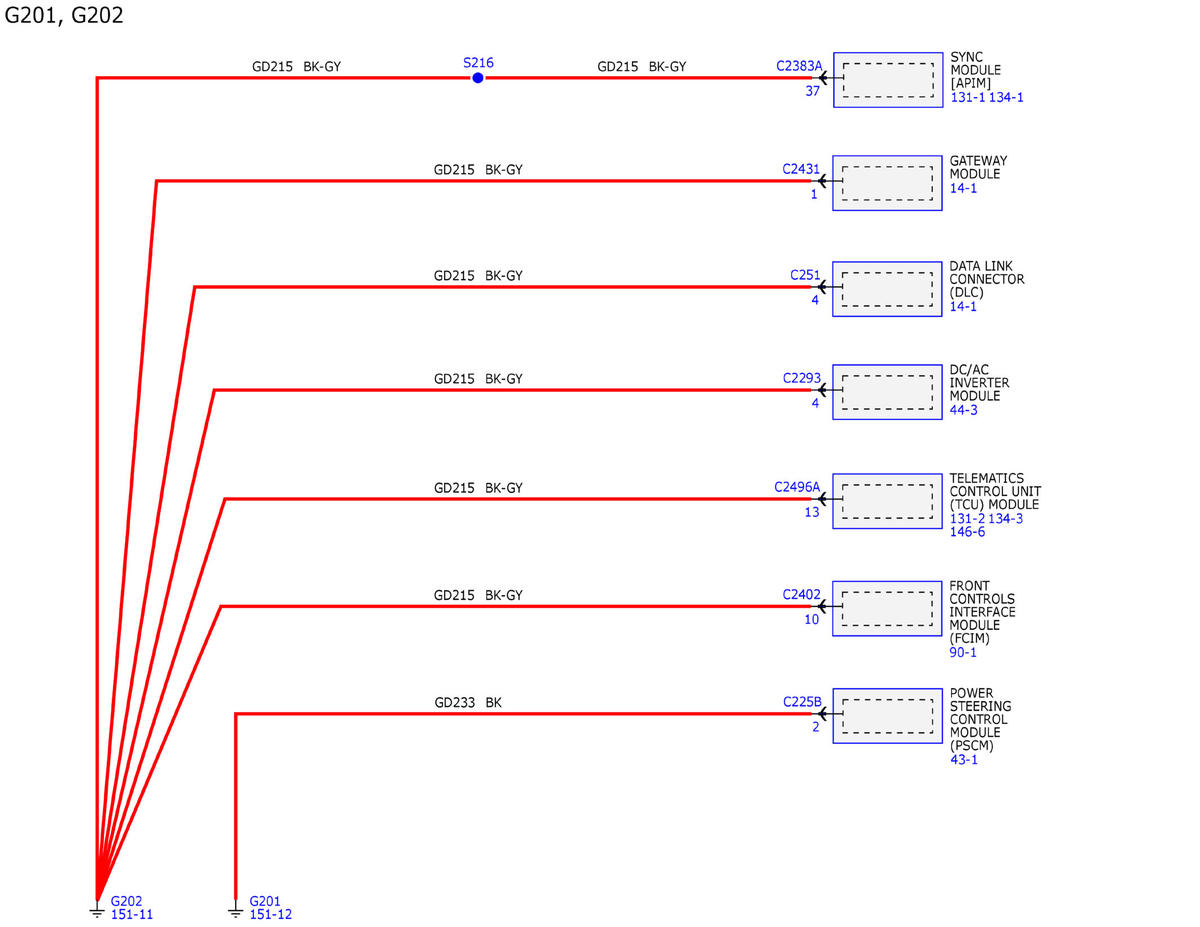

GFDWR117226Courtesy of FORD MOTOR COMPANY

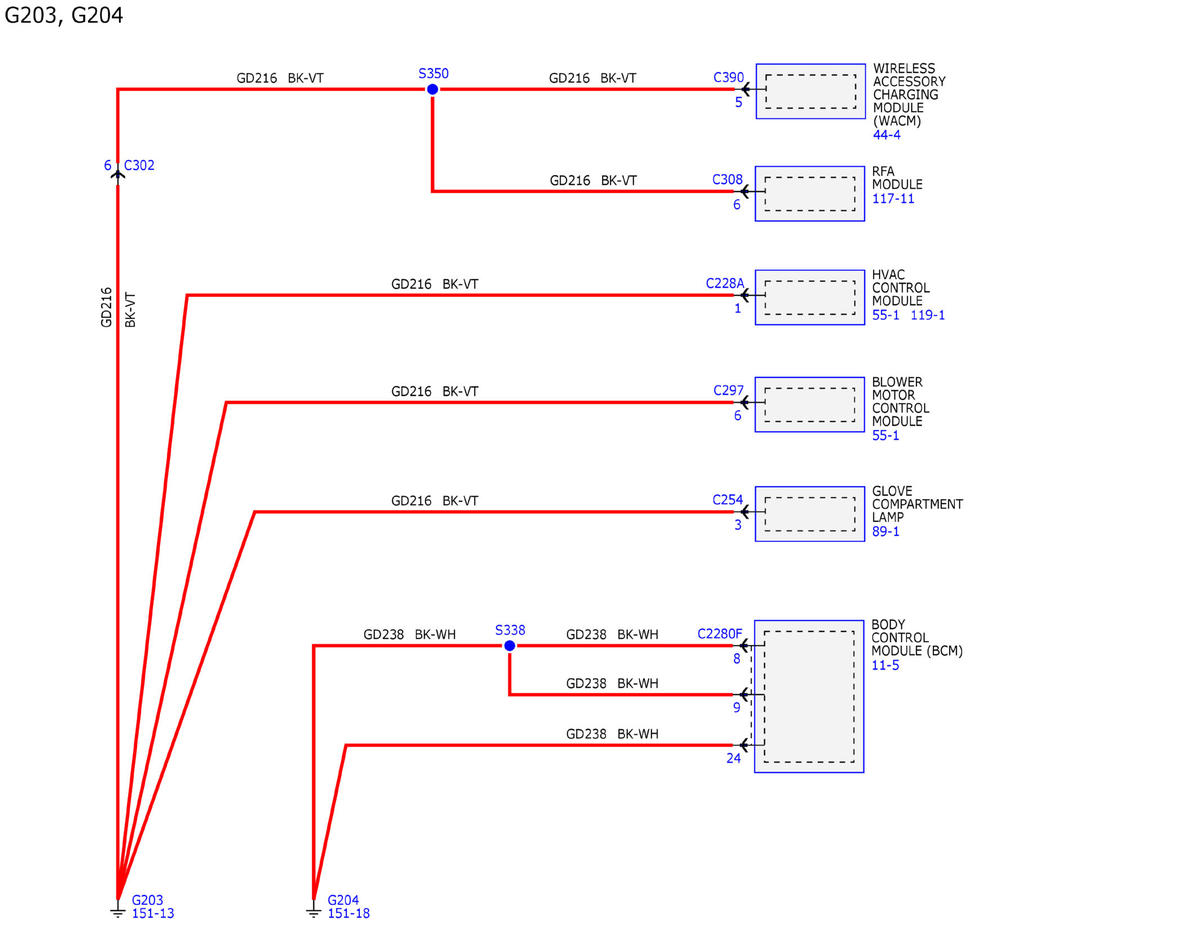

GFDWR117243Courtesy of FORD MOTOR COMPANY

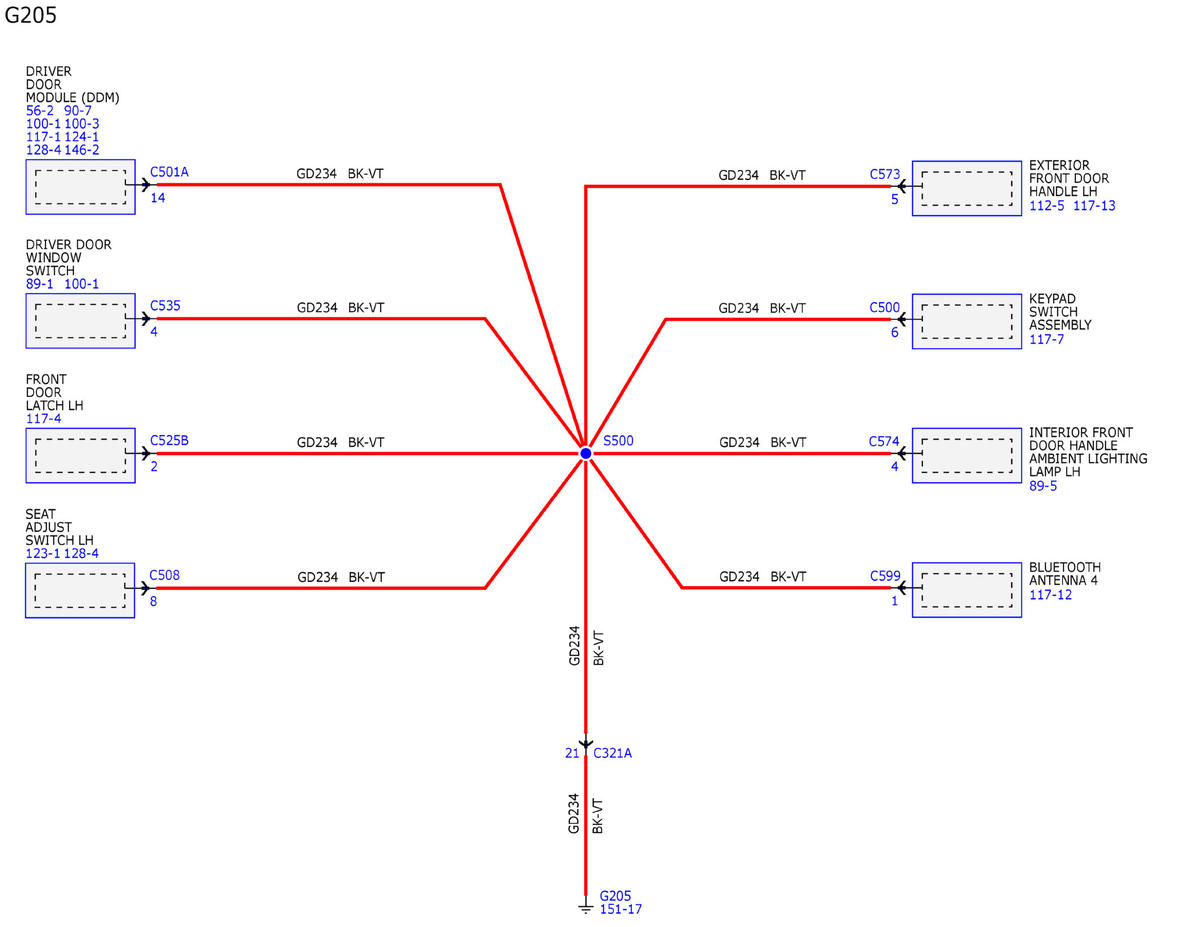

GFDWR117239Courtesy of FORD MOTOR COMPANY

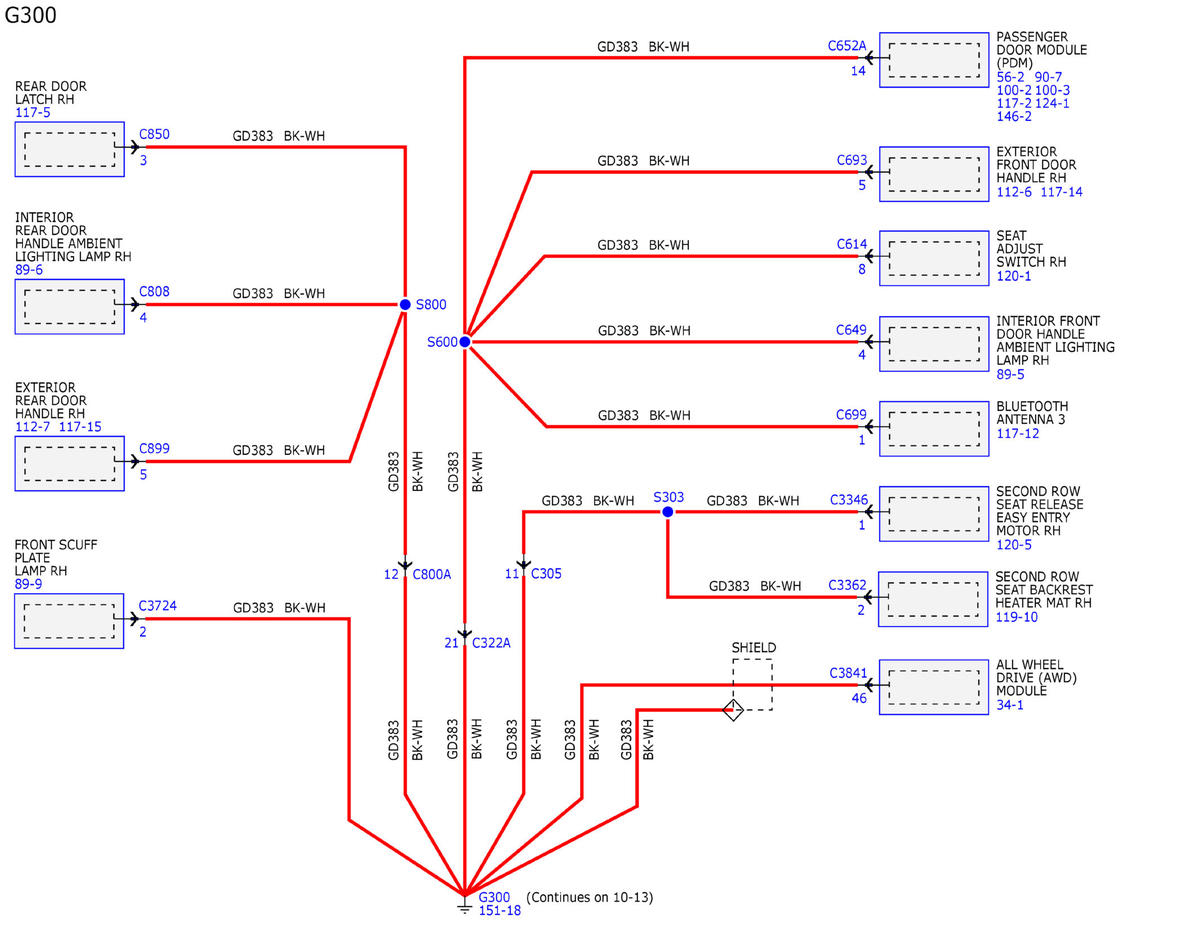

GFDWR117229Courtesy of FORD MOTOR COMPANY

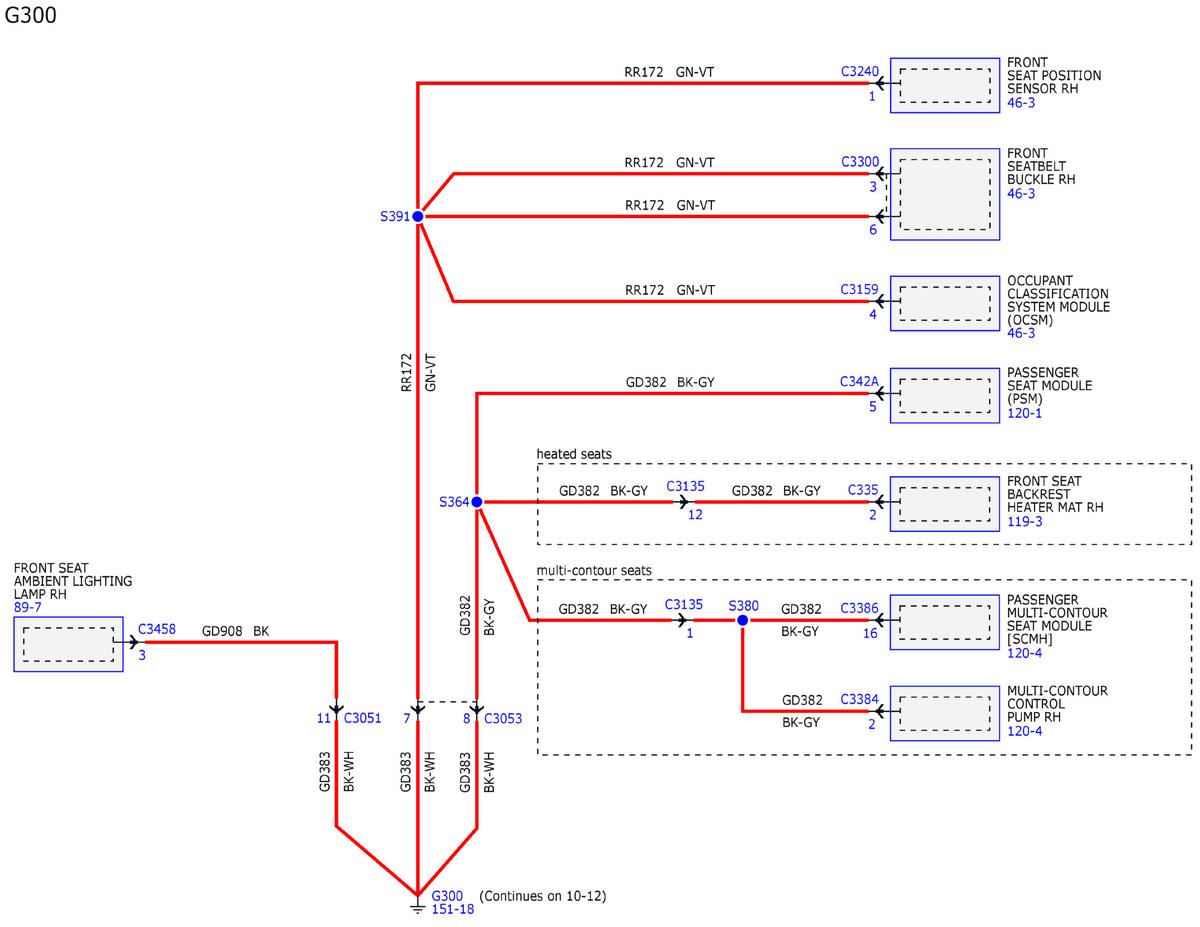

GFDWR117225Courtesy of FORD MOTOR COMPANY

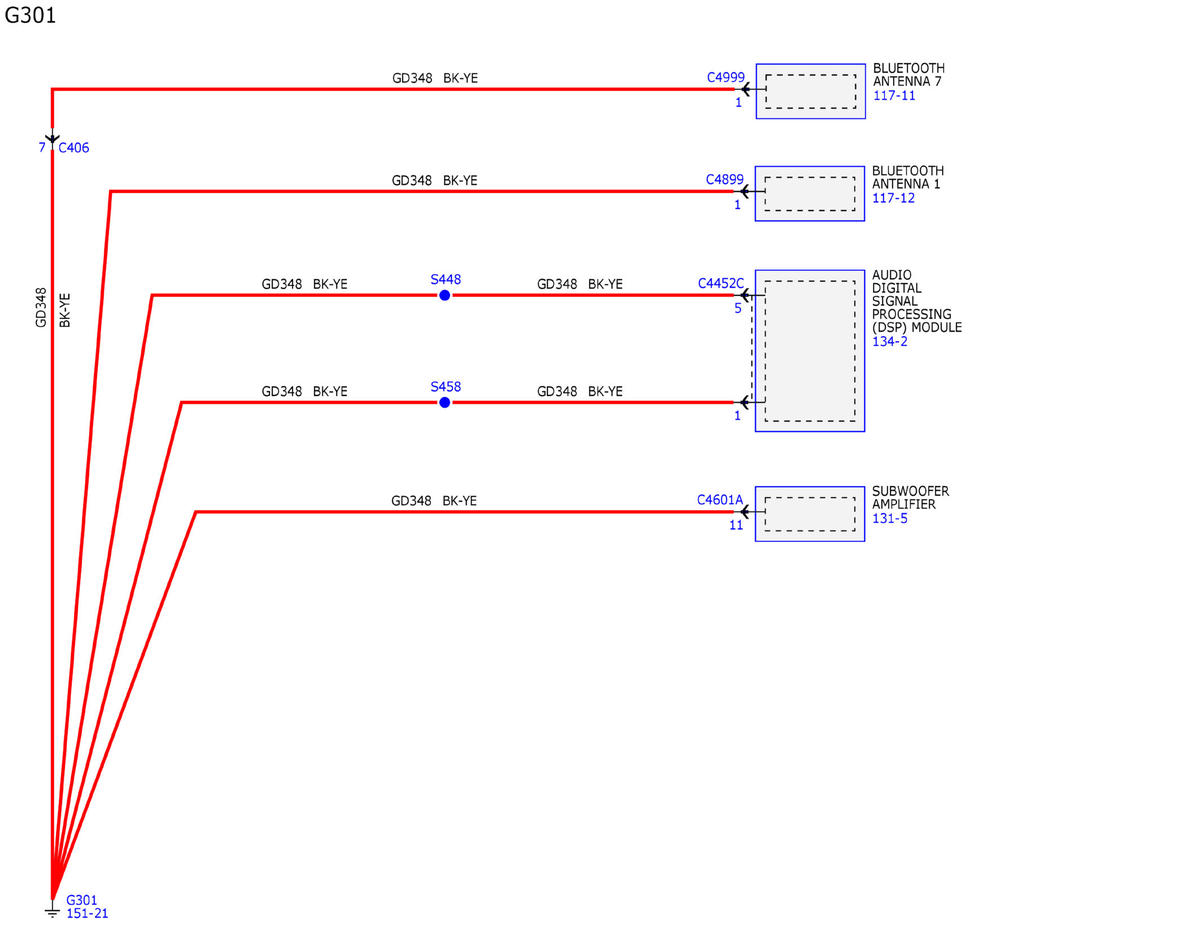

GFDWR117241Courtesy of FORD MOTOR COMPANY

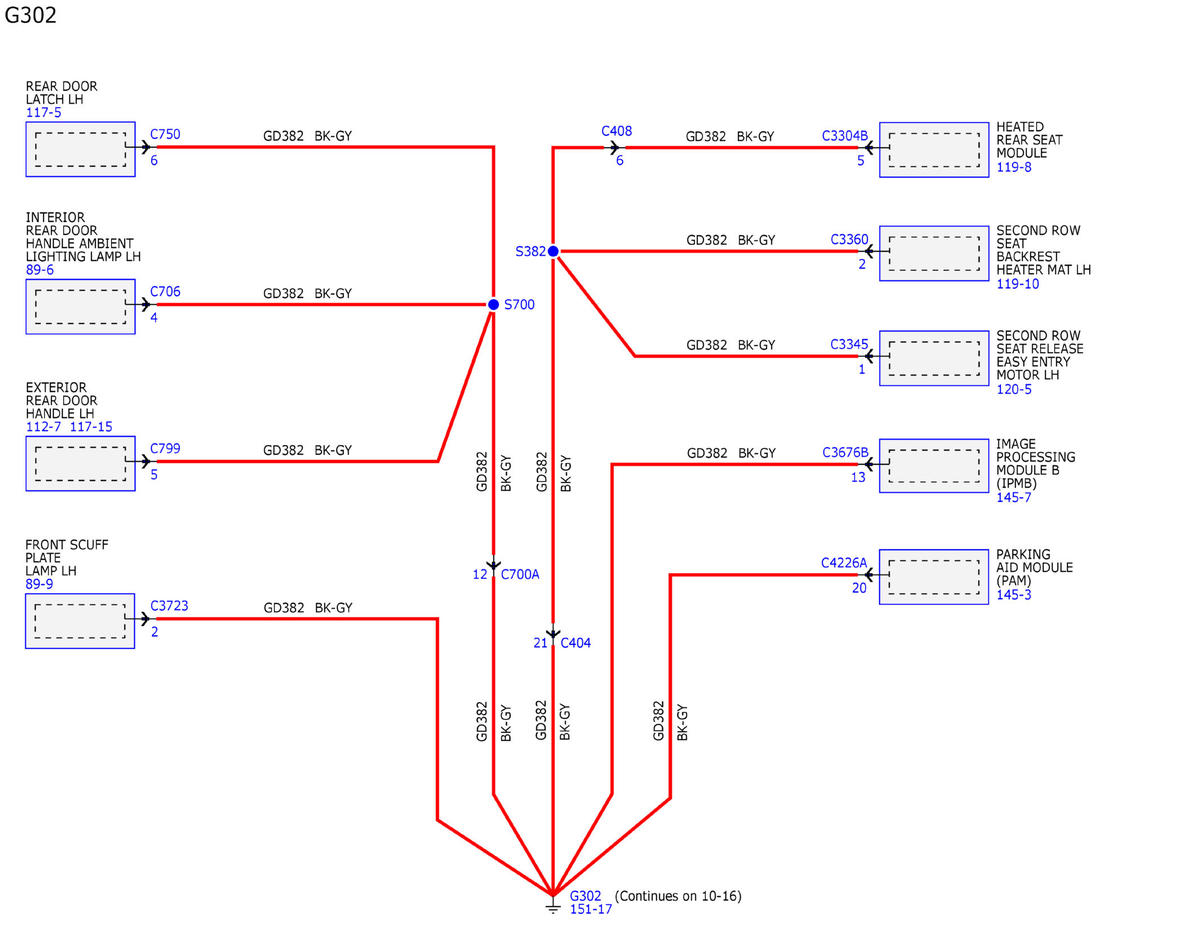

GFDWR117235Courtesy of FORD MOTOR COMPANY

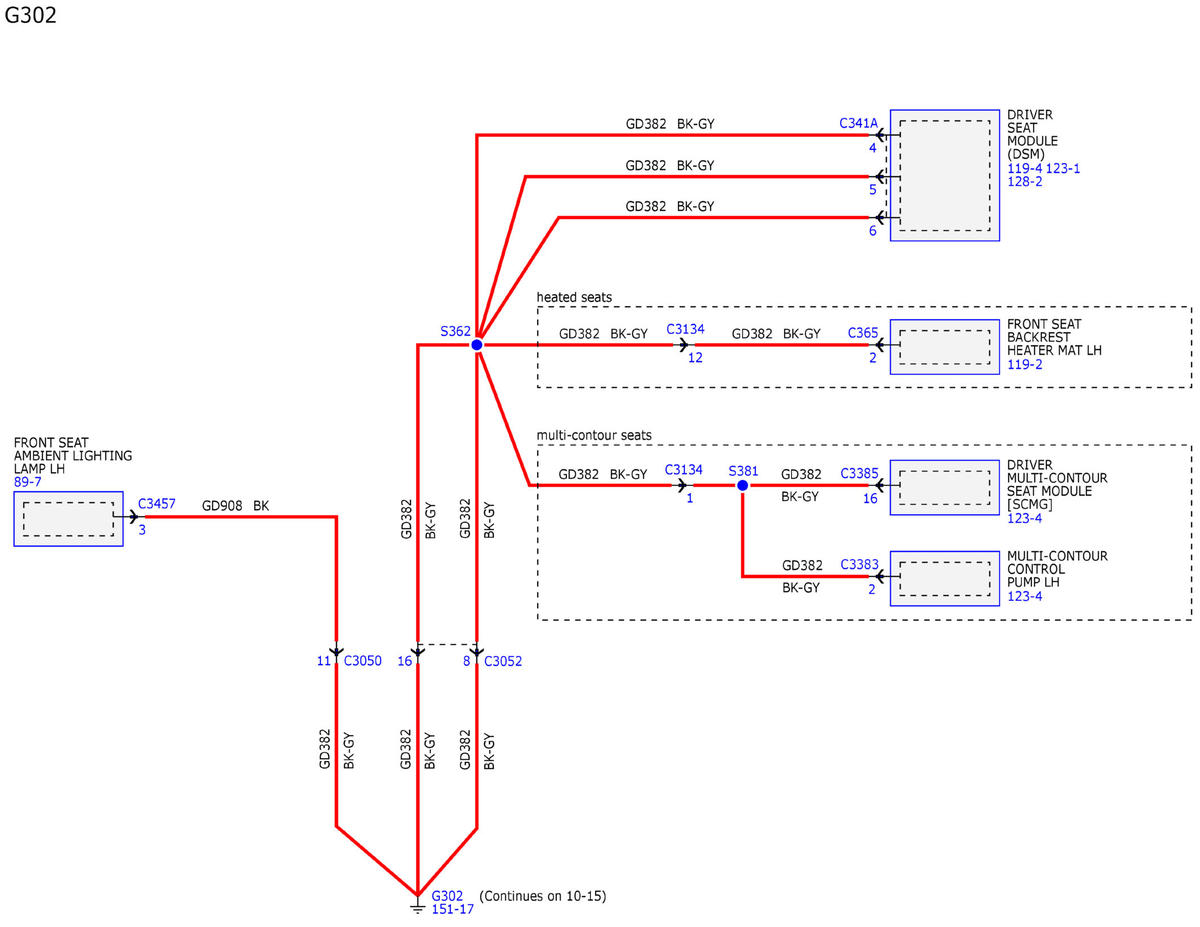

GFDWR117227Courtesy of FORD MOTOR COMPANY

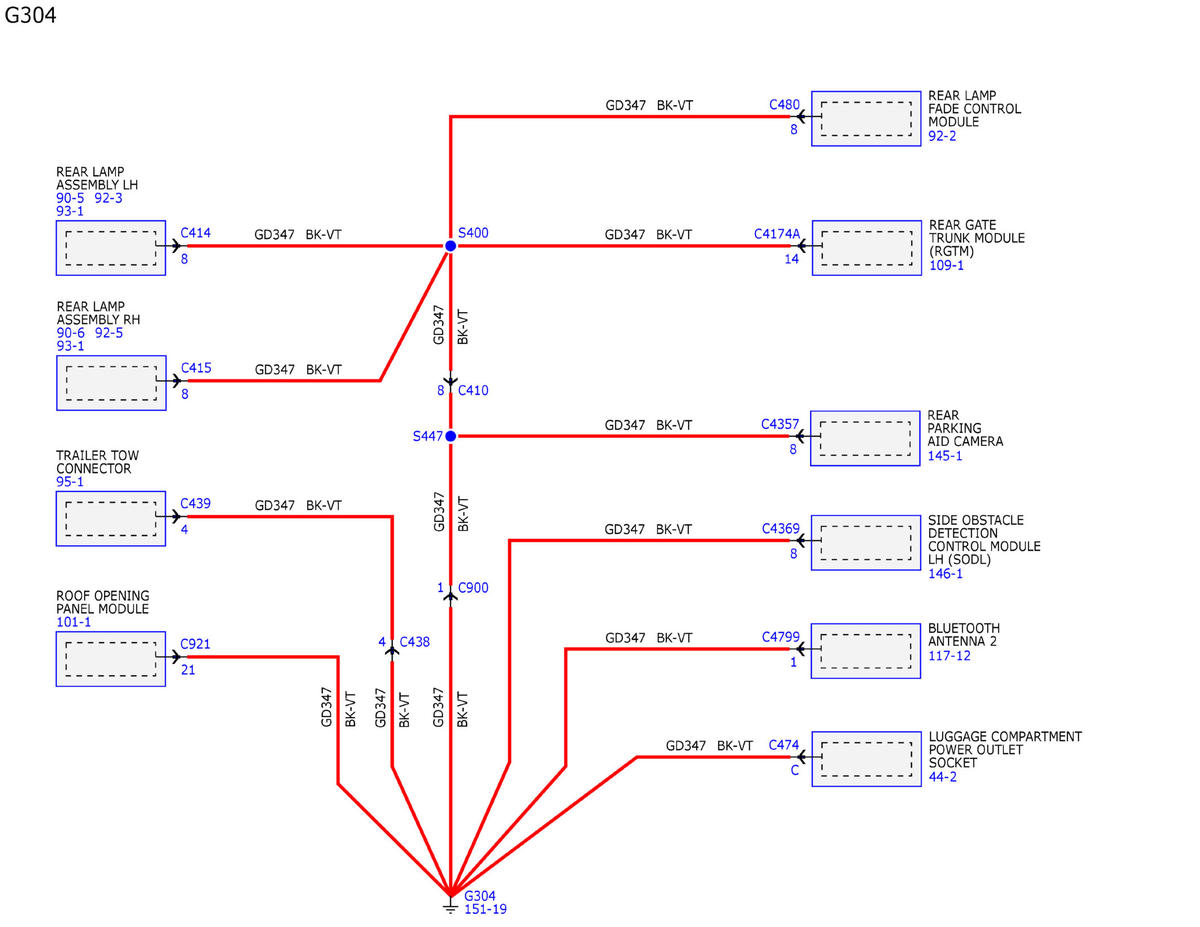

GFDWR117238Courtesy of FORD MOTOR COMPANY

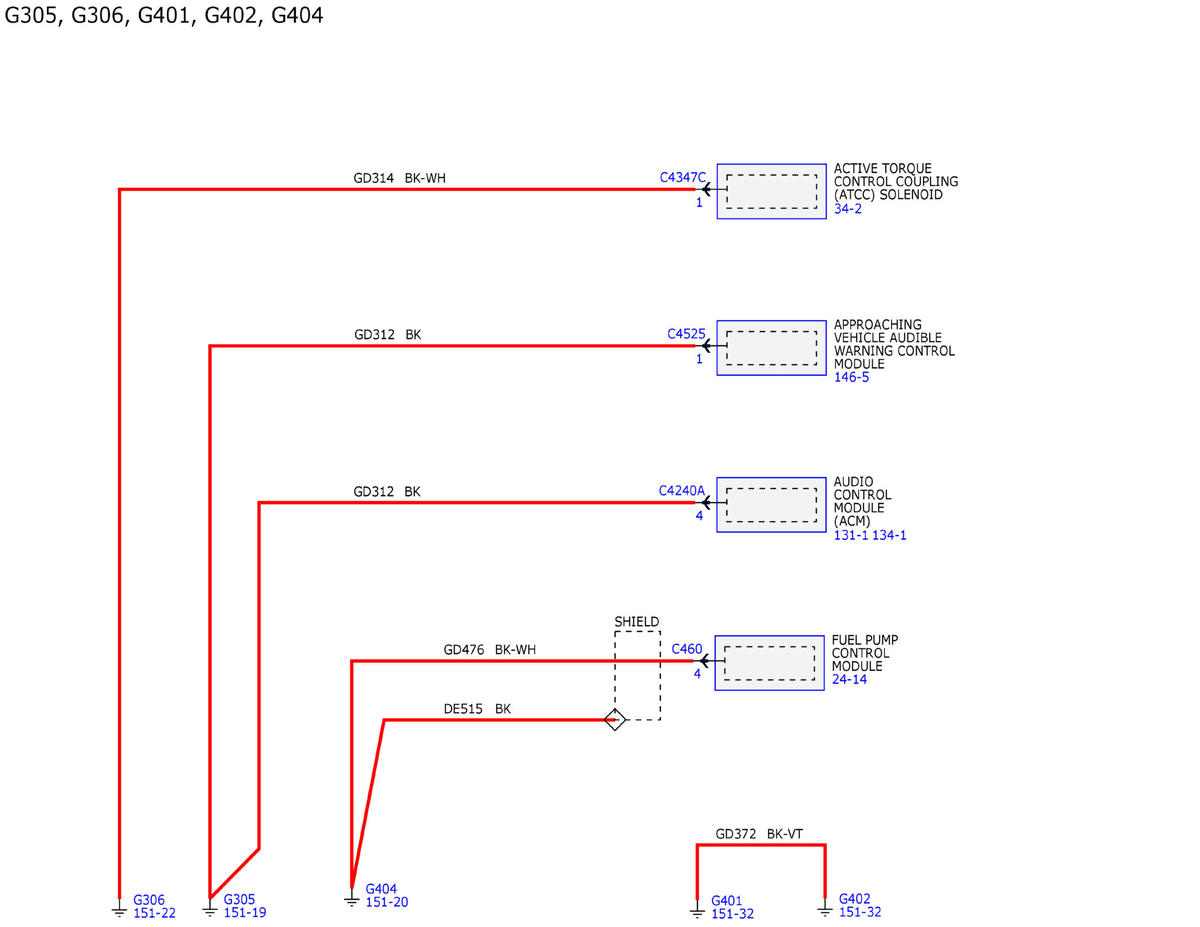

GFDWR117240Courtesy of FORD MOTOR COMPANY

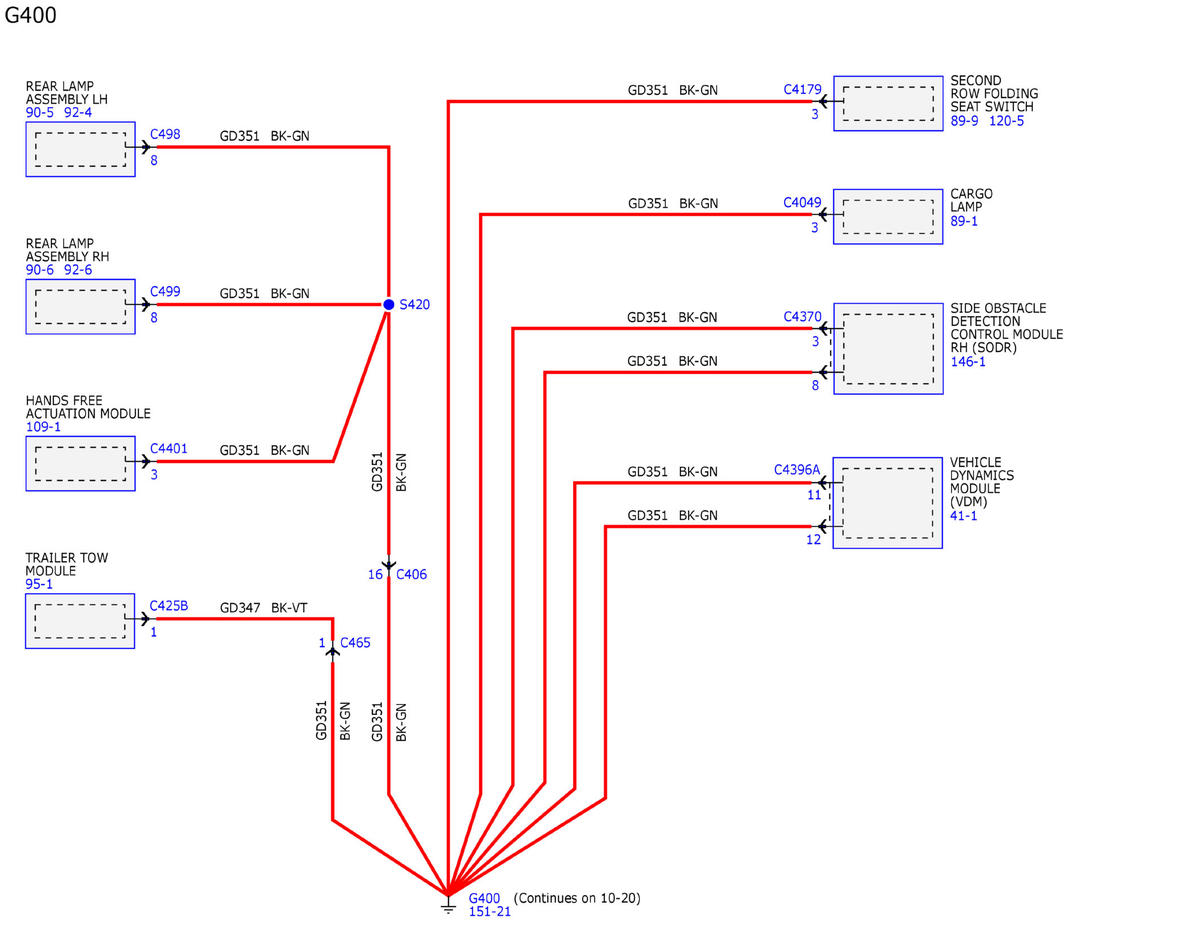

GFDWR117230Courtesy of FORD MOTOR COMPANY

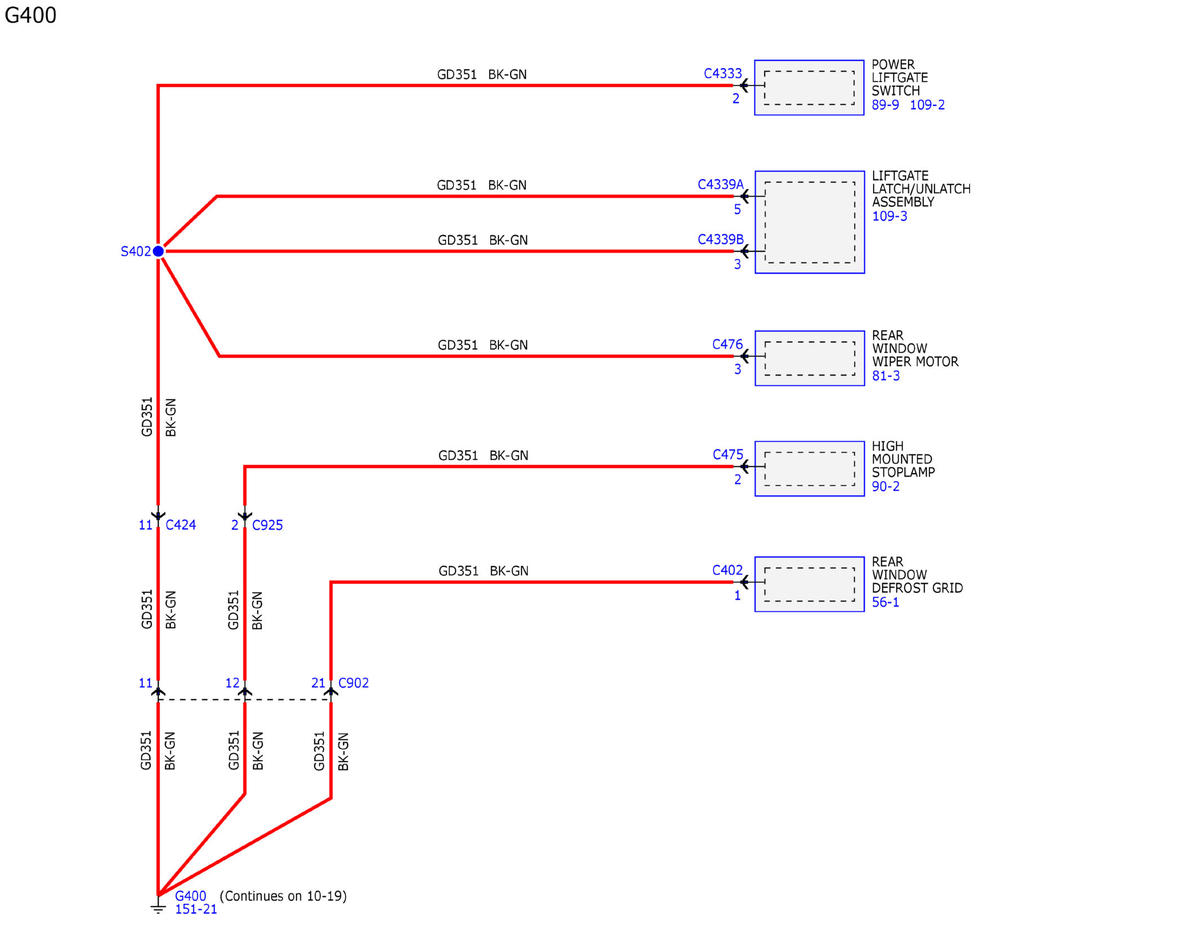

GFDWR117232Courtesy of FORD MOTOR COMPANY
