Radio Transceiver Module (RTM): Removal

All vehicles

1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

   Refer to: Module Configuration - System Operation and Component Description . . Use the General Equipment: Ford Diagnostic Equipment

   Vehicles With: Panoramic Roof Panel

2. Refer to: Headliner - Long Wheelbase Double Cab in Van/Short Wheelbase Double Cab in Van . Refer to: Headliner - Long Wheelbase Double Cab in Van/Short Wheelbase Double Cab in Van .

   Vehicles Without: Panoramic Roof Panel

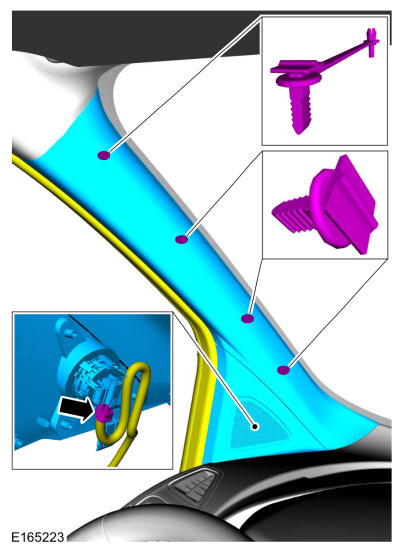

3. • On both sides.
   • Release the clips and the tether clip and remove the A-pillar trim panel.
   • If equipped, disconnect the speaker electrical connector and remove the A-pillar trim panel.

   Courtesy of FORD MOTOR COMPANY

4. Remove the retainers and the RH kick panel.

   Courtesy of FORD MOTOR COMPANY

5. Release the tabs, remove the retainers and the glove compartment.

   Courtesy of FORD MOTOR COMPANY

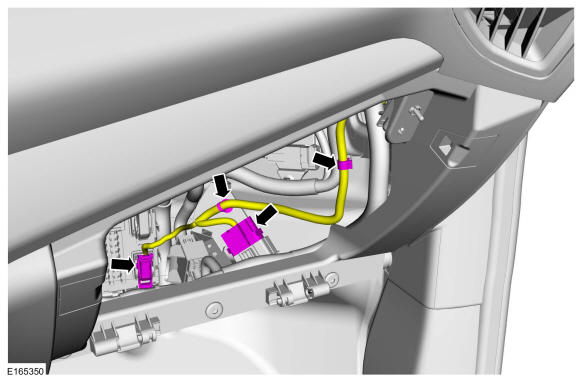

6. Disconnect the headliner electrical connectors, release the retainers and position the wiring harness aside.

   Courtesy of FORD MOTOR COMPANY

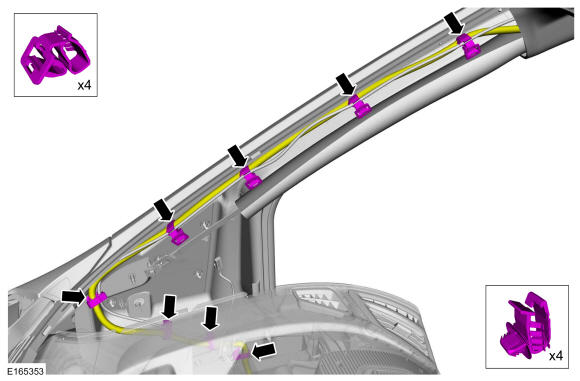

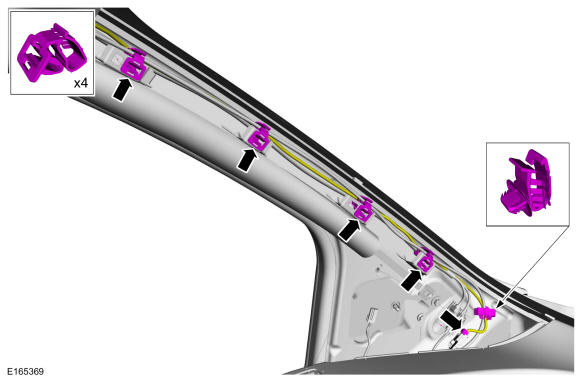

7. Release the retainers and position aside the headliner wire harness.

   Courtesy of FORD MOTOR COMPANY

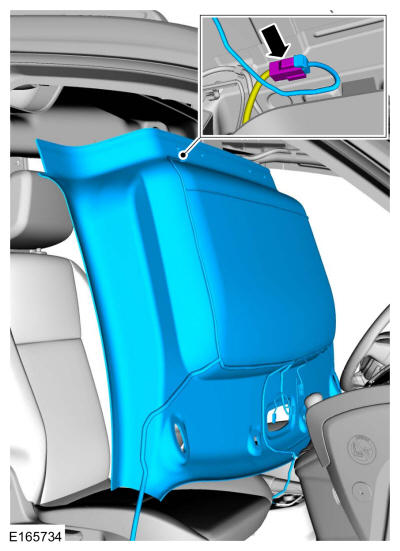

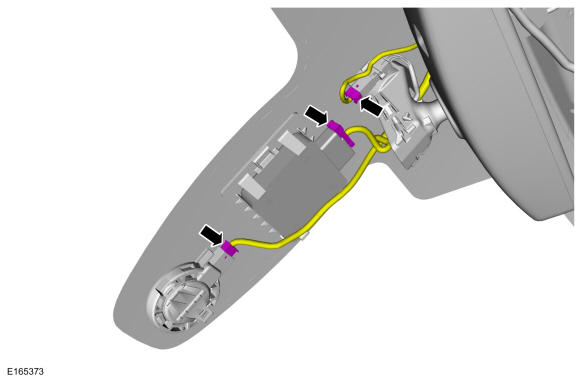

8. Disconnect the electrical connector, release the retainers and position aside the wire harness.

   Courtesy of FORD MOTOR COMPANY

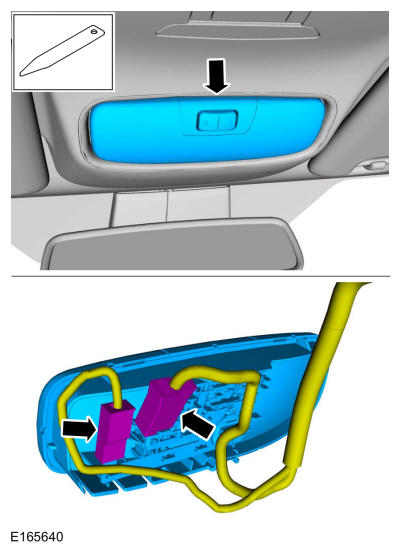

9. Remove the dome lamp and disconnect the electrical connectors.. Use Special Service Tool: 501-125 Remover, Grab Handle Cover.

   Courtesy of FORD MOTOR COMPANY

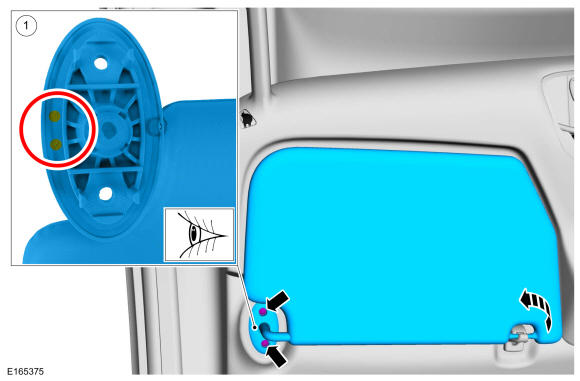

10. NOTE: Note the position of the components before removal.

    Remove the retainers and the LH side sun visor.

    Courtesy of FORD MOTOR COMPANY

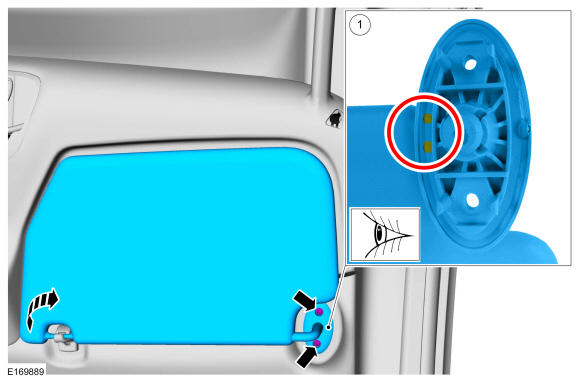

11. NOTE: Note the position of the components before removal.

    Remove the retainers and the RH side sun visor.

    Courtesy of FORD MOTOR COMPANY

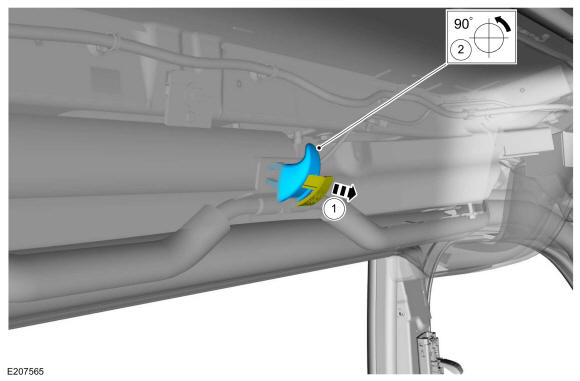

12. 1. Both sides, If equipped. Position the hook cap aside.
    2. Rotate the hook 90 degree counterclockwise and remove the garment hook.

    Courtesy of FORD MOTOR COMPANY

    Vehicles without proximity warning camera

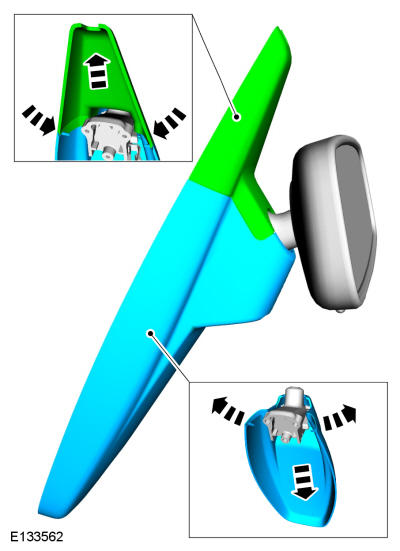

13. Remove the rear view mirror covers.

    Courtesy of FORD MOTOR COMPANY

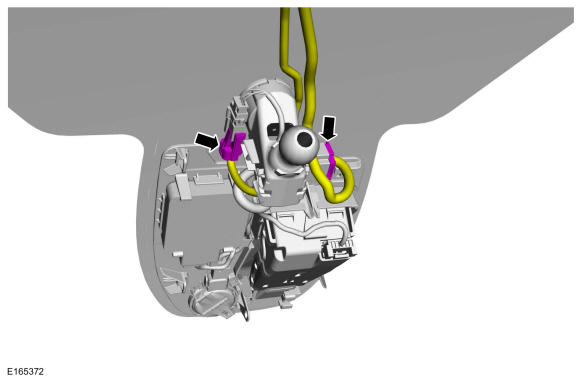

14. Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

    Vehicles with proximity warning camera

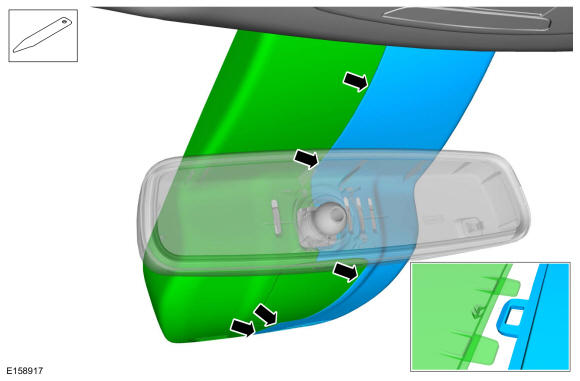

15. Release the clips and remove the rear view mirror covers.. Use Special Service Tool: 501-125 Remover, Grab Handle Cover.

    Courtesy of FORD MOTOR COMPANY

16. Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

    Vehicles With: Overhead Console

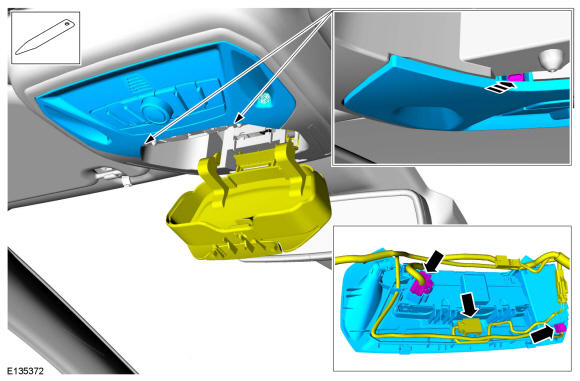

17. • Disengage the retaining tabs and remove the roof bezel cover.
    • Disconnect the roof bezel cover electrical connectors.. Use Special Service Tool: 501-125 Remover, Grab Handle Cover.

    Courtesy of FORD MOTOR COMPANY

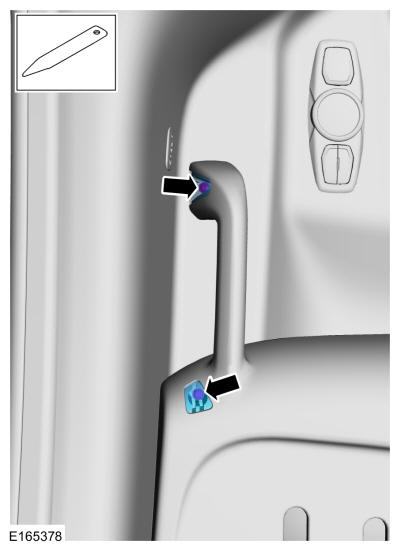

18. On both sides. On both sides, remove the grab handle covers and retainers.. Use Special Service Tool: 501-125 Remover, Grab Handle Cover.

    Courtesy of FORD MOTOR COMPANY

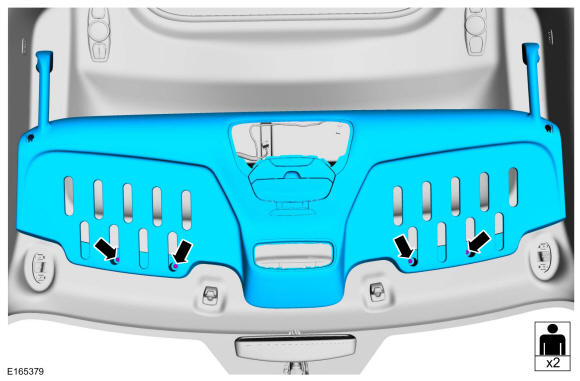

19. Remove the retainers and the front seat overhead storage compartment assembly.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

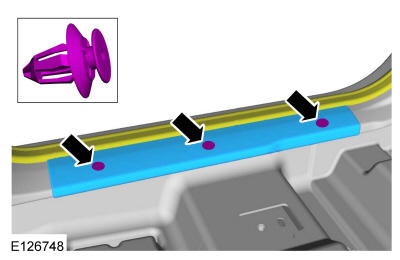

20. On both sides. Position the front door weatherstrip aside, release the clips and remove the front door scuffplate trim panel.

    Courtesy of FORD MOTOR COMPANY

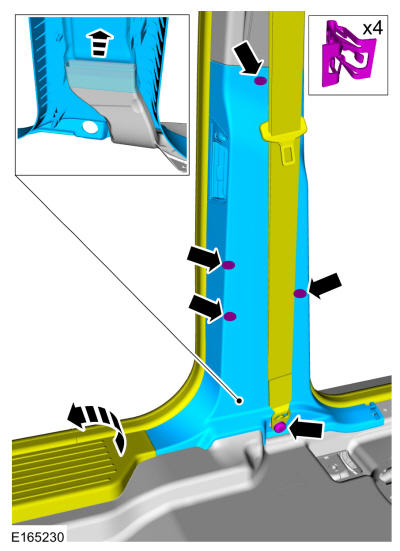

21. • Remove the safety belt anchor bolt and position the safety belt aside.

      Torque:

      30 lb.ft (40 Nm)

    • Position the rear door weatherstrip and the rear door scuff plate trim panel aside.
    • Release the clips, slide up and remove the lower B-pillar trim panel.

    Courtesy of FORD MOTOR COMPANY

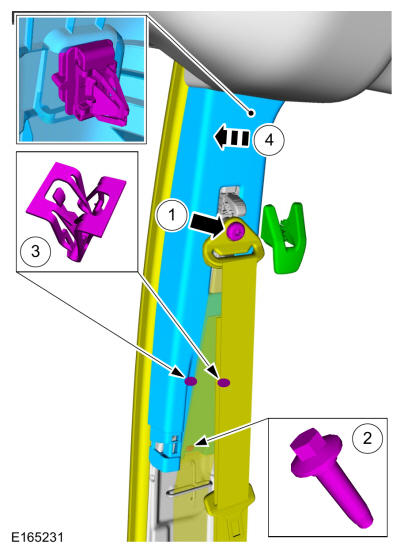

22. 1. Remove the-D-ring bolt cover and the D-ring bolt and position the safety belt aside.

       Torque:

       30 lb.ft (40 Nm)

    2. Remove the upper B-pillar trim panel bolt.
    3. Release the upper B-pillar trim panel clips.
    4. Slide the upper B-pillar trim panel forward and remove the upper B-pillar trim panel.

    Courtesy of FORD MOTOR COMPANY

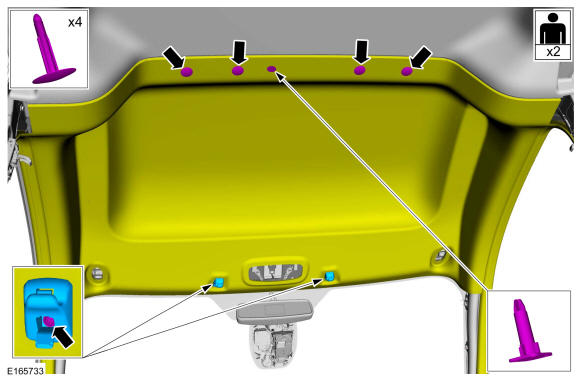

23. • Remove the retainers and the sun visor clips.
    • Release the retainers and lower the headliner.

    Courtesy of FORD MOTOR COMPANY

    Refer to About This Information

    Courtesy of FORD MOTOR COMPANY

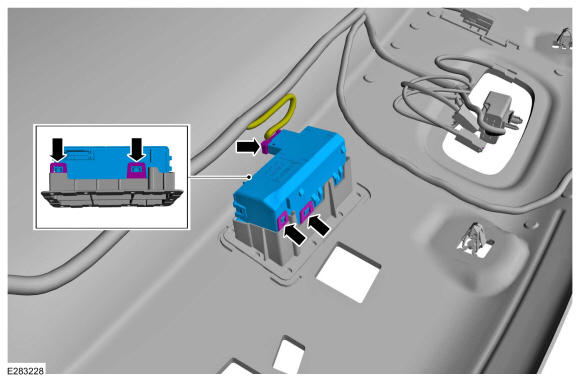

24. • Disconnect the electrical connector.
    • Release the tabs and remove the Radio Transceiver Module (RTM).

Courtesy of FORD MOTOR COMPANY
