OEM Ground Distribution: Grounds

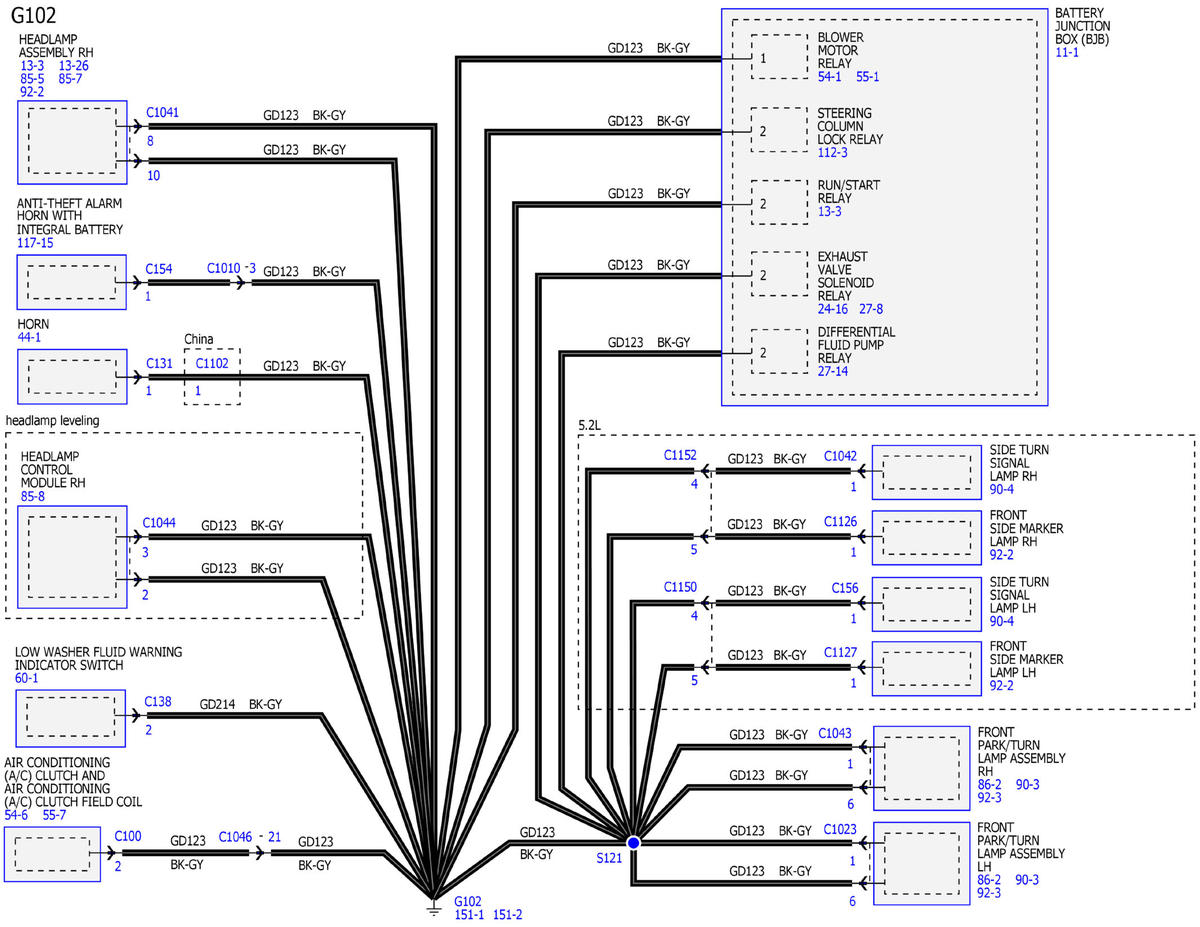

GFDWR54418Courtesy of FORD MOTOR COMPANY

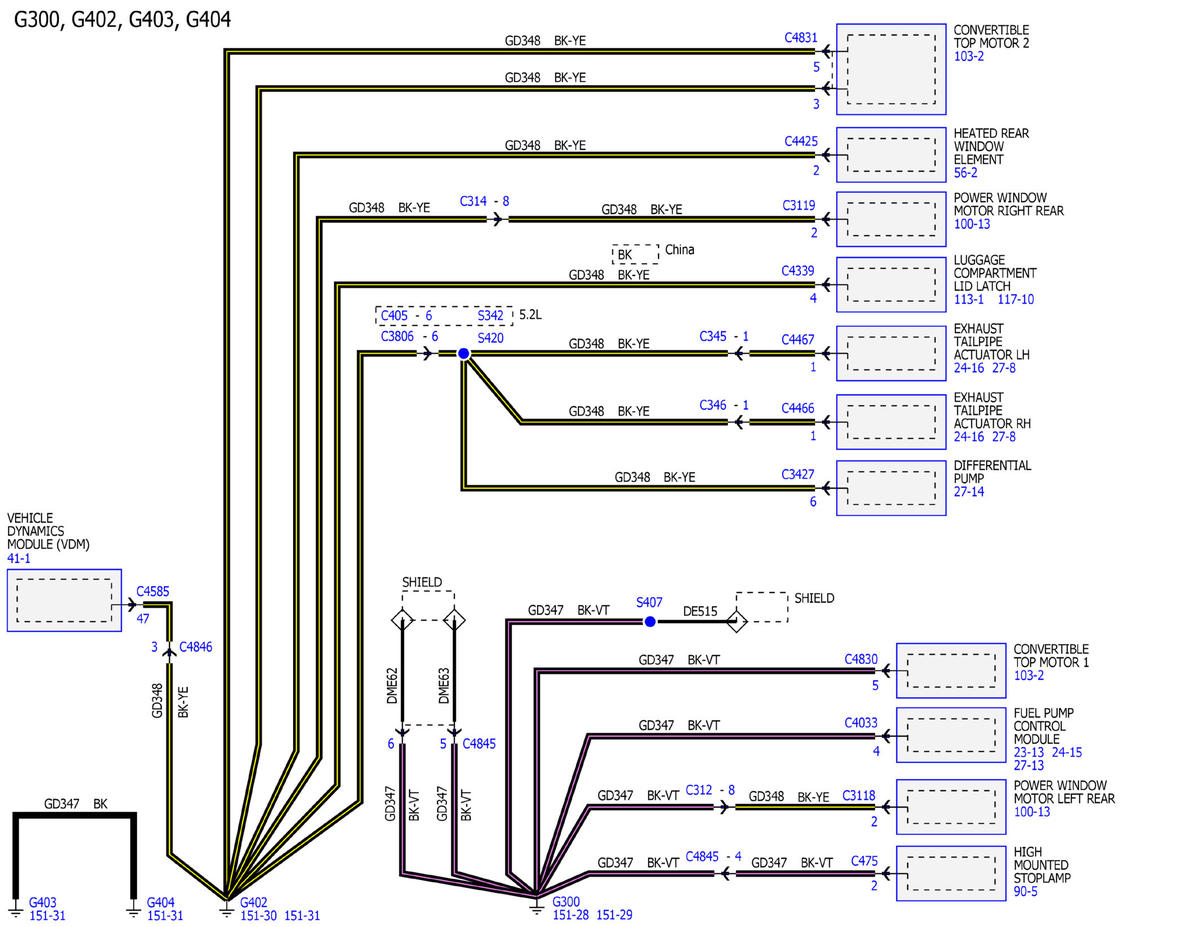

GFDWR54419Courtesy of FORD MOTOR COMPANY

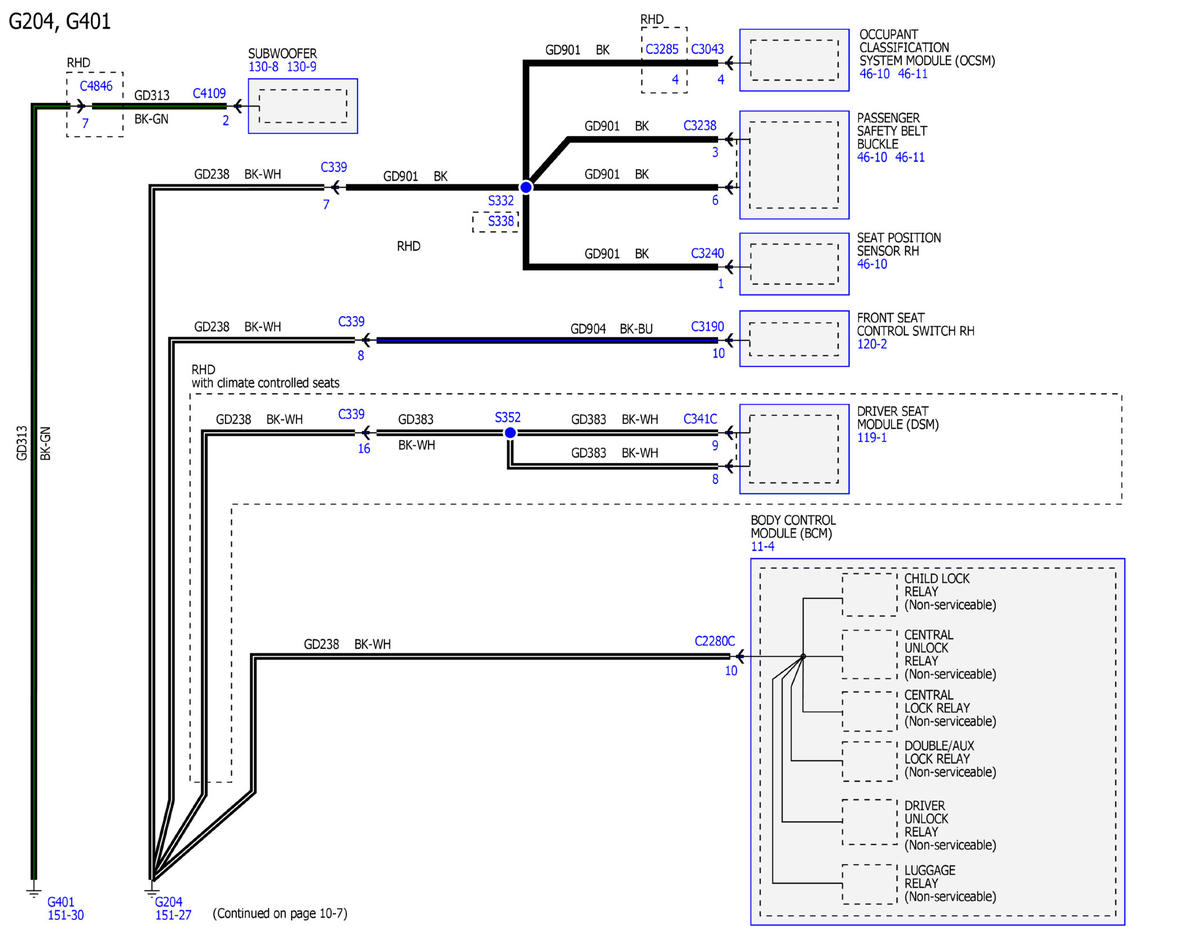

GFDWR54420Courtesy of FORD MOTOR COMPANY

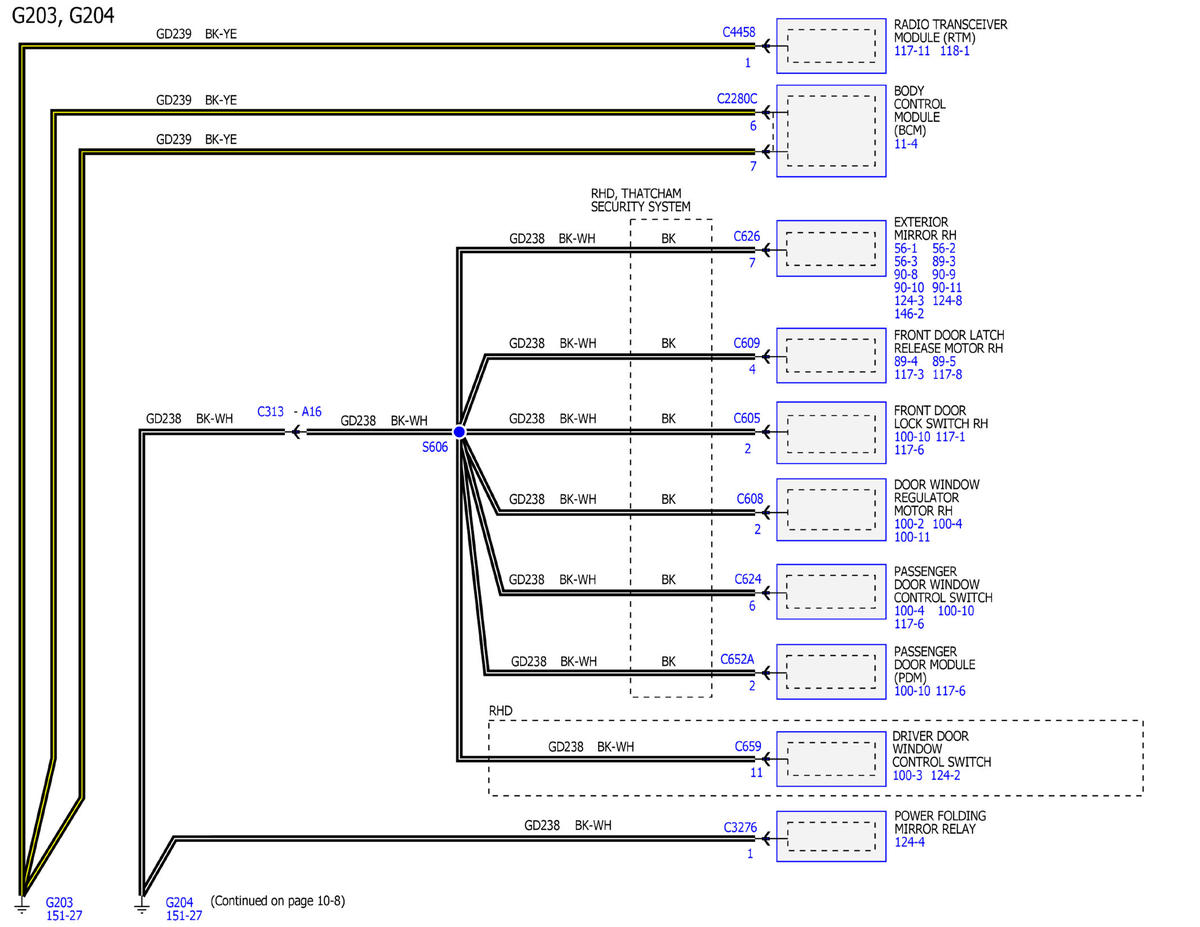

GFDWR54421Courtesy of FORD MOTOR COMPANY

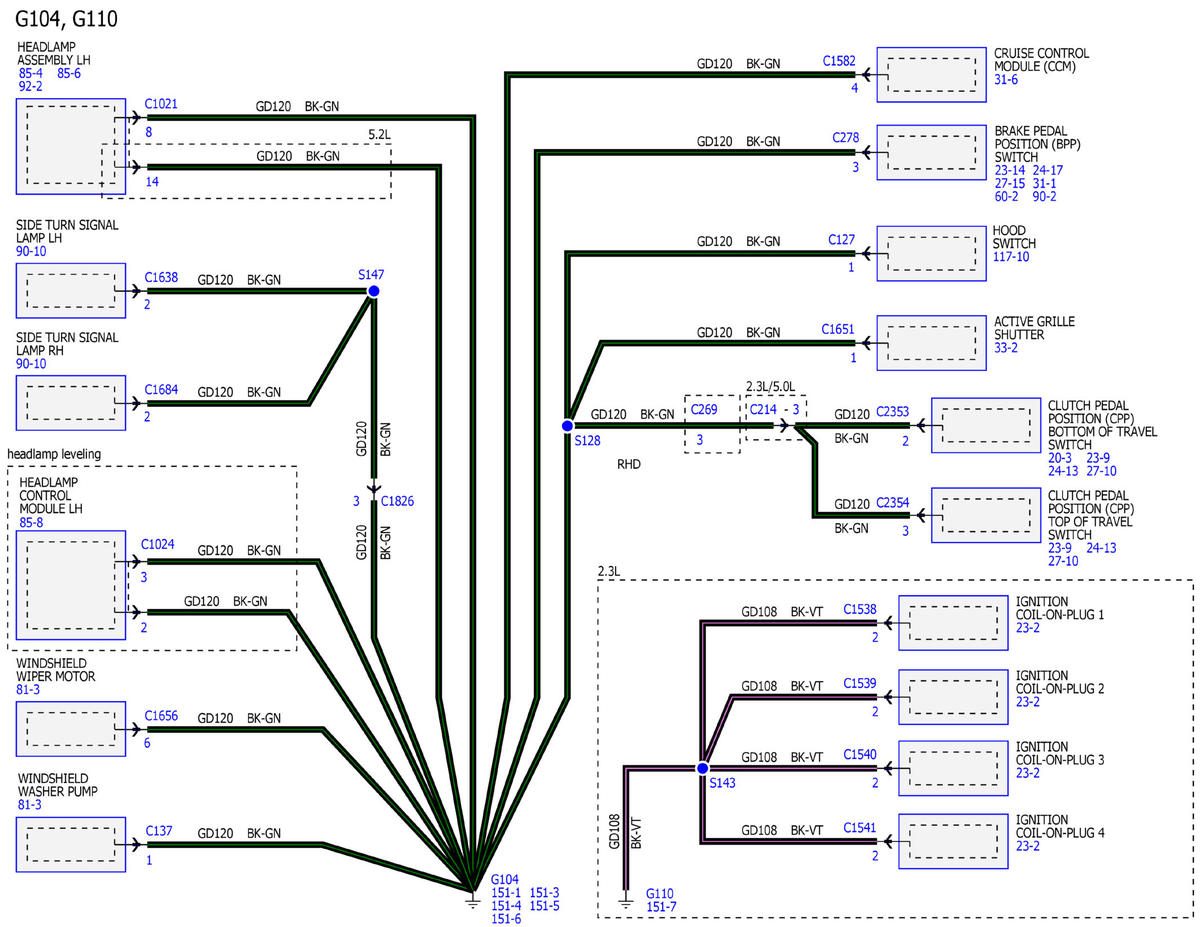

GFDWR54422Courtesy of FORD MOTOR COMPANY

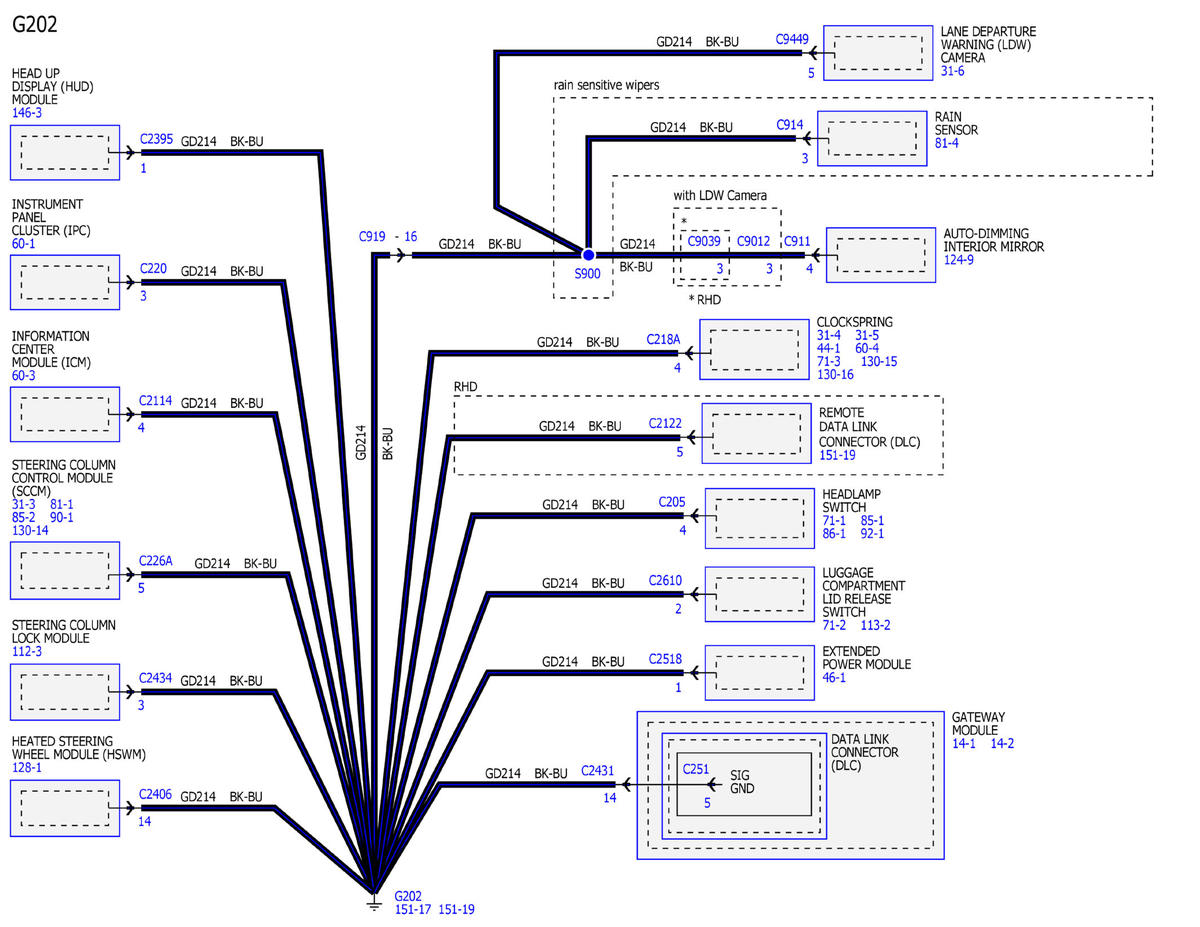

GFDWR54423Courtesy of FORD MOTOR COMPANY

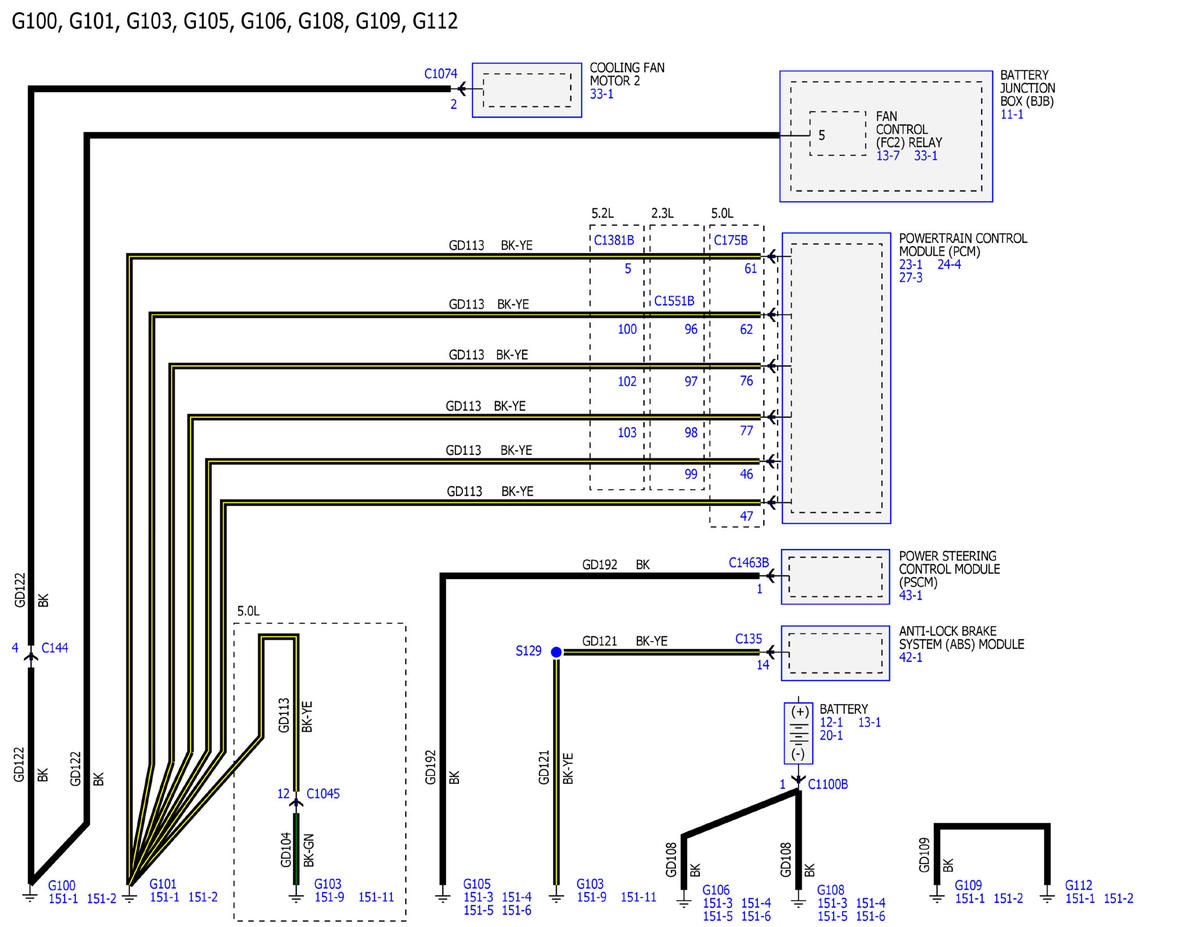

GFDWR54424Courtesy of FORD MOTOR COMPANY

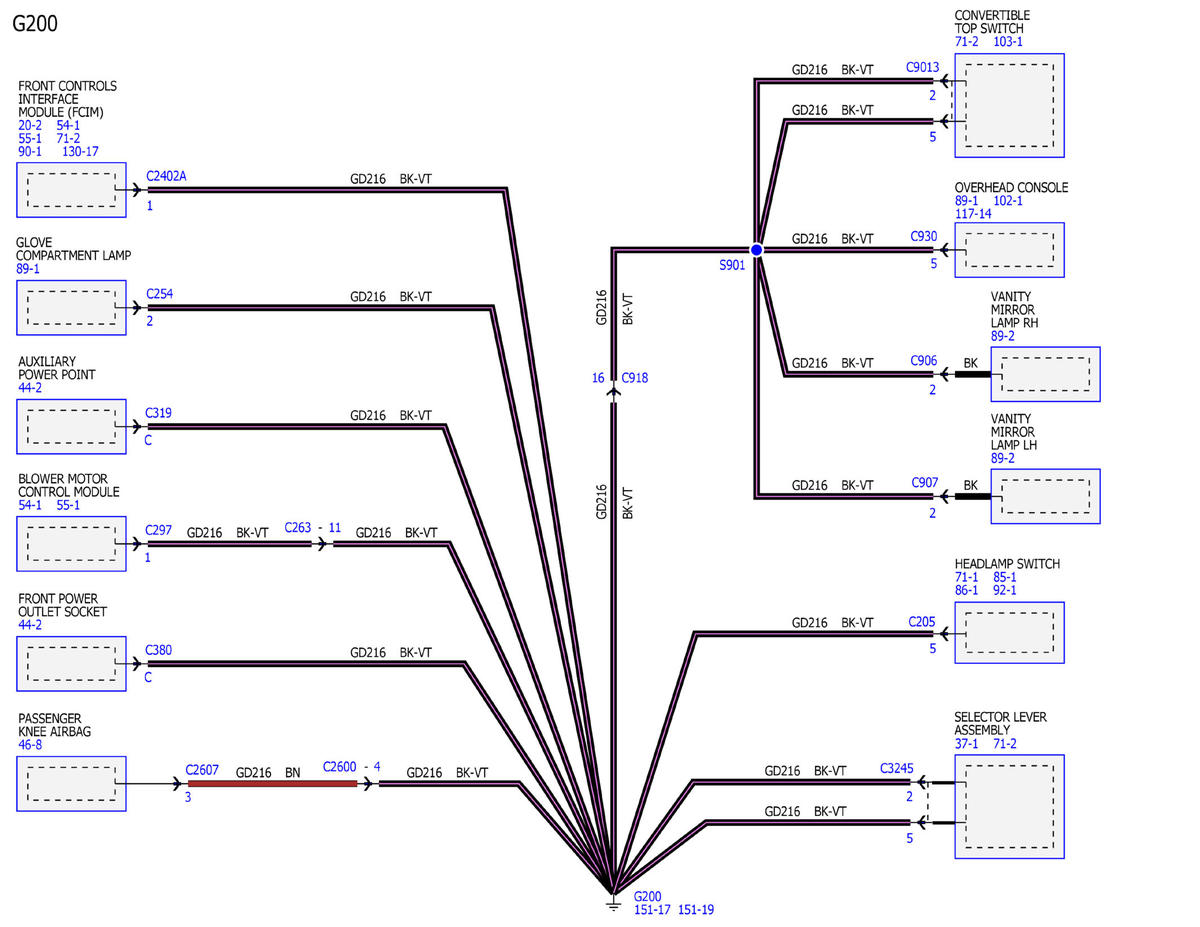

GFDWR54425Courtesy of FORD MOTOR COMPANY

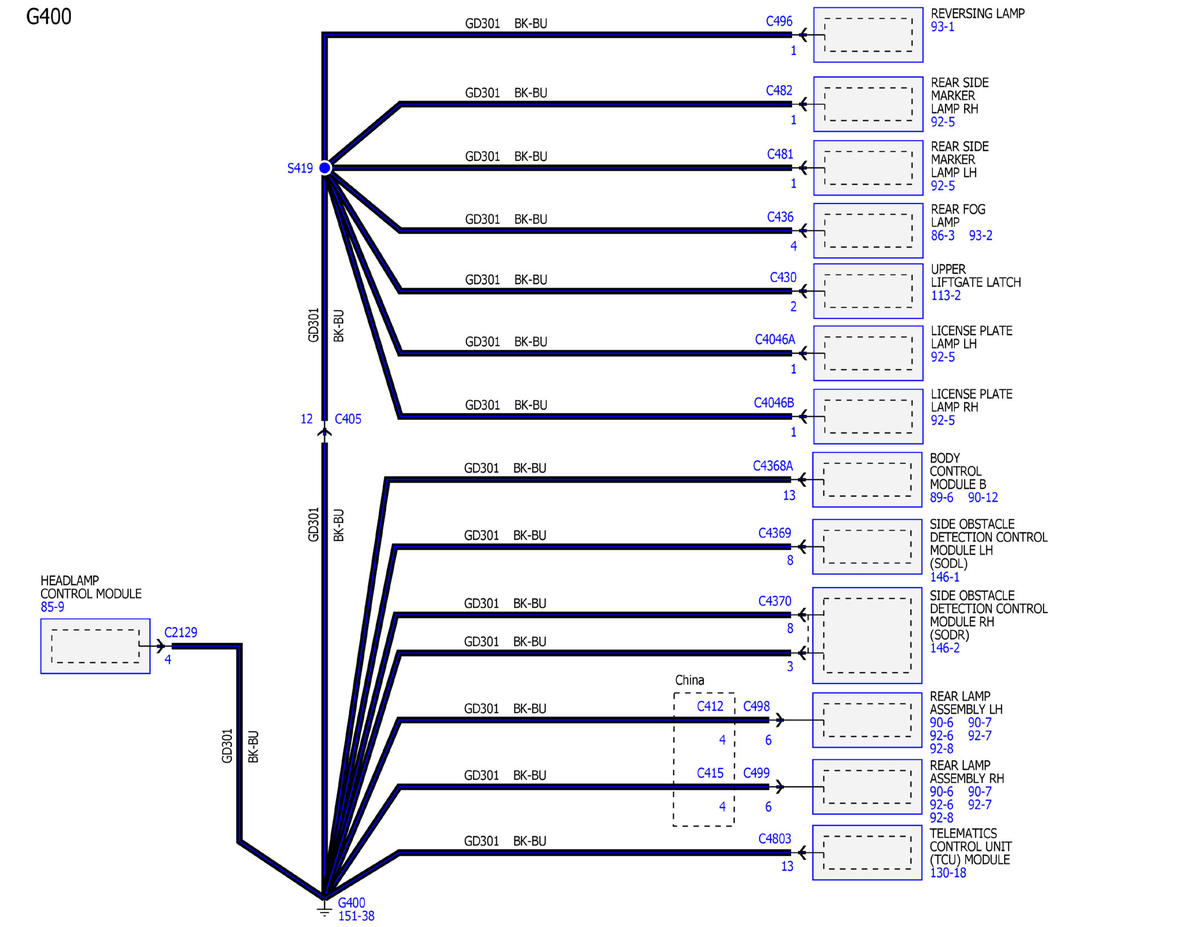

GFDWR54426Courtesy of FORD MOTOR COMPANY

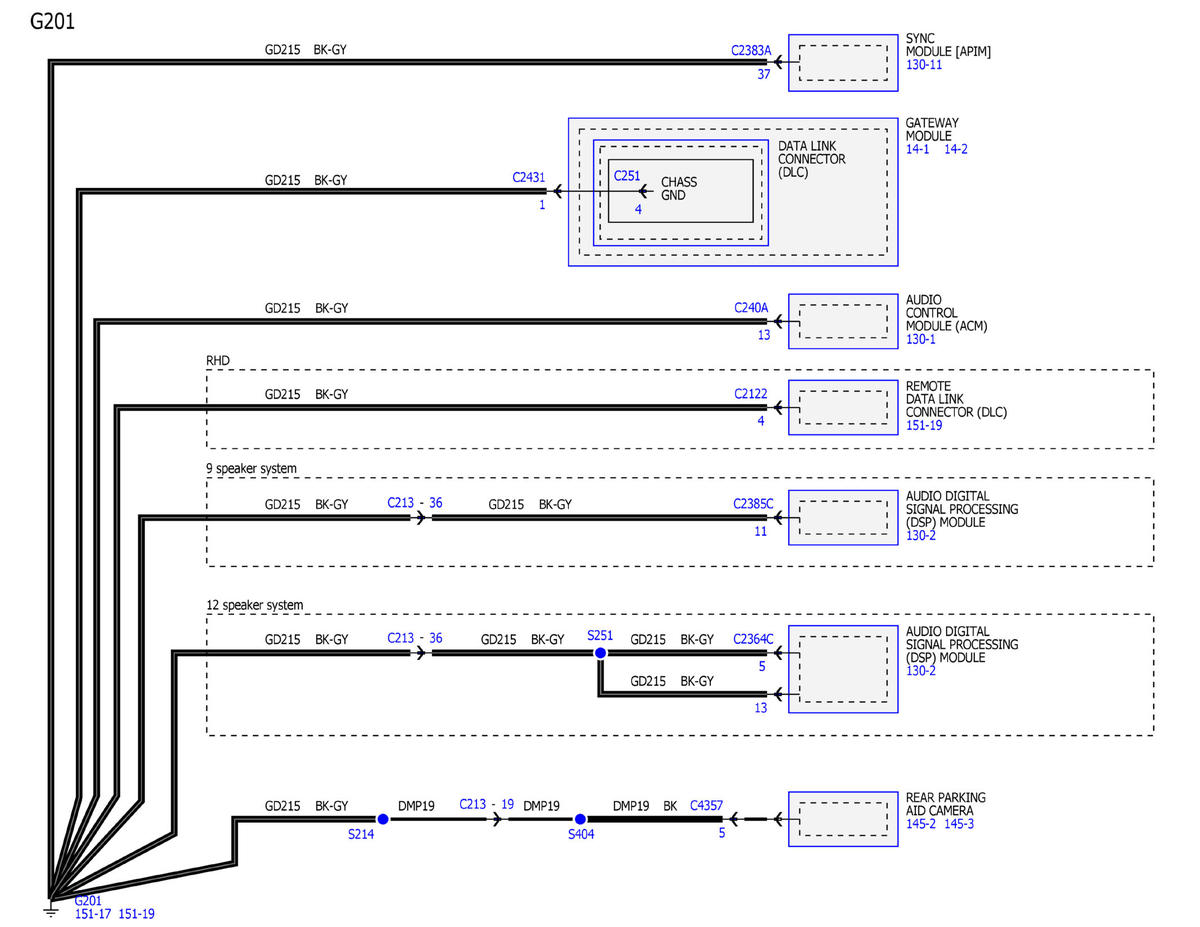

GFDWR54427Courtesy of FORD MOTOR COMPANY

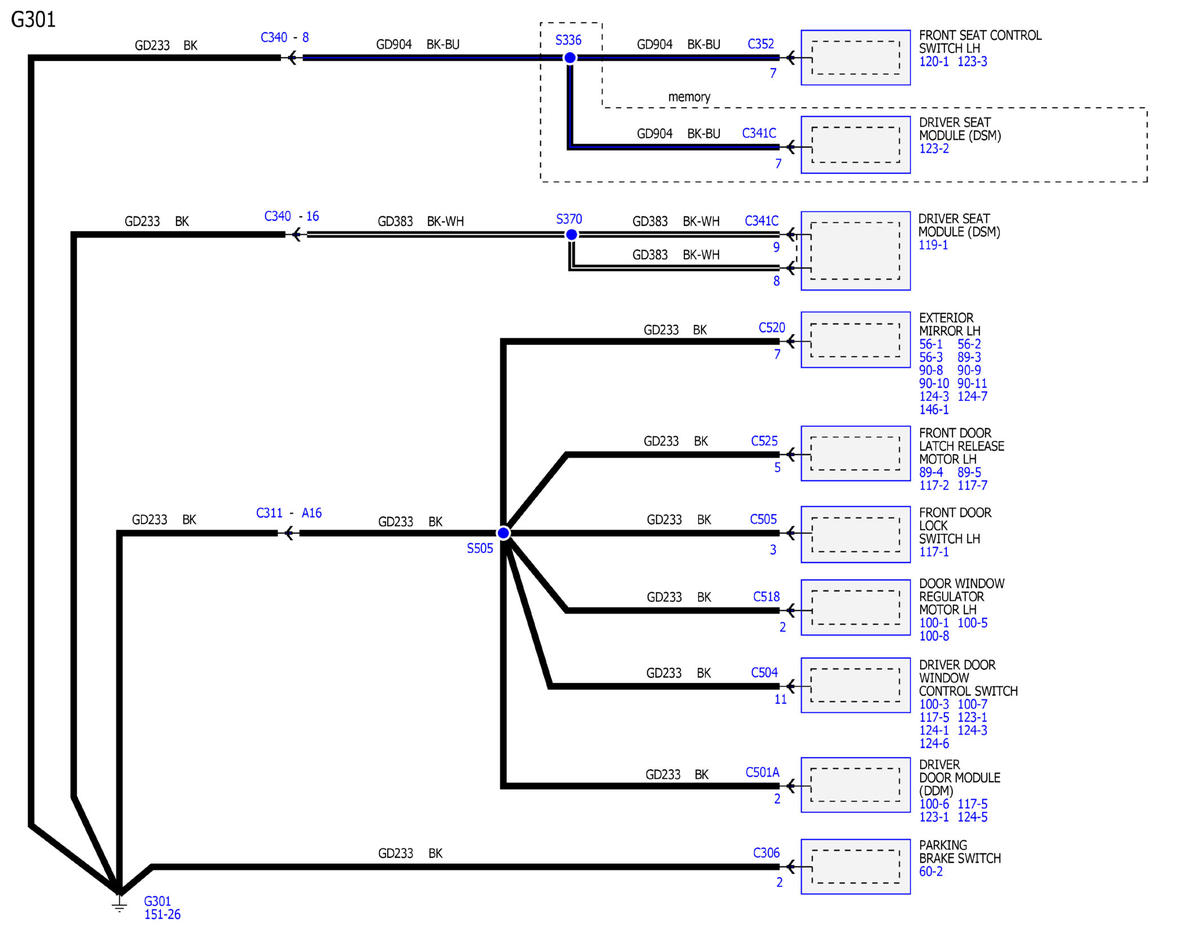

GFDWR54428Courtesy of FORD MOTOR COMPANY
