Front Strut and Spring Assembly: Installation

WARNING: This page is about a different car, the 2019 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

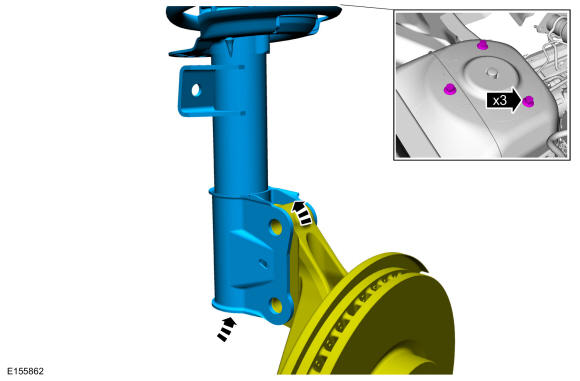

  1. Position the front strut and spring assembly and install the new front strut and spring assembly upper bolts.

    Torque

    : 26 lb.ft (35 Nm)

    GFD381082Courtesy of FORD MOTOR COMPANY
  2. Install the cowl panel. Refer to: Cowl Panel .

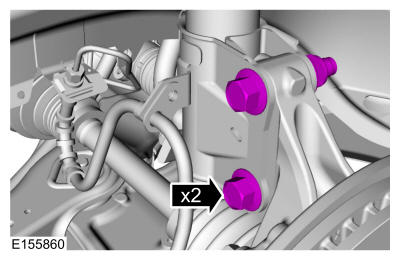

  3. Install the new front strut and spring assembly-to-wheel knuckle bolts and nuts.

    Torque

    : 173 lb.ft (235 Nm)

    GFD381083Courtesy of FORD MOTOR COMPANY

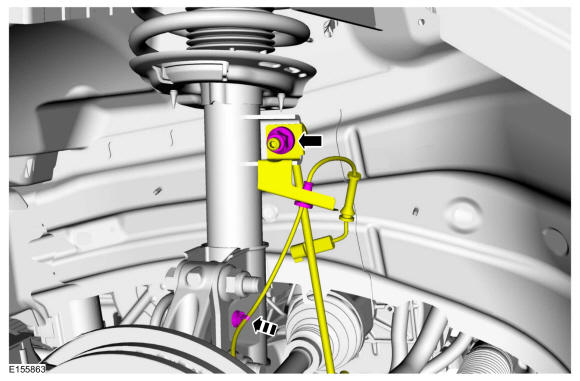

  4. Position the front stabilizer bar link and install the new front stabilizer bar link upper nut. Position and clip the wheel speed sensor harness.

    Torque

    : 85 lb.ft (115 Nm)

    GFD381084Courtesy of FORD MOTOR COMPANY

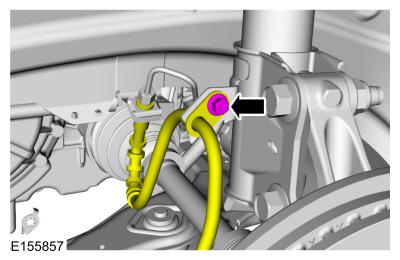

  5. Position the brake hose and install the brake hose bracket bolt.

    Torque

    : 159 lb.in (18 Nm)

    GFD381078Courtesy of FORD MOTOR COMPANY
  6. Install the wheel and tire. Refer to: Wheel and Tire .
  7. Check and if necessary adjust front camber. Refer to: Front Camber Adjustment .
