Power Windows

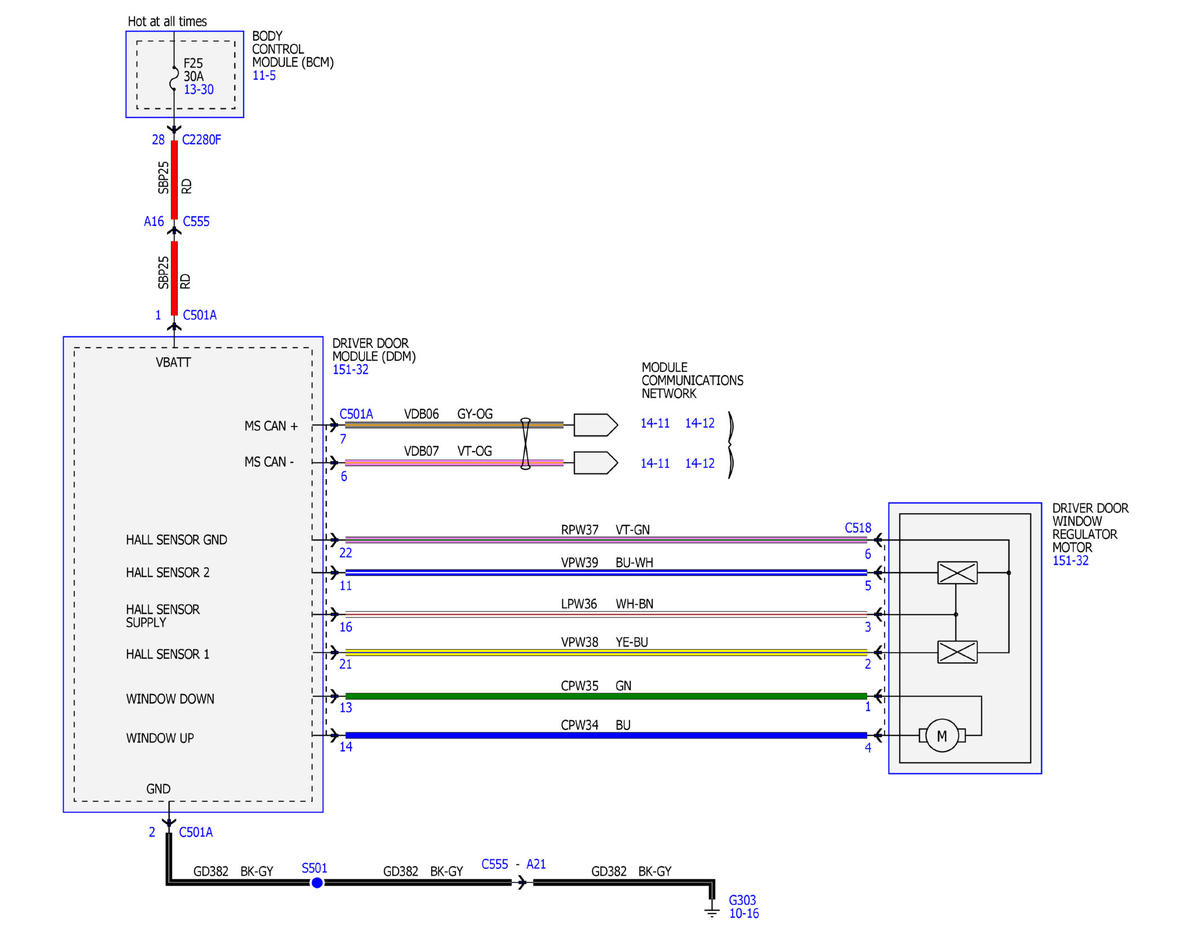

Fig 1: Power Windows Wiring Diagram (1 Of 9)
GFDWR52323Courtesy of FORD MOTOR COMPANY

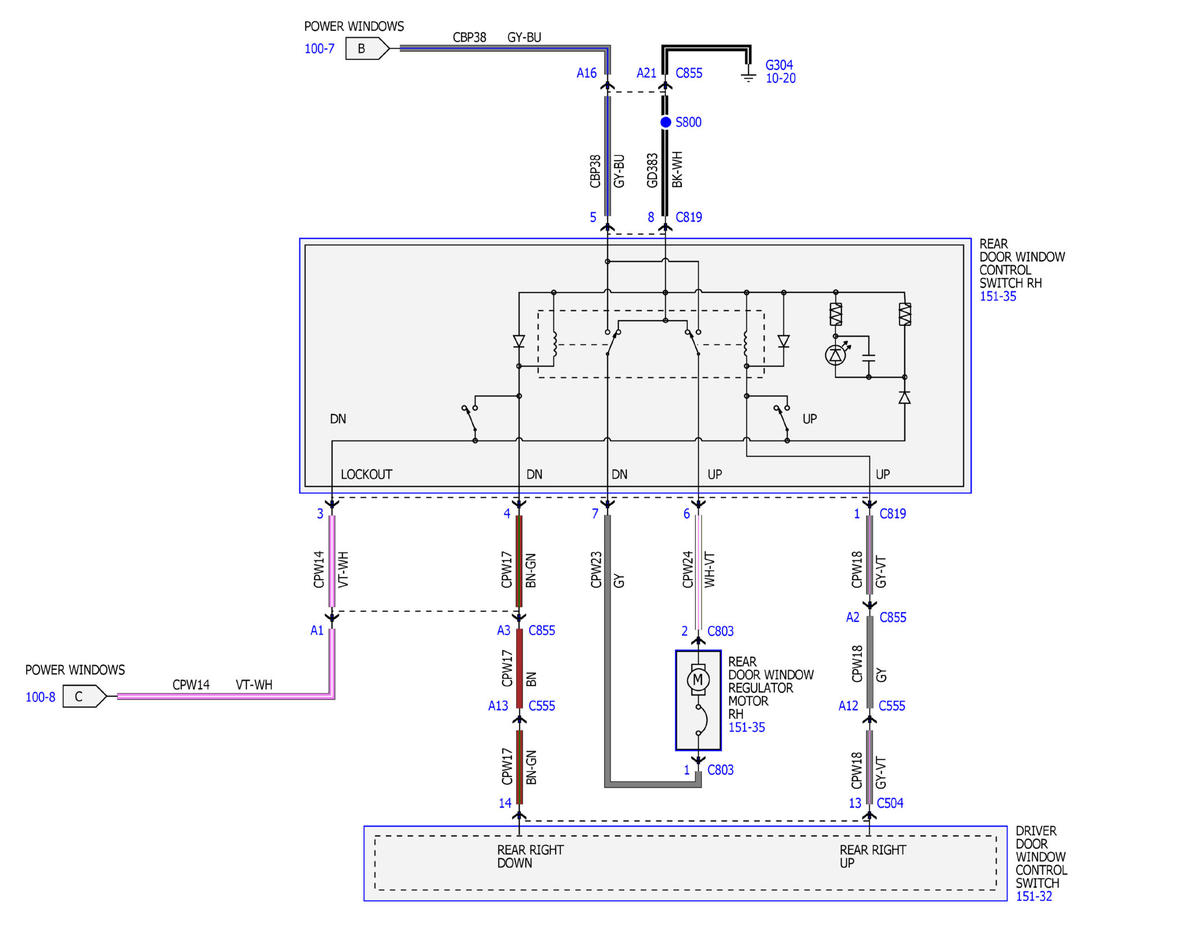

Fig 2: Power Windows Wiring Diagram (2 Of 9)
GFDWR52324Courtesy of FORD MOTOR COMPANY

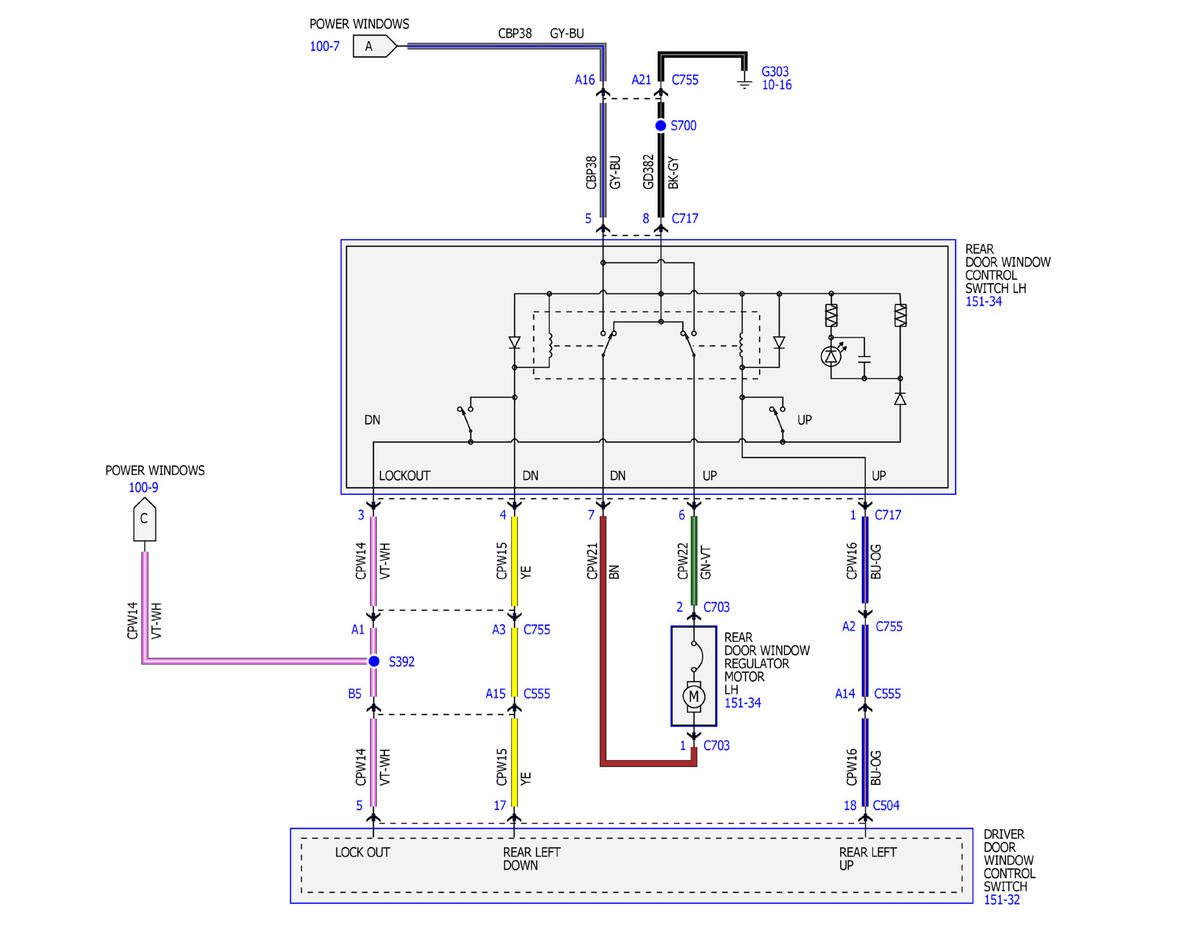

Fig 3: Power Windows Wiring Diagram (3 Of 9)
GFDWR52325Courtesy of FORD MOTOR COMPANY

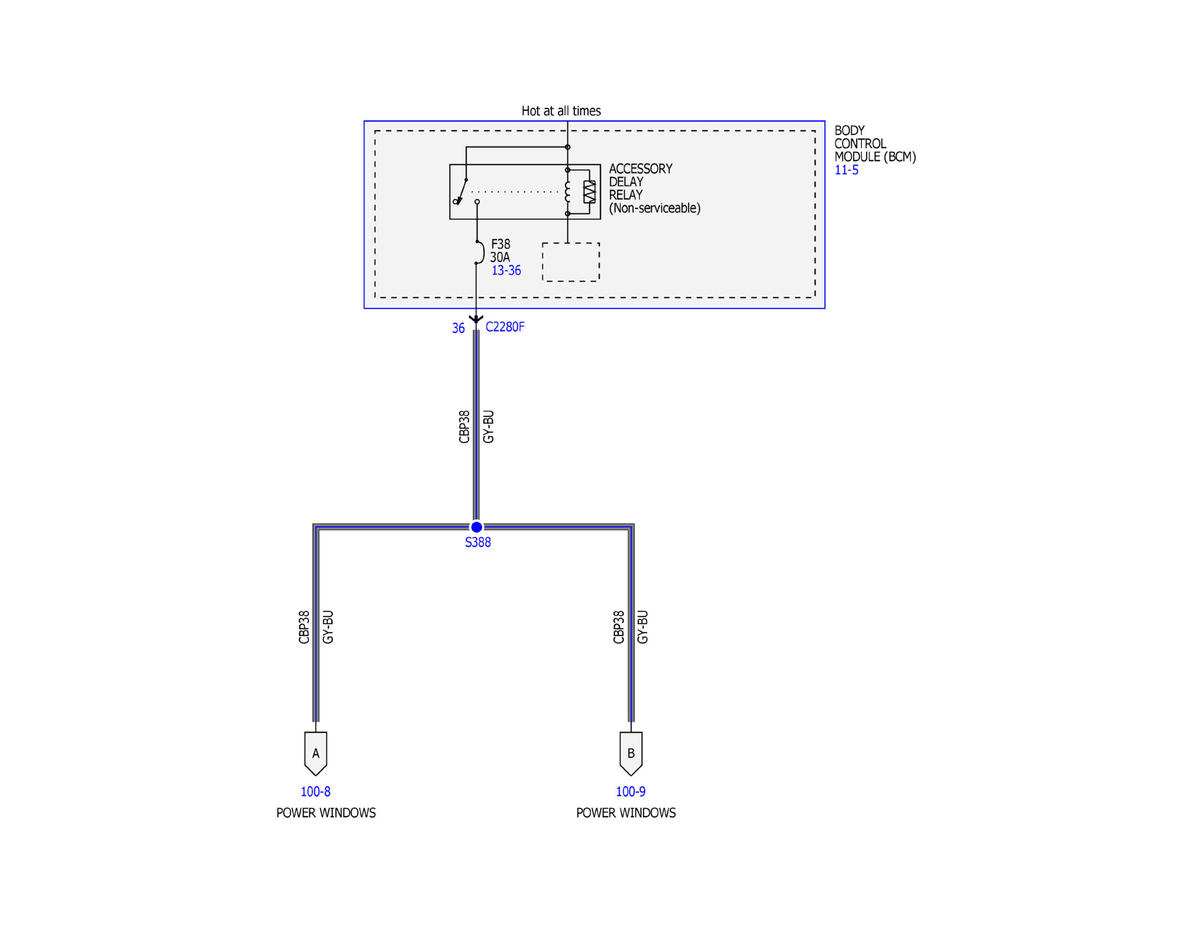

Fig 4: Power Windows Wiring Diagram (4 Of 9)
GFDWR52326Courtesy of FORD MOTOR COMPANY

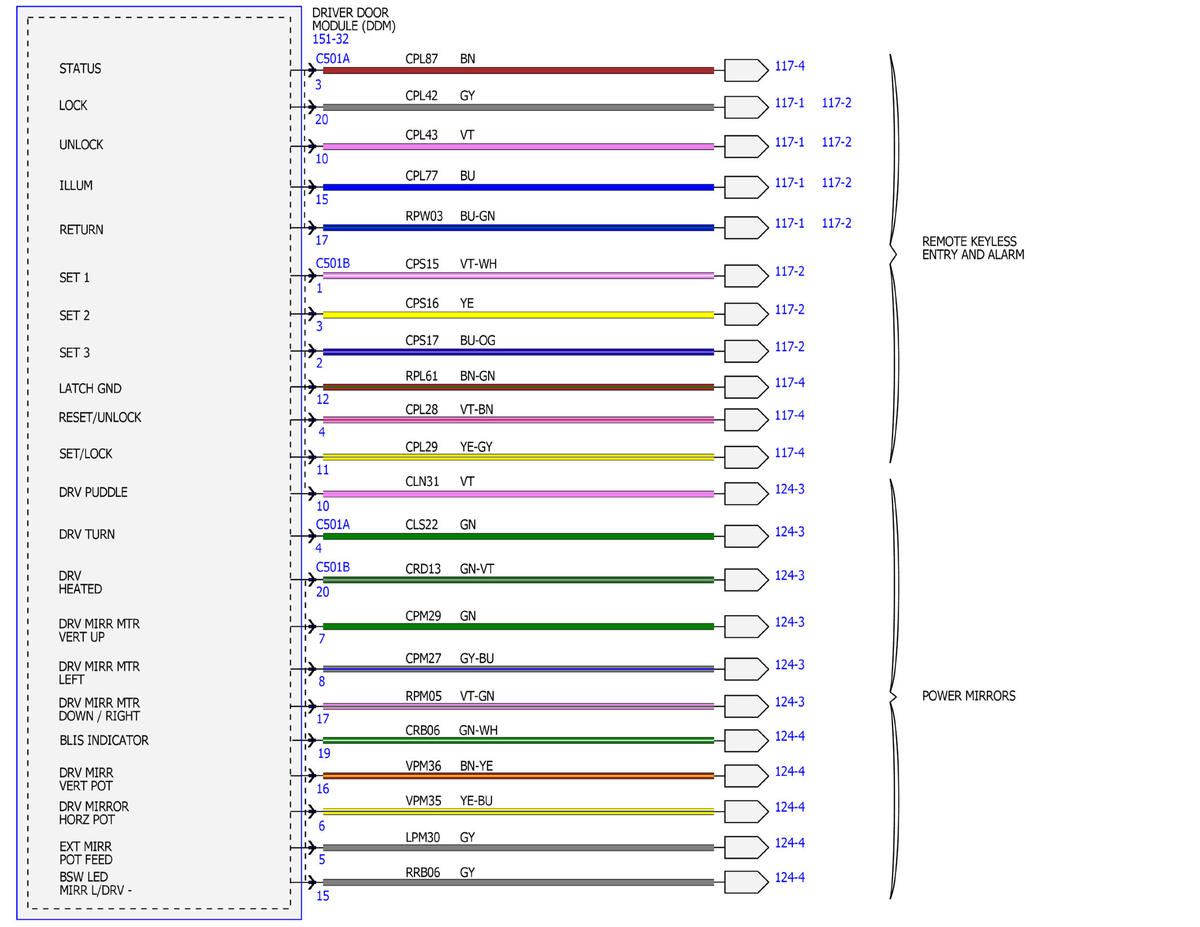

Fig 5: Power Windows Wiring Diagram (5 Of 9)
GFDWR52327Courtesy of FORD MOTOR COMPANY

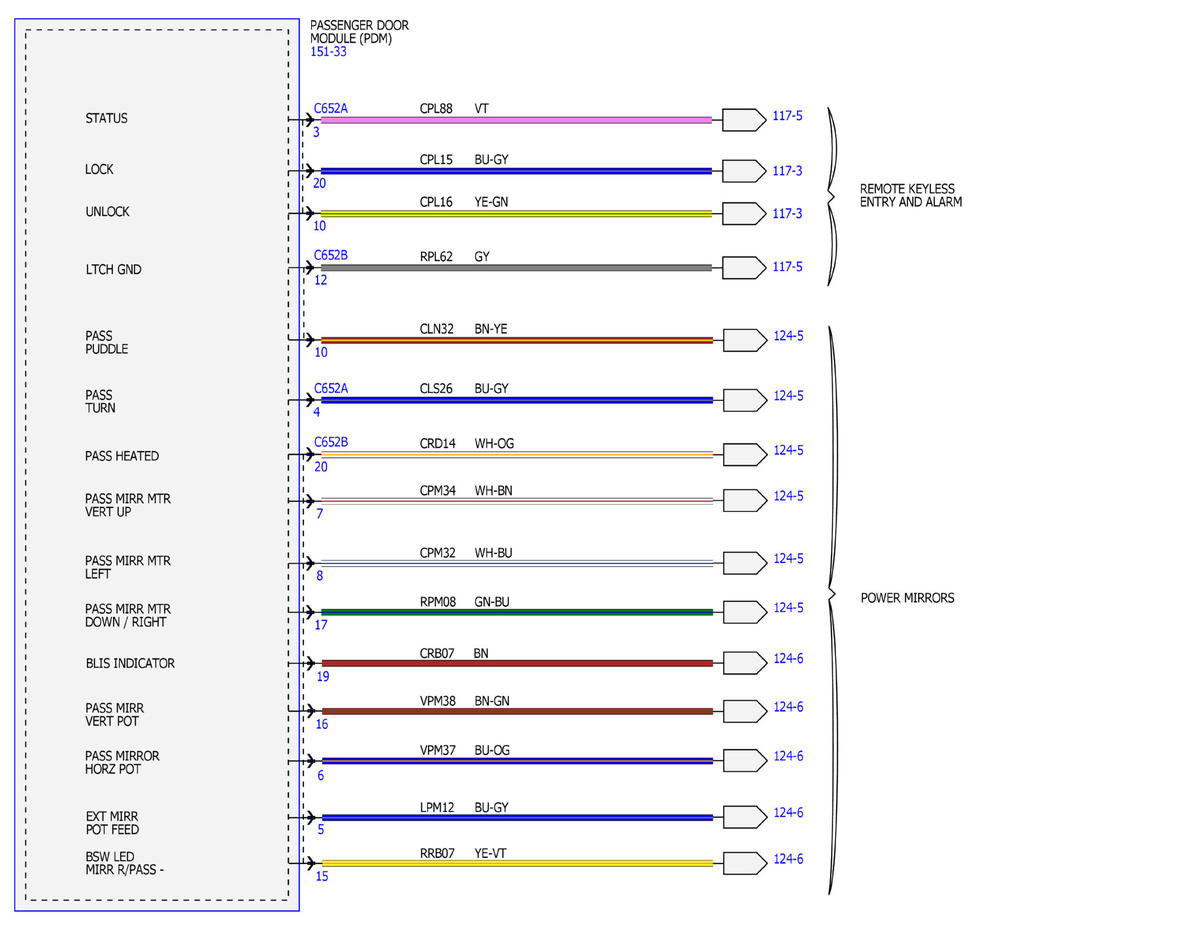

Fig 6: Power Windows Wiring Diagram (6 Of 9)
GFDWR52328Courtesy of FORD MOTOR COMPANY

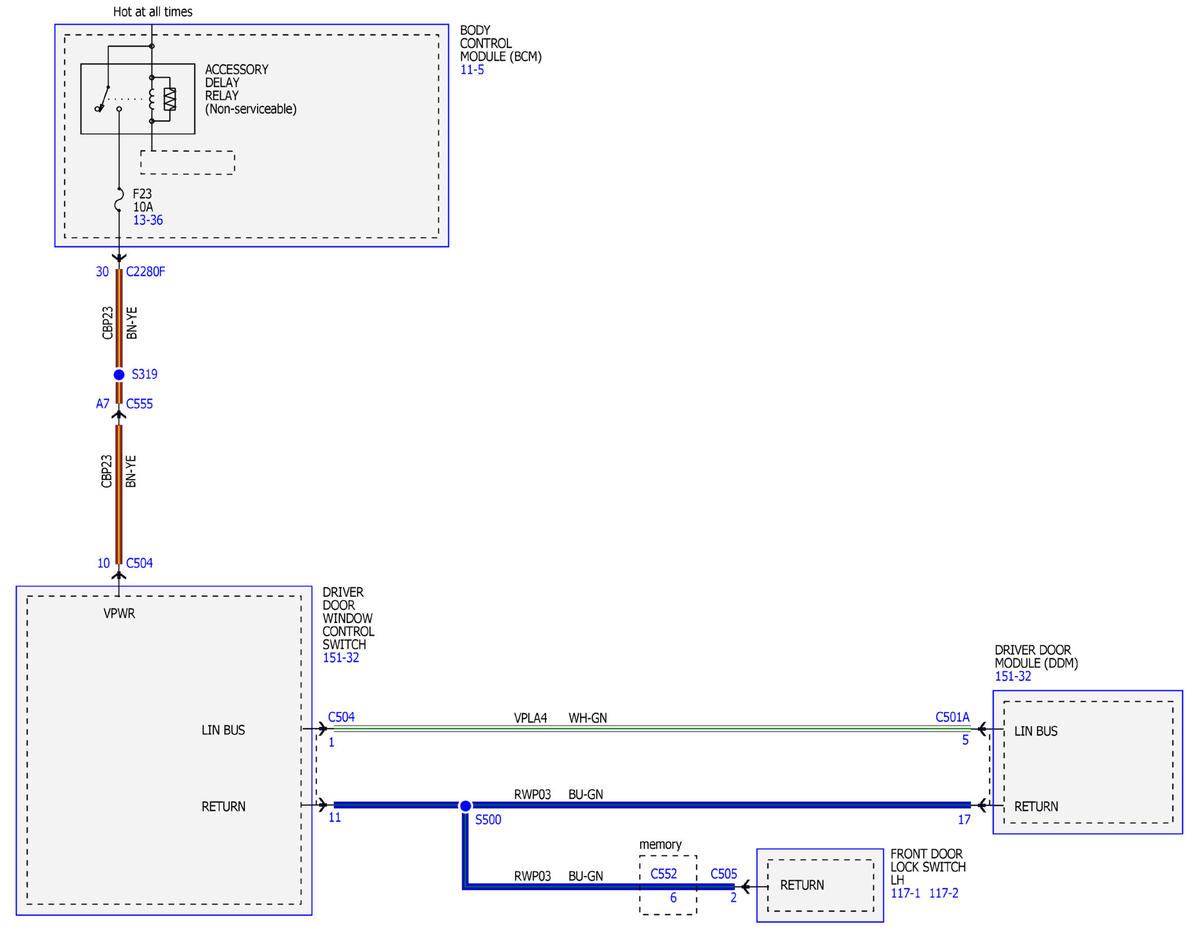

Fig 7: Power Windows Wiring Diagram (7 Of 9)
GFDWR52329Courtesy of FORD MOTOR COMPANY

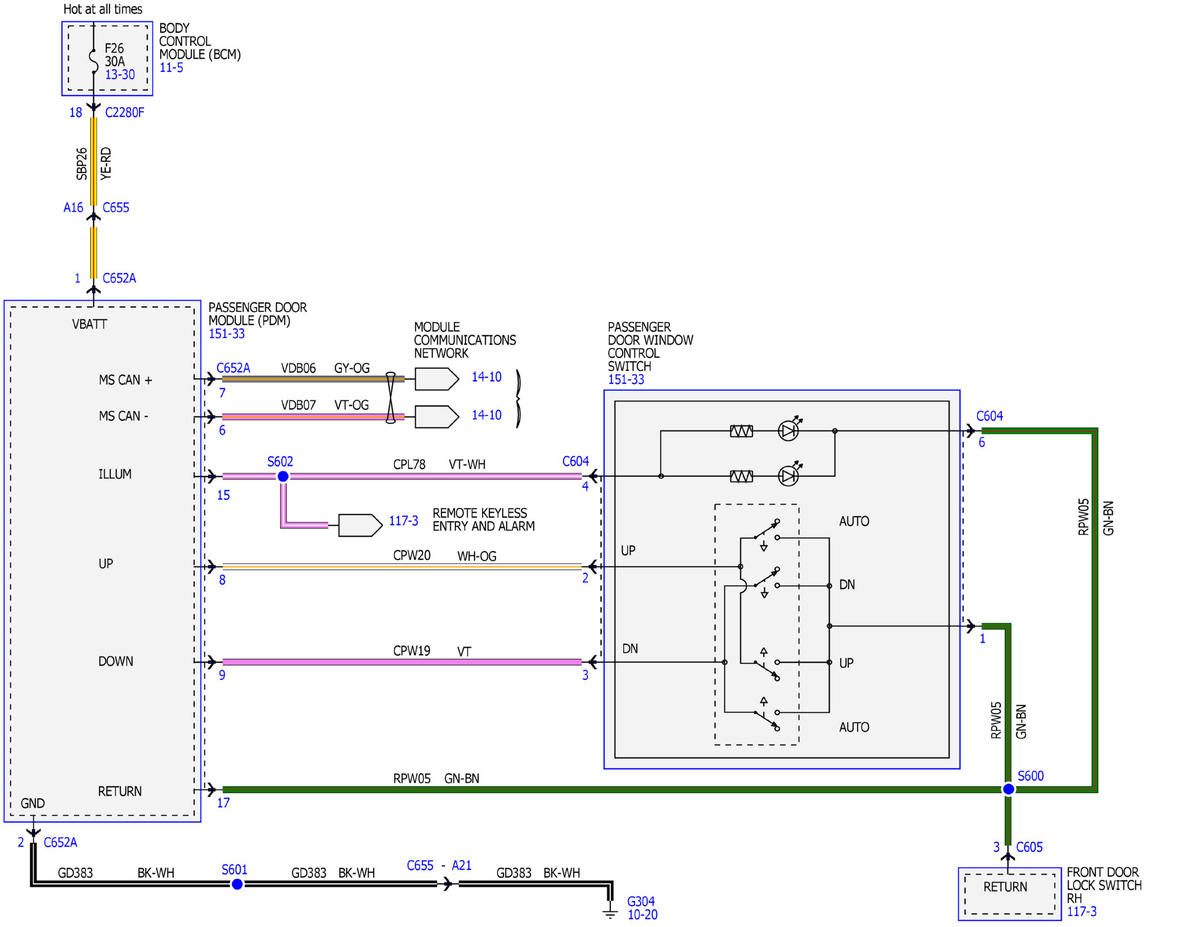

Fig 8: Power Windows Wiring Diagram (8 Of 9)
GFDWR52330Courtesy of FORD MOTOR COMPANY

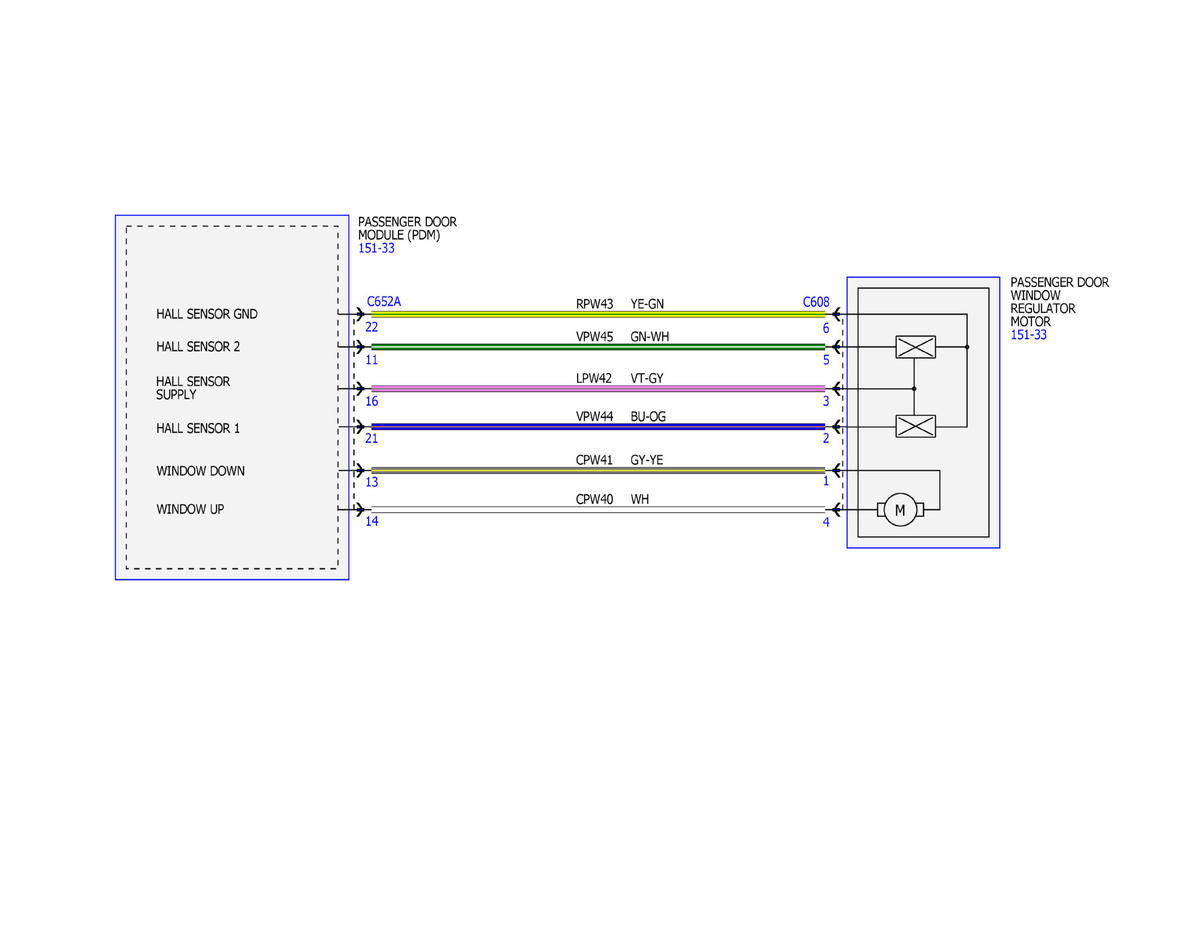

Fig 9: Power Windows Wiring Diagram (9 Of 9)
GFDWR52331Courtesy of FORD MOTOR COMPANY
