Power Liftgate
Power Liftgate

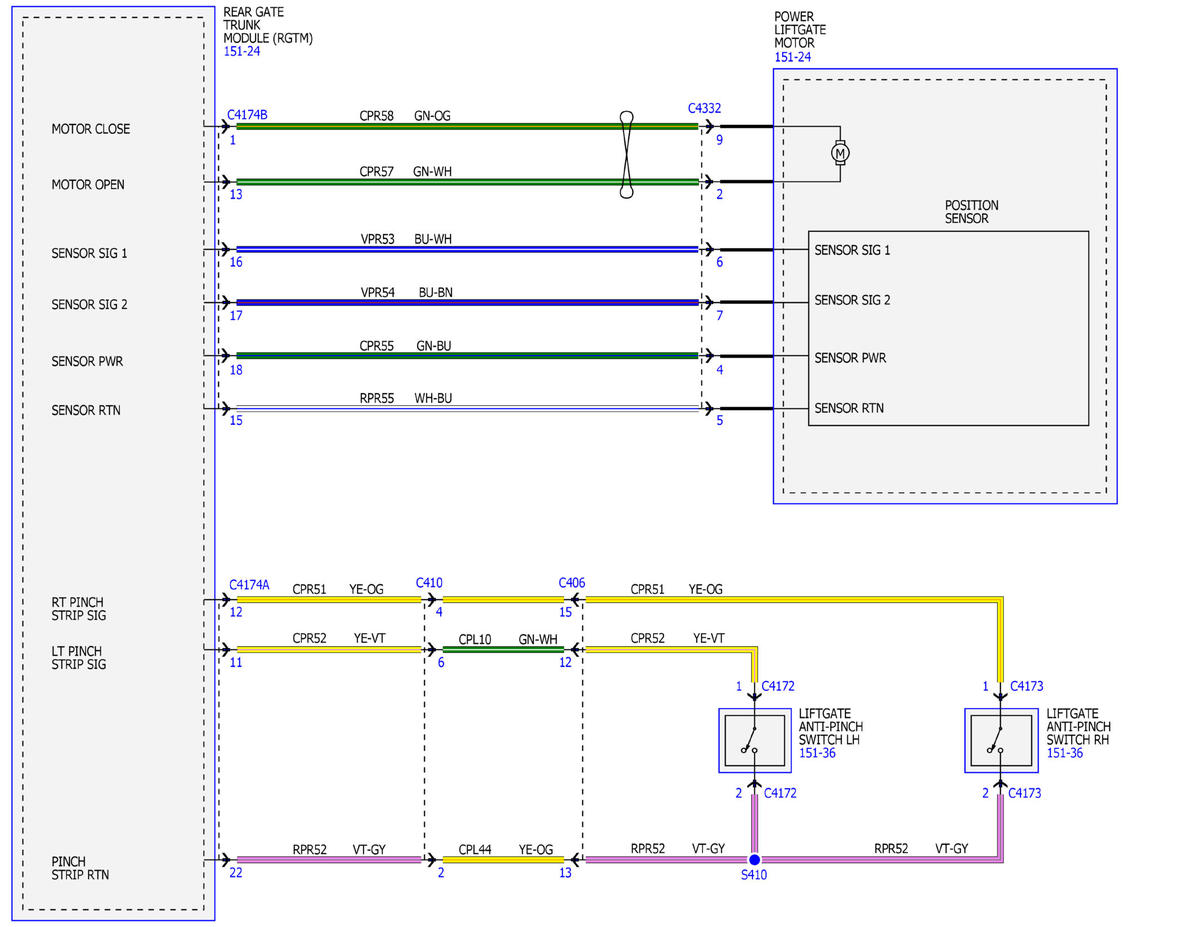

Fig 1: Power Liftgate Wiring Diagram (1 Of 6)
Courtesy of FORD MOTOR COMPANY

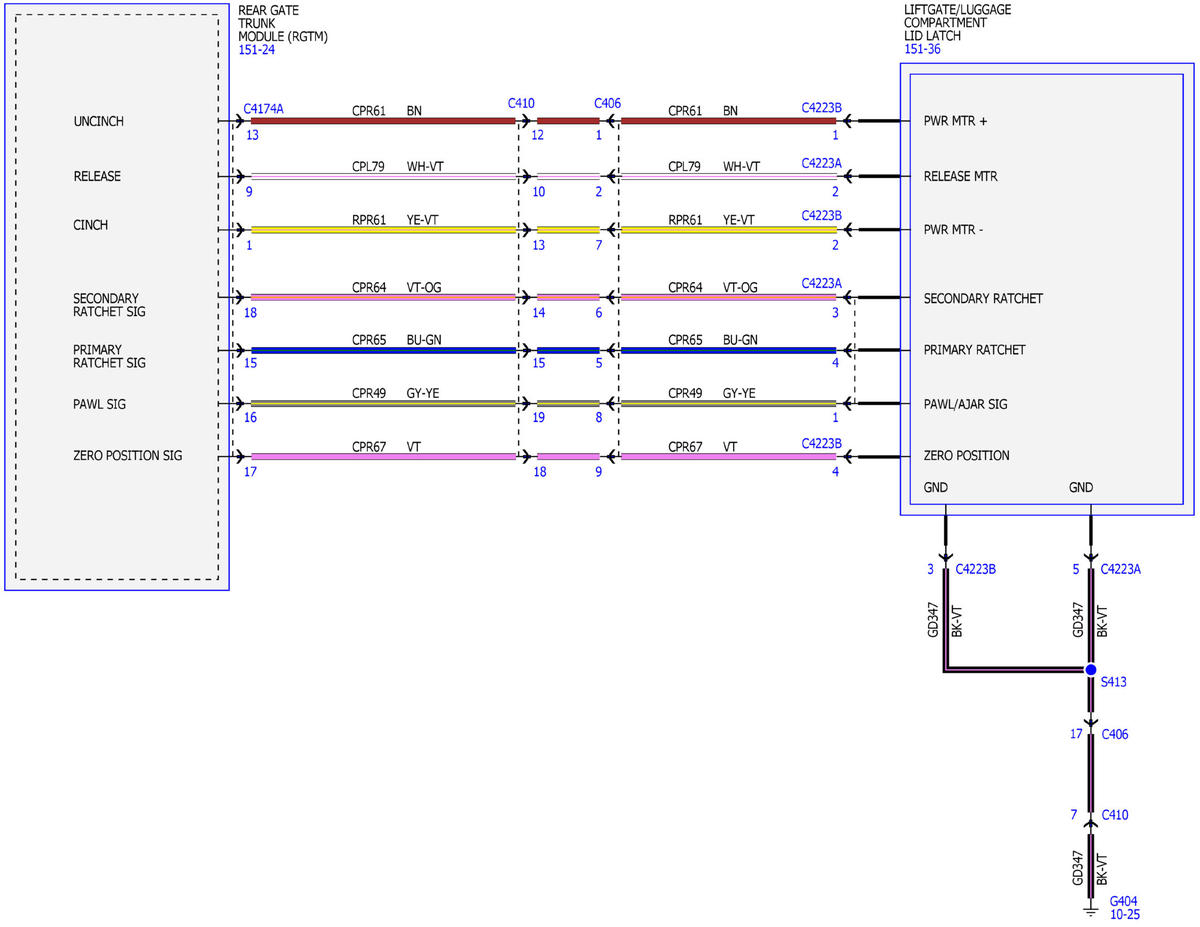

Fig 2: Power Liftgate Wiring Diagram (2 Of 6)
Courtesy of FORD MOTOR COMPANY

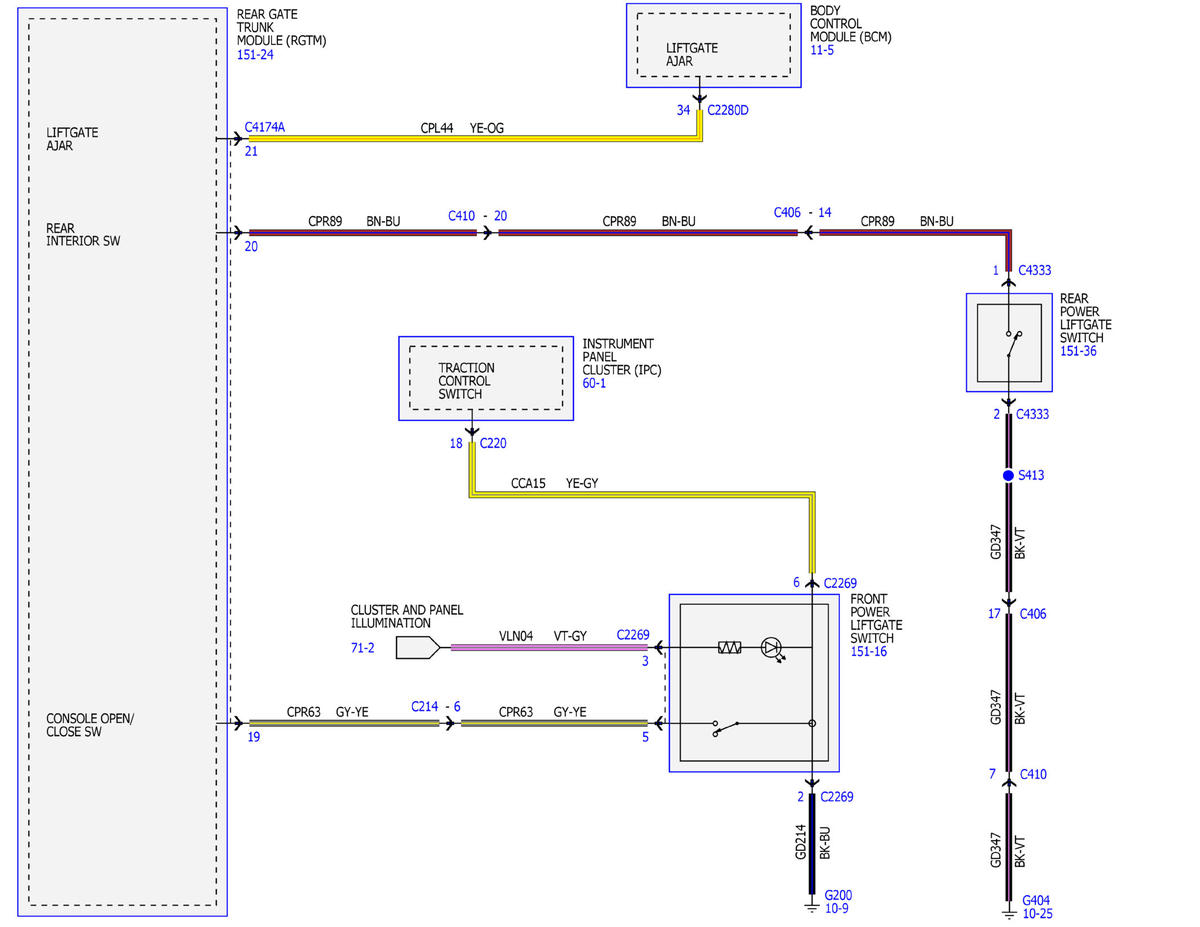

Fig 3: Power Liftgate Wiring Diagram (3 Of 6)
Courtesy of FORD MOTOR COMPANY

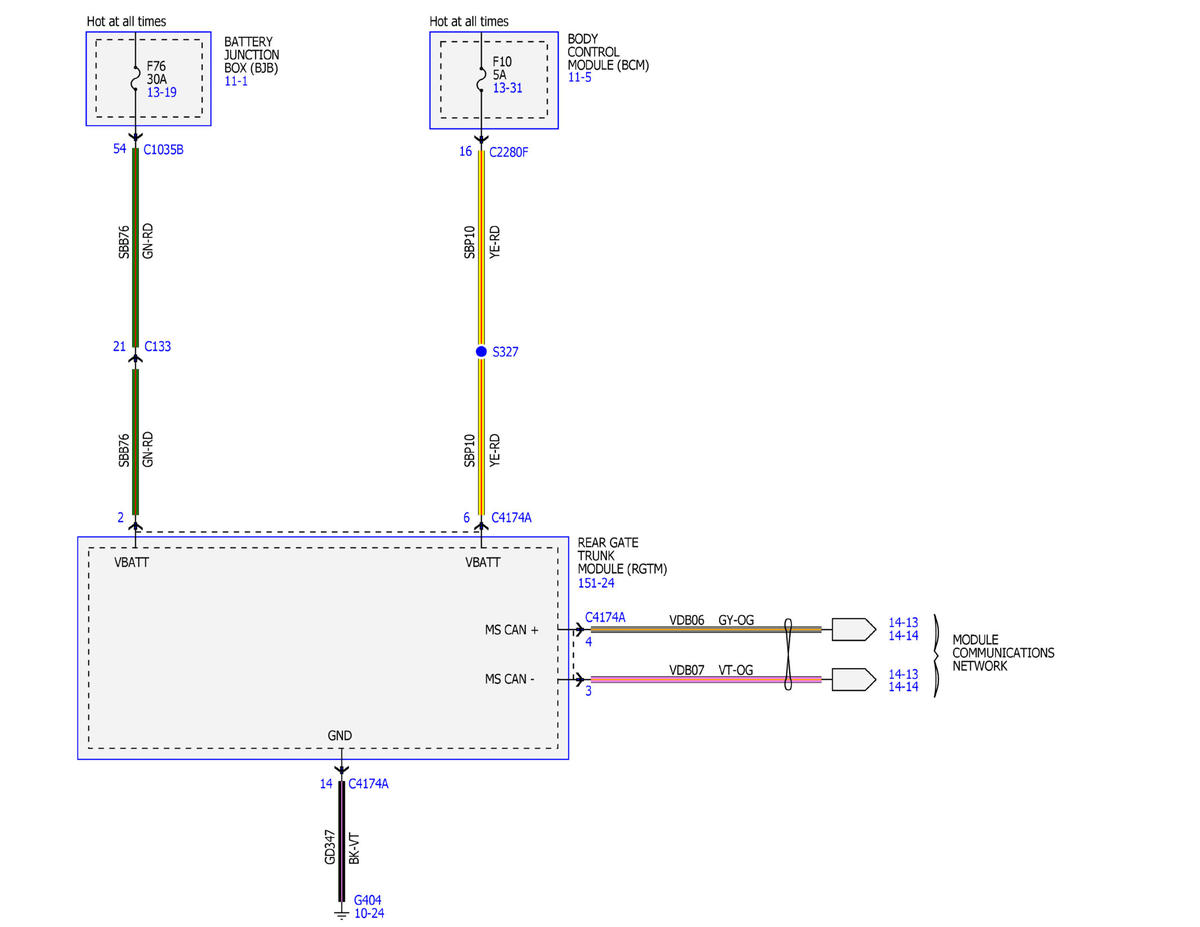

Fig 4: Power Liftgate Wiring Diagram (4 Of 6)
Courtesy of FORD MOTOR COMPANY

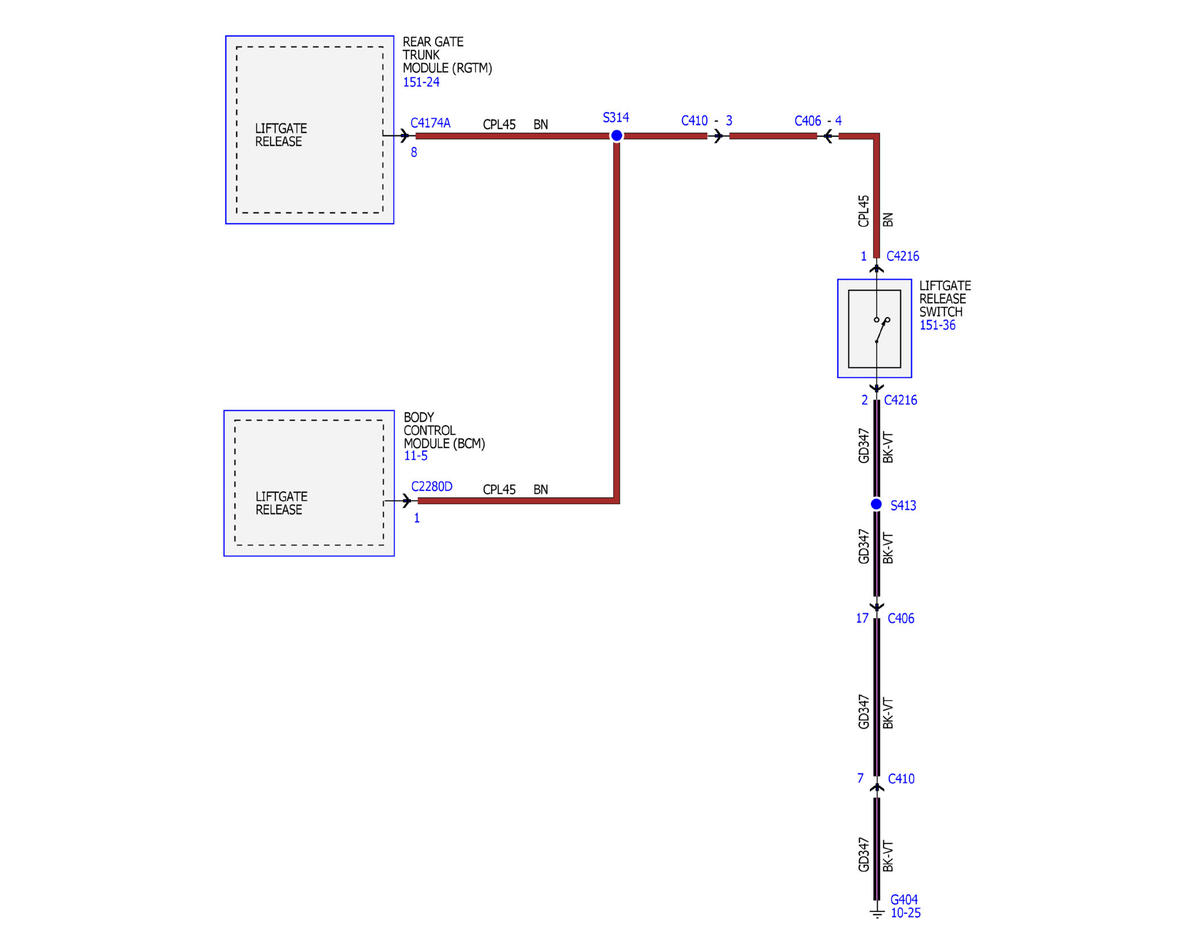

Fig 5: Power Liftgate Wiring Diagram (5 Of 6)
Courtesy of FORD MOTOR COMPANY

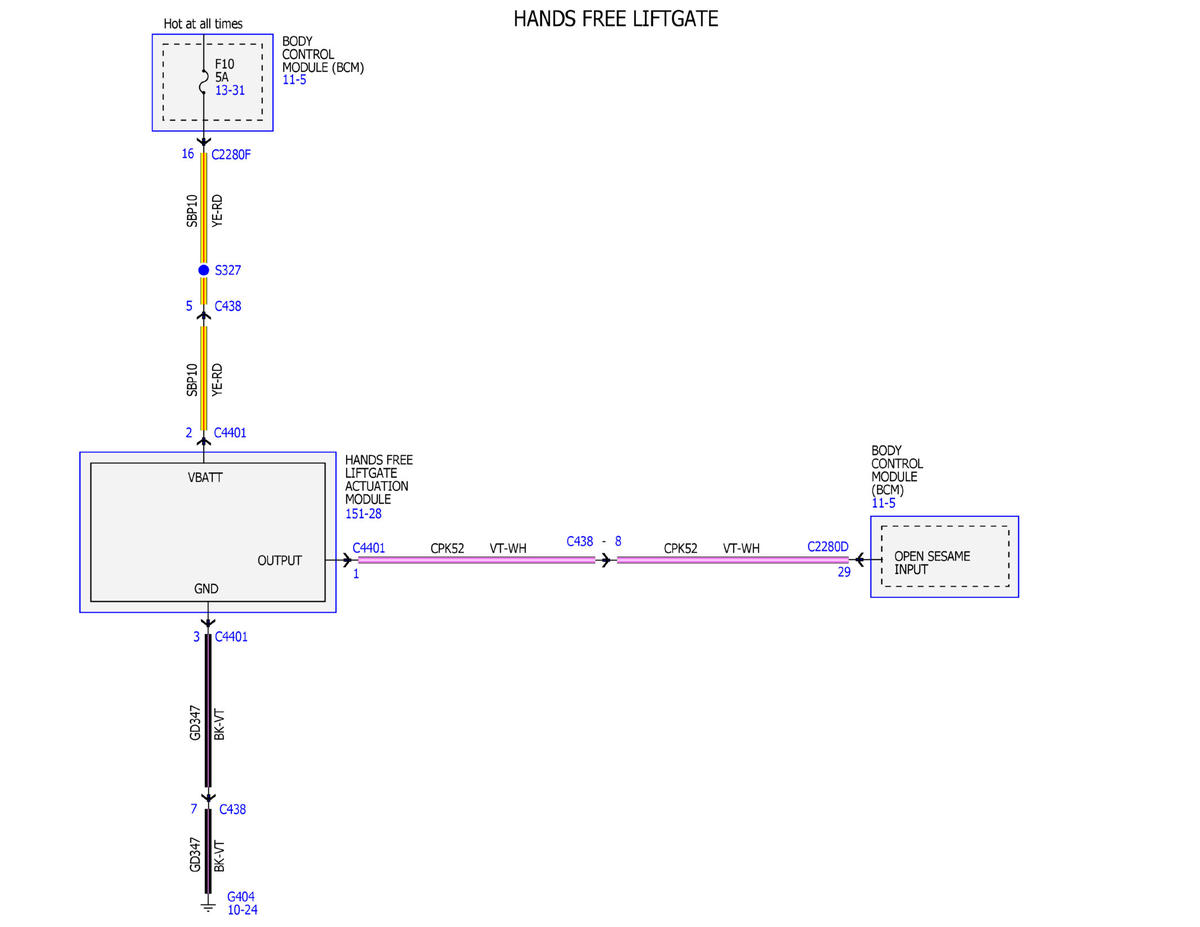

Fig 6: Power Liftgate Wiring Diagram (6 Of 6)
Courtesy of FORD MOTOR COMPANY
