Power Distribution

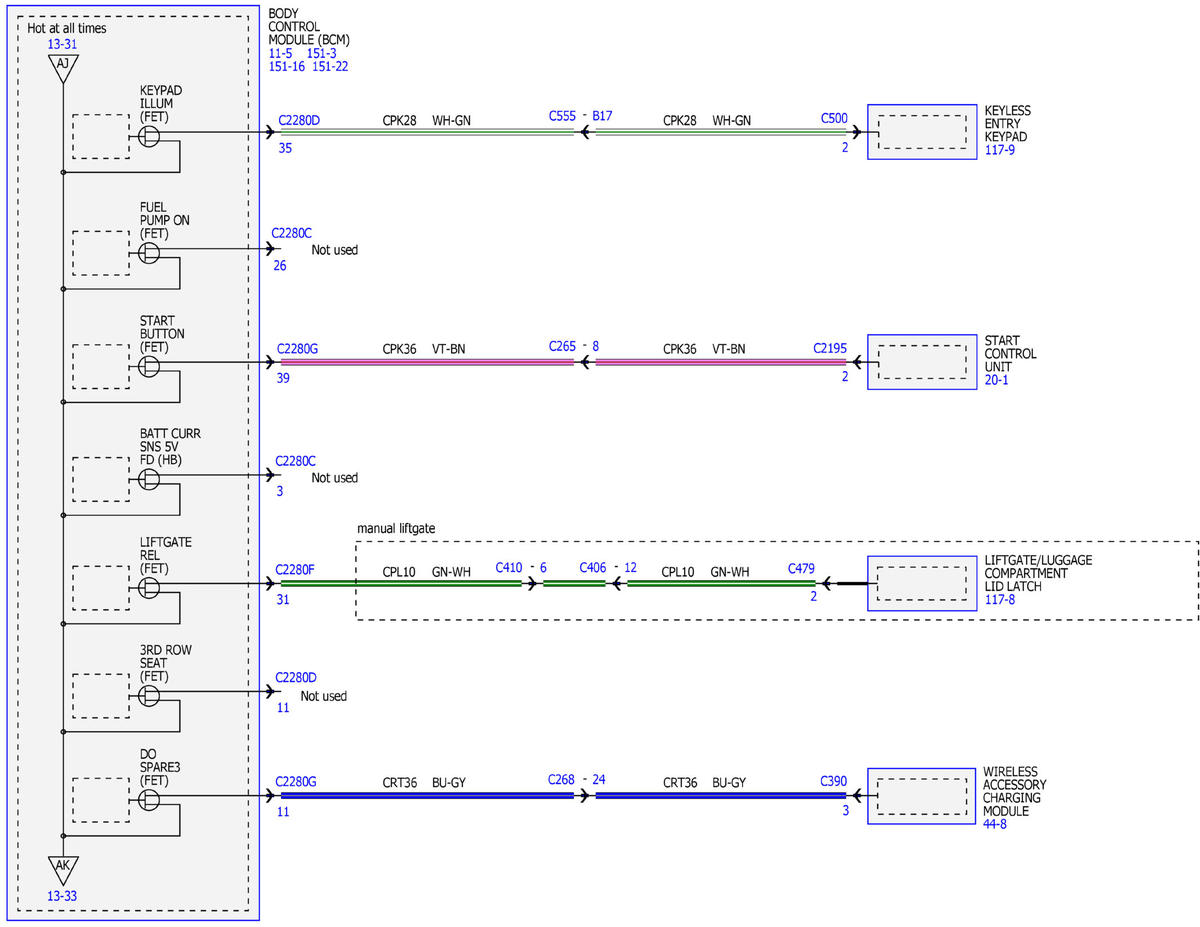

Fig 1: Power Distribution Wiring Diagram (1 Of 47)

GFDWR52258

Courtesy of FORD MOTOR COMPANY

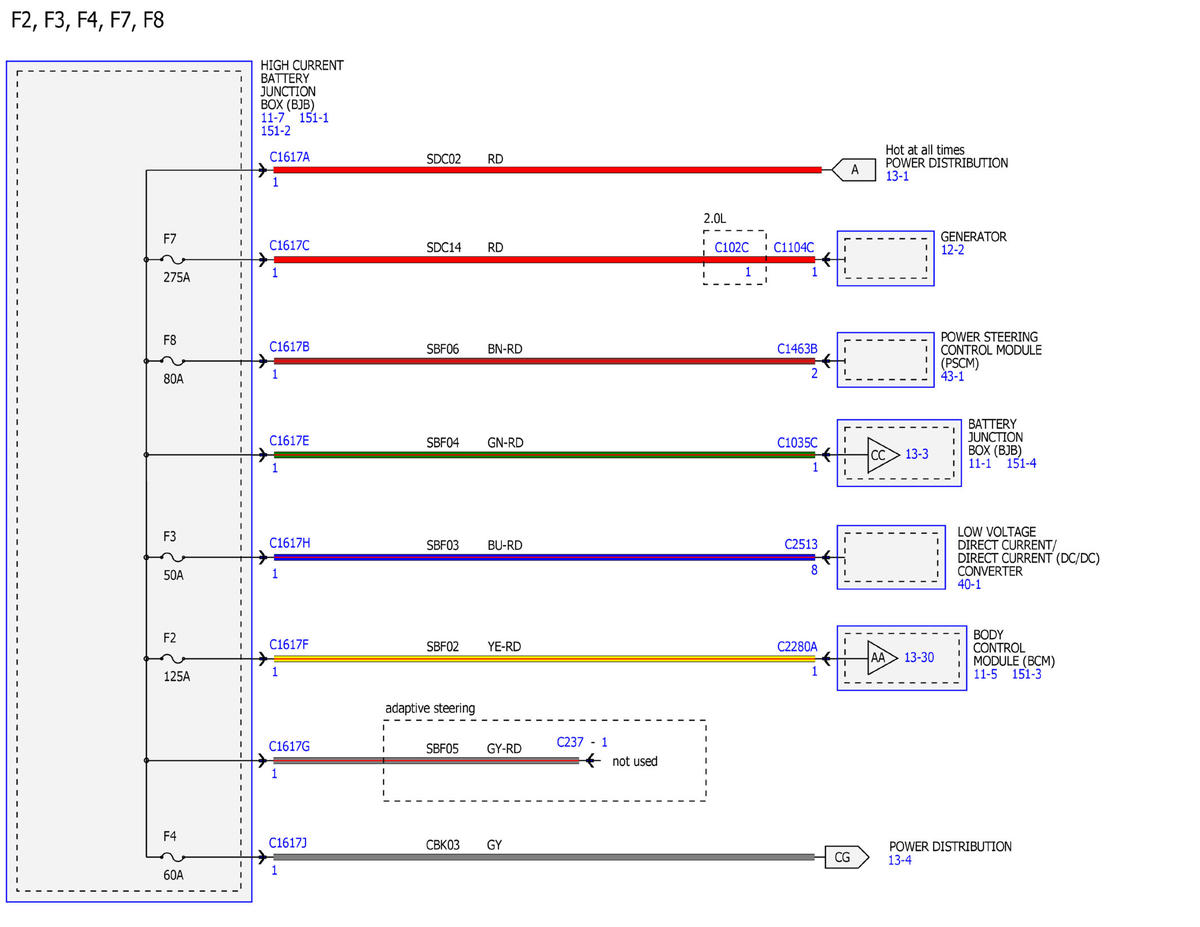

Fig 2: Power Distribution Wiring Diagram (2 Of 47)

GFDWR52259

Courtesy of FORD MOTOR COMPANY

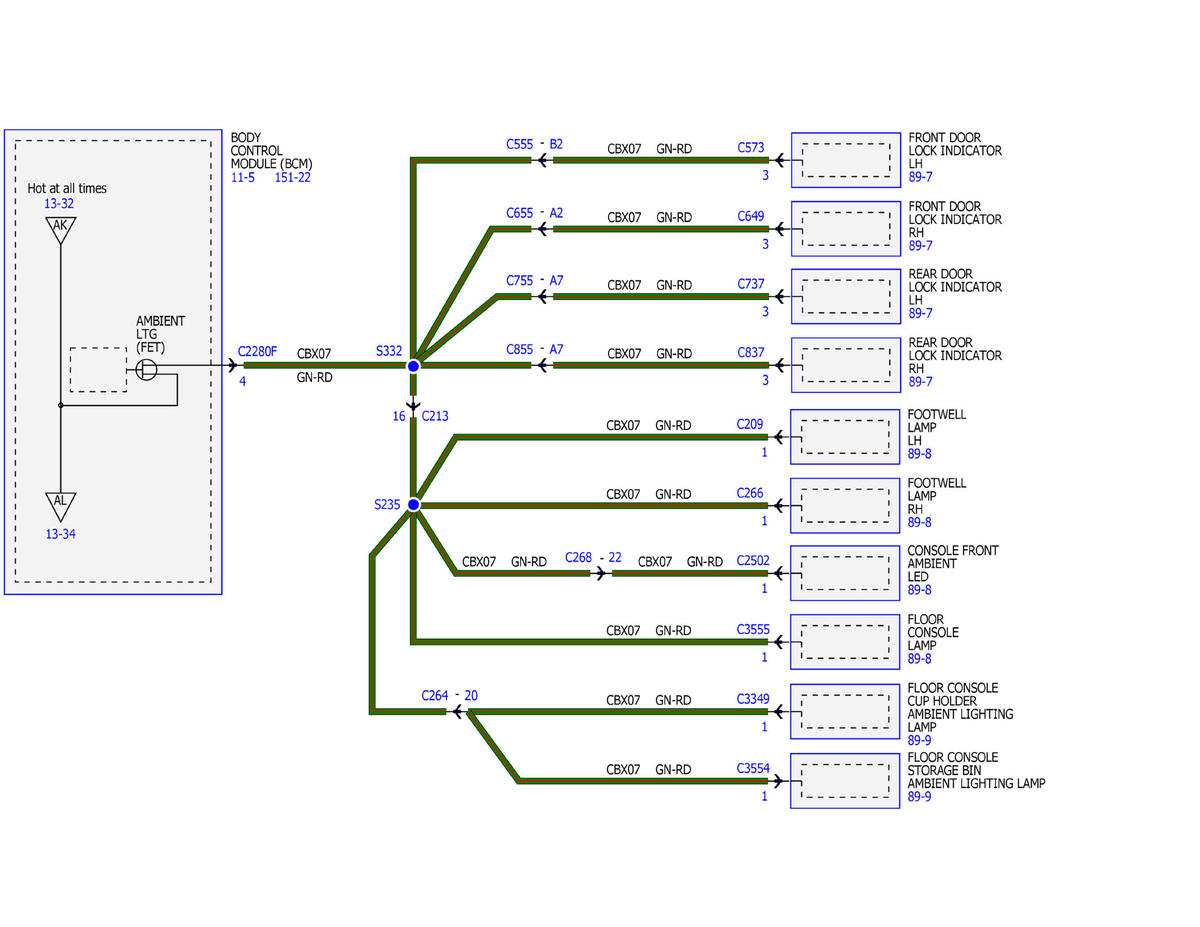

Fig 3: Power Distribution Wiring Diagram (3 Of 47)

GFDWR52260

Courtesy of FORD MOTOR COMPANY

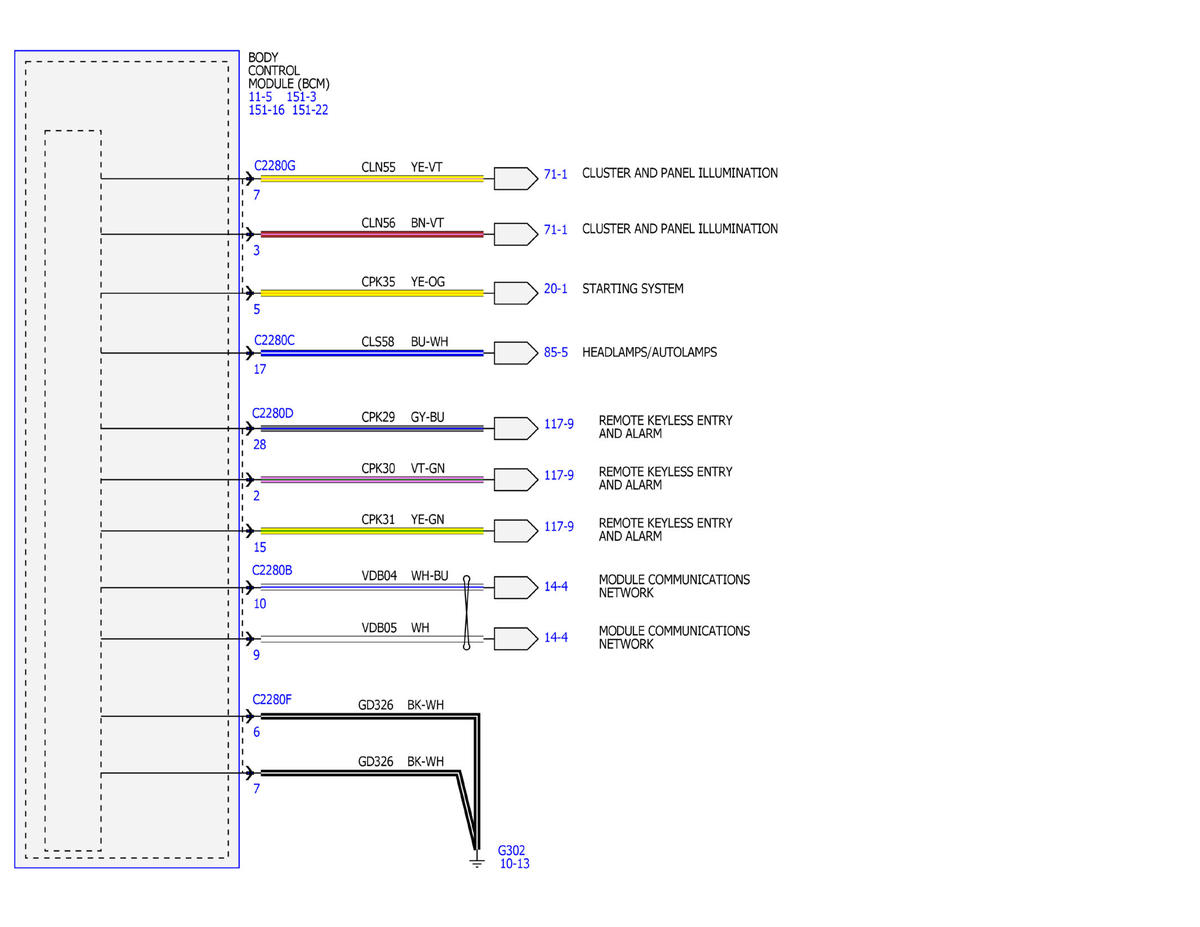

Fig 4: Power Distribution Wiring Diagram (4 Of 47)

GFDWR52261

Courtesy of FORD MOTOR COMPANY

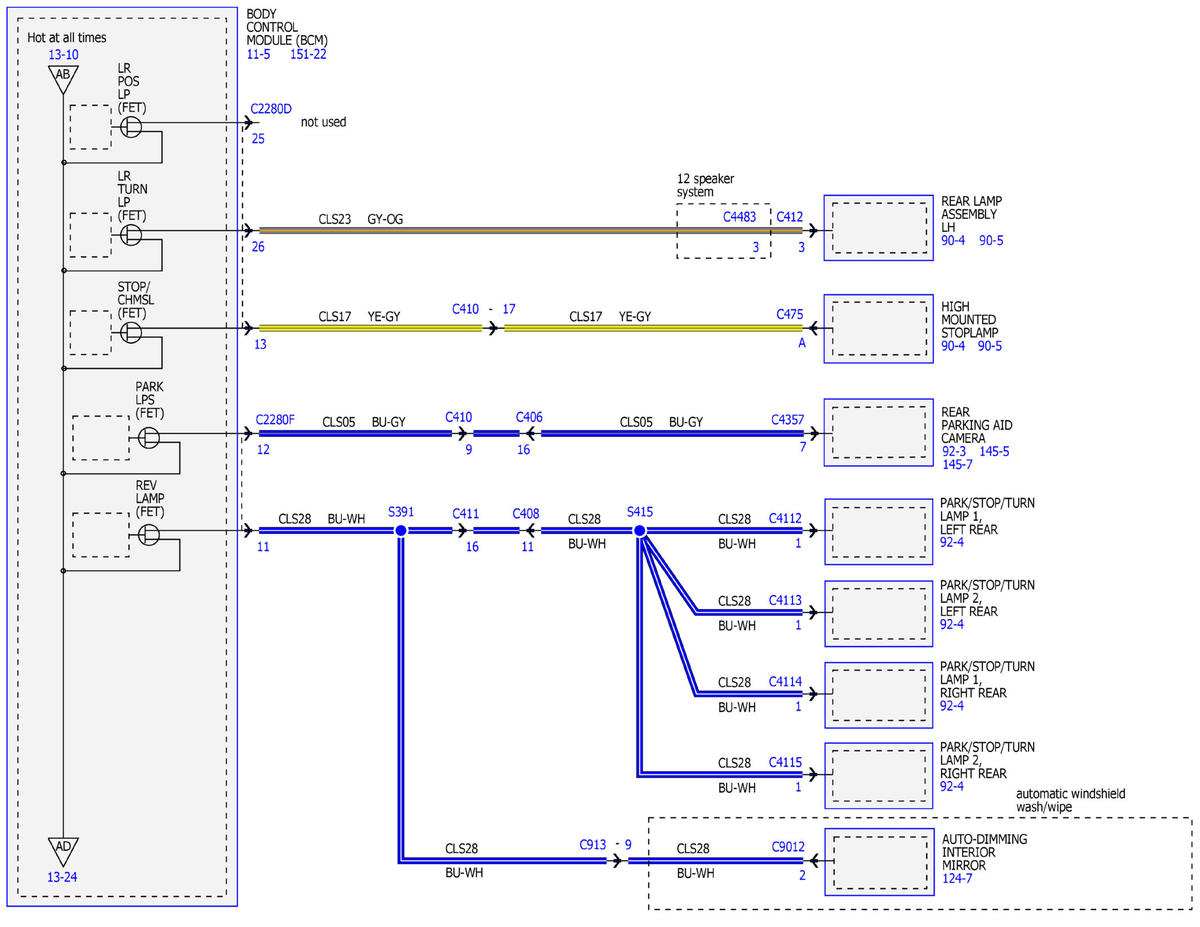

Fig 5: Power Distribution Wiring Diagram (5 Of 47)

GFDWR52262

Courtesy of FORD MOTOR COMPANY

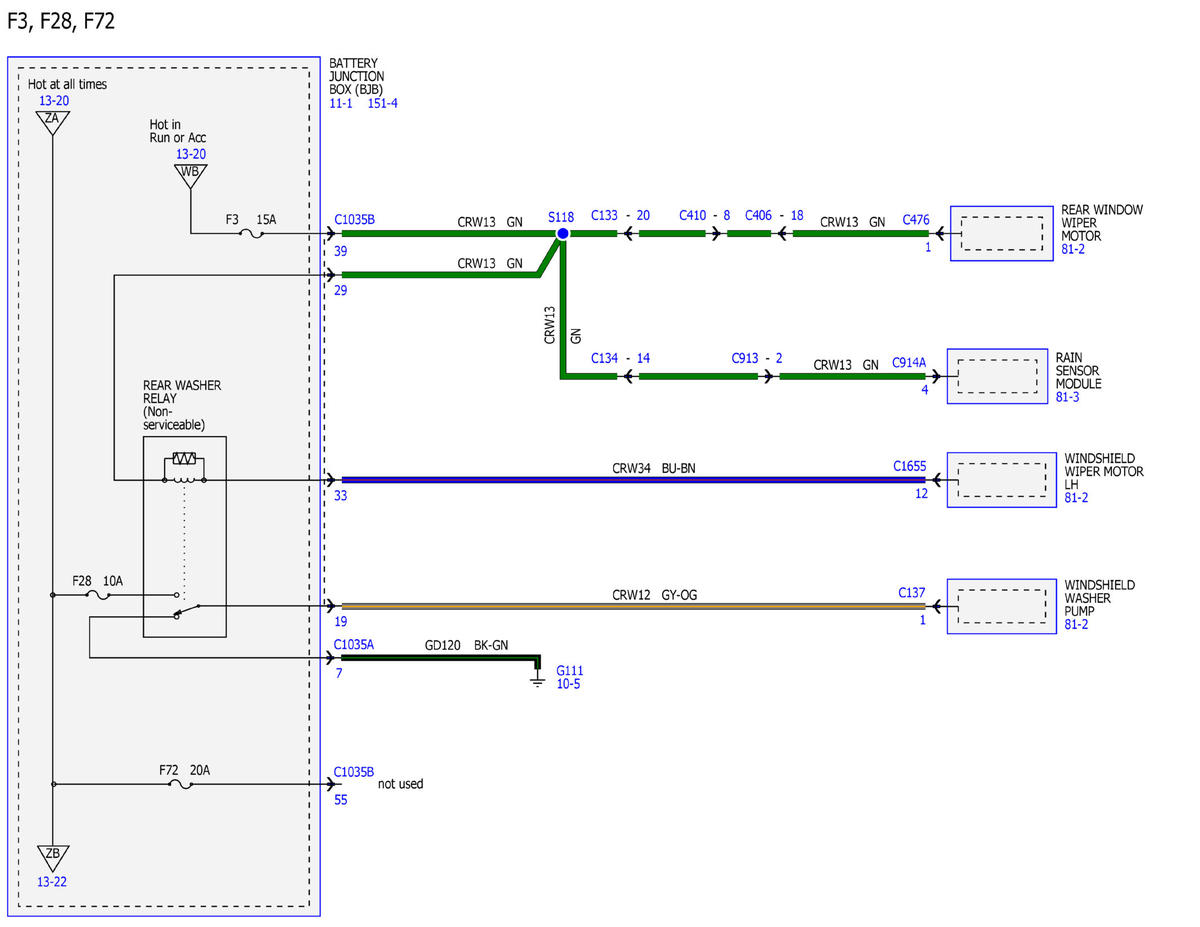

Fig 6: Power Distribution Wiring Diagram (6 Of 47)

GFDWR52263

Courtesy of FORD MOTOR COMPANY

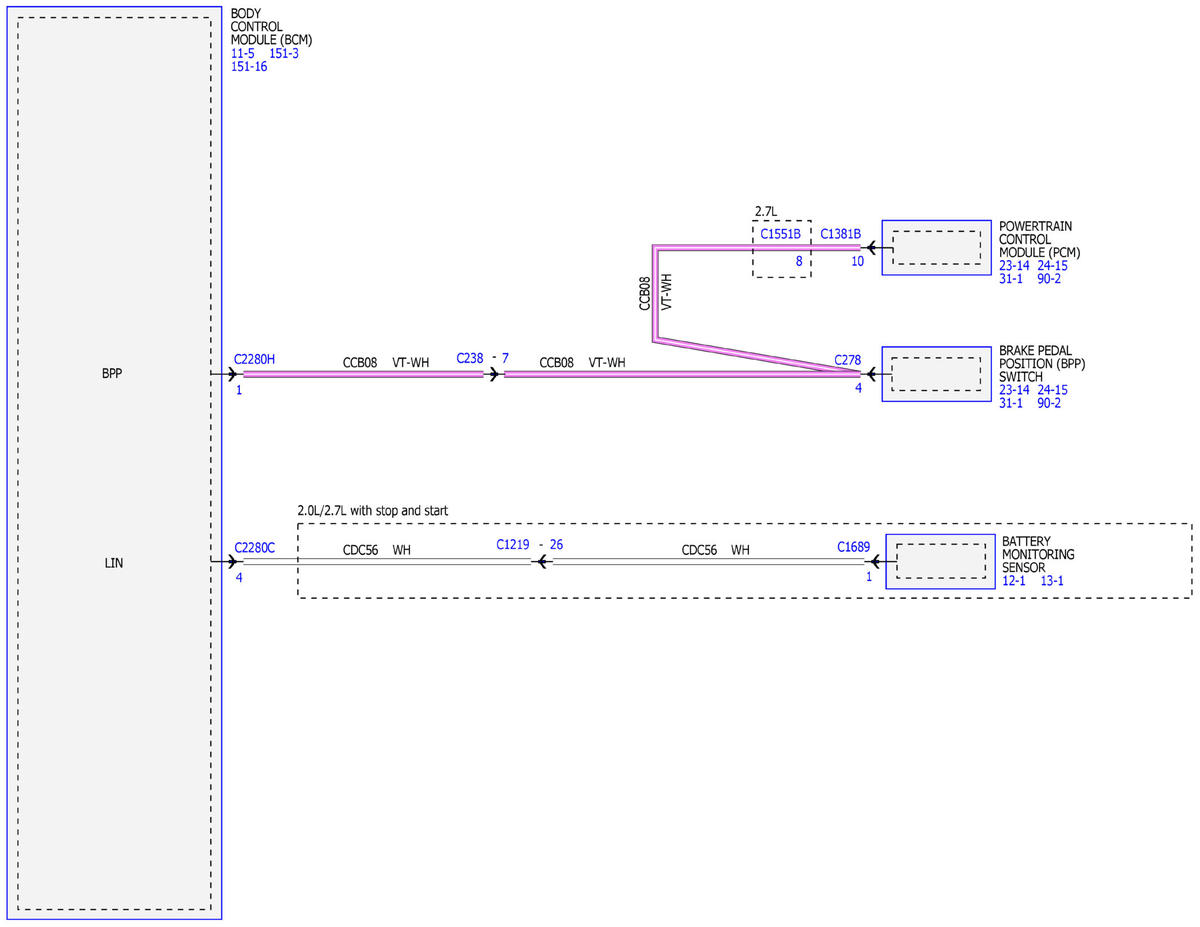

Fig 7: Power Distribution Wiring Diagram (7 Of 47)

GFDWR52264

Courtesy of FORD MOTOR COMPANY

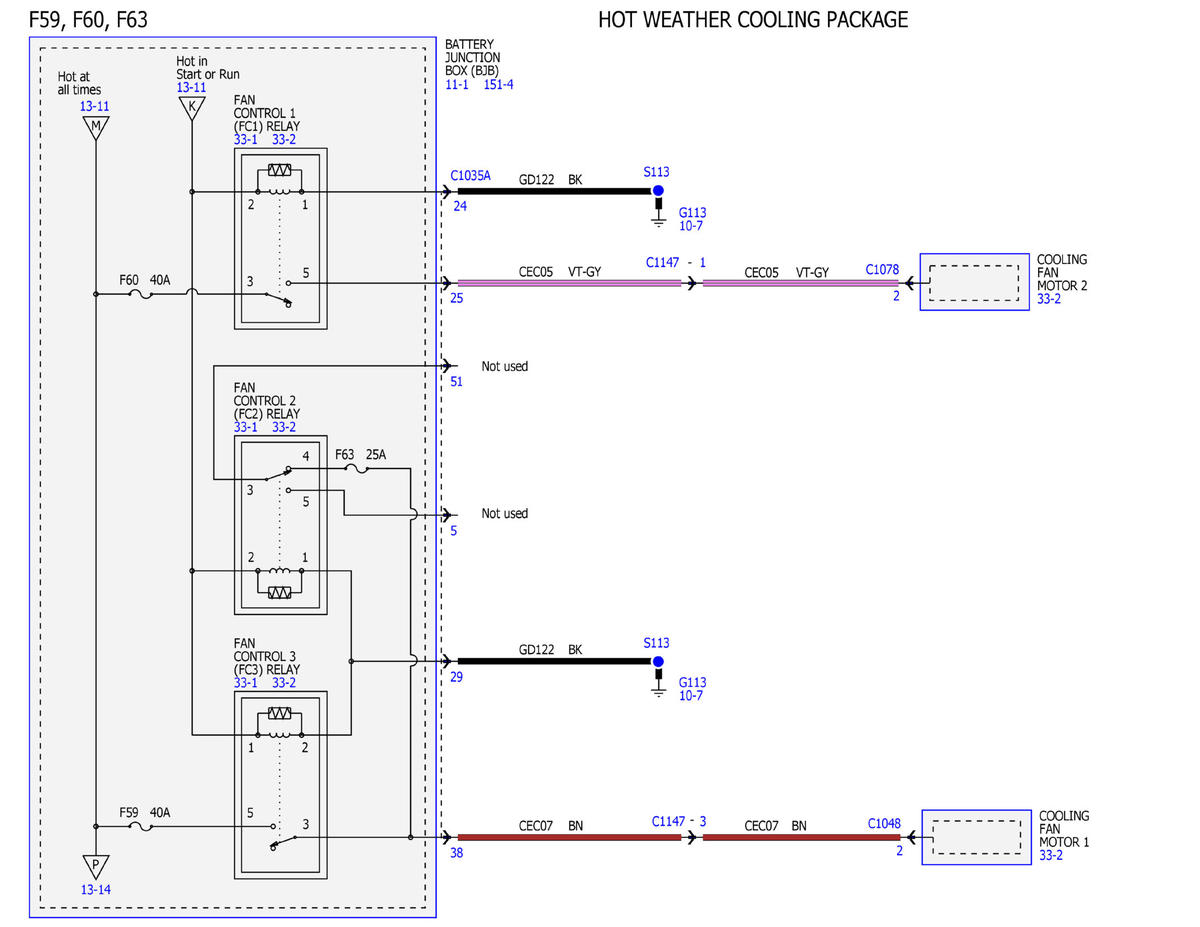

Fig 8: Power Distribution Wiring Diagram (8 Of 47)

GFDWR52265

Courtesy of FORD MOTOR COMPANY

Fig 9: Power Distribution Wiring Diagram (9 Of 47)

GFDWR52266

Courtesy of FORD MOTOR COMPANY

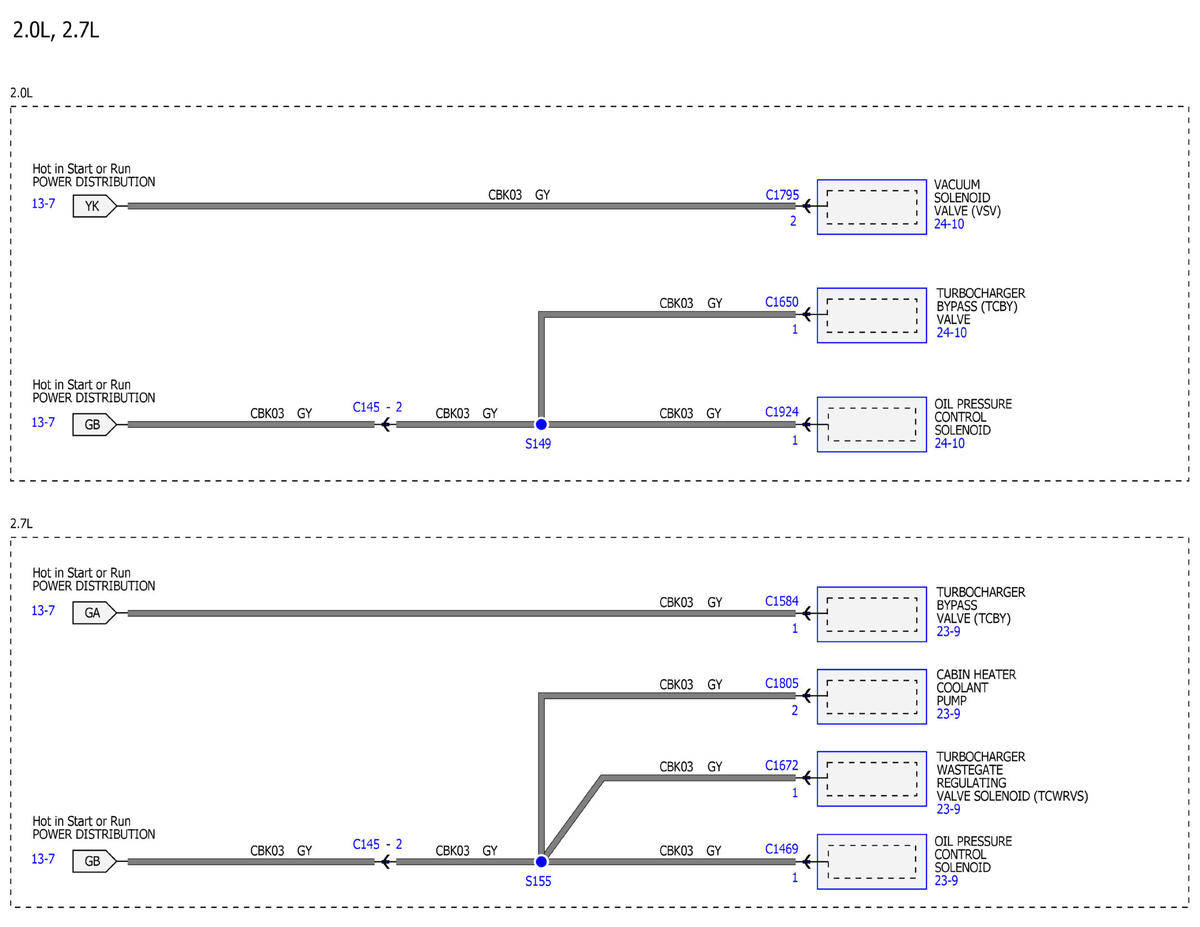

Fig 10: Power Distribution Wiring Diagram (10 Of 47)

GFDWR52267

Courtesy of FORD MOTOR COMPANY

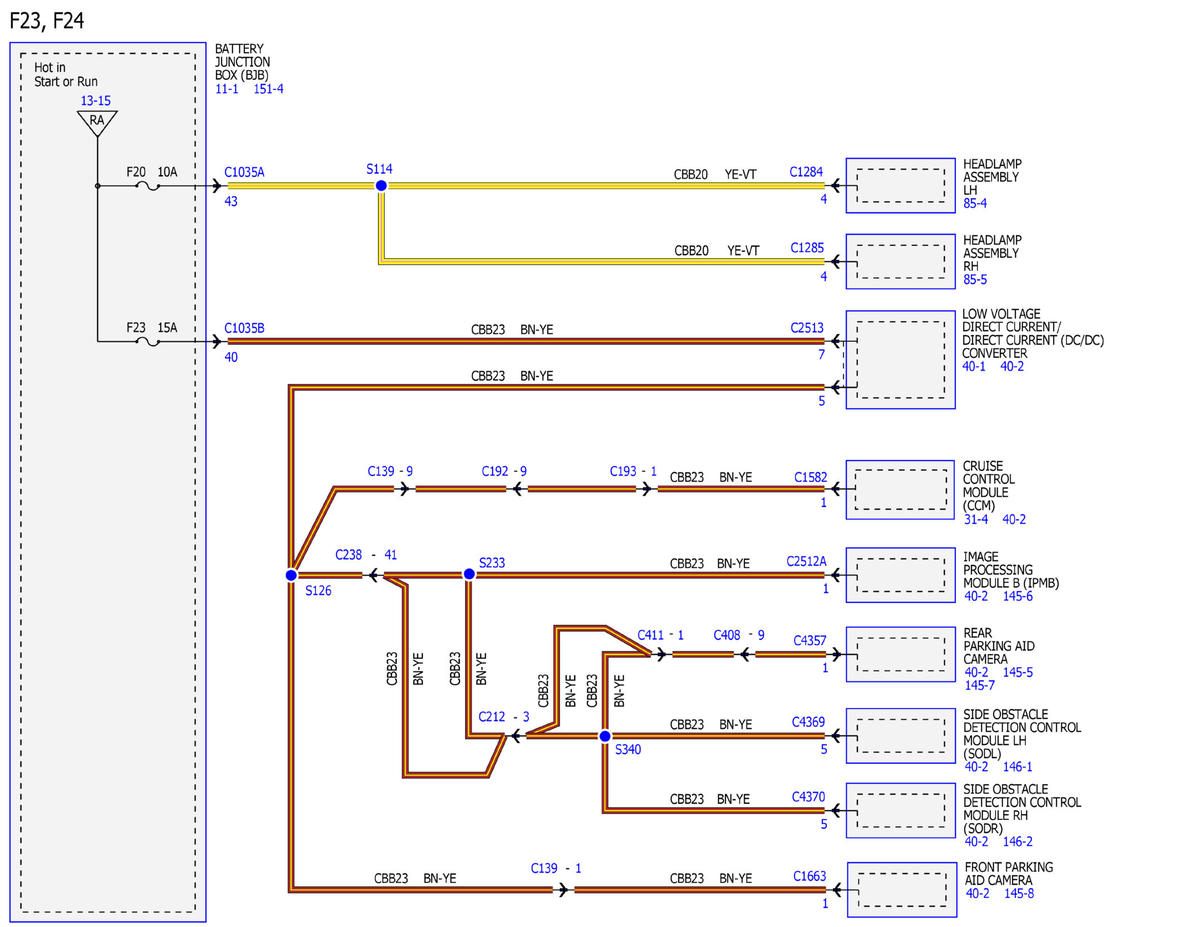

Fig 11: Power Distribution Wiring Diagram (11 Of 47)

GFDWR52268

Courtesy of FORD MOTOR COMPANY

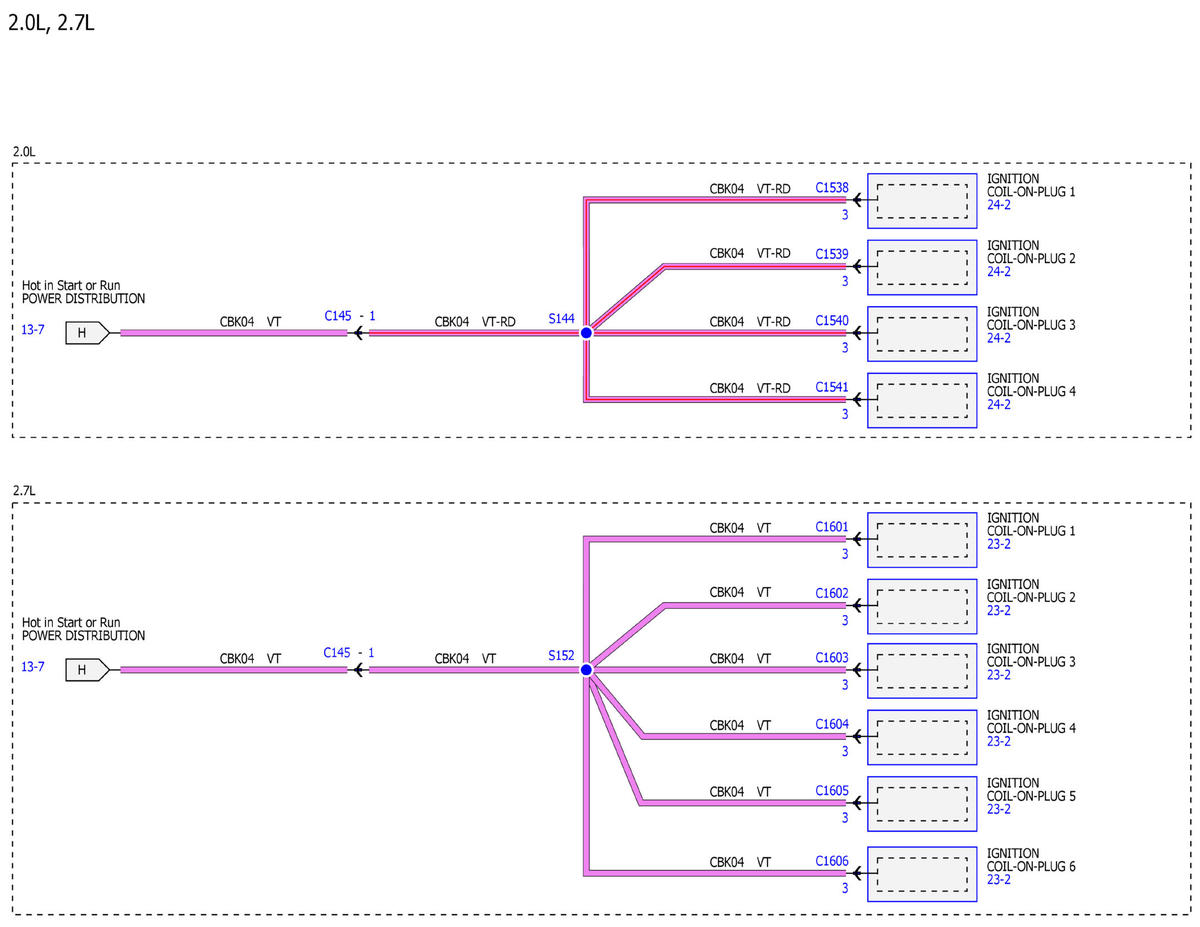

Fig 12: Power Distribution Wiring Diagram (12 Of 47)

GFDWR52269

Courtesy of FORD MOTOR COMPANY

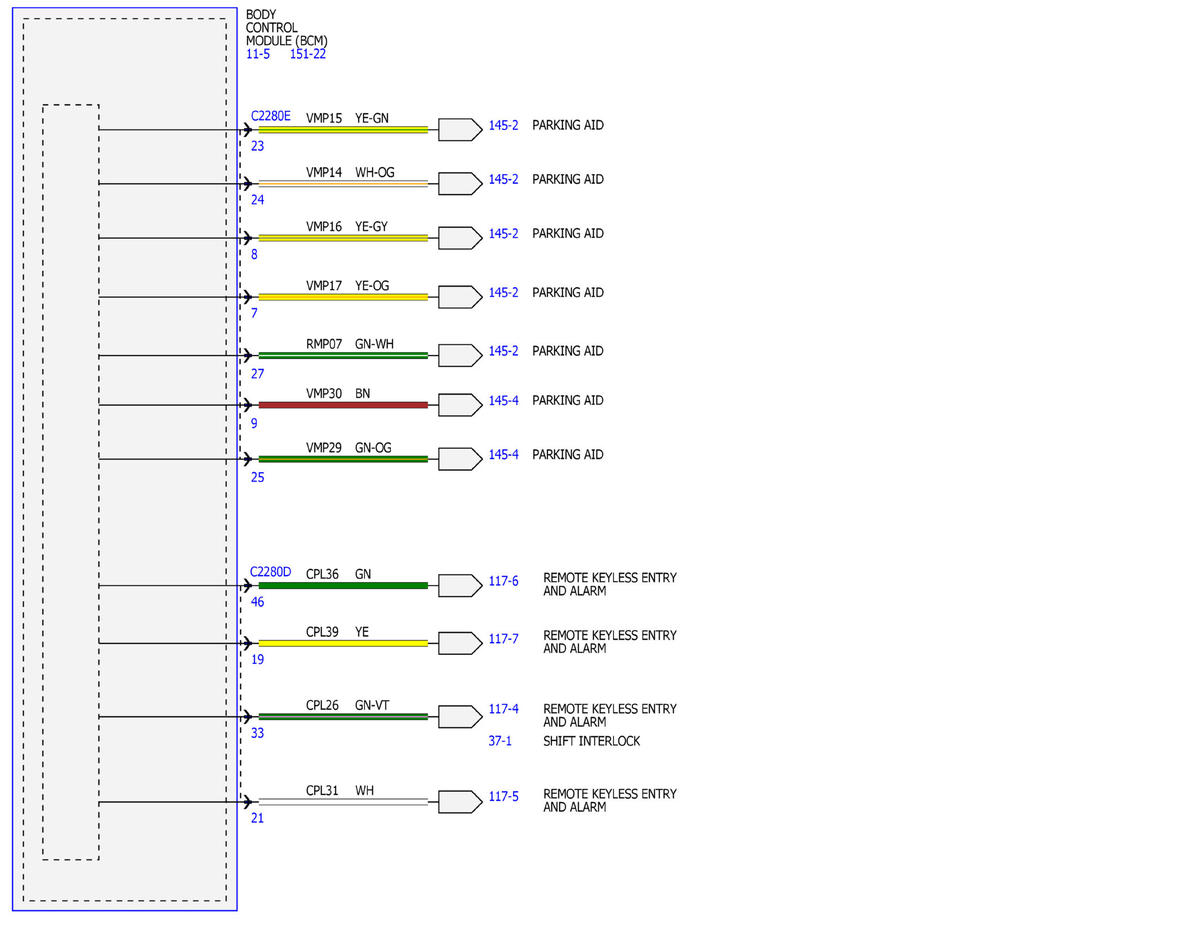

Fig 13: Power Distribution Wiring Diagram (13 Of 47)

GFDWR52270

Courtesy of FORD MOTOR COMPANY

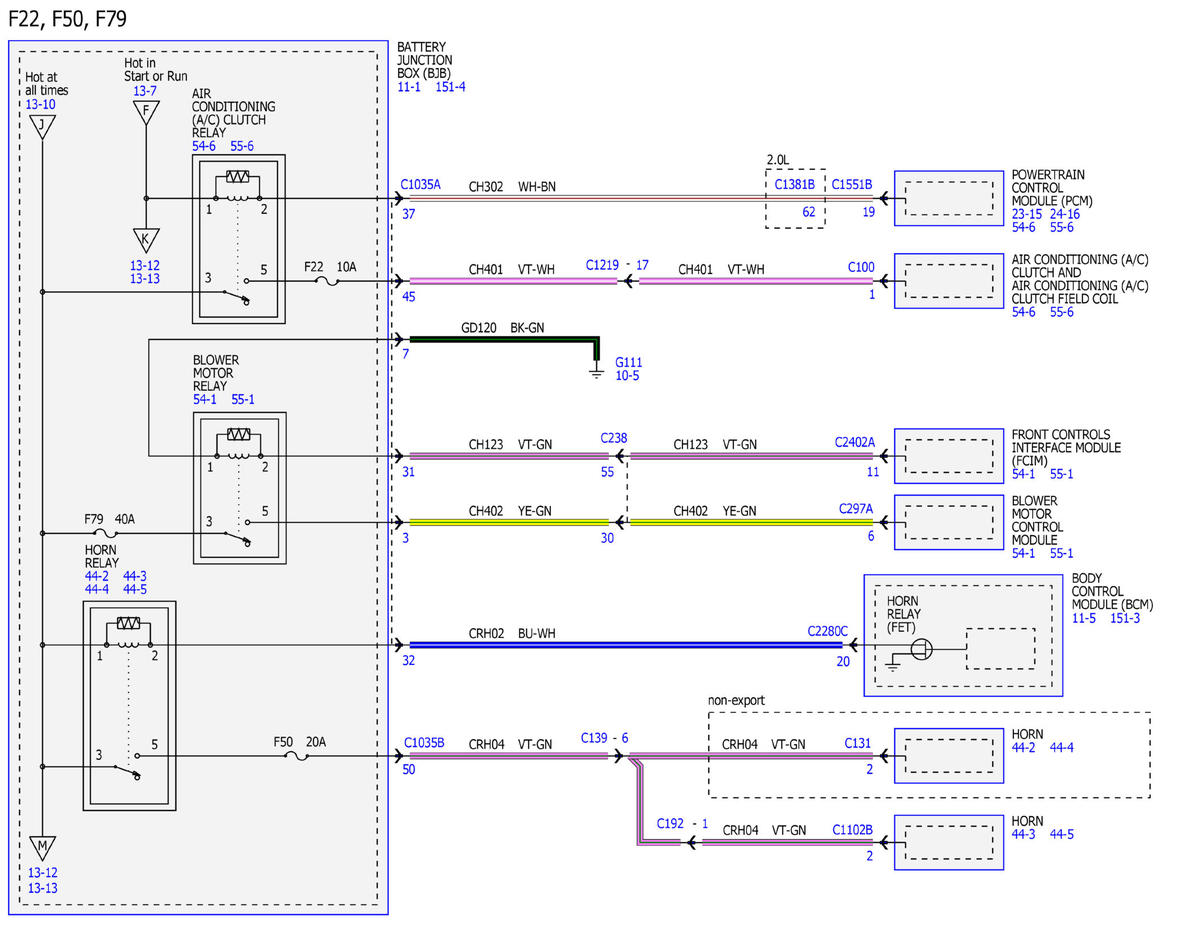

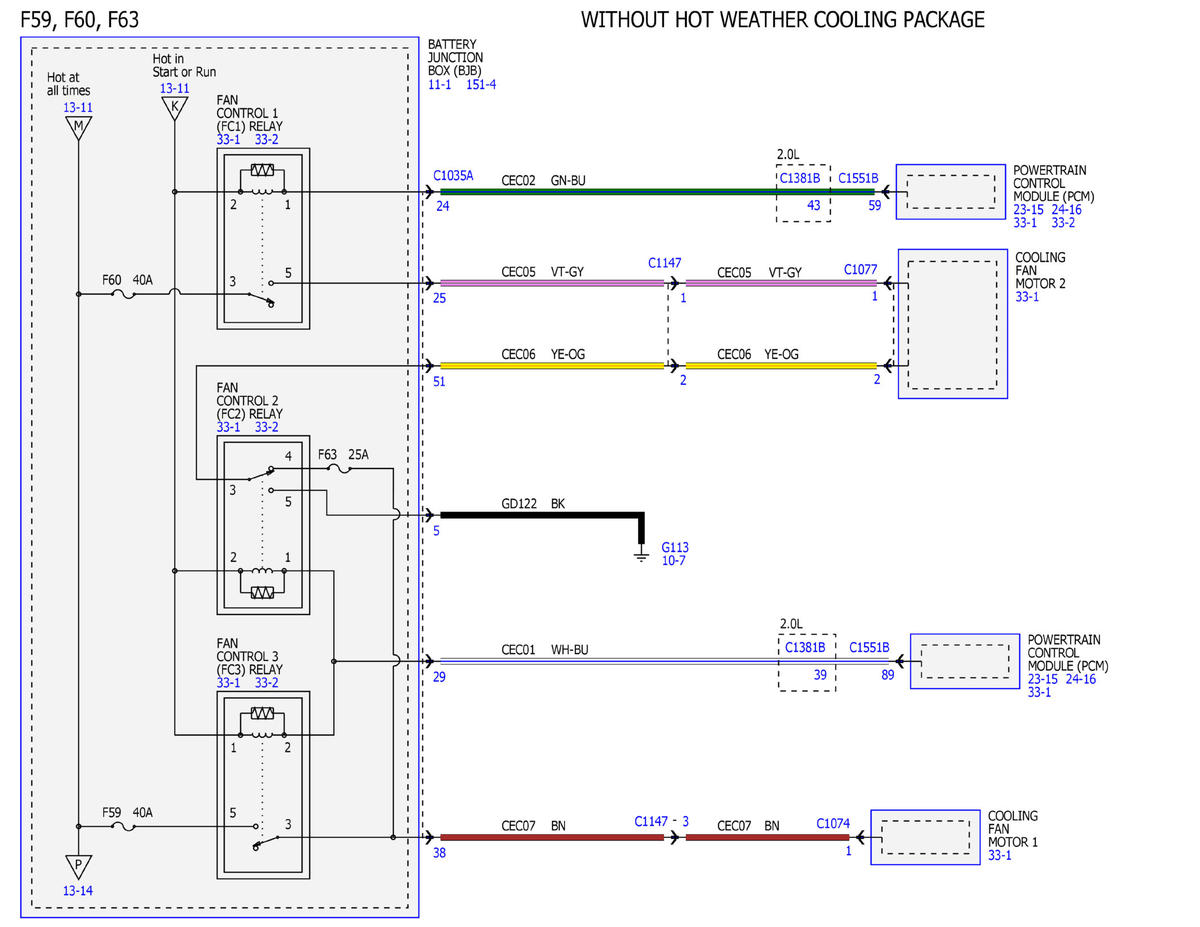

Fig 14: Power Distribution Wiring Diagram (14 Of 47)

GFDWR52271

Courtesy of FORD MOTOR COMPANY

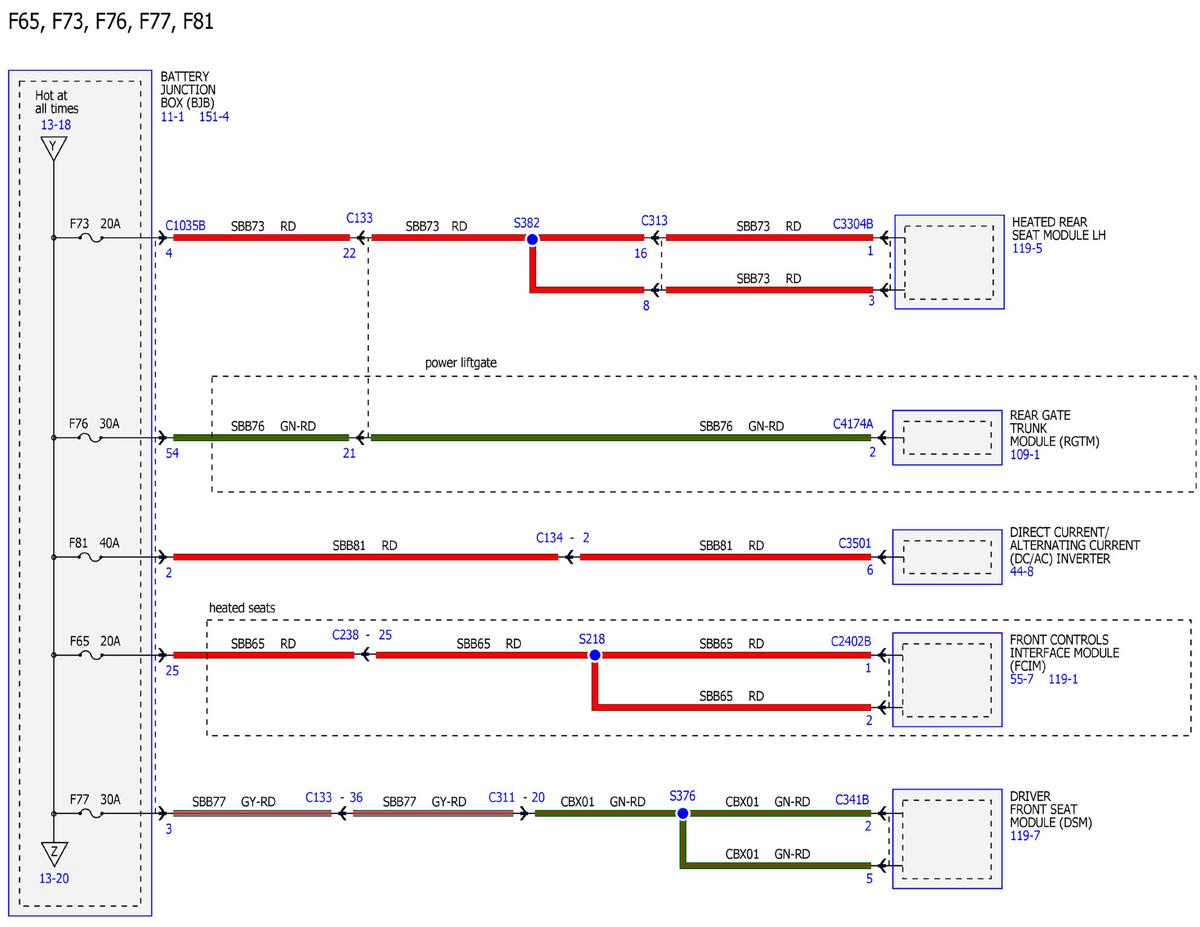

Fig 15: Power Distribution Wiring Diagram (15 Of 47)

GFDWR52272

Courtesy of FORD MOTOR COMPANY

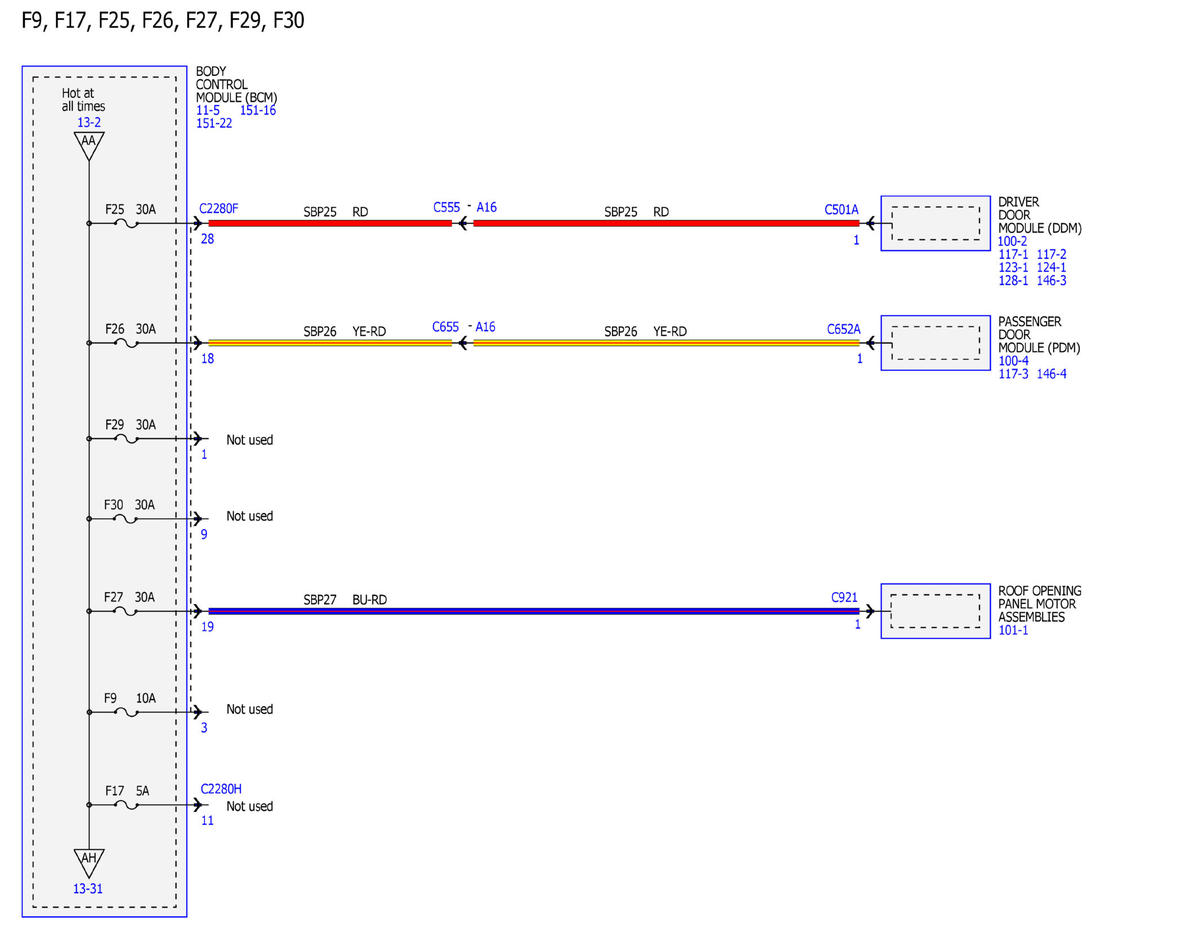

Fig 16: Power Distribution Wiring Diagram (16 Of 47)

GFDWR52273

Courtesy of FORD MOTOR COMPANY

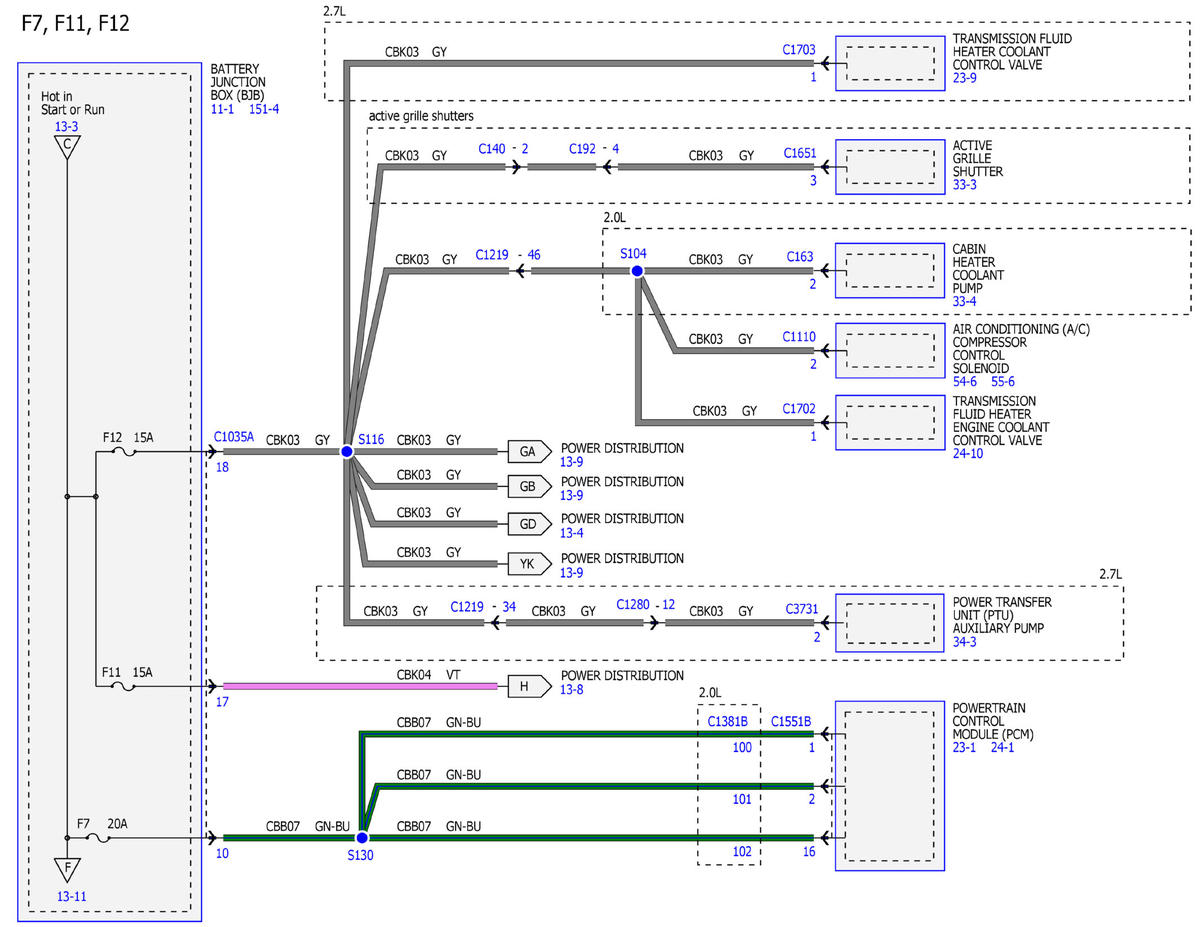

Fig 17: Power Distribution Wiring Diagram (17 Of 47)

GFDWR52274

Courtesy of FORD MOTOR COMPANY

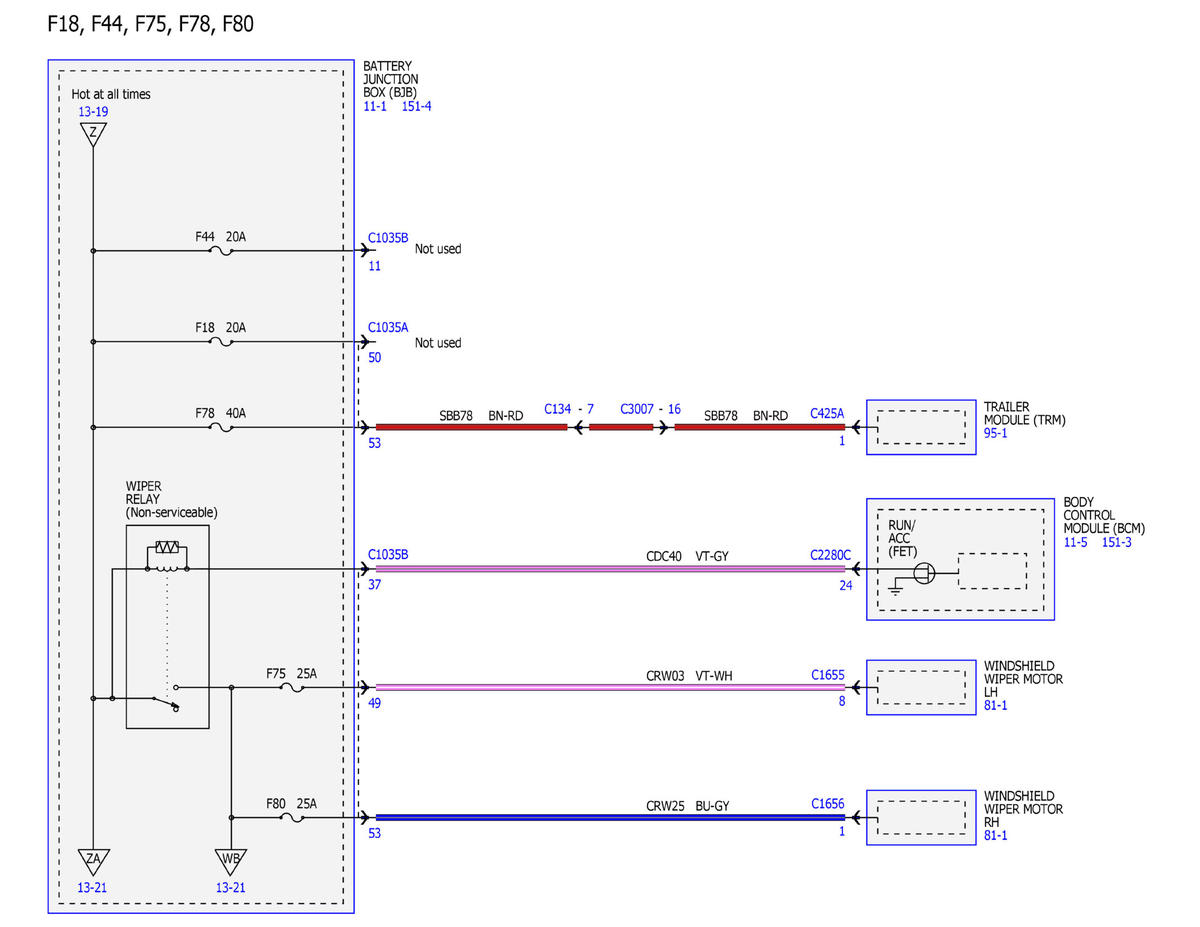

Fig 18: Power Distribution Wiring Diagram (18 Of 47)

GFDWR52275

Courtesy of FORD MOTOR COMPANY

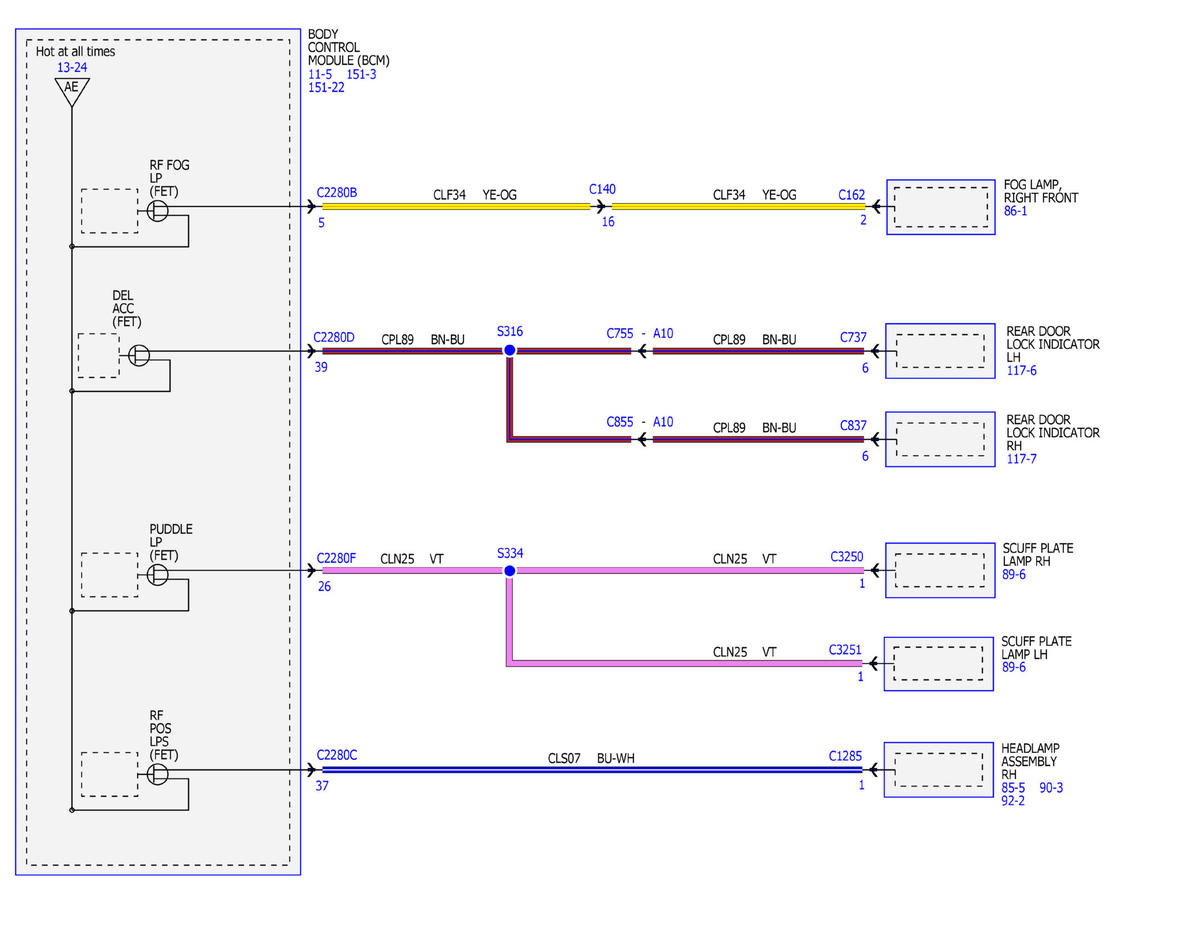

Fig 19: Power Distribution Wiring Diagram (19 Of 47)

GFDWR52276

Courtesy of FORD MOTOR COMPANY

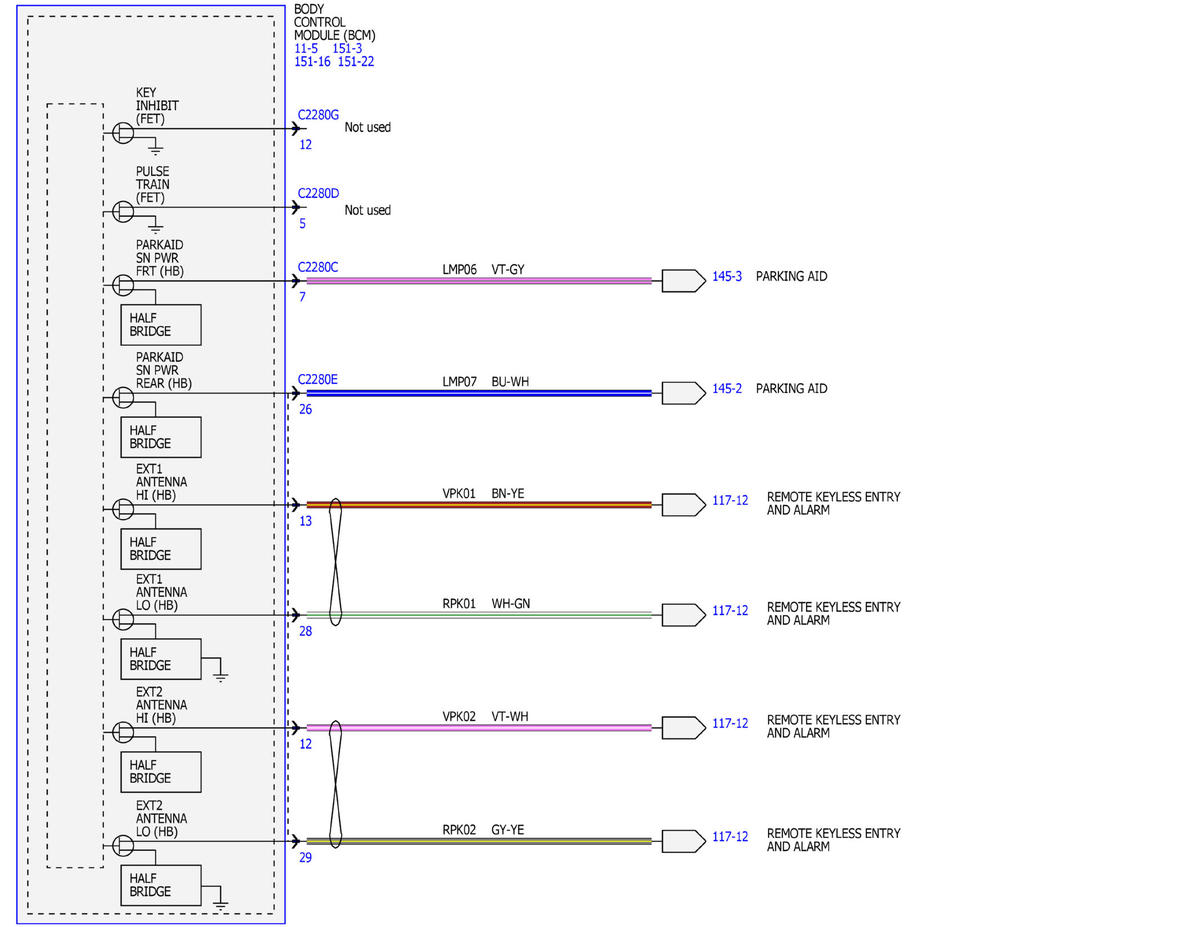

Fig 20: Power Distribution Wiring Diagram (20 Of 47)

GFDWR52277

Courtesy of FORD MOTOR COMPANY

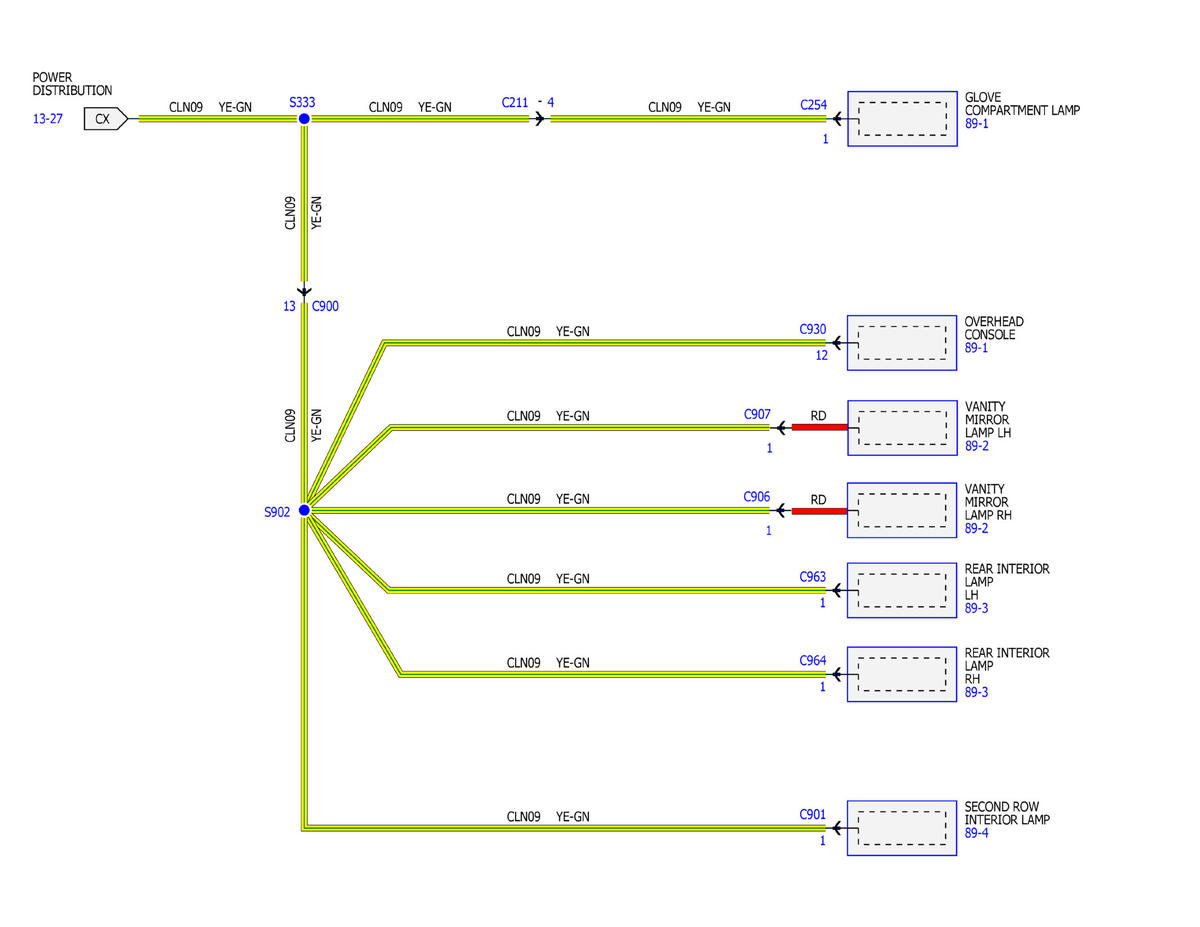

Fig 21: Power Distribution Wiring Diagram (21 Of 47)

GFDWR52278

Courtesy of FORD MOTOR COMPANY

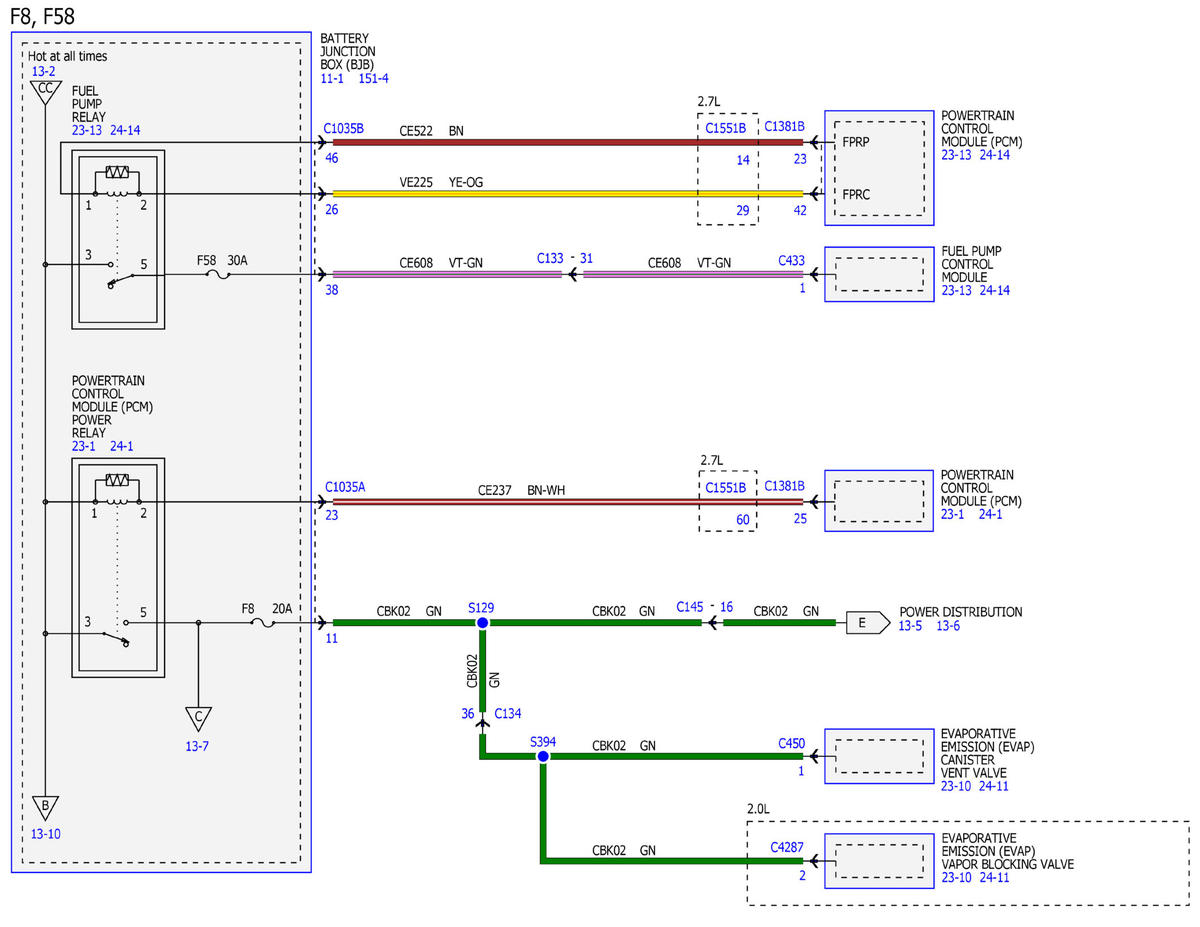

Fig 22: Power Distribution Wiring Diagram (22 Of 47)

GFDWR52279

Courtesy of FORD MOTOR COMPANY

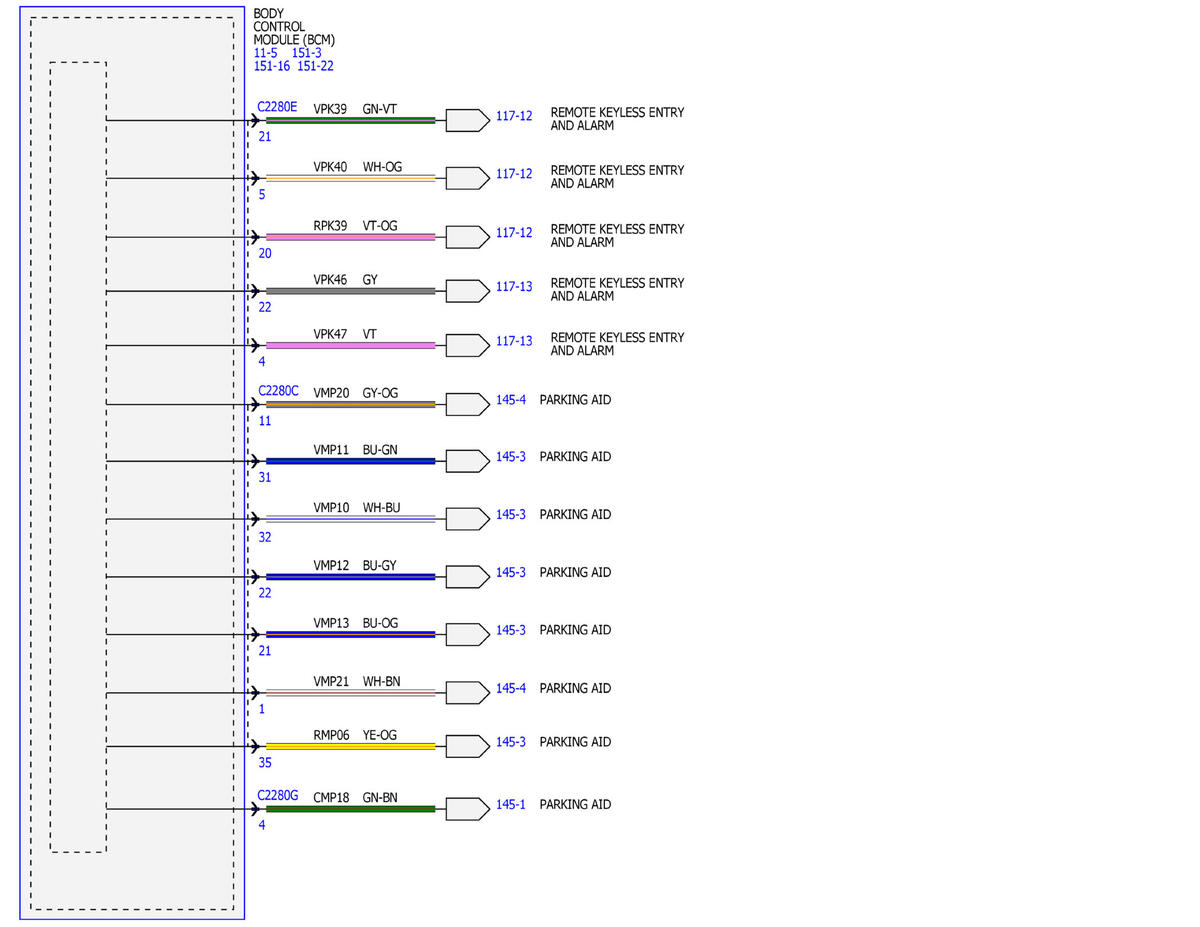

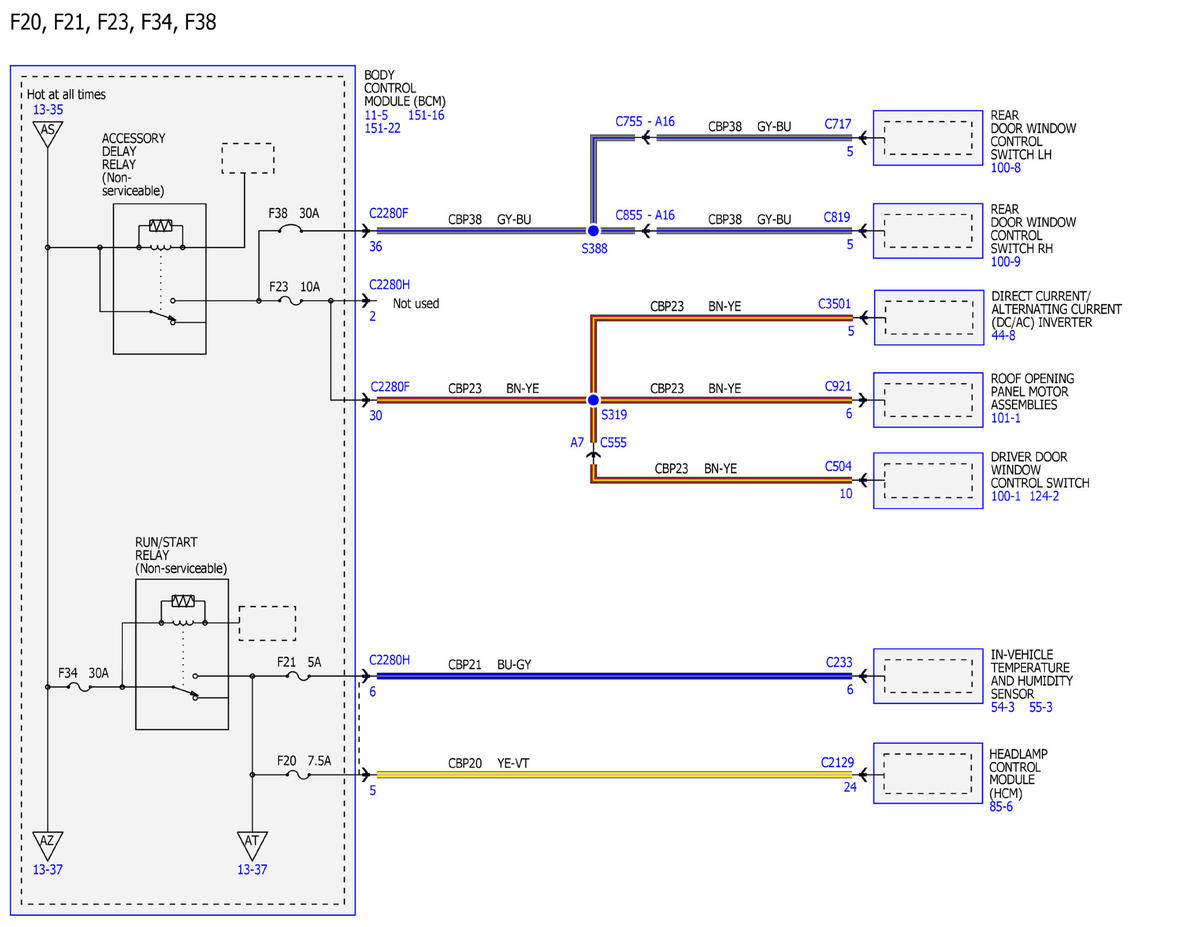

Fig 23: Power Distribution Wiring Diagram (23 Of 47)

GFDWR52280

Courtesy of FORD MOTOR COMPANY

Fig 24: Power Distribution Wiring Diagram (24 Of 47)

GFDWR52281

Courtesy of FORD MOTOR COMPANY

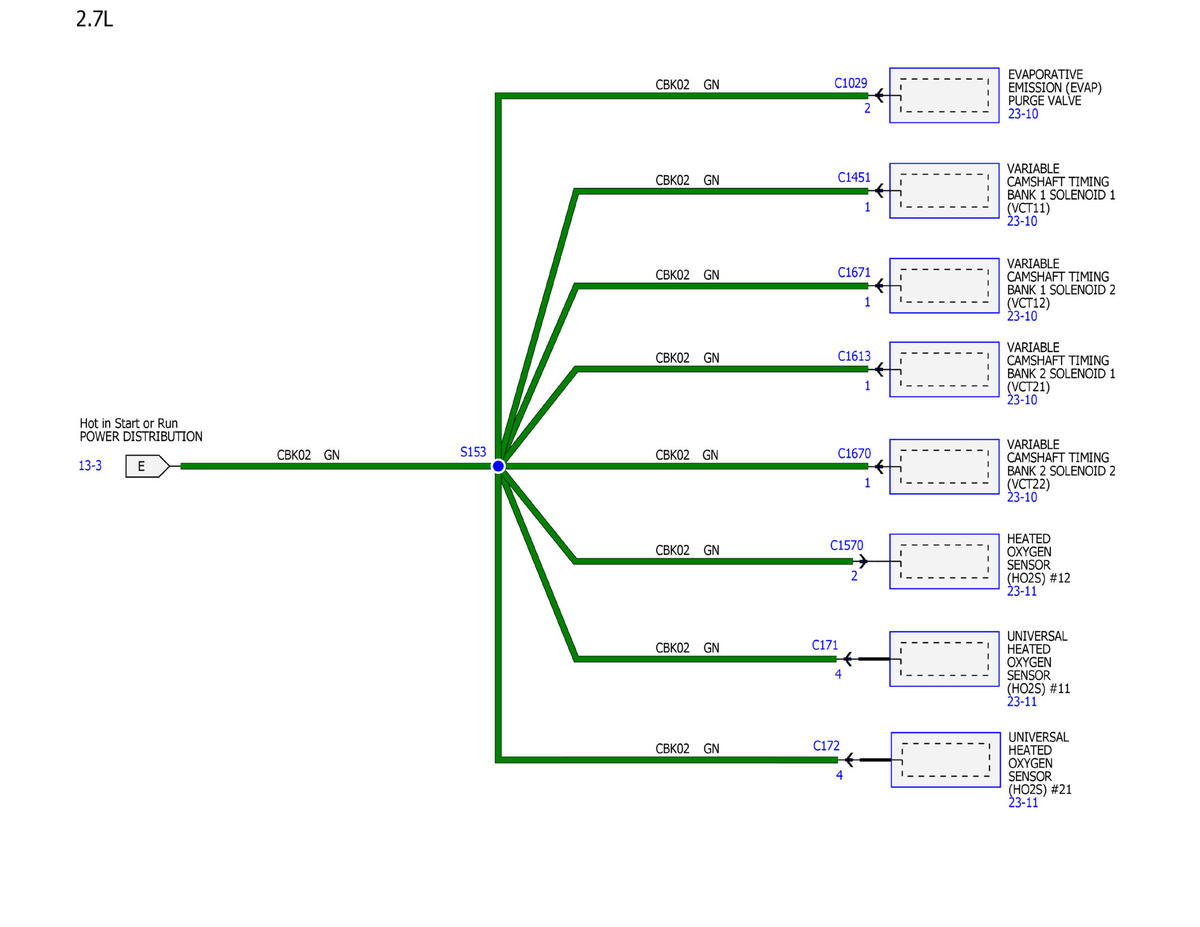

Fig 25: Power Distribution Wiring Diagram (25 Of 47)

GFDWR52282

Courtesy of FORD MOTOR COMPANY

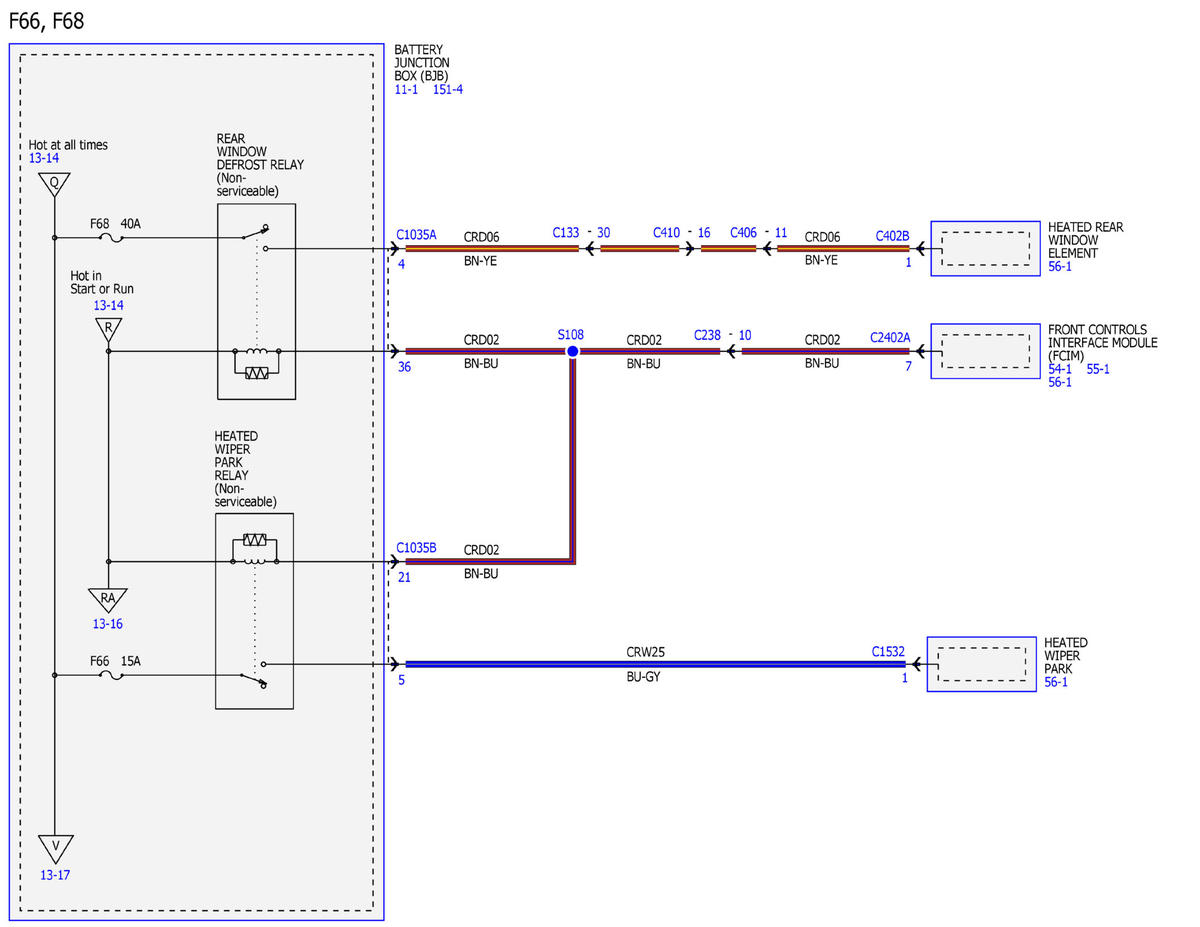

Fig 26: Power Distribution Wiring Diagram (26 Of 47)

GFDWR52283

Courtesy of FORD MOTOR COMPANY

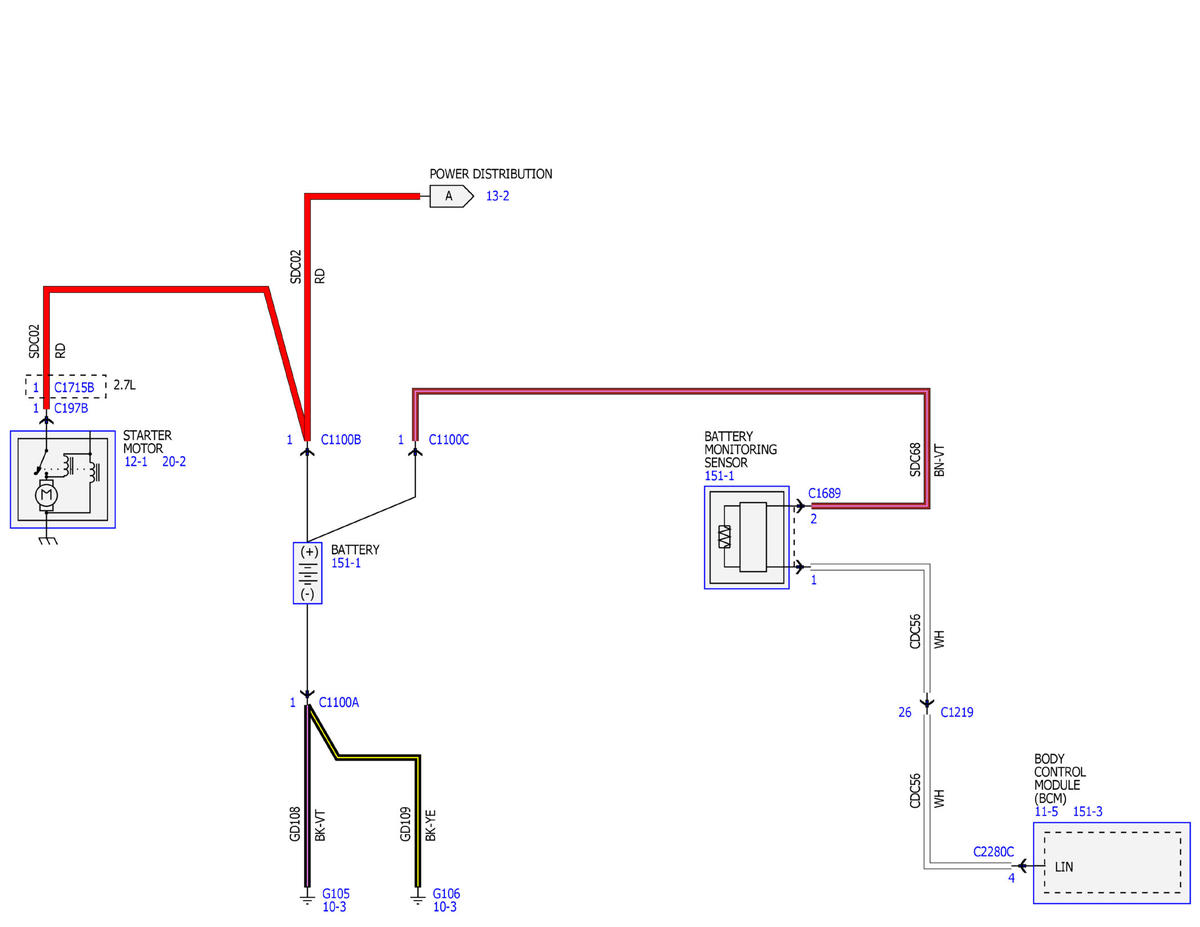

Fig 27: Power Distribution Wiring Diagram (27 Of 47)

GFDWR52284

Courtesy of FORD MOTOR COMPANY

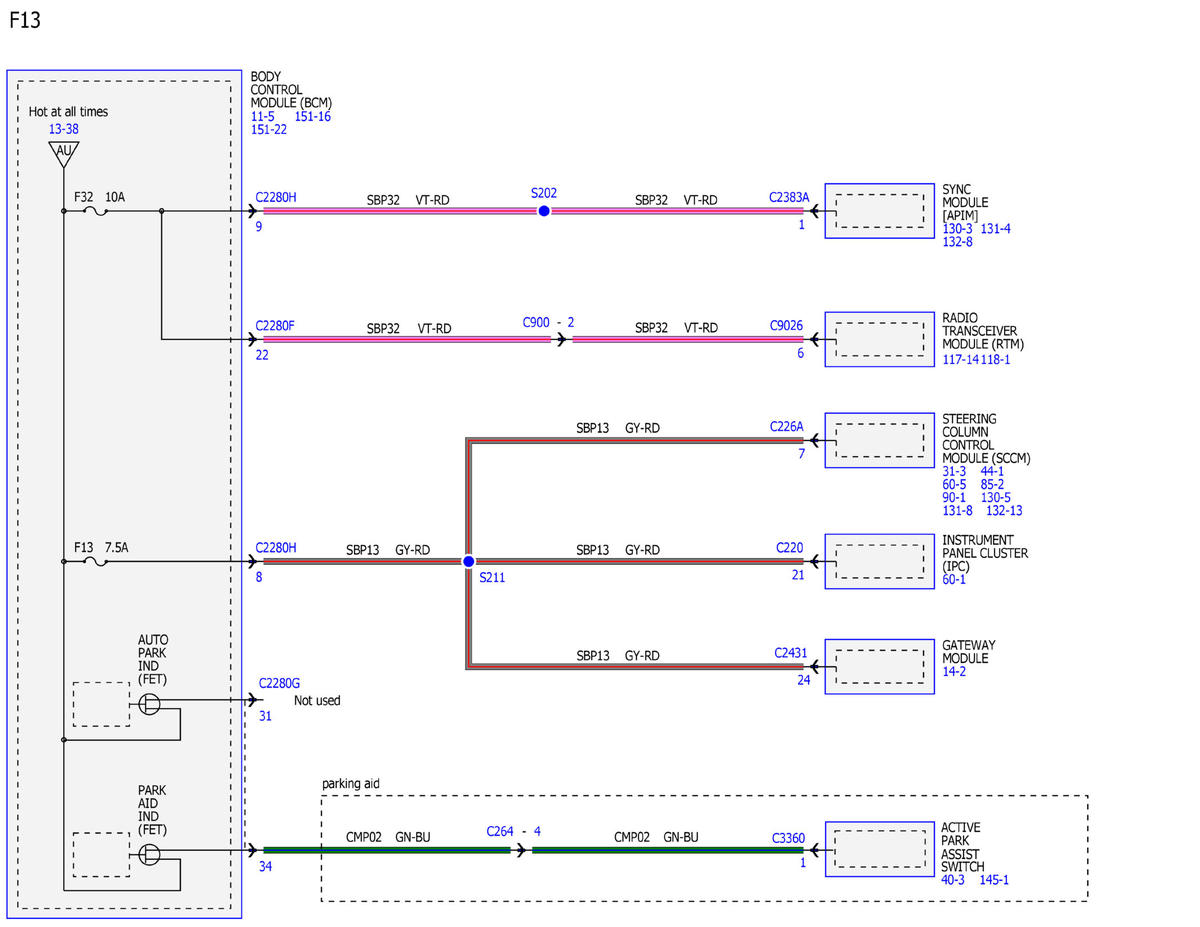

Fig 28: Power Distribution Wiring Diagram (28 Of 47)

GFDWR52285

Courtesy of FORD MOTOR COMPANY

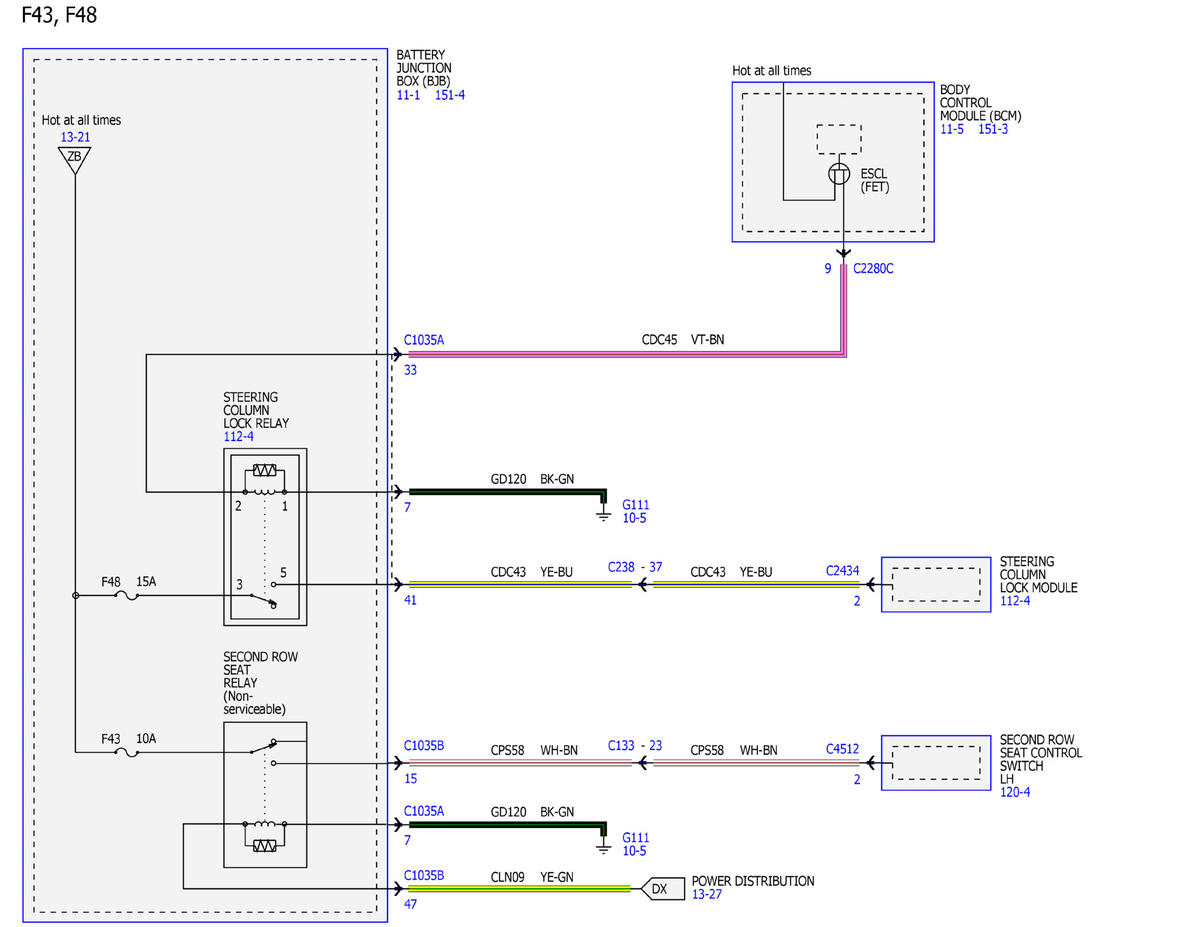

Fig 29: Power Distribution Wiring Diagram (29 Of 47)

GFDWR52286

Courtesy of FORD MOTOR COMPANY

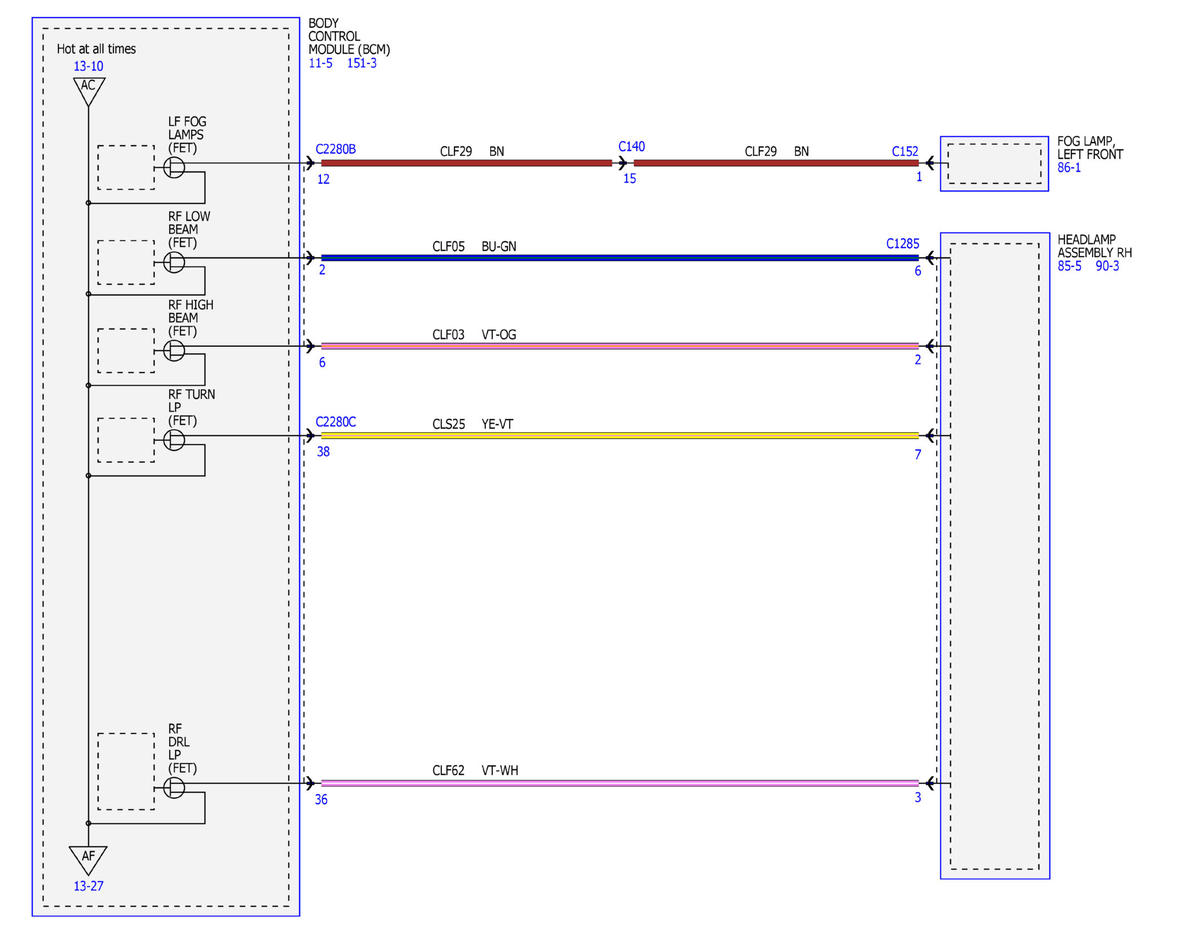

Fig 30: Power Distribution Wiring Diagram (30 Of 47)

GFDWR52287

Courtesy of FORD MOTOR COMPANY

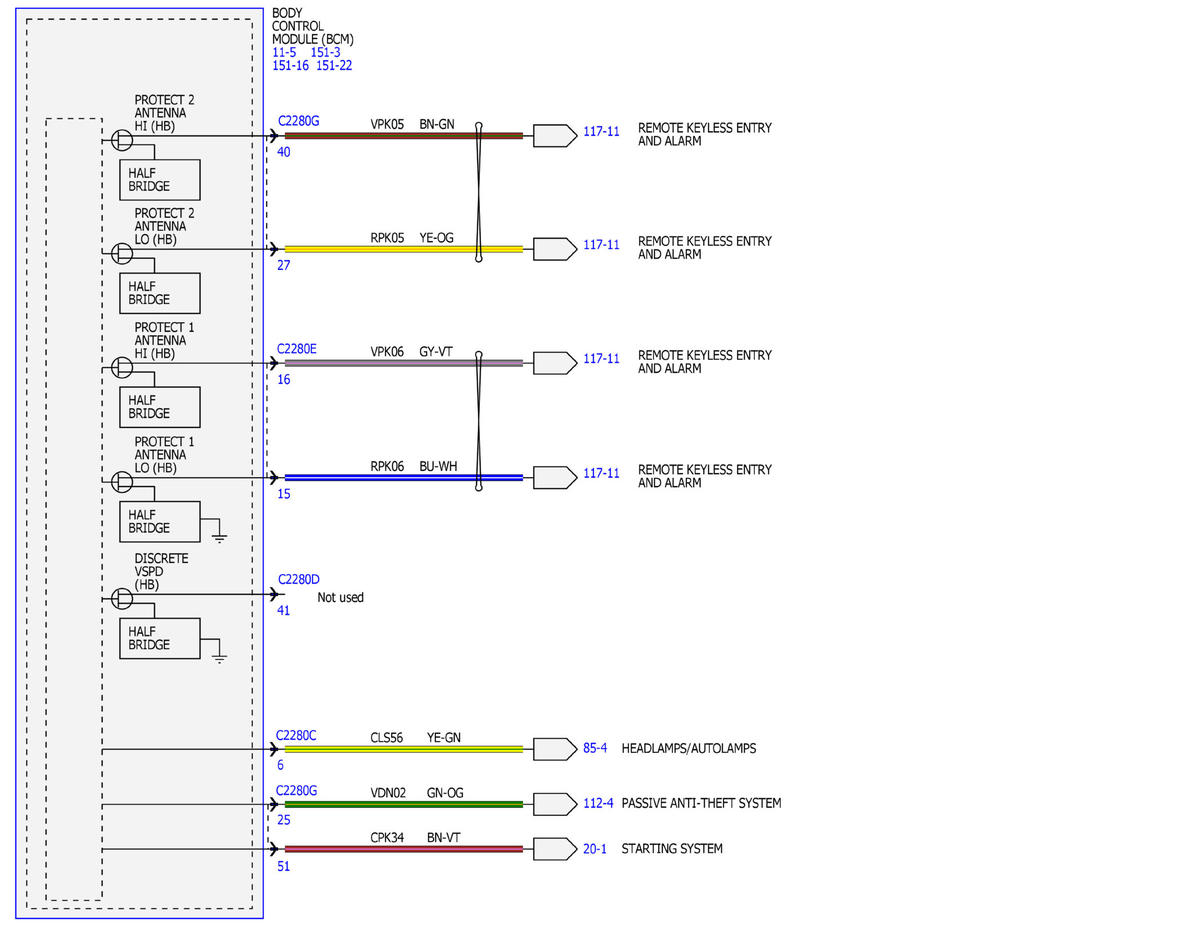

Fig 31: Power Distribution Wiring Diagram (31 Of 47)

GFDWR52288

Courtesy of FORD MOTOR COMPANY

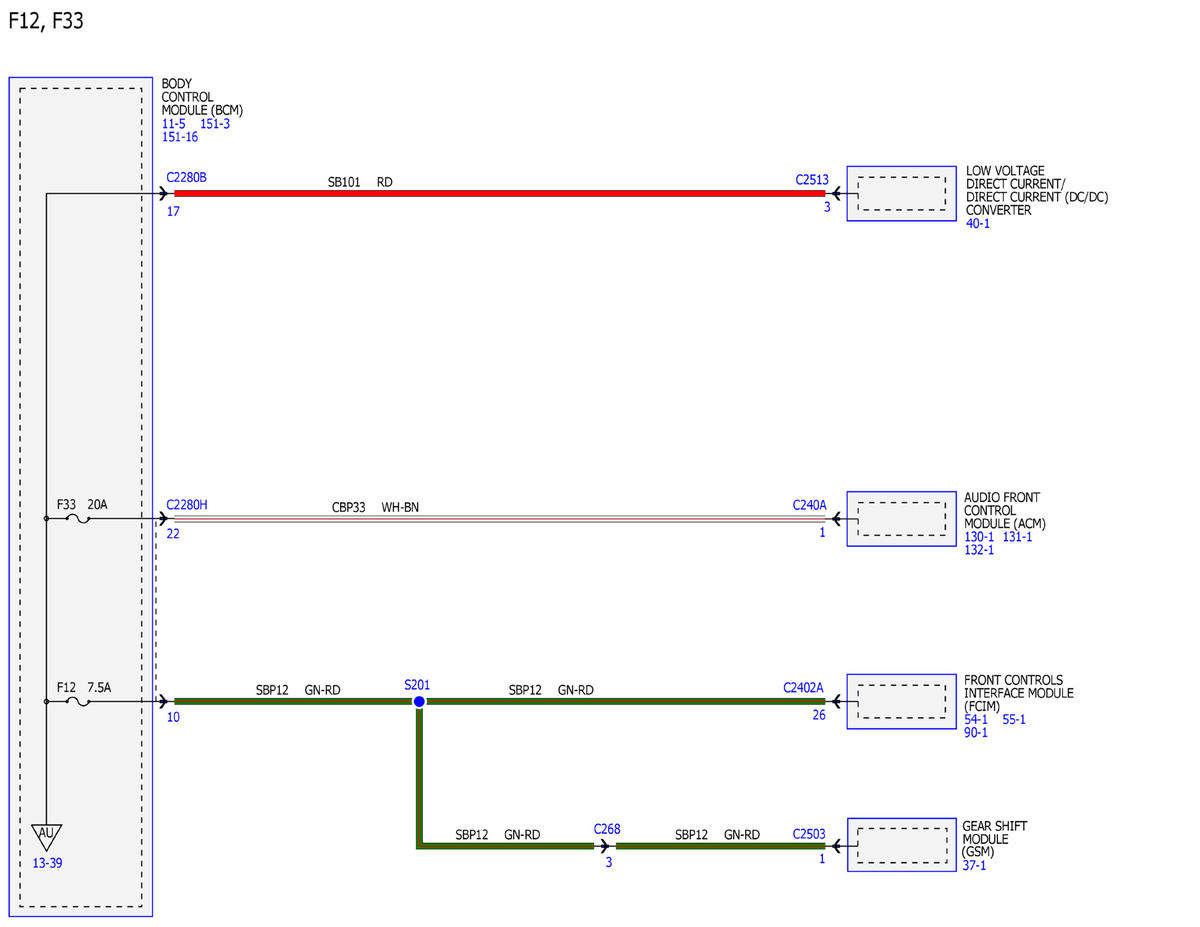

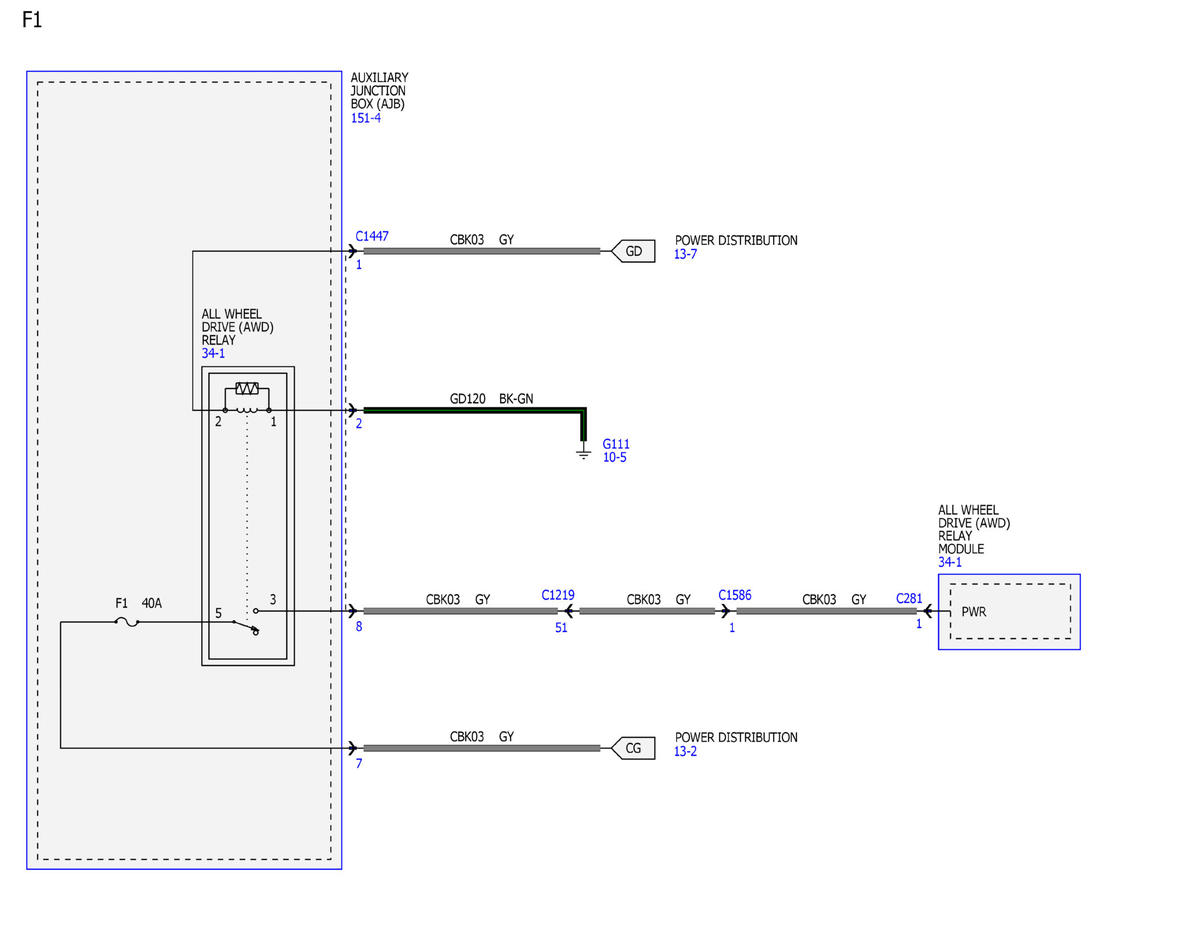

Fig 32: Power Distribution Wiring Diagram (32 Of 47)

GFDWR52289

Courtesy of FORD MOTOR COMPANY

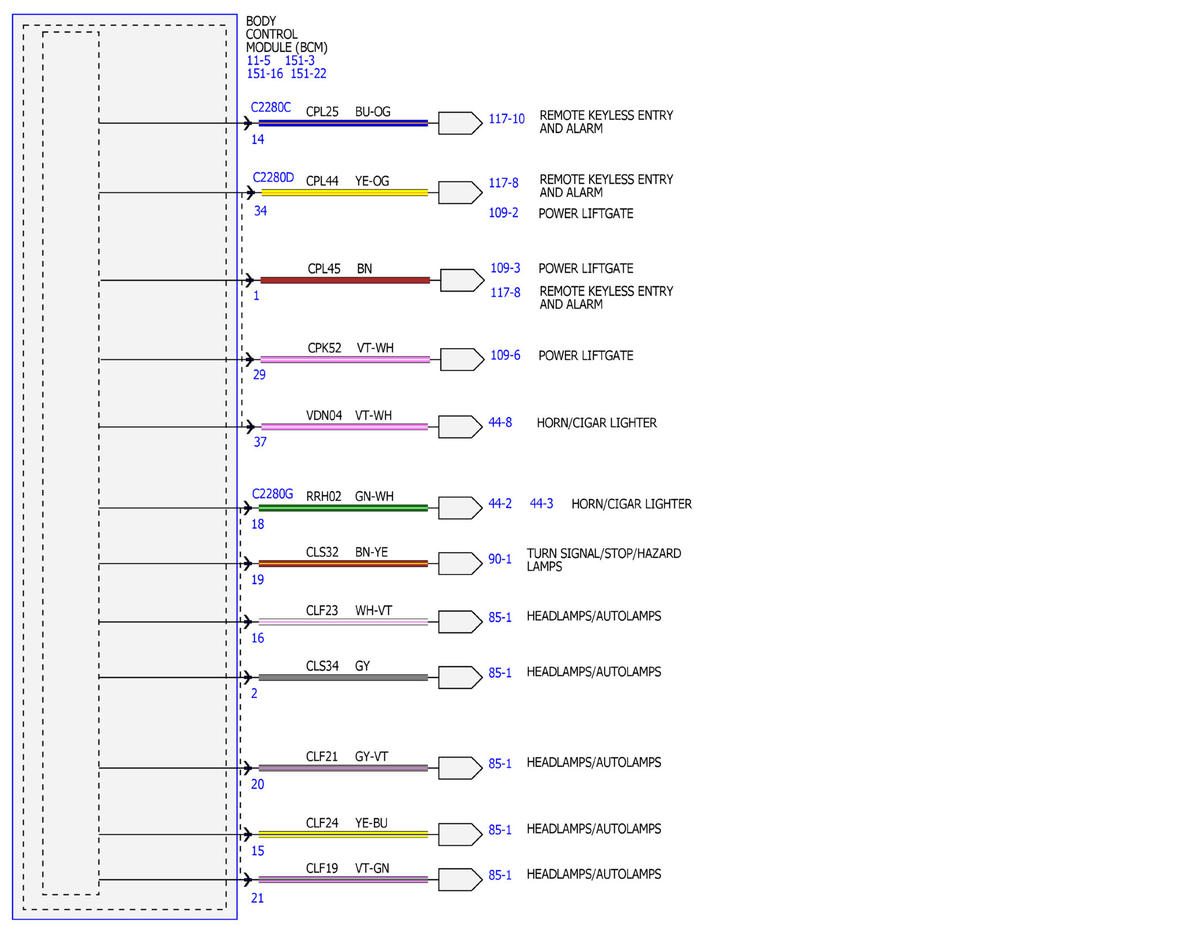

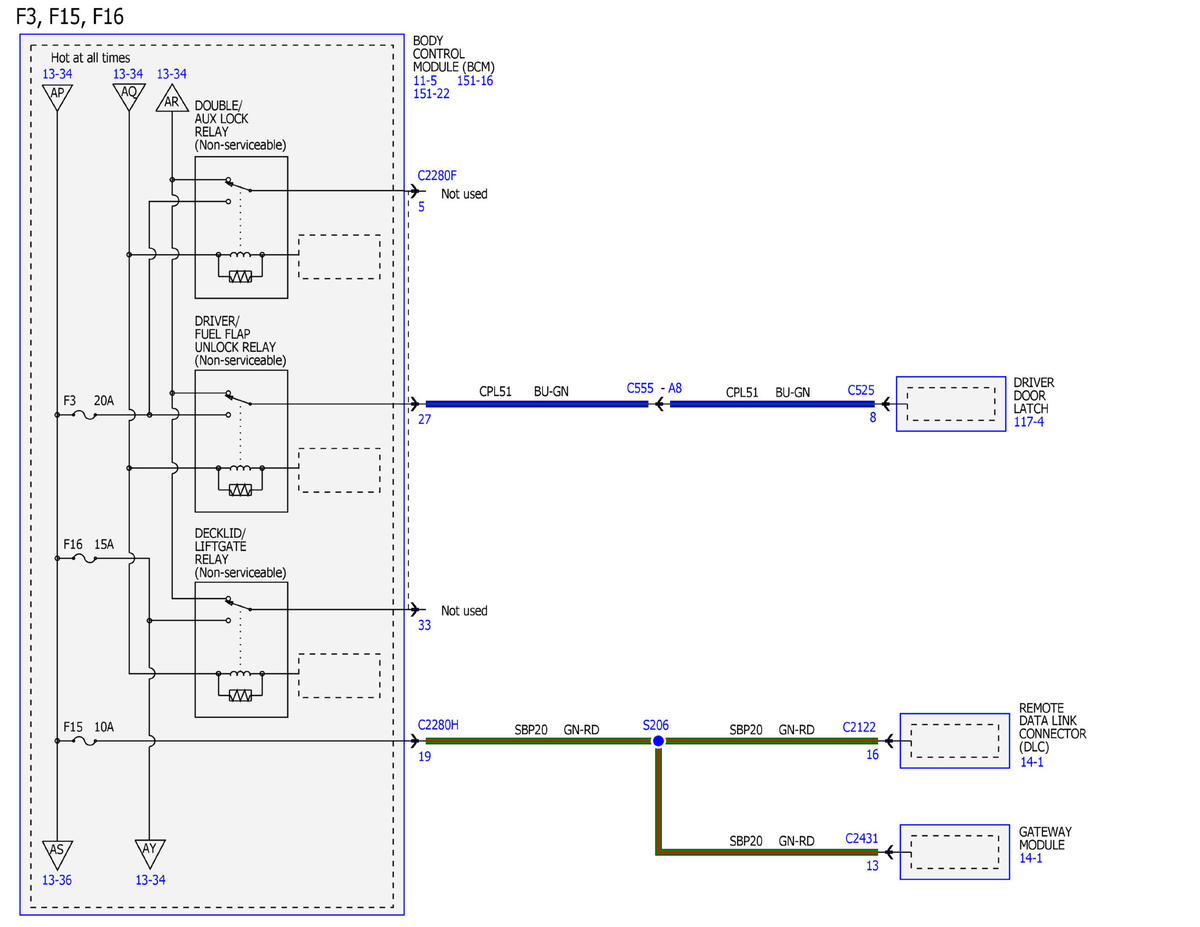

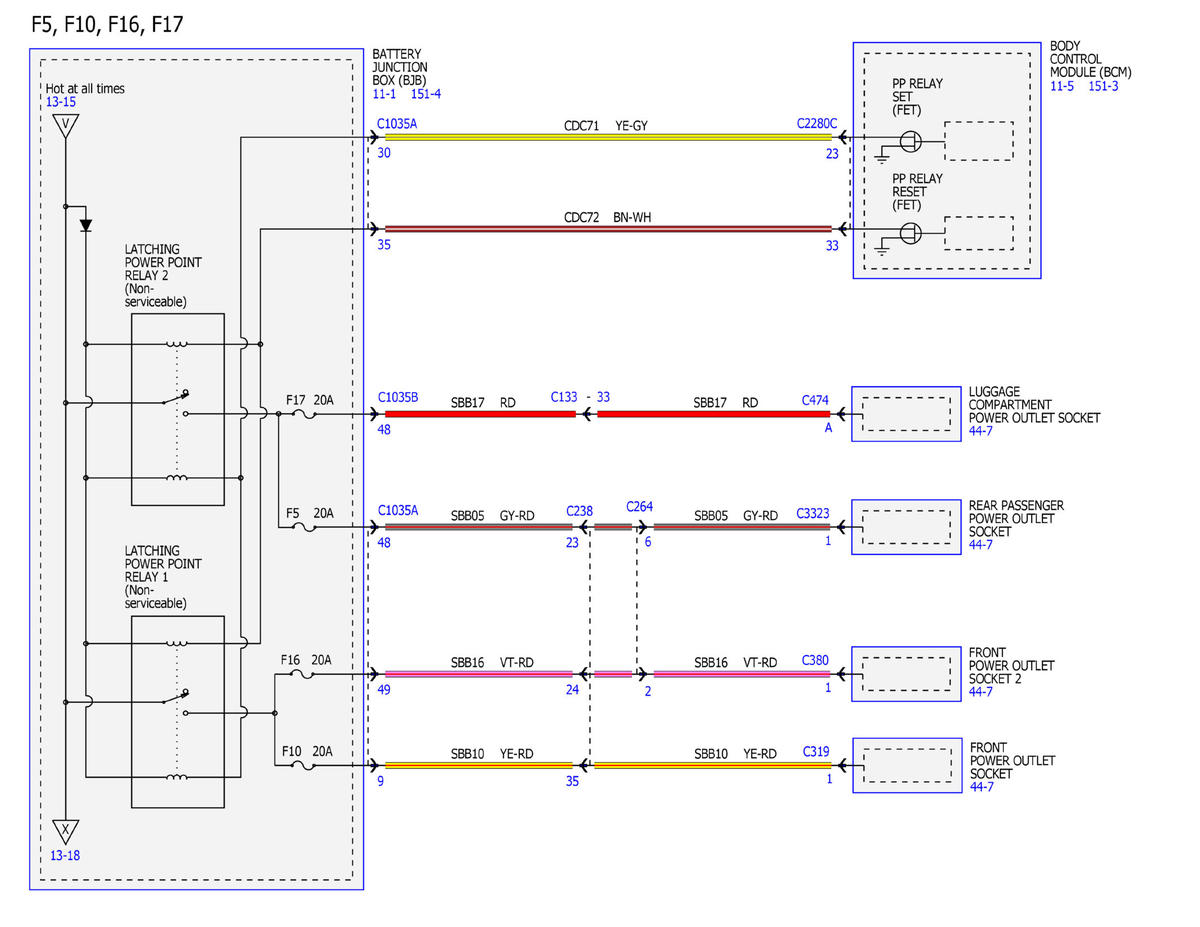

Fig 33: Power Distribution Wiring Diagram (33 Of 47)

GFDWR52290

Courtesy of FORD MOTOR COMPANY

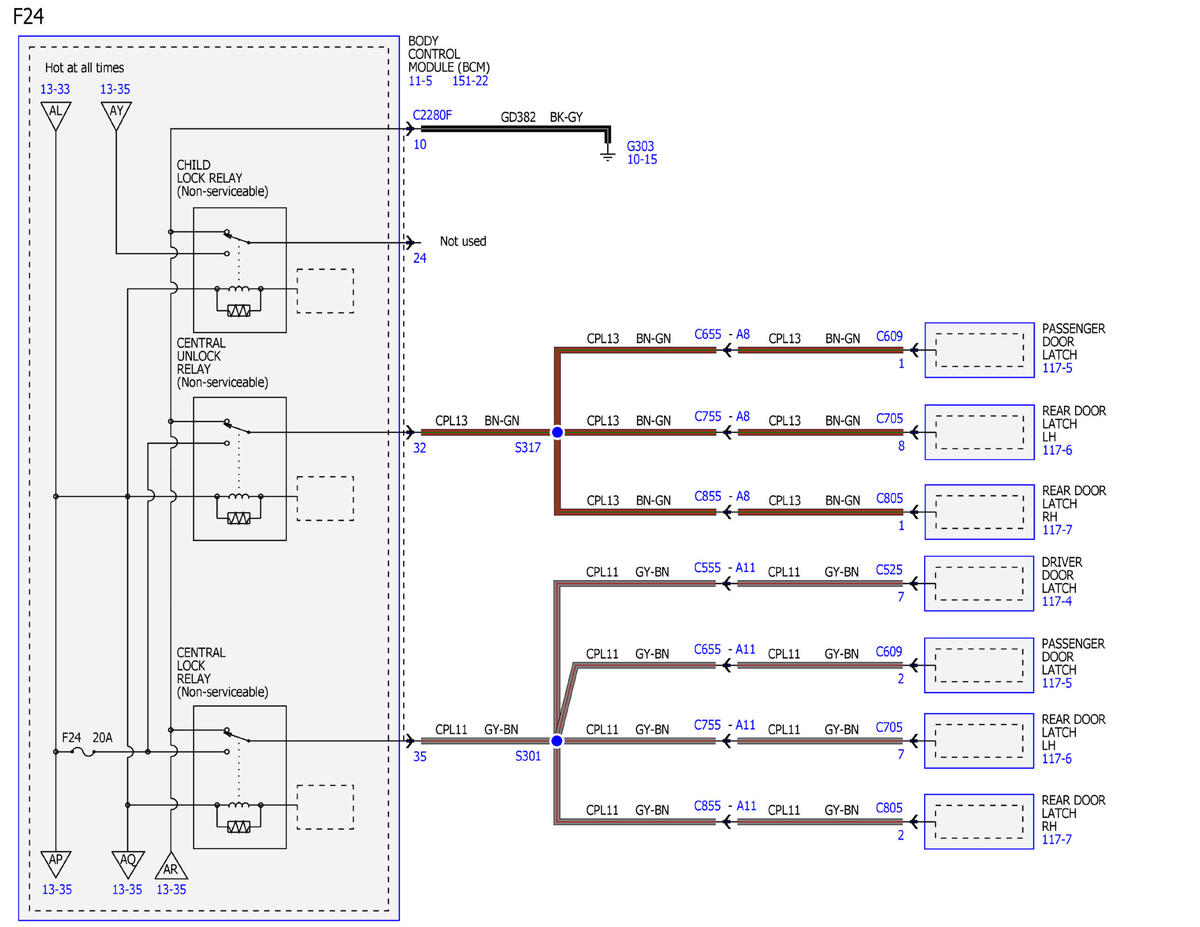

Fig 34: Power Distribution Wiring Diagram (34 Of 47)

GFDWR52291

Courtesy of FORD MOTOR COMPANY

Fig 35: Power Distribution Wiring Diagram (35 Of 47)

GFDWR52292

Courtesy of FORD MOTOR COMPANY

Fig 36: Power Distribution Wiring Diagram (36 Of 47)

GFDWR52293

Courtesy of FORD MOTOR COMPANY

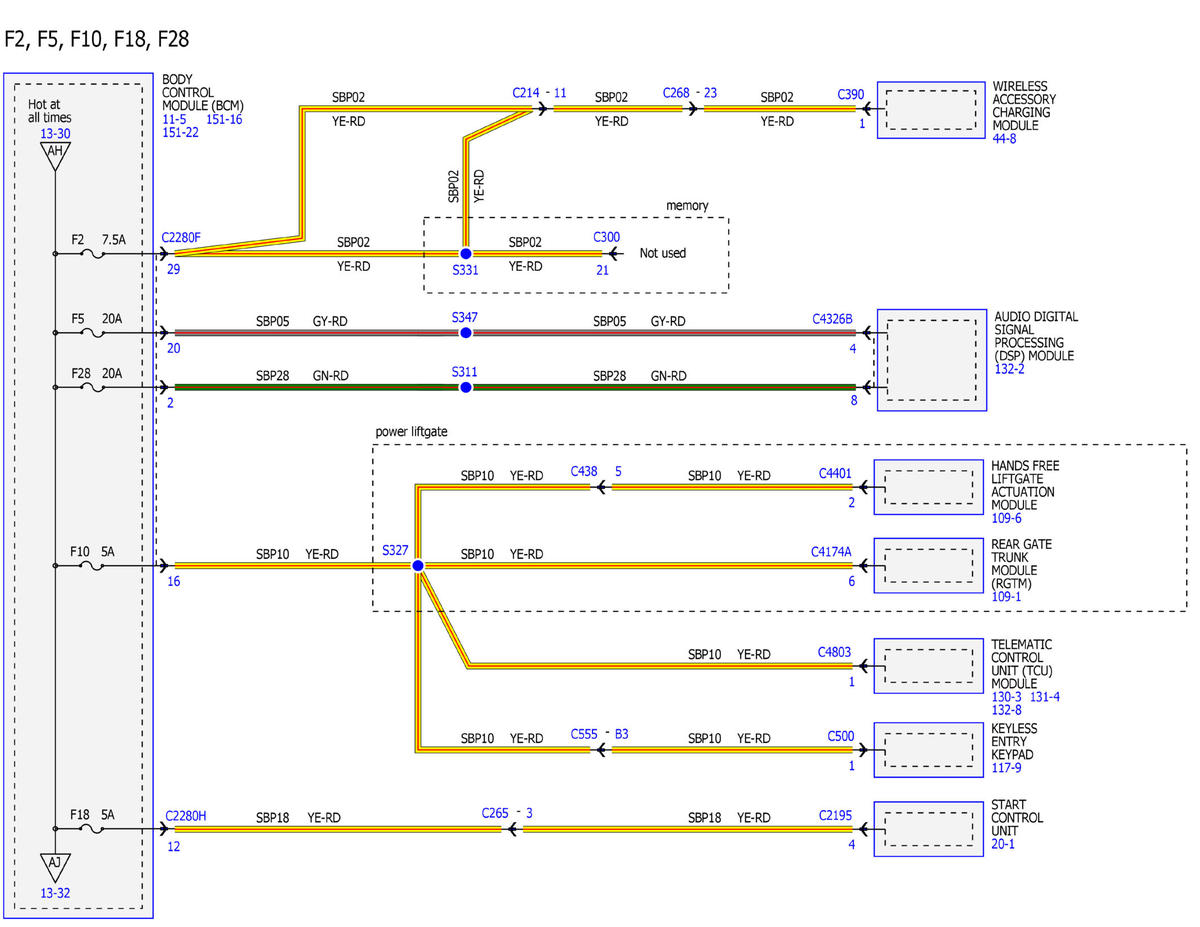

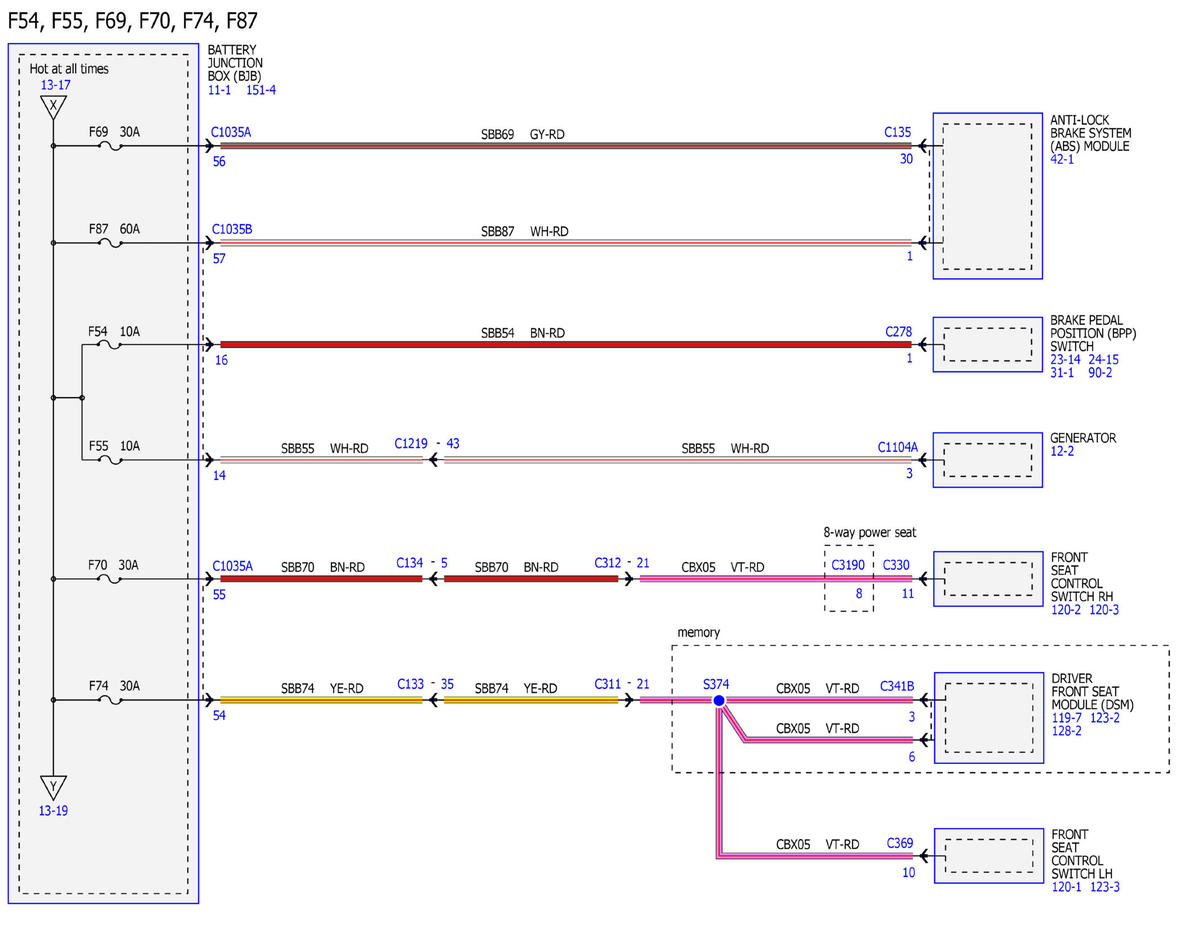

Fig 37: Power Distribution Wiring Diagram (37 Of 47)

GFDWR52294

Courtesy of FORD MOTOR COMPANY

Fig 38: Power Distribution Wiring Diagram (38 Of 47)

GFDWR52295

Courtesy of FORD MOTOR COMPANY

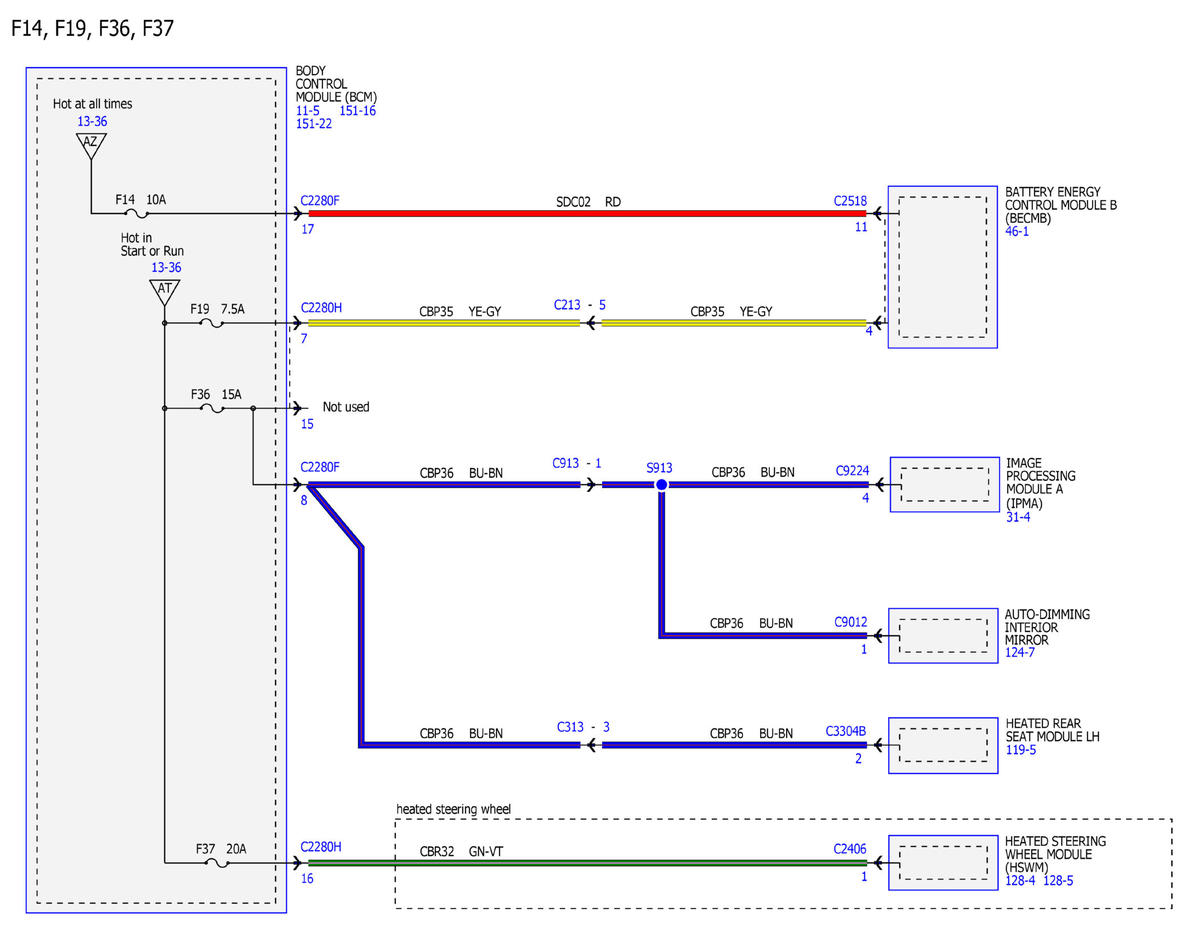

Fig 39: Power Distribution Wiring Diagram (39 Of 47)

GFDWR52296

Courtesy of FORD MOTOR COMPANY

Fig 40: Power Distribution Wiring Diagram (40 Of 47)

GFDWR52297

Courtesy of FORD MOTOR COMPANY

Fig 41: Power Distribution Wiring Diagram (41 Of 47)

GFDWR52298

Courtesy of FORD MOTOR COMPANY

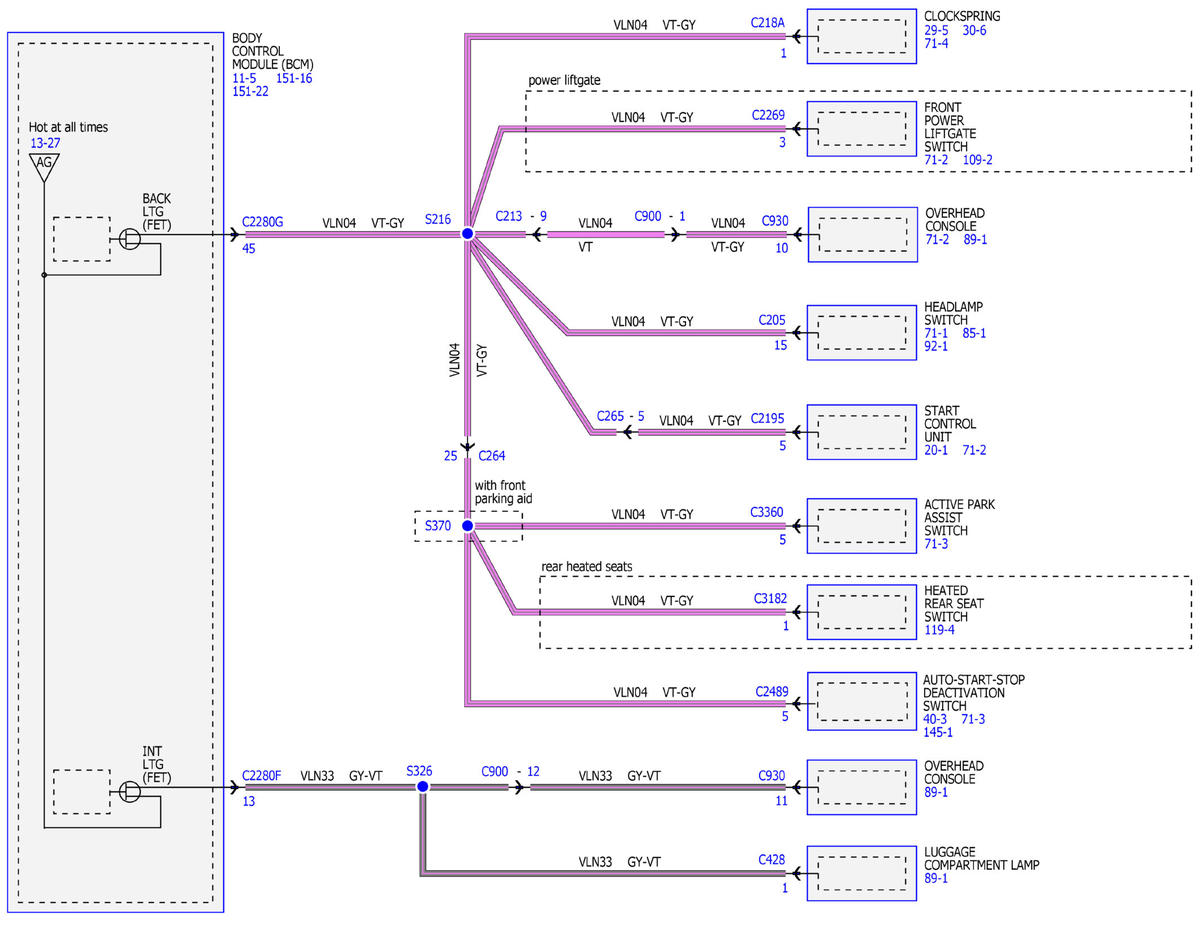

Fig 42: Power Distribution Wiring Diagram (42 Of 47)

GFDWR52299

Courtesy of FORD MOTOR COMPANY

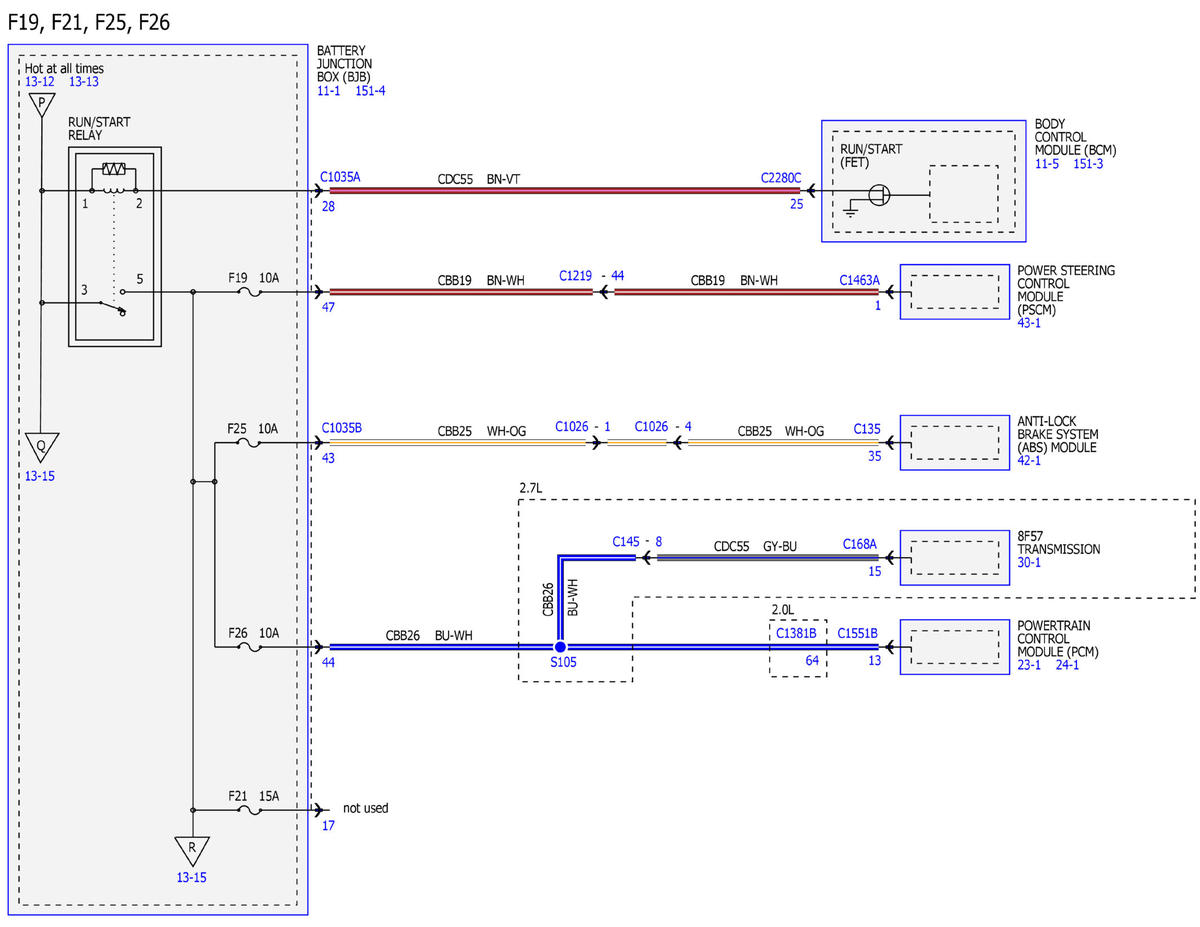

Fig 43: Power Distribution Wiring Diagram (43 Of 47)

GFDWR52300

Courtesy of FORD MOTOR COMPANY

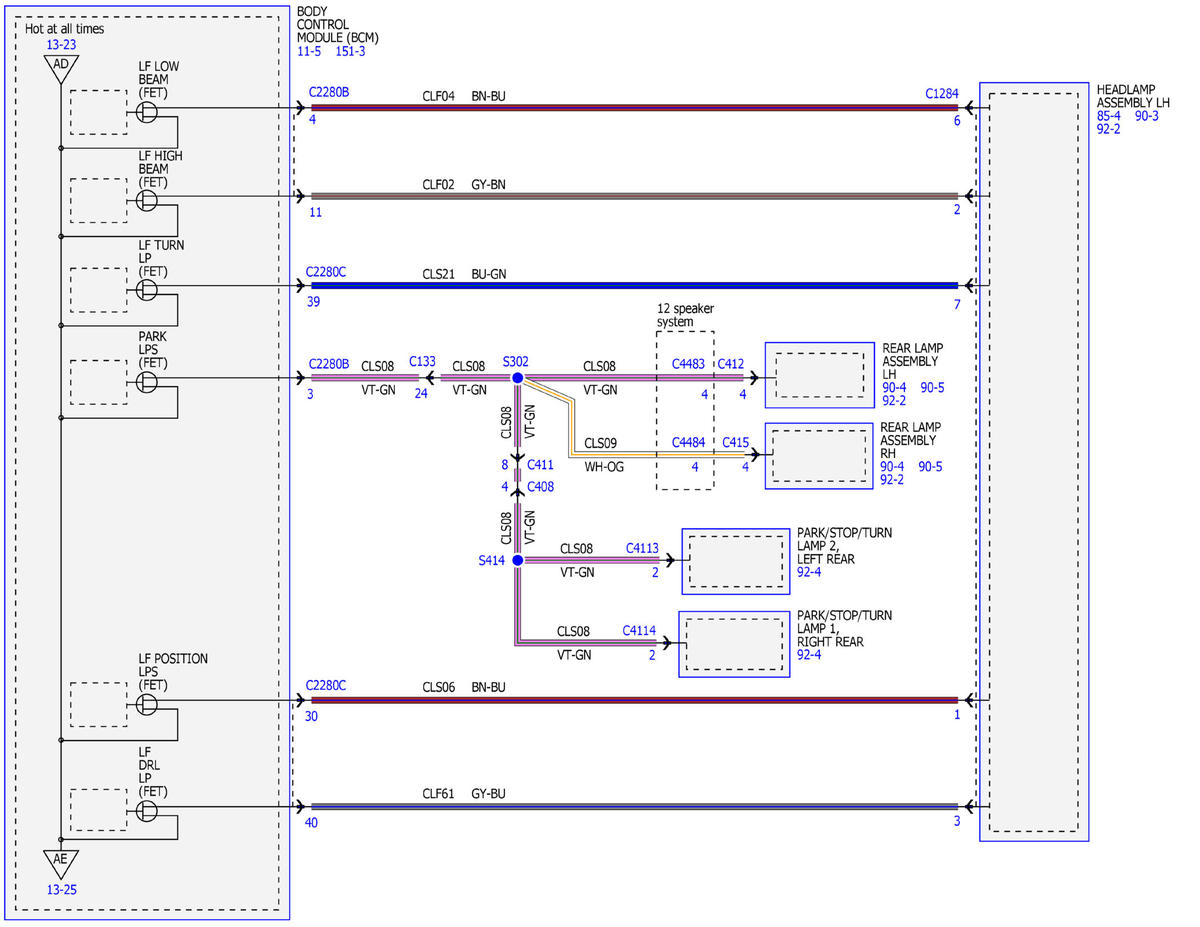

Fig 44: Power Distribution Wiring Diagram (44 Of 47)

GFDWR52301

Courtesy of FORD MOTOR COMPANY

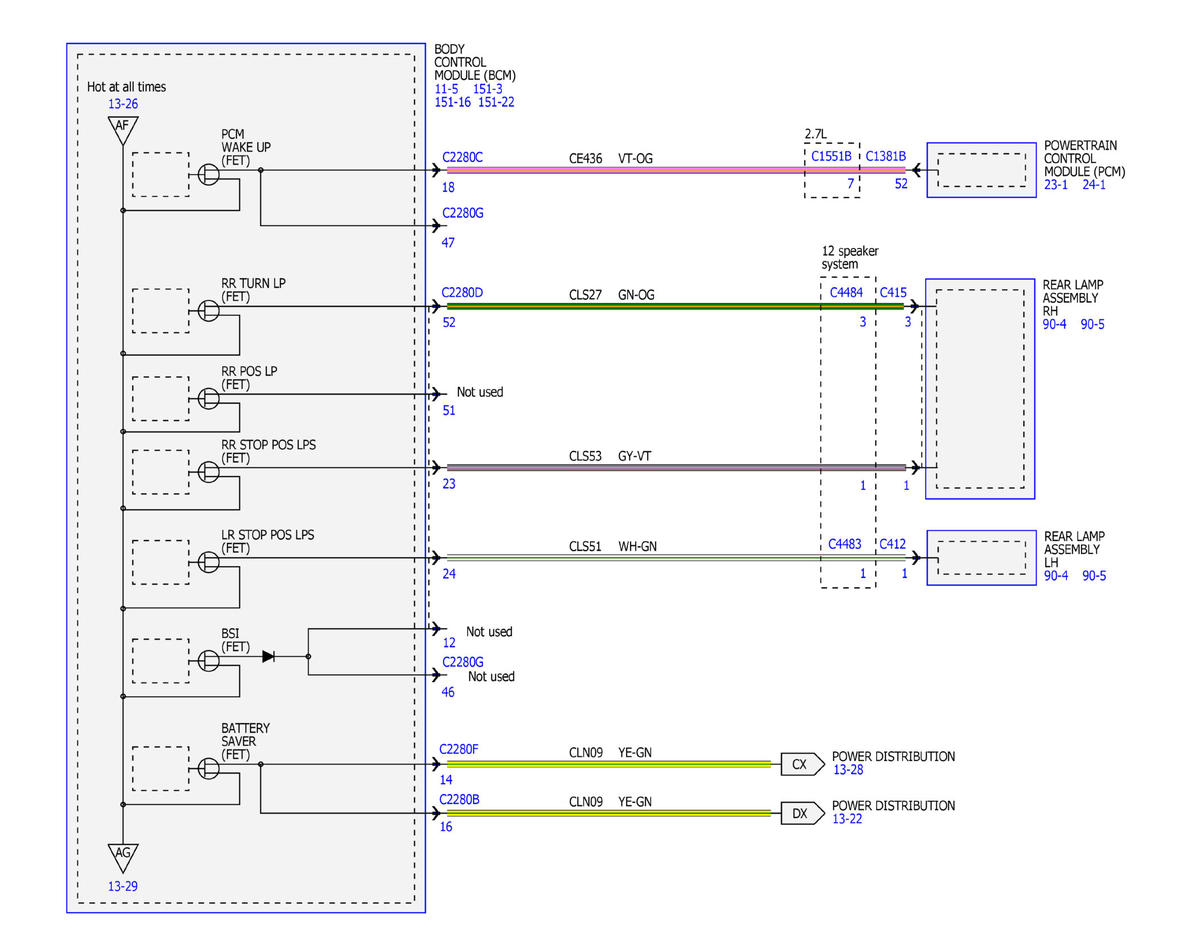

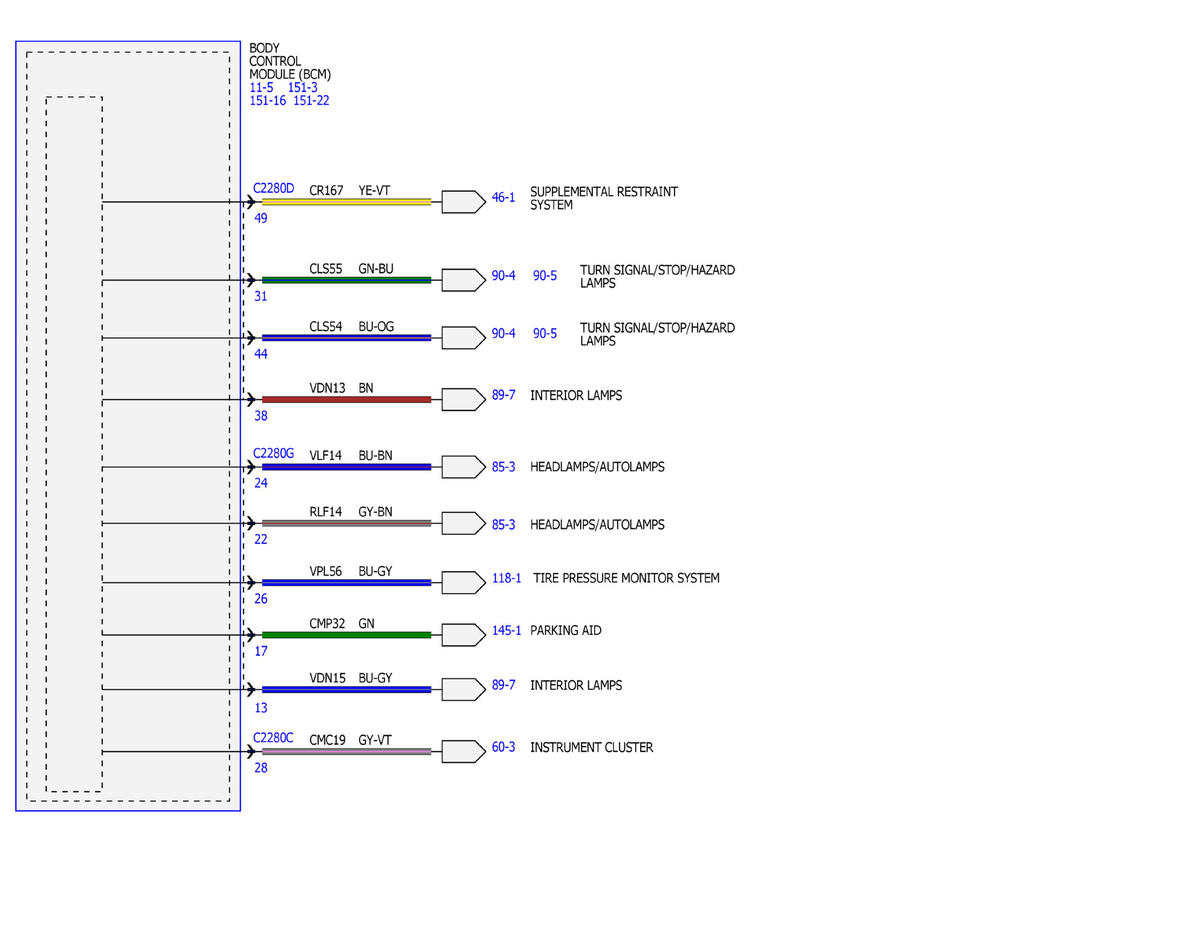

Fig 45: Power Distribution Wiring Diagram (45 Of 47)

GFDWR52302

Courtesy of FORD MOTOR COMPANY

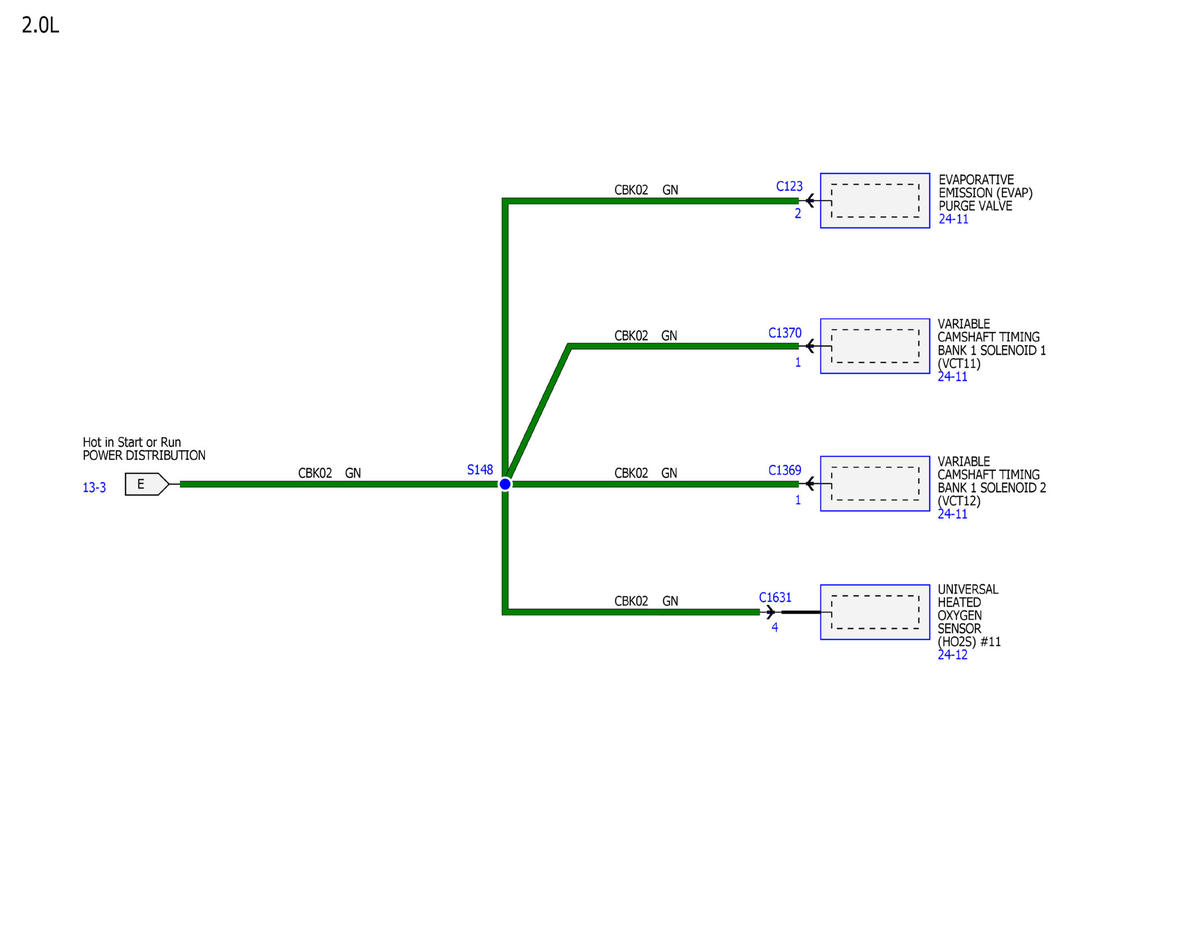

Fig 46: Power Distribution Wiring Diagram (46 Of 47)

GFDWR52303

Courtesy of FORD MOTOR COMPANY

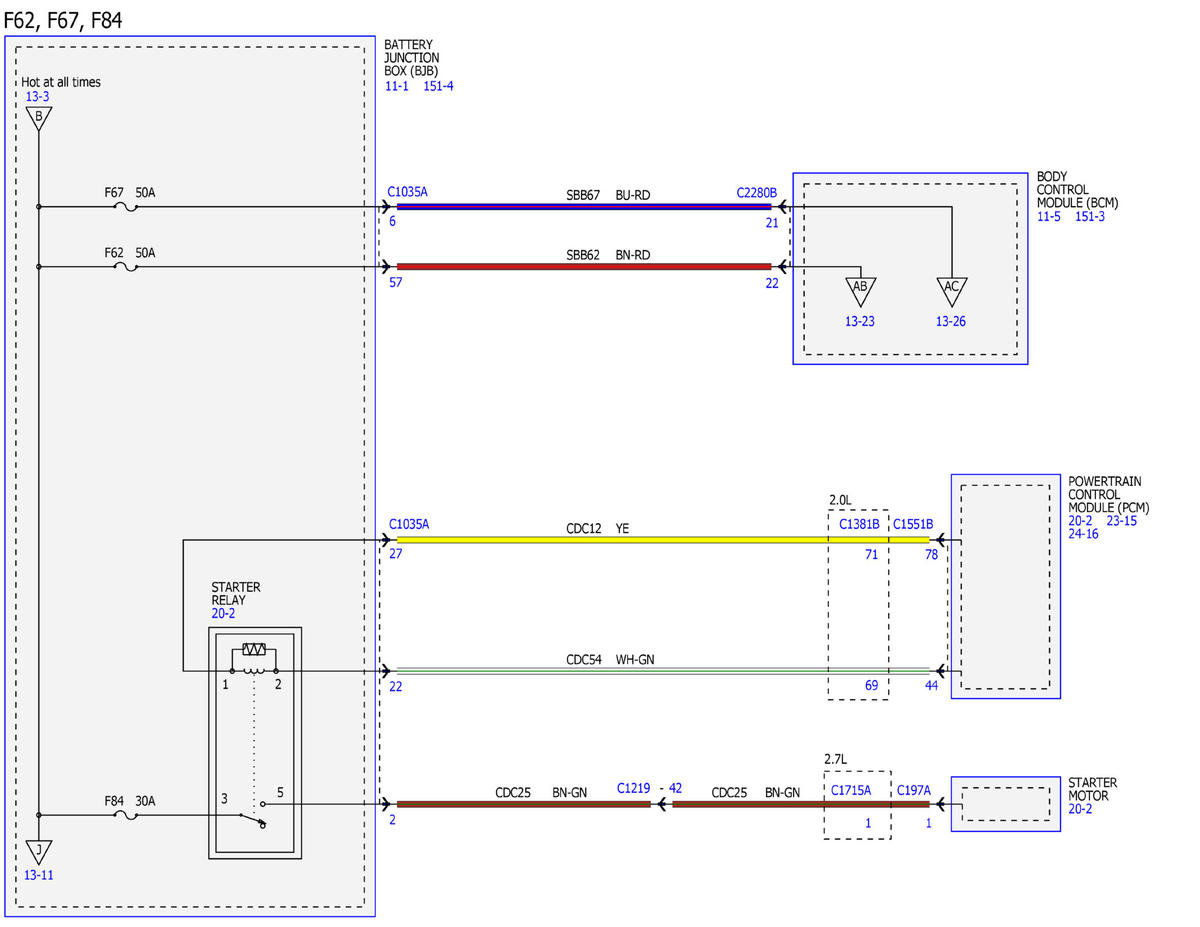

Fig 47: Power Distribution Wiring Diagram (47 Of 47)

GFDWR52304

Courtesy of FORD MOTOR COMPANY
