Memory Seats

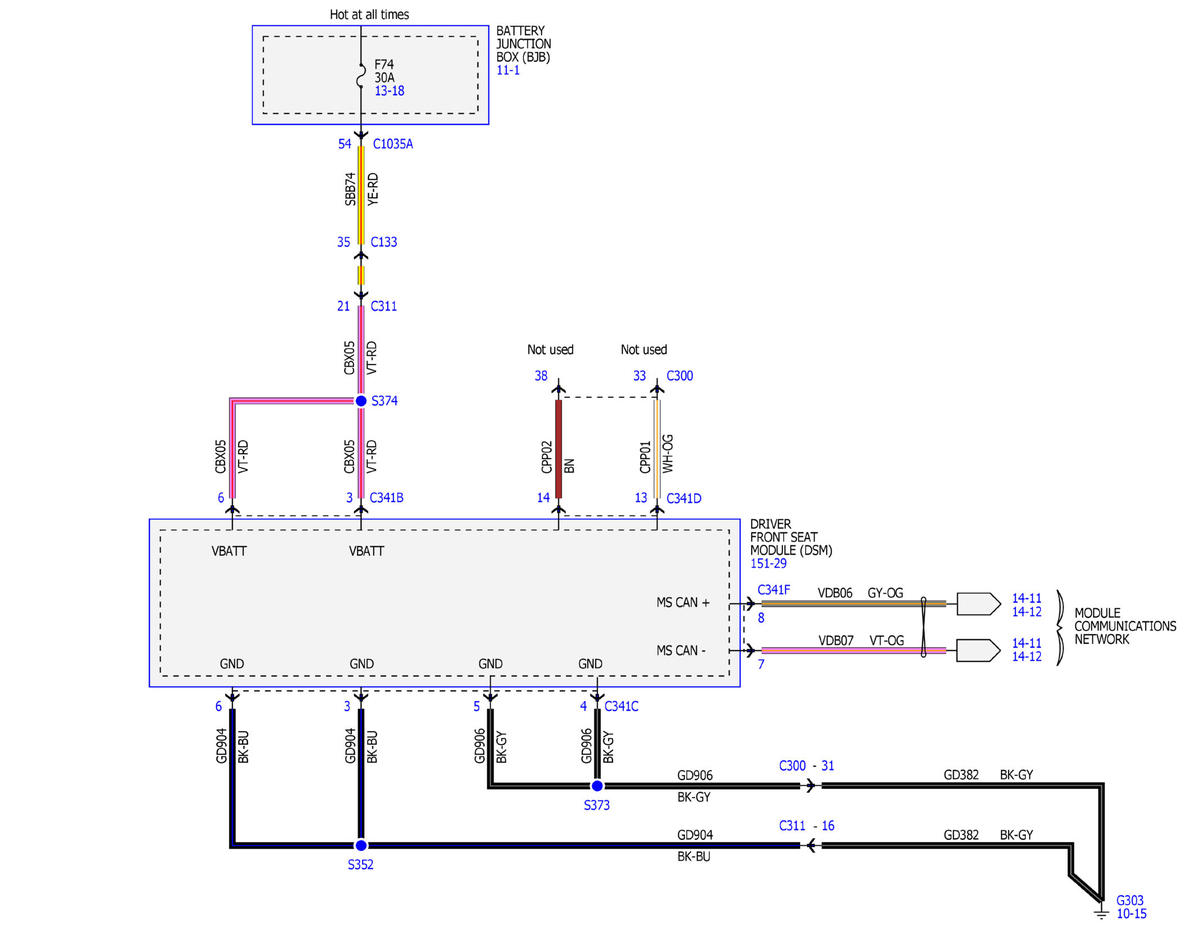

Fig 1: Memory Seats Wiring Diagram (1 Of 5)
GFDWR52223Courtesy of FORD MOTOR COMPANY

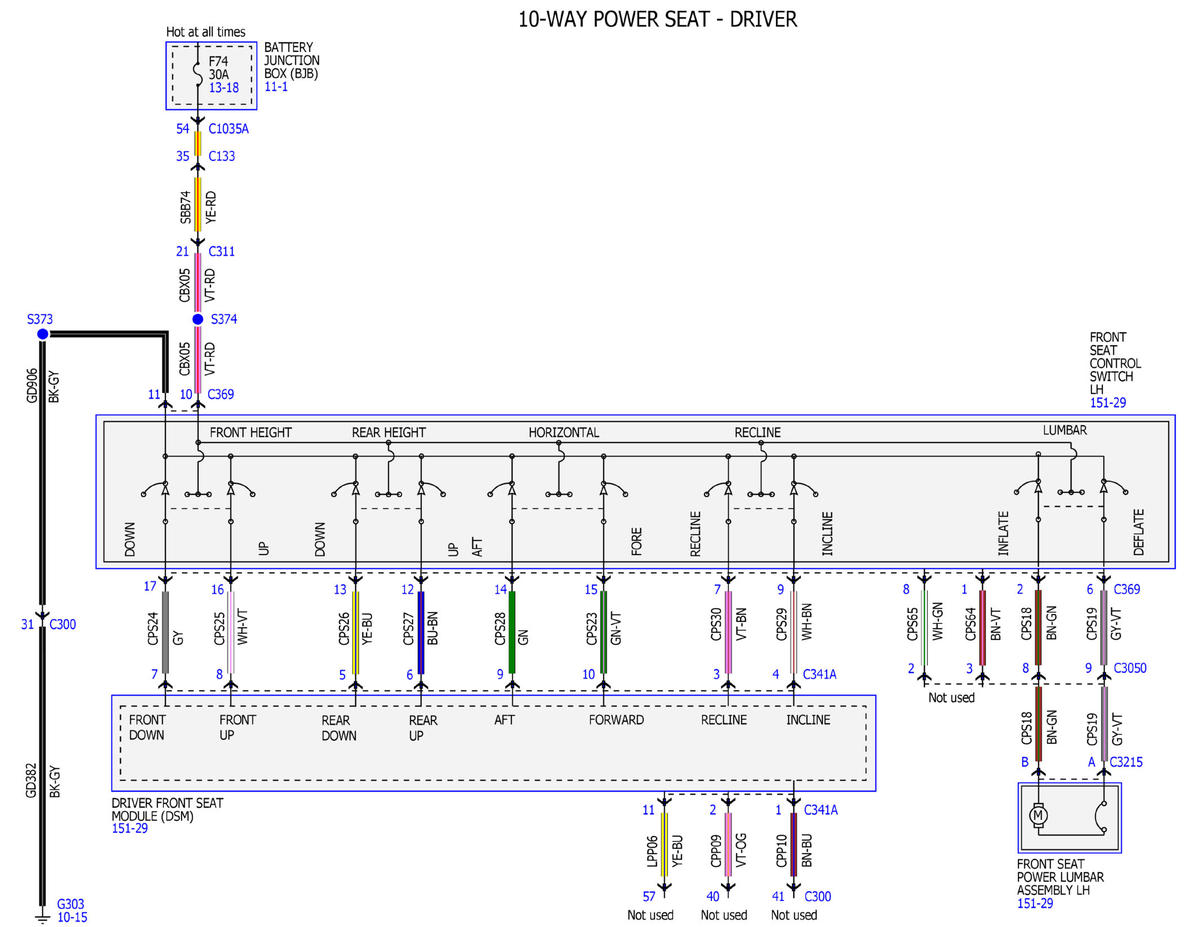

Fig 2: Memory Seats Wiring Diagram (2 Of 5)
GFDWR52224Courtesy of FORD MOTOR COMPANY

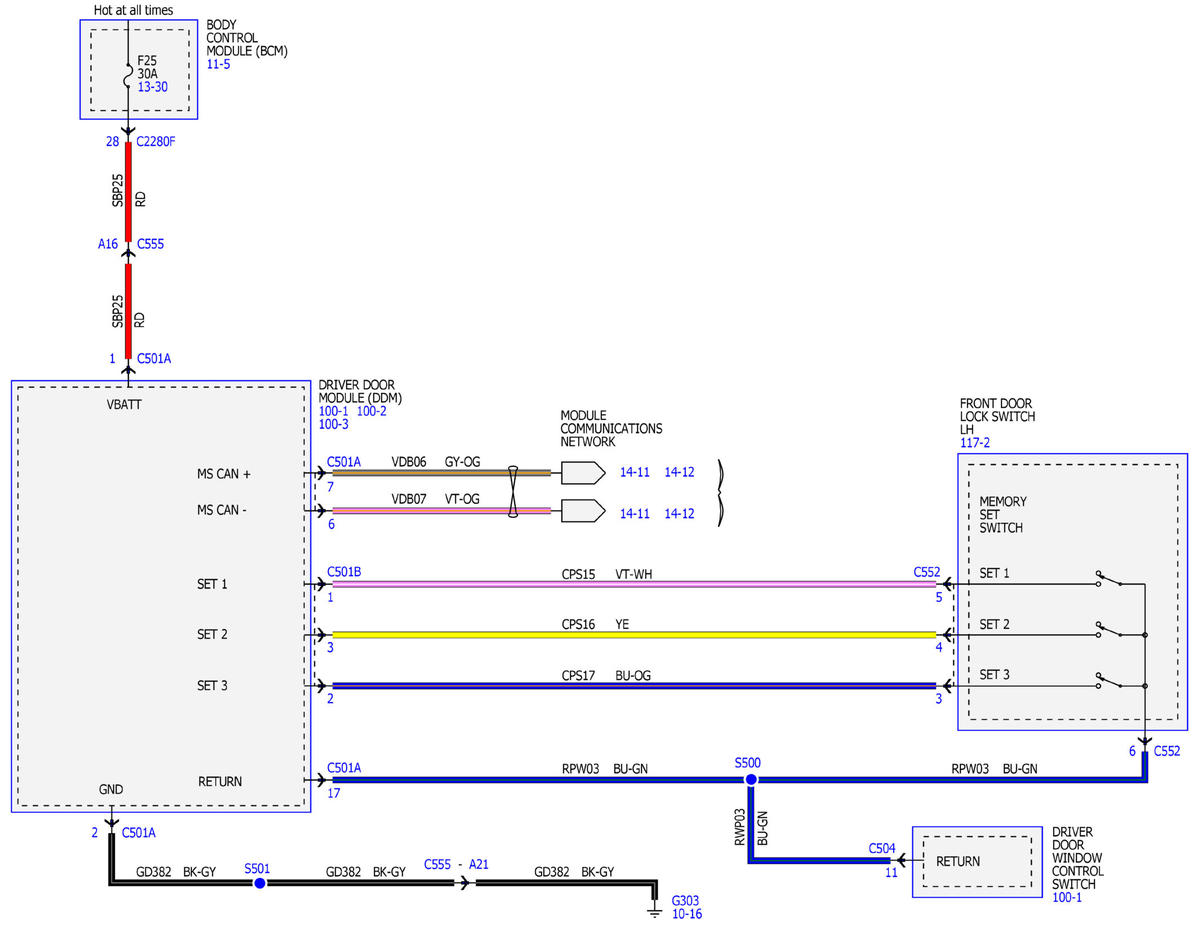

Fig 3: Memory Seats Wiring Diagram (3 Of 5)
GFDWR52225Courtesy of FORD MOTOR COMPANY

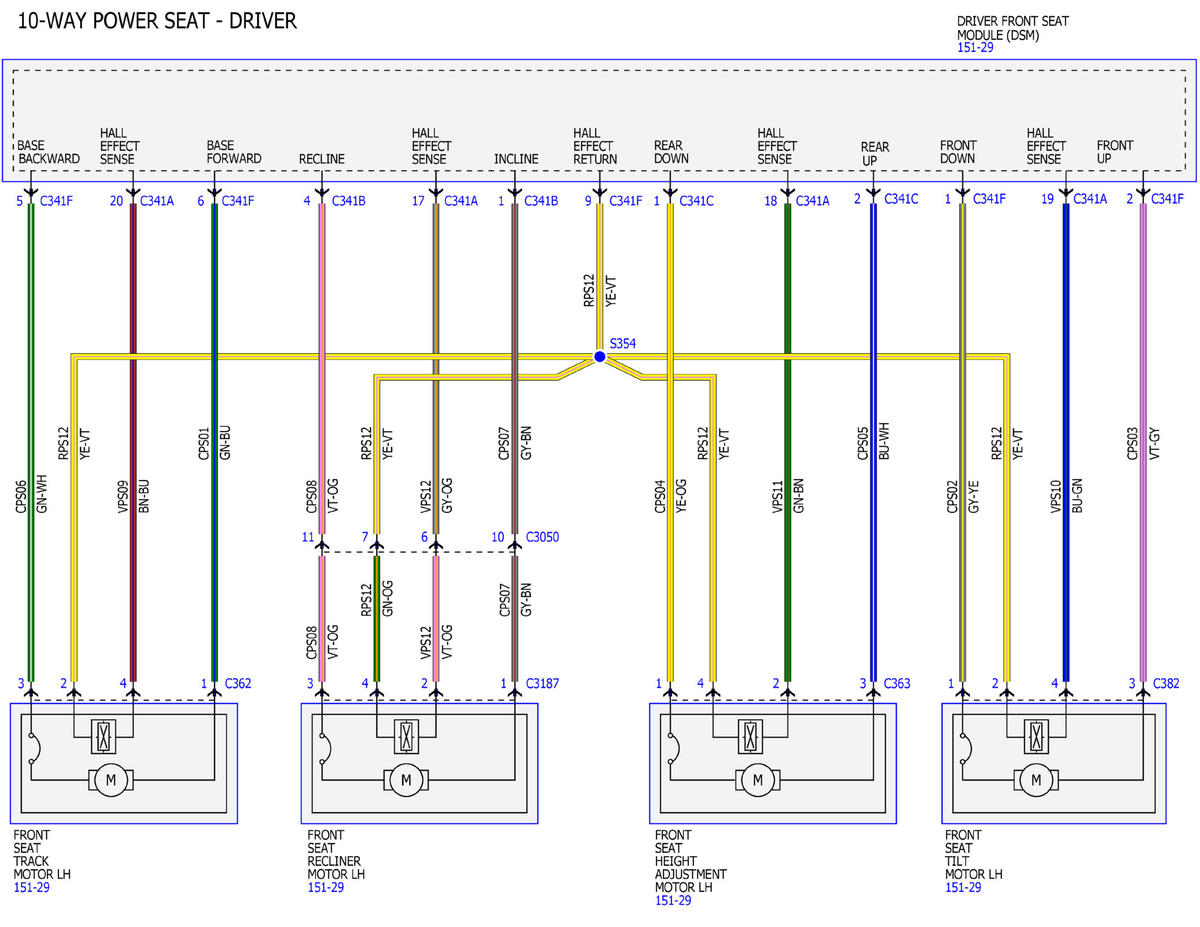

Fig 4: Memory Seats Wiring Diagram (4 Of 5)
GFDWR52226Courtesy of FORD MOTOR COMPANY

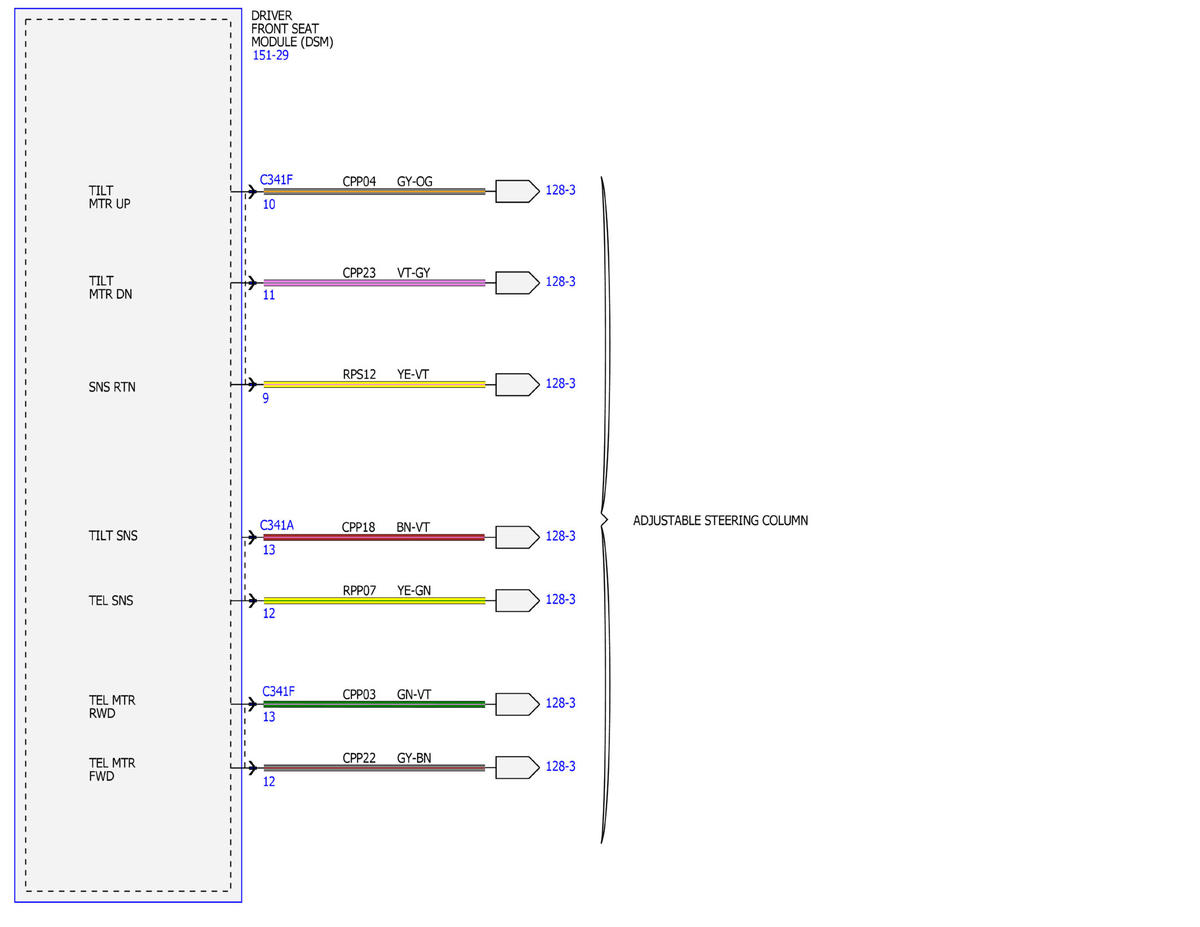

Fig 5: Memory Seats Wiring Diagram (5 Of 5)
GFDWR52227Courtesy of FORD MOTOR COMPANY
