Transfer Case Control Module (TCCM): Removal

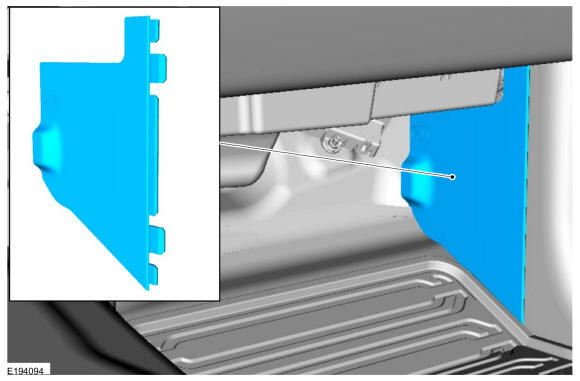

  1. Remove the CJB cover.
    GFD246960Courtesy of FORD MOTOR COMPANY

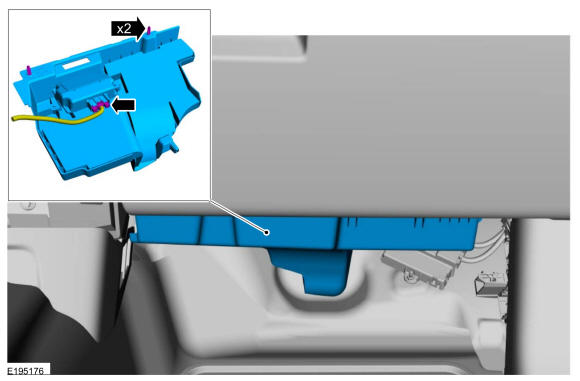

  2. Remove and disconnect the lower access panel.
    GFD246961Courtesy of FORD MOTOR COMPANY

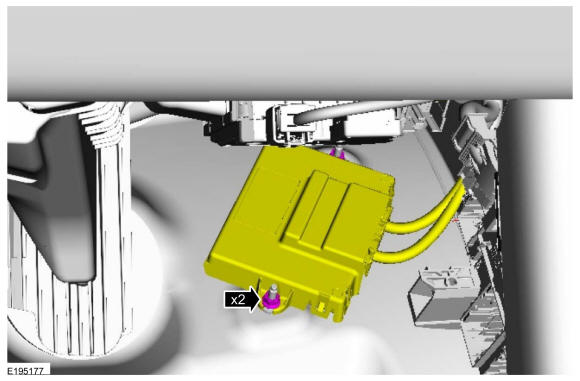

  3. NOTE: The TCCM has slotted mounting holes. It is not necessary to remove the LH TCCM nut when removing the TCCM.

    Loosen the LH TCCM nut and remove the RH TCCM nut.

    Torque: 62 lb.in (7 Nm)

    GFD246962Courtesy of FORD MOTOR COMPANY

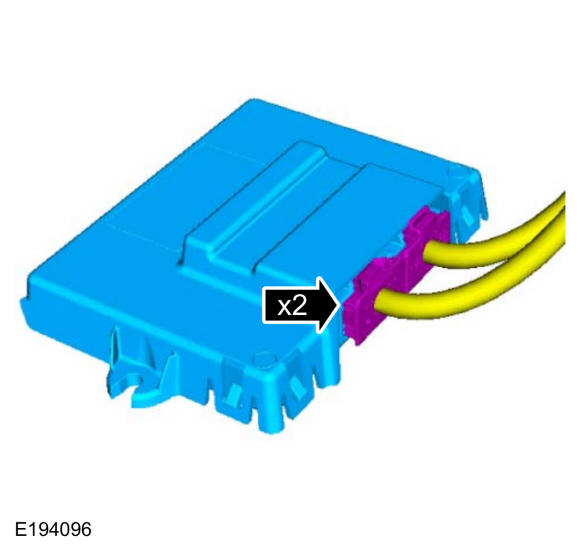

  4. Disconnect the electrical connectors and remove the TCCM.
GFD246963Courtesy of FORD MOTOR COMPANY
