Steering Gear Boot: Removal
NOTE:
The steering gear boots and clamps are designed to provide an airtight seal and protect the internal components of the steering gear. If the seal is not airtight, the vacuum generated during turning will draw water and contamination into the gear, causing failure of the steering gear components. Zip ties must not be used as they do not provide an airtight seal.
NOTE:
The inner ball joint grease is not compatible with water contamination. Do not allow water to become trapped in the grease or degradation and failure of the joint may occur.
- Remove the tie rod end. Refer to: Tie Rod End .
- If equipped. Remove the retainers and the skid plate.
- If equipped. Remove the retainers and the underbody air duct.
- If equipped. Remove the retainers and the underbody shield.
- Remove the tie rod end jamb nut.

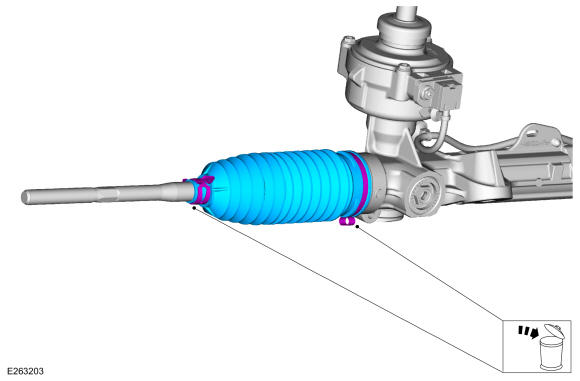

- Remove and discard the clamps and the steering gear boot.
