Component Testing

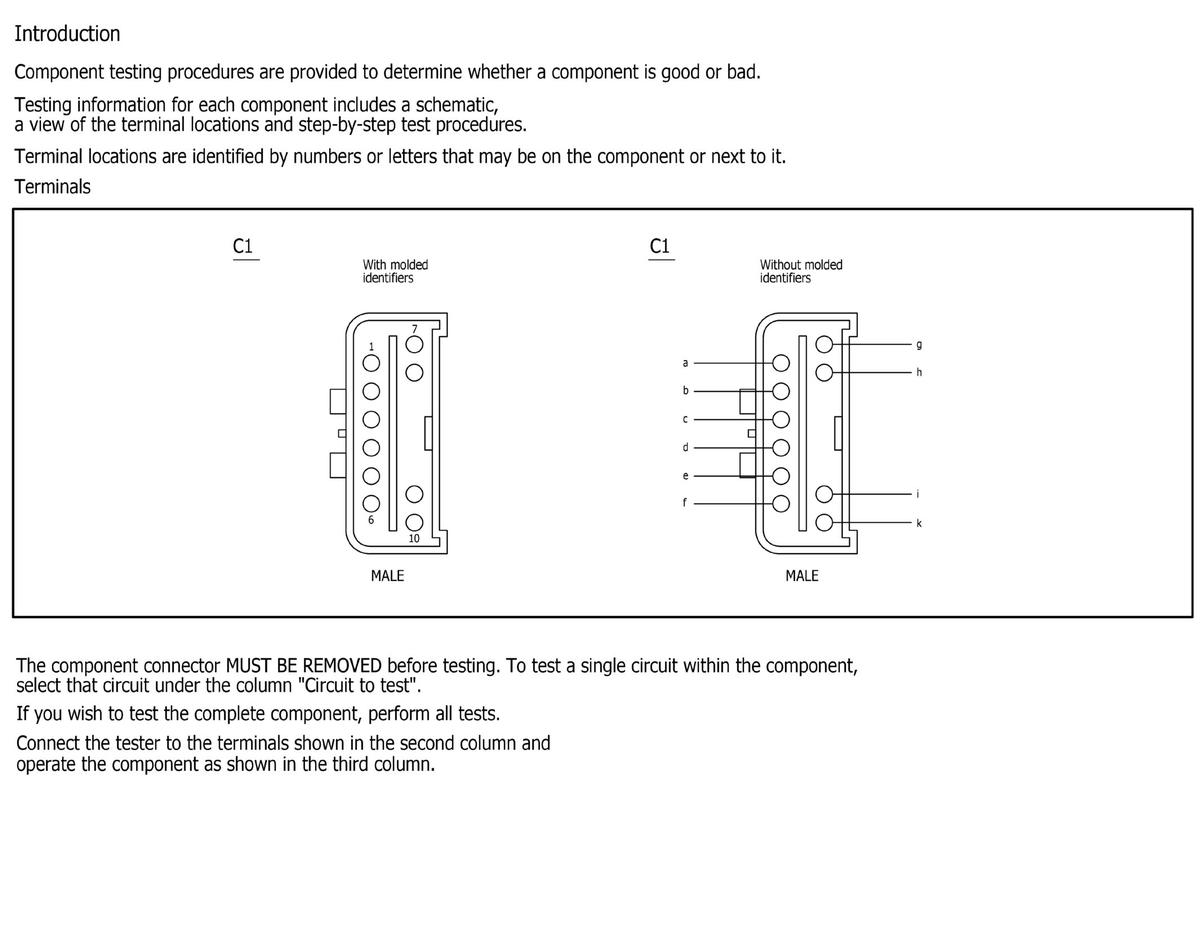

Fig 1: Component Testing Introduction

Courtesy of FORD MOTOR COMPANY

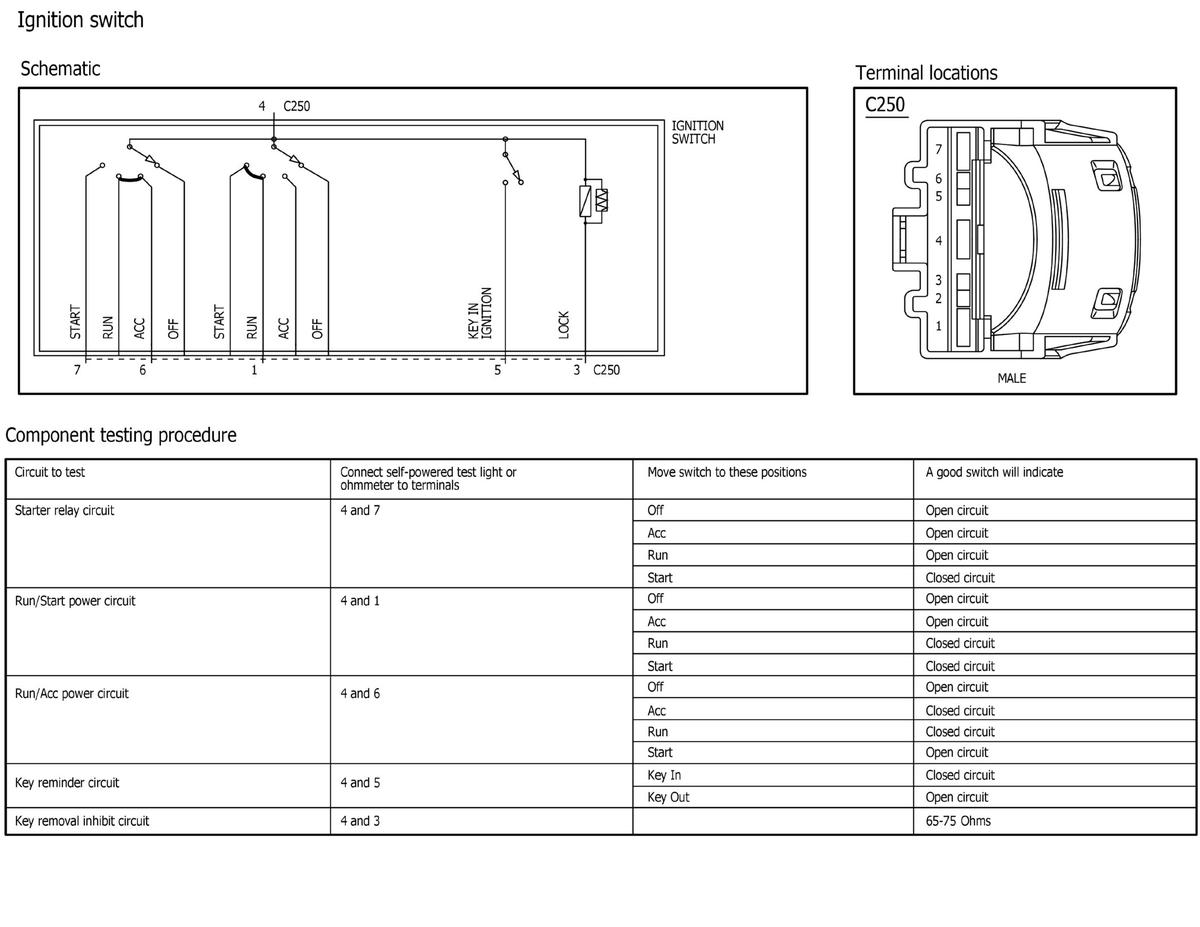

Fig 2: Ignition Switch Component Testing

Courtesy of FORD MOTOR COMPANY

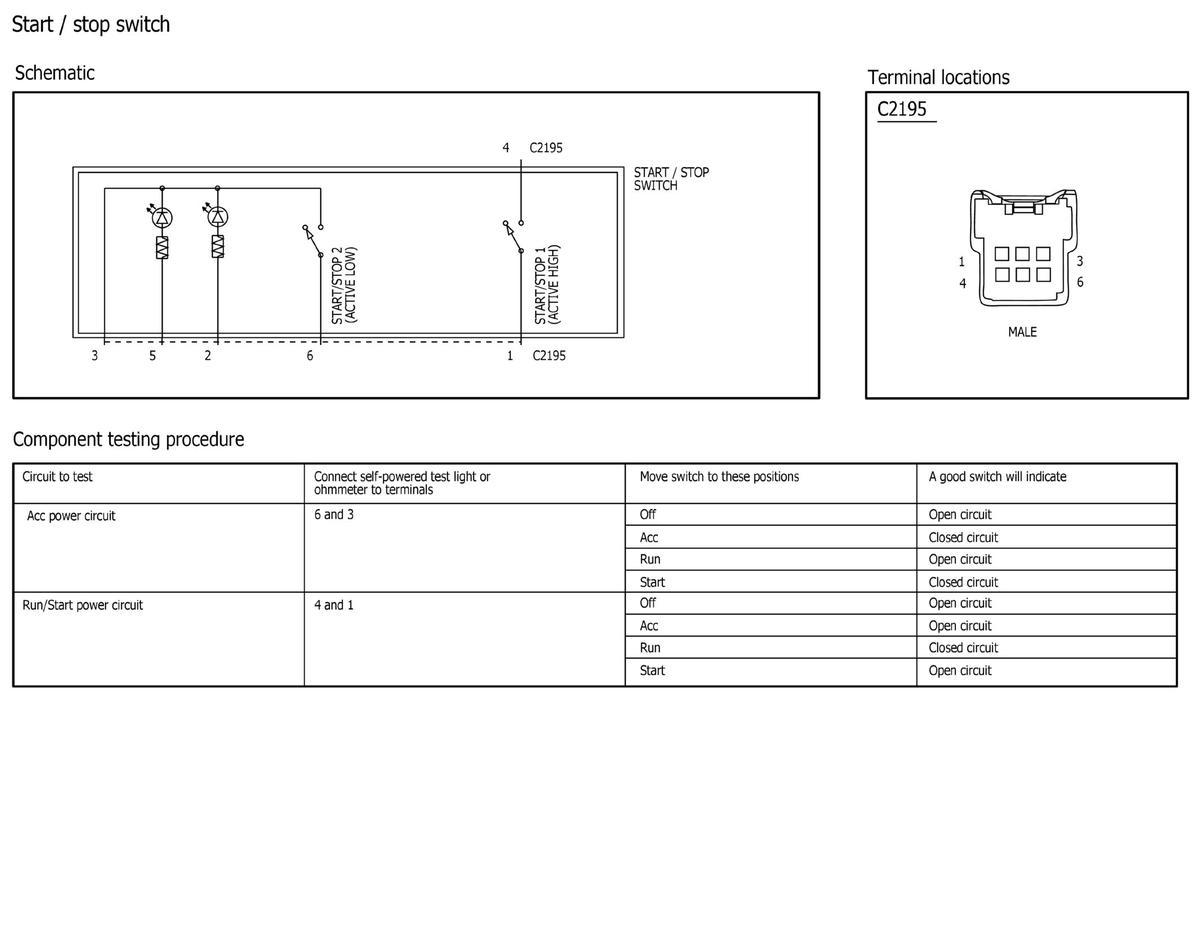

Fig 3: Start/Stop Switch Component Testing

Courtesy of FORD MOTOR COMPANY

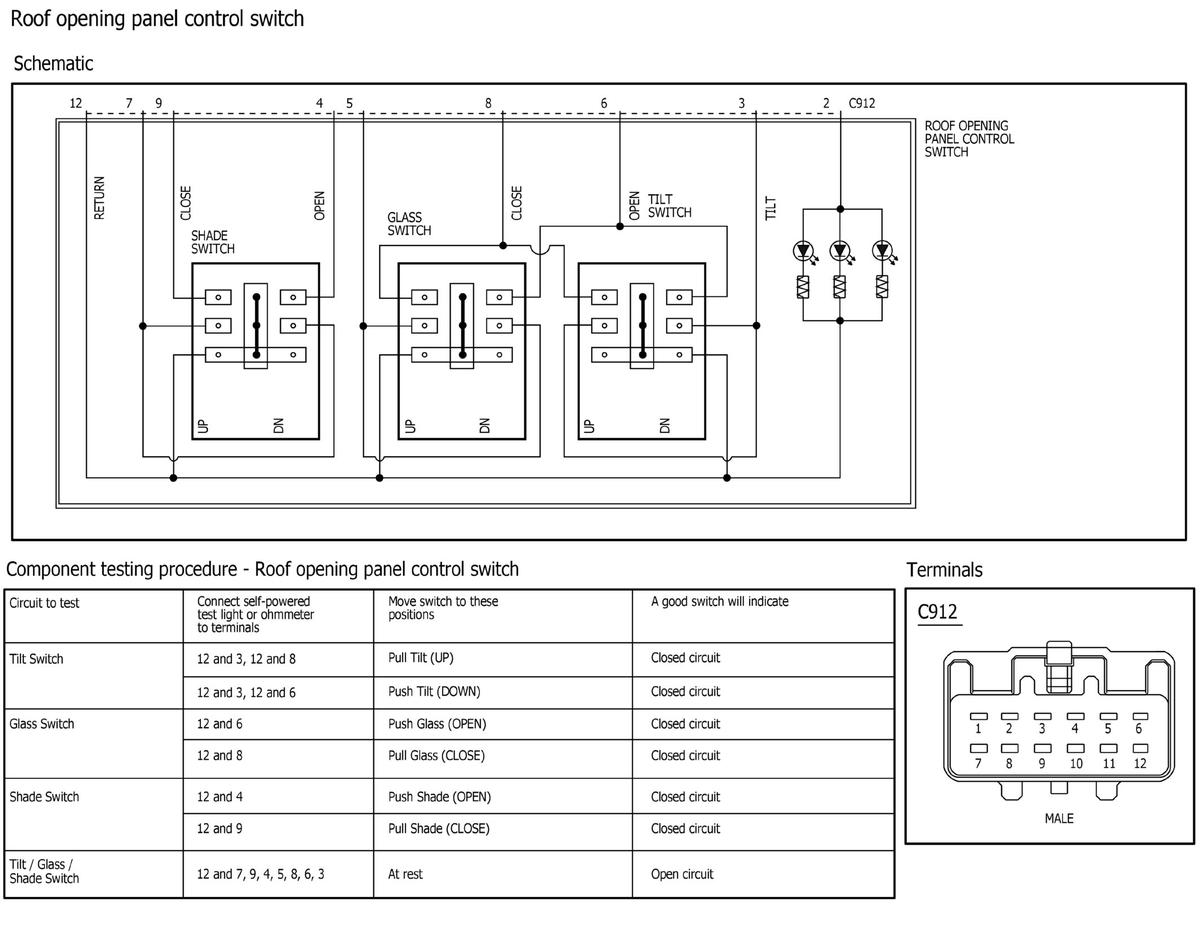

Fig 4: Roof Opening Panel Control Switch Component Testing

Courtesy of FORD MOTOR COMPANY

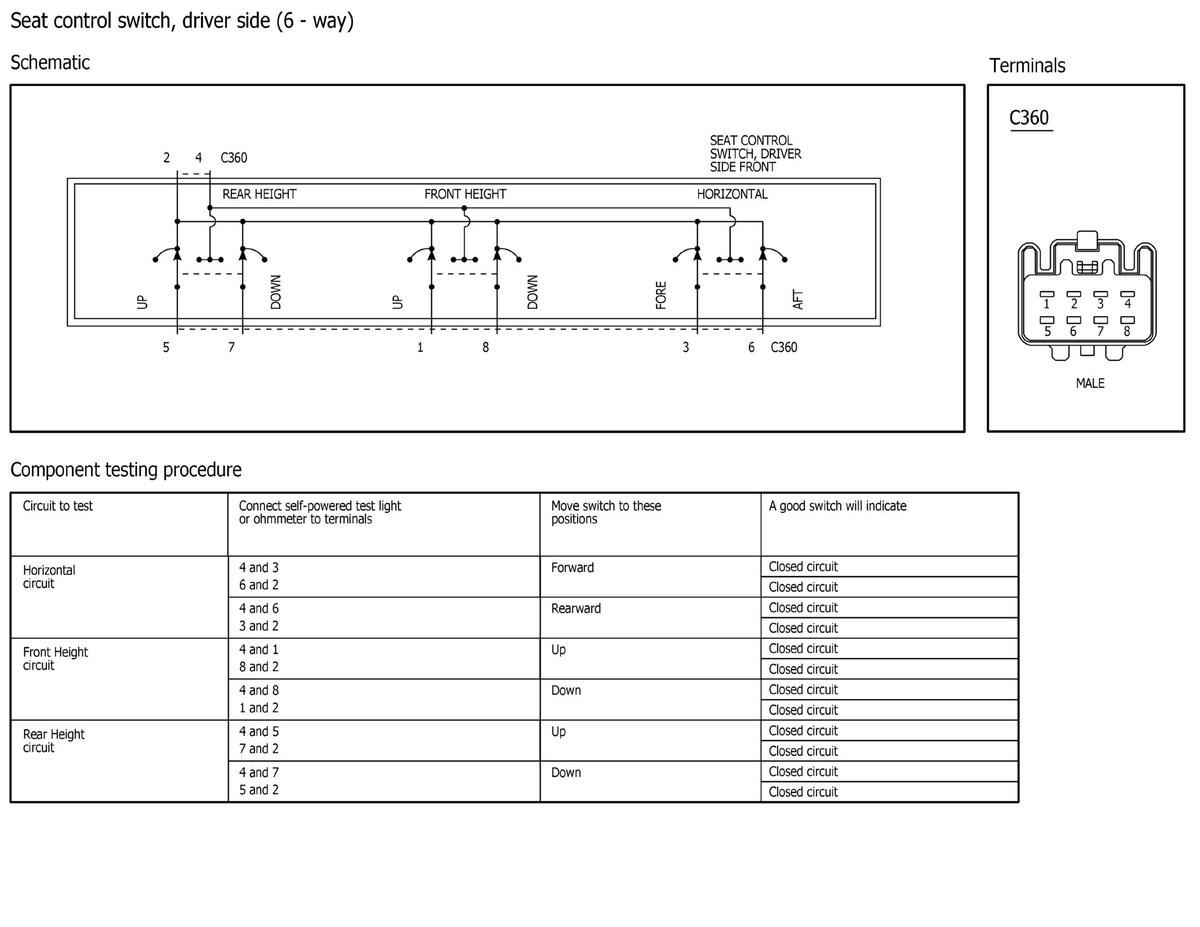

Fig 5: Seat Control Switch, Driver Side (6-Way) Component Testing

Courtesy of FORD MOTOR COMPANY

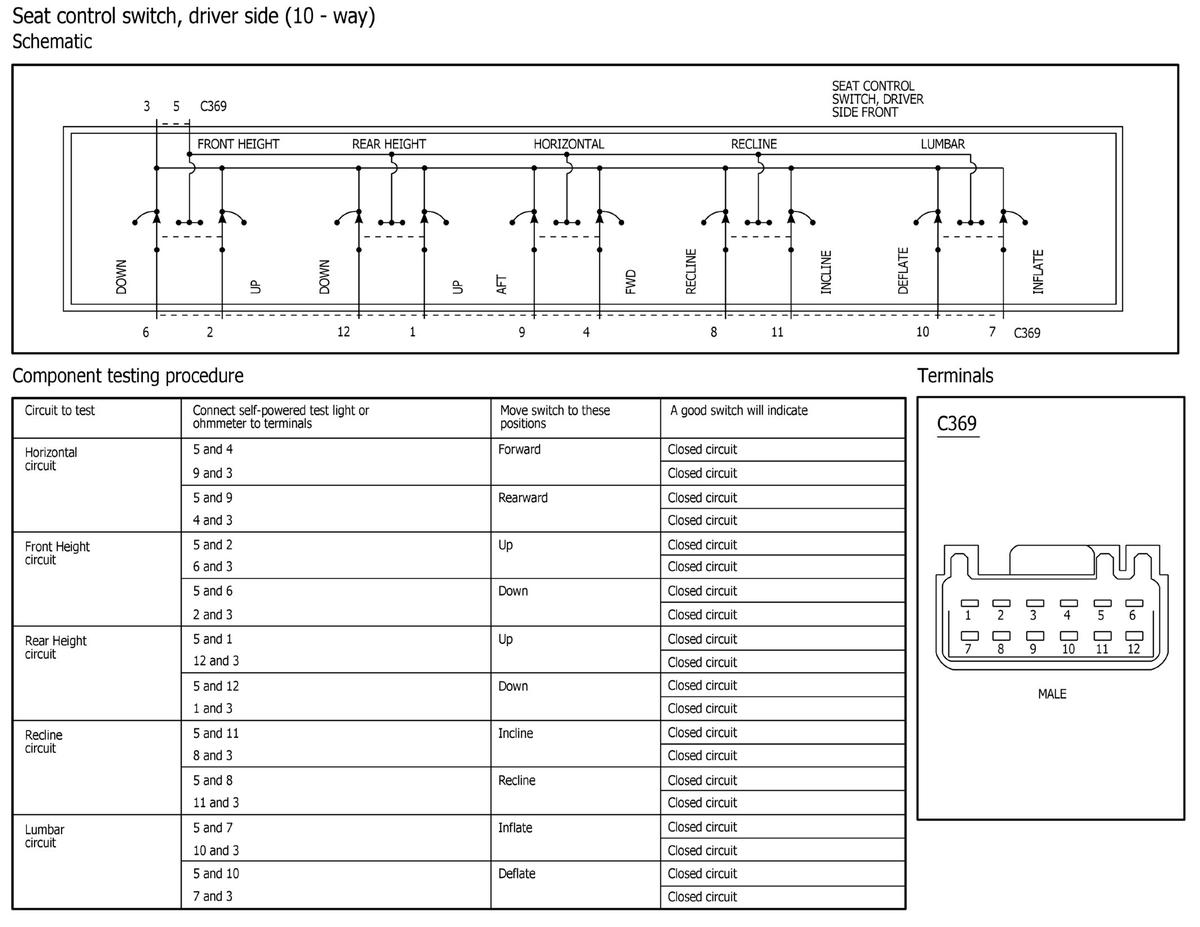

Fig 6: Seat Control Switch, Driver Side (10-Way) Component Testing

Courtesy of FORD MOTOR COMPANY

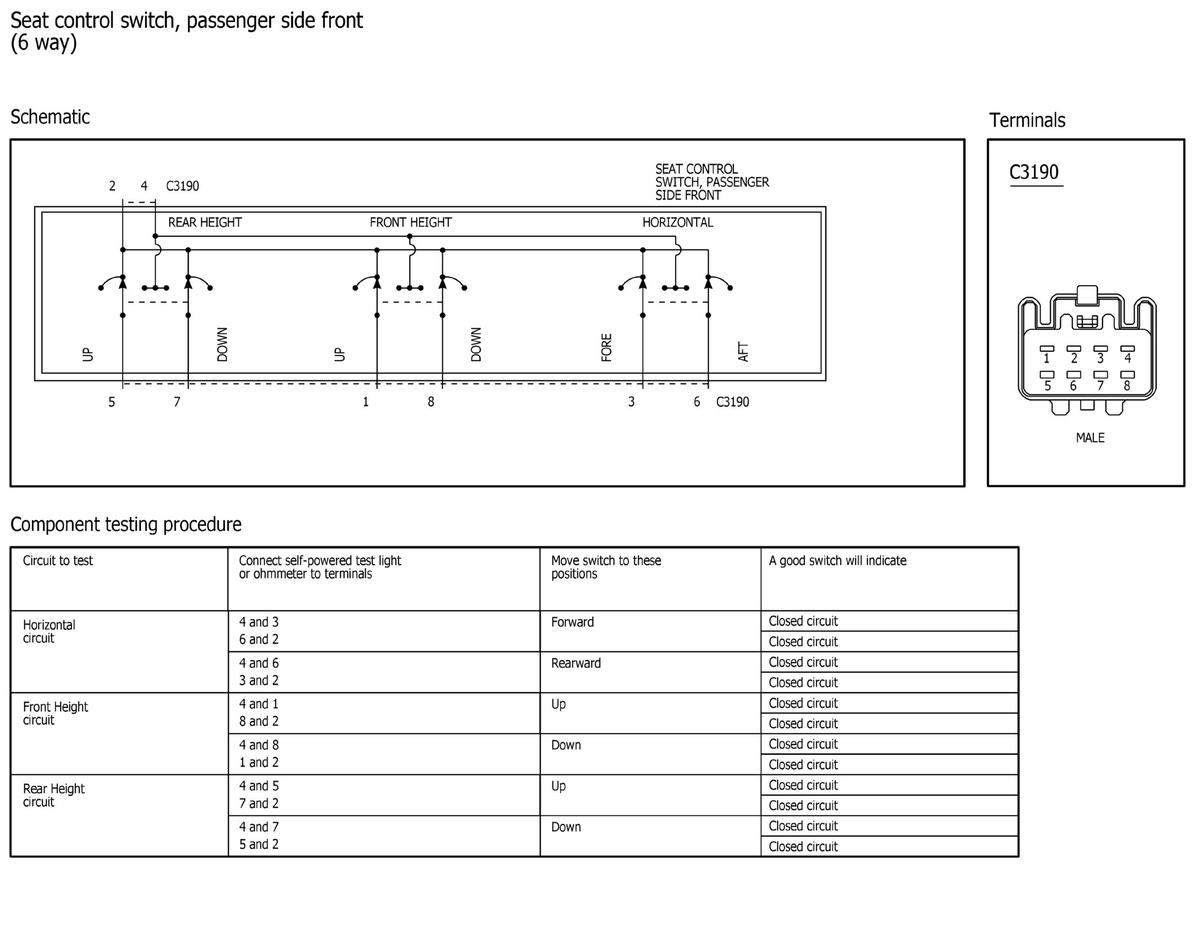

Fig 7: Seat Control Switch, Passenger Side Front (6-Way) Component Testing

Courtesy of FORD MOTOR COMPANY

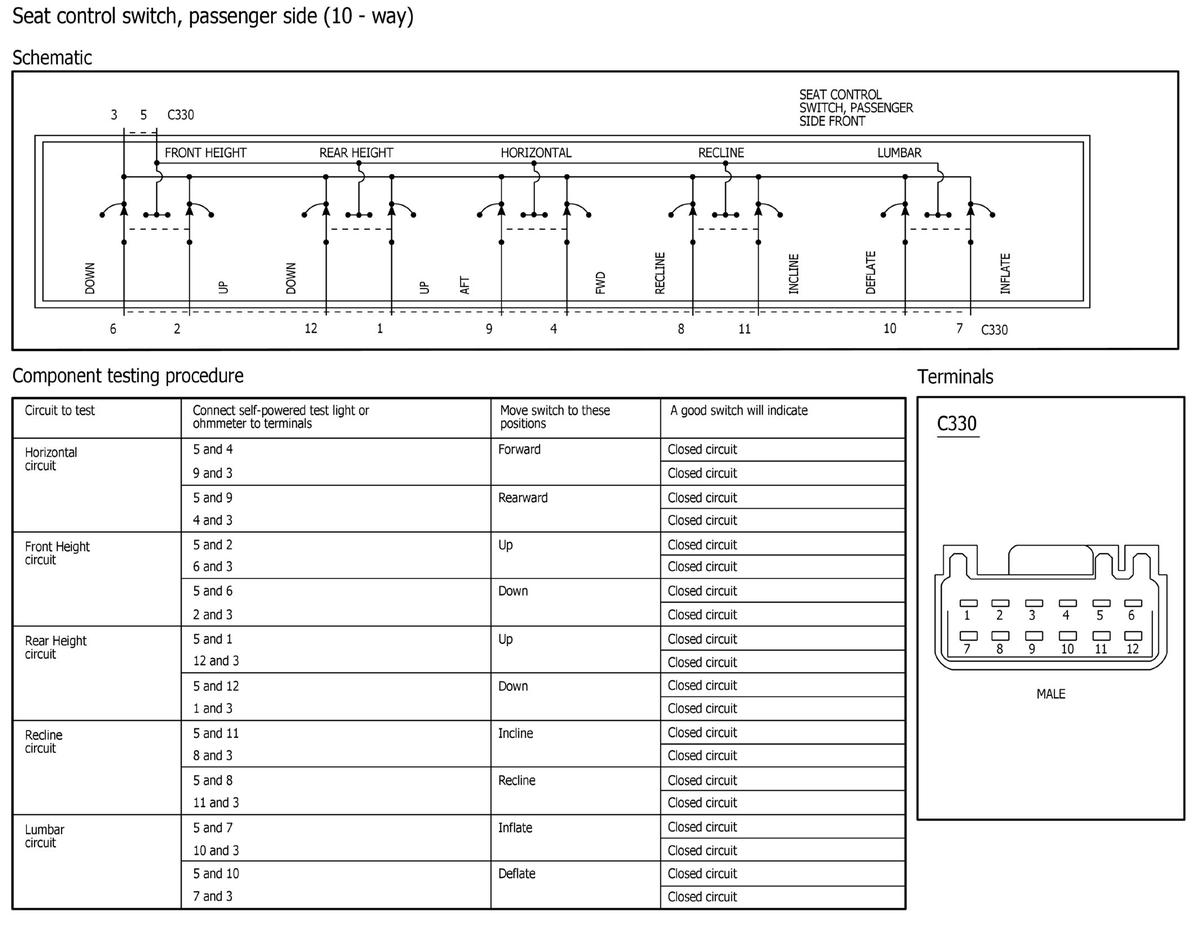

Fig 8: Seat Control Switch, Passenger Side (10-Way) Component Testing

Courtesy of FORD MOTOR COMPANY

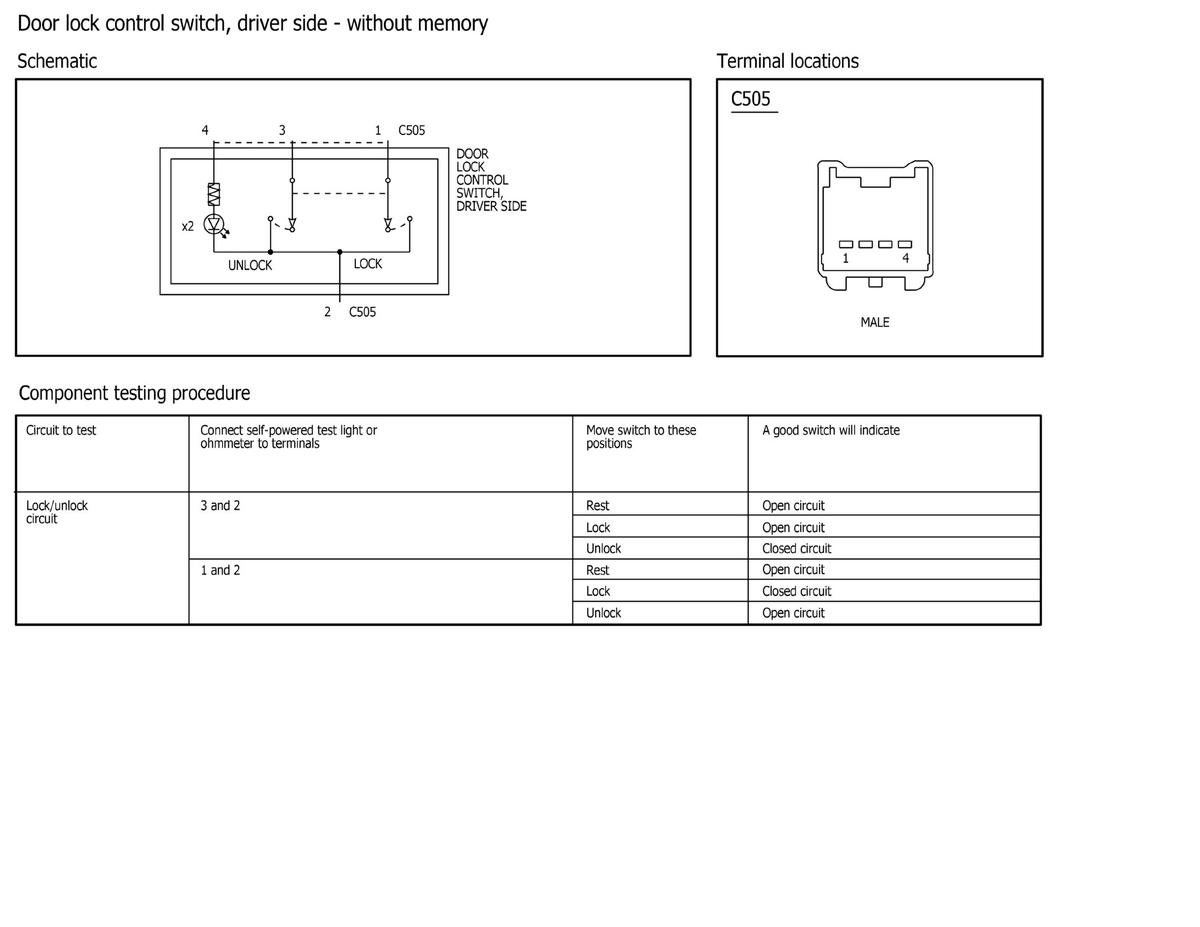

Fig 9: Door Lock Control Switch, Driver Side - Without Memory Component Testing

Courtesy of FORD MOTOR COMPANY

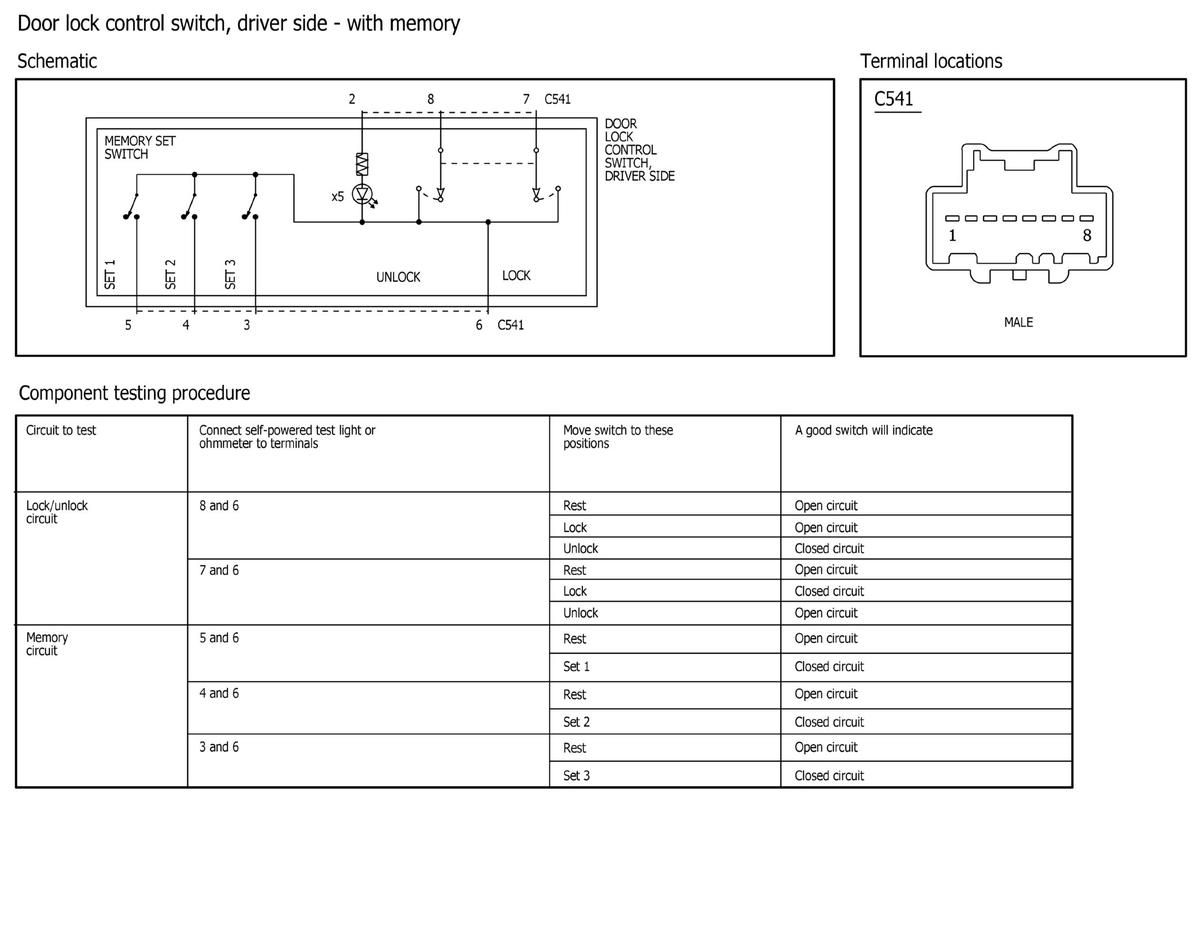

Fig 10: Door Lock Control Switch, Driver Side - With Memory Component Testing

Courtesy of FORD MOTOR COMPANY

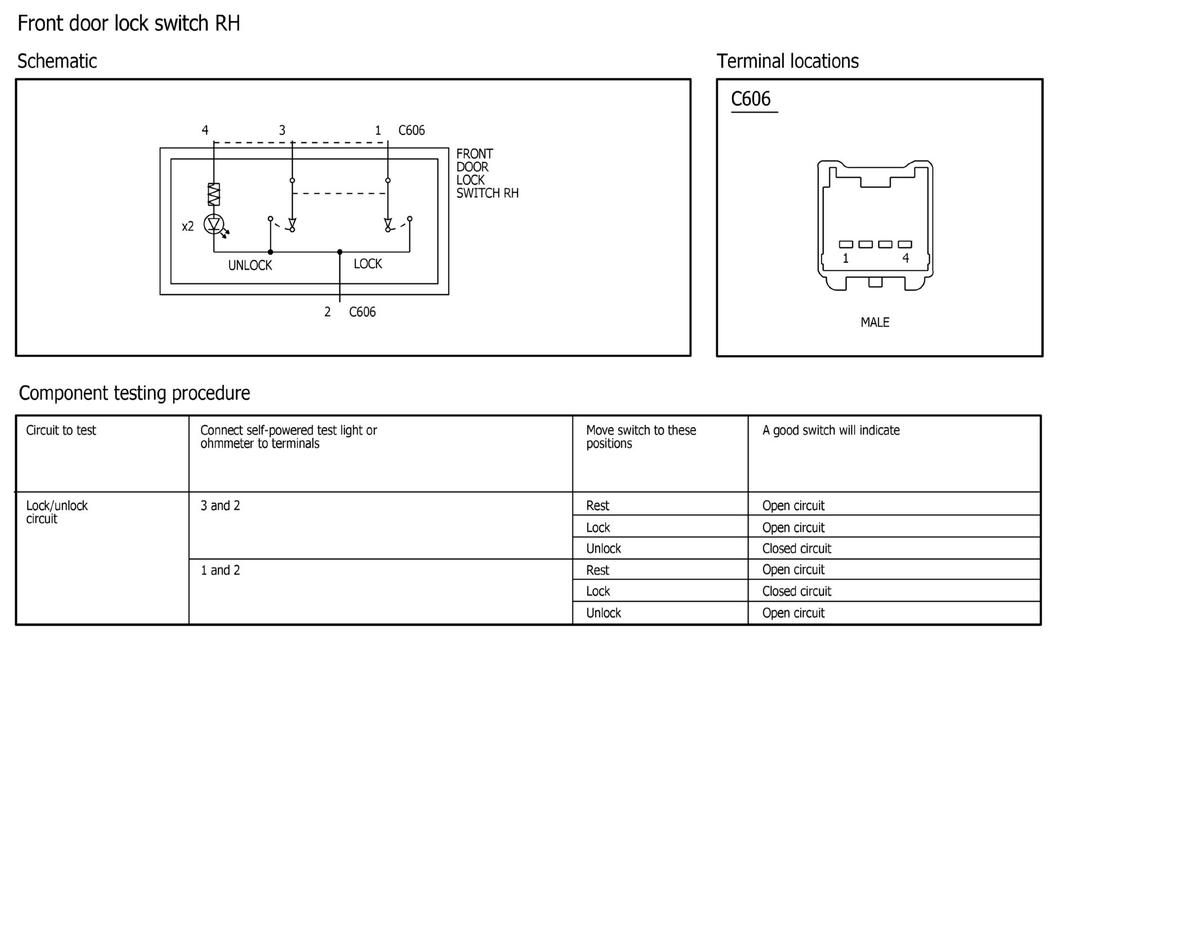

Fig 11: Front Door Lock Switch RH Component Testing

Courtesy of FORD MOTOR COMPANY

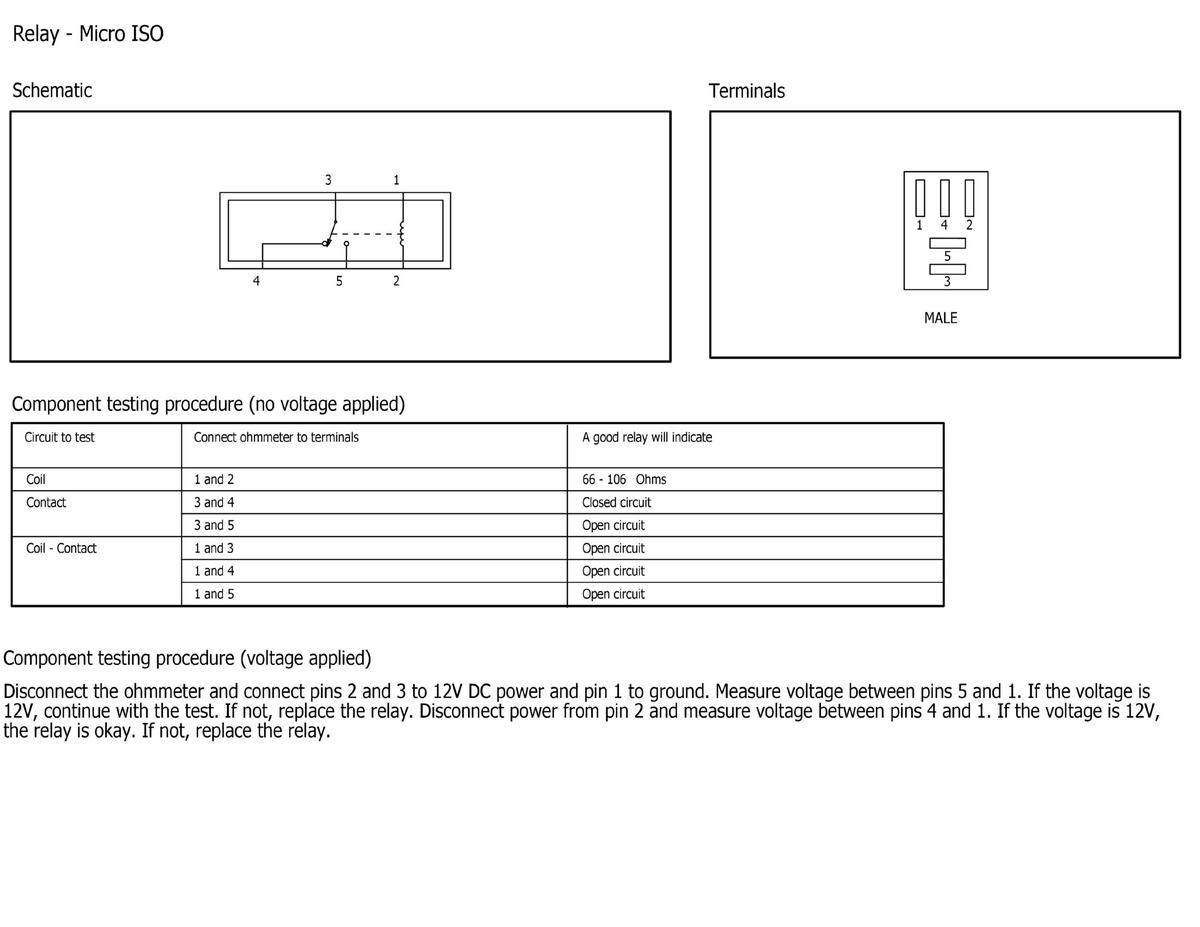

Fig 12: Relay - Micro ISO Component Testing

Courtesy of FORD MOTOR COMPANY

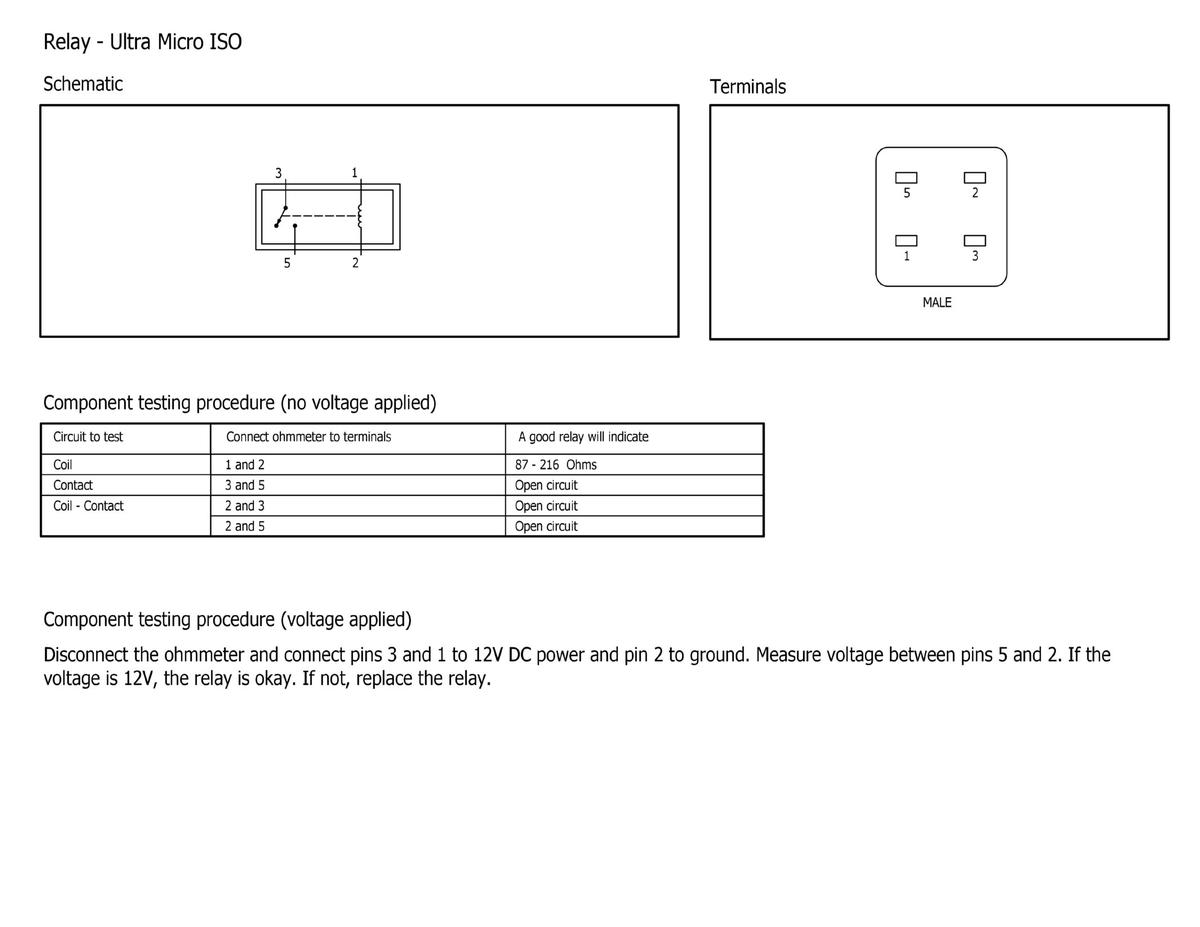

Fig 13: Relay - Ultra Micro ISO Component Testing

Courtesy of FORD MOTOR COMPANY

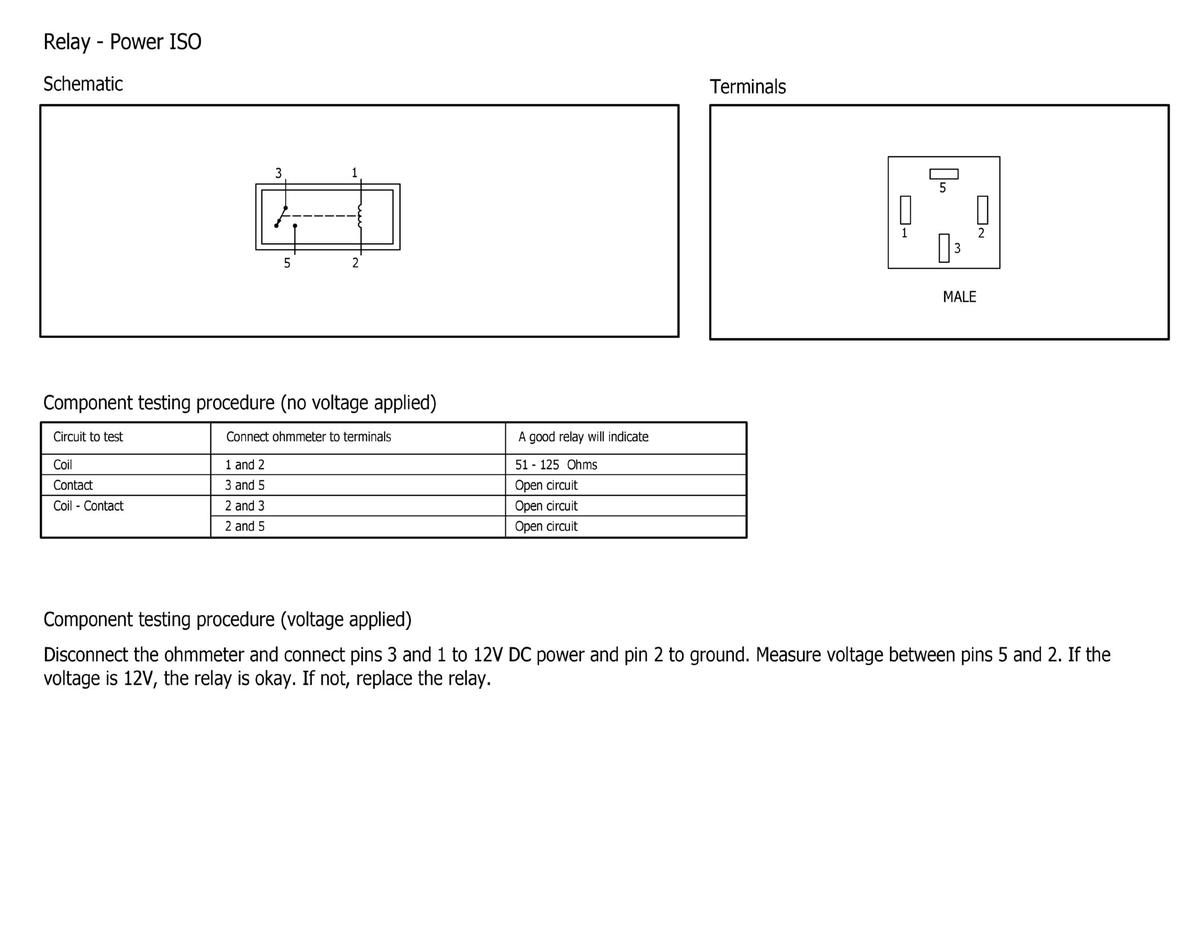

Fig 14: Relay - Power ISO Component Testing

Courtesy of FORD MOTOR COMPANY

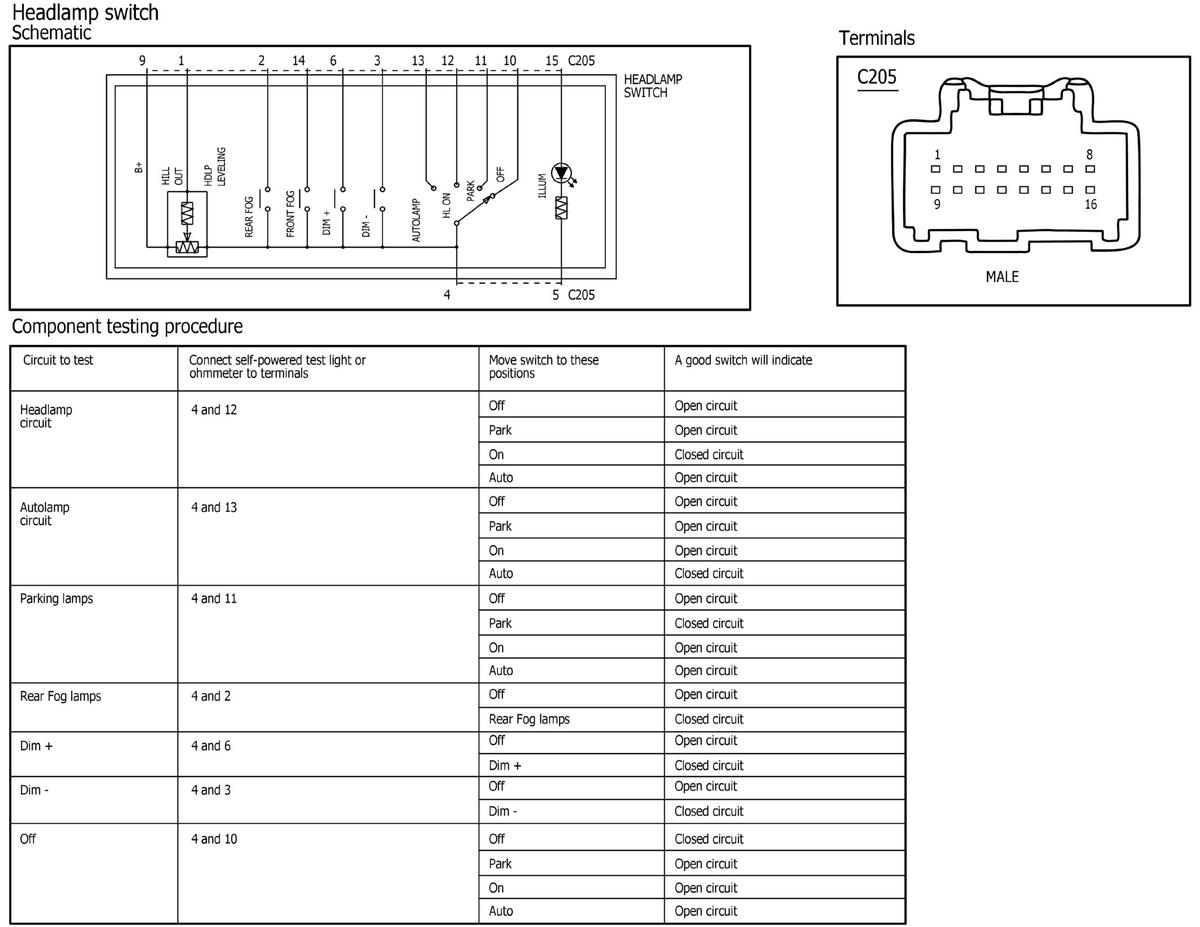

Fig 15: Headlamp Switch Component Testing

Courtesy of FORD MOTOR COMPANY
