Power Seats
Power Seats

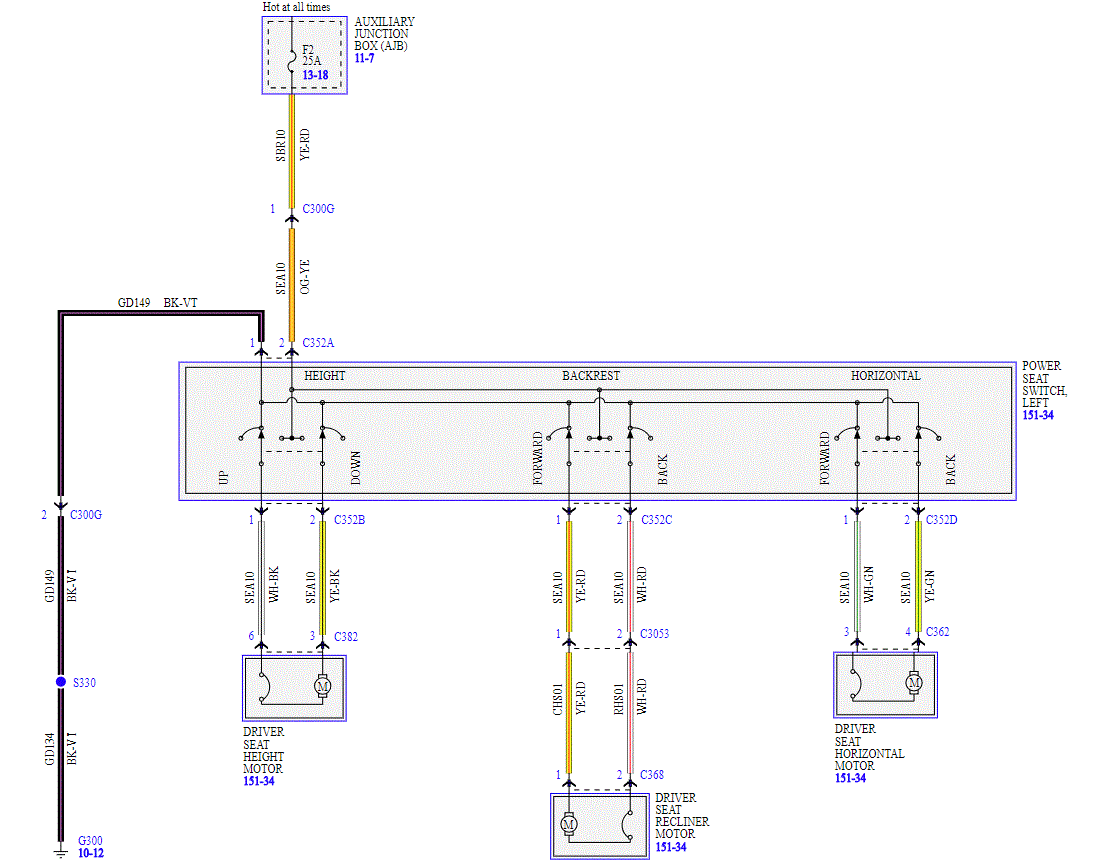

Fig 1: Power Seats Wiring Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
