Pilot Bearing: Installation

WARNING: This page is about a different variant/trim than selected.

1.

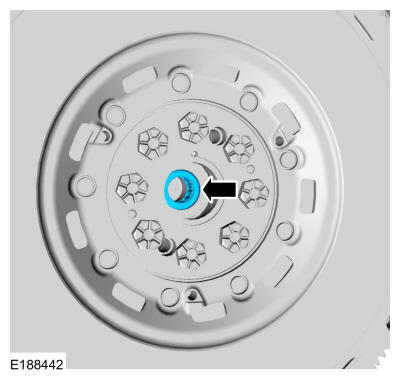

Position the pilot bearing in the crankshaft. Using a driver, install the pilot bearing.

GFD131623

Courtesy of FORD MOTOR COMPANY

2.

Install the clutch disc and pressure plate. Refer to: Clutch Disc and Pressure Plate - 2.3L EcoBoost (231kW/314PS) . Refer to: Clutch Disc and Pressure Plate - 3.7L Duratec (227kW/301PS) . Refer to: Clutch Disc and Pressure Plate - 5.0L 32V Ti-VCT .
