Seat - Front: Installation

All seats

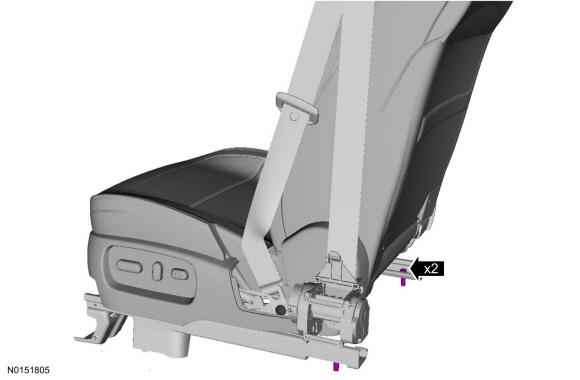

1. 1.


   NOTE: Make sure the two rear locator pins are in the Side Protection and Cabin Enhancement (SPACE®) tube.

   1. 1.

      -

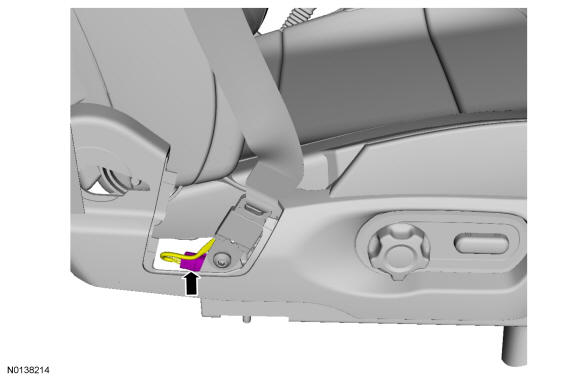

   1. 2.

      If equipped.

Courtesy of FORD MOTOR COMPANY

1. 2.


   WARNING: Make sure no one is in the vehicle and there is nothing blocking or placed in front of any airbag when the battery is connected. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.

   Connect the battery ground cable. Refer to Battery, Mounting and Cables .

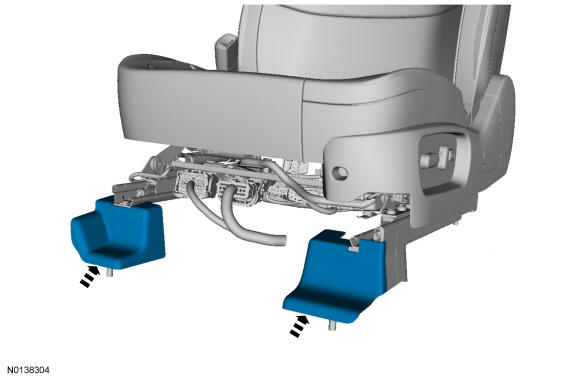

1. 3.


   NOTE: Make sure the seat is forward enough to still access the seat rear mounting bolts.

Courtesy of FORD MOTOR COMPANY

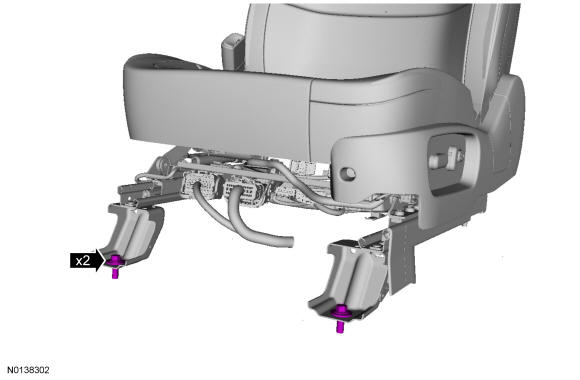

1. 4.

   Tighten to 63 Nm (46 lb-ft).

Courtesy of FORD MOTOR COMPANY

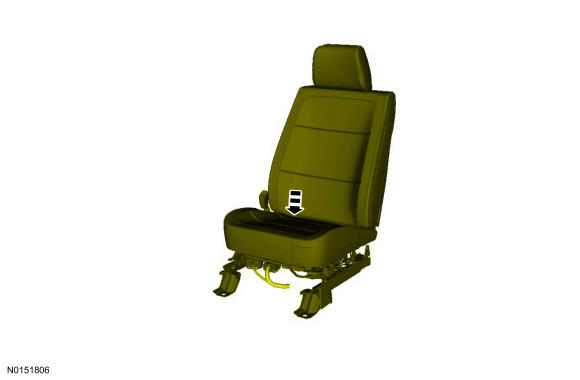

1. 5.

   Tighten to 48 Nm (35 lb-ft).

Courtesy of FORD MOTOR COMPANY

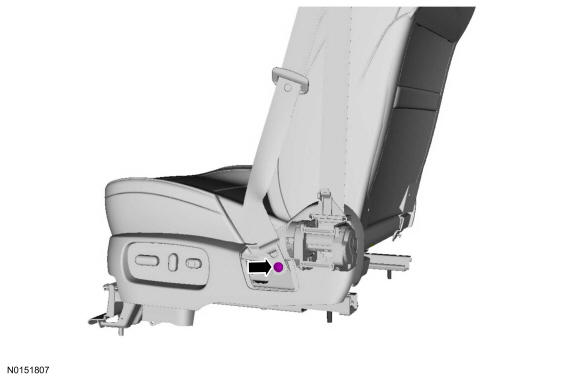

1. 6.



   Courtesy of FORD MOTOR COMPANY

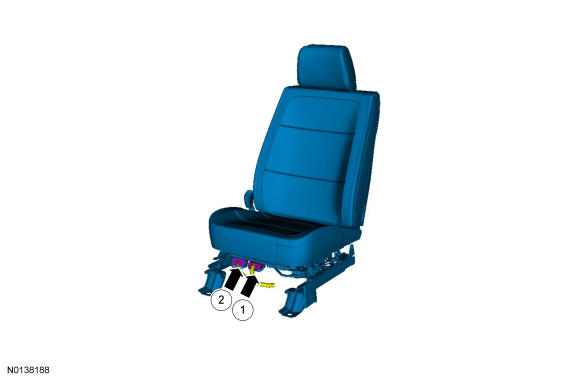

1. 7.

   Tighten to 40 Nm (30 lb-ft)

Courtesy of FORD MOTOR COMPANY

Passenger seat

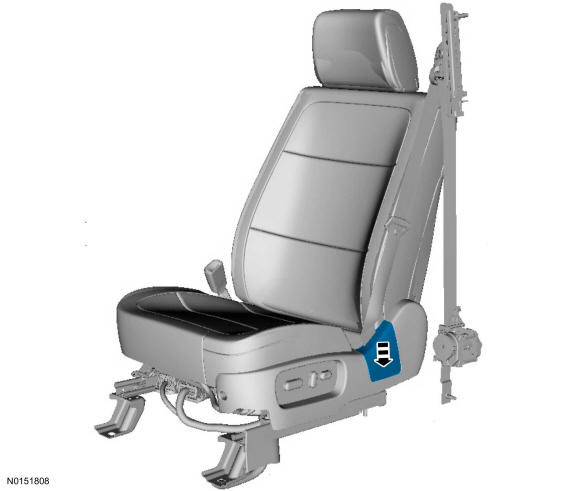

1. 8.



   Courtesy of FORD MOTOR COMPANY

All seats

1. 9.



   Courtesy of FORD MOTOR COMPANY

1. 10.

   Disconnect the battery ground cable. Refer to Battery, Mounting and Cables .

1. 11.

   Repower the SRS.

   If a passenger seat has been serviced, do not prove out the SRS at this time.  Refer to Supplemental Restraint System (SRS) Depowering and Repowering in Supplemental Restraint System .

Passenger seat

1. 12.

   Carry out the Occupant Classification System (OCS) System Reset. Refer to the General Procedures portion of Supplemental Restraint System .
