Front Seat Motor Cable: Installation

  1. 1.

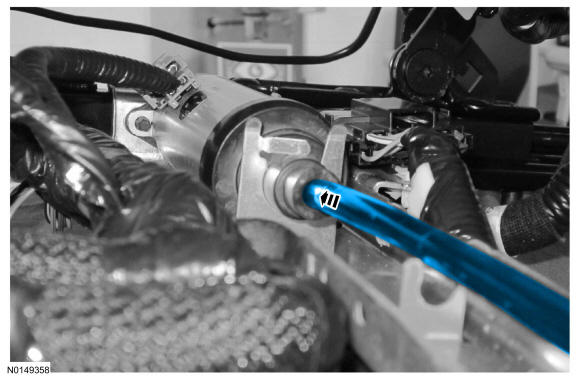

NOTE: The front seat motor cable service part for the driver seat is different than the service part for passenger seat. Make sure to install the correct service part required for the seat.
GFD59622Courtesy of FORD MOTOR COMPANY

  1. 2.

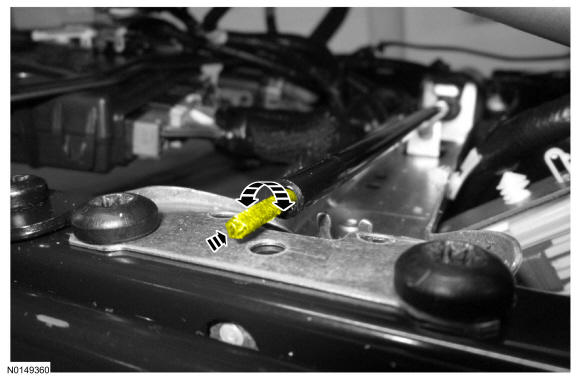

    NOTE: The cable felt covering should not be visible when the cable is correctly engaged to the horizontal motor square drive.
    • Push the cable into the horizontal motor square drive twisting back and forth to engage the cable.
GFD59623Courtesy of FORD MOTOR COMPANY

  1. 3.

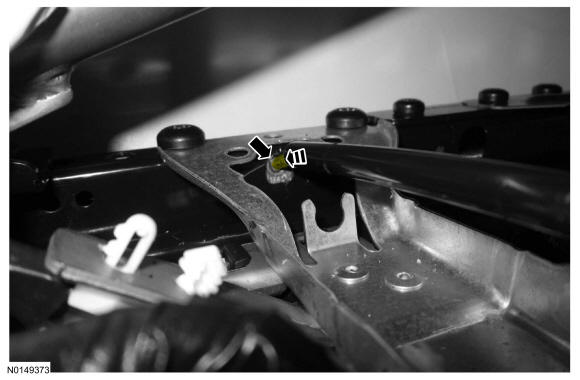

GFD59624Courtesy of FORD MOTOR COMPANY

  1. 4.

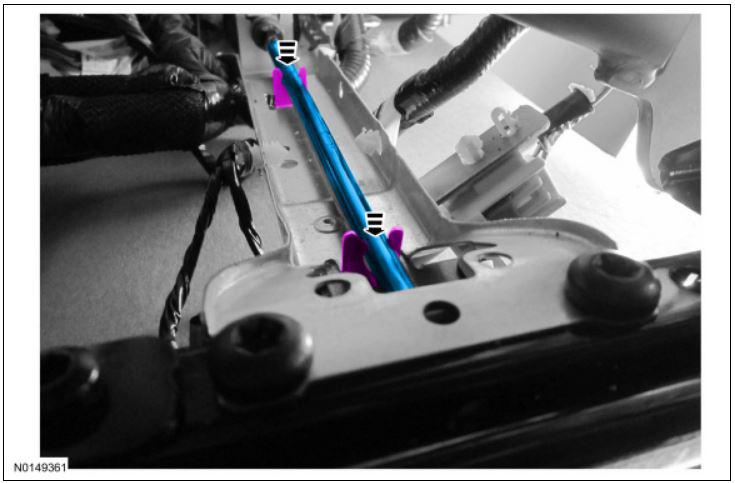

G00575459Courtesy of FORD MOTOR COMPANY

  1. 5.

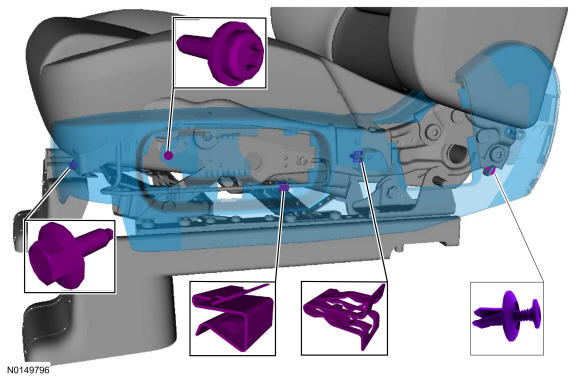

GFD59530Courtesy of FORD MOTOR COMPANY

  1. 6.

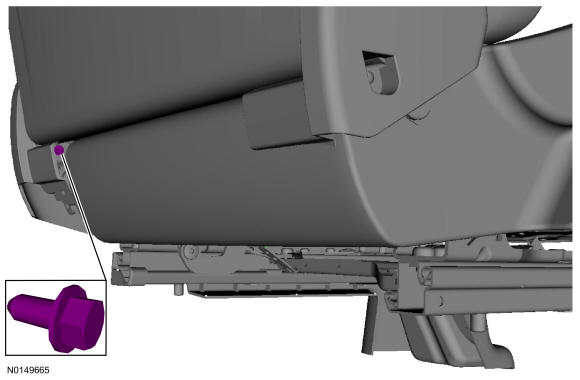

GFD59529Courtesy of FORD MOTOR COMPANY

  1. 7.

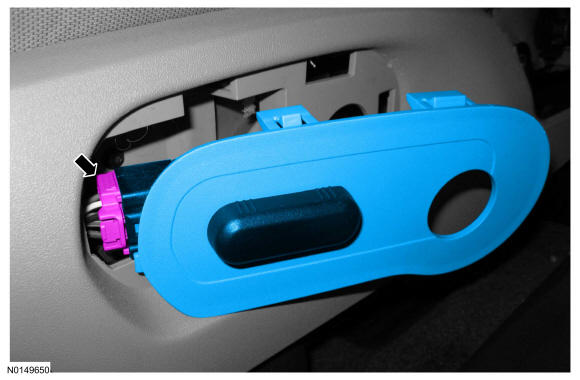

GFD59528Courtesy of FORD MOTOR COMPANY

  1. 8.

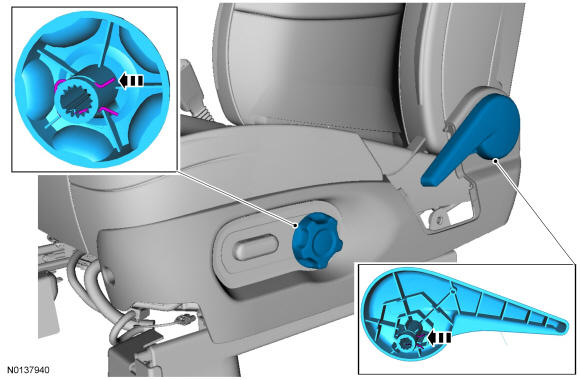

    If equipped.
GFD59526Courtesy of FORD MOTOR COMPANY

  1. 9.

    Install the front seat. Refer to Seat - Front .
