Ride Height Measurement
Check
NOTE:
Ride Height Measurement - Front
NOTE:
Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.
- 1.
- 1.

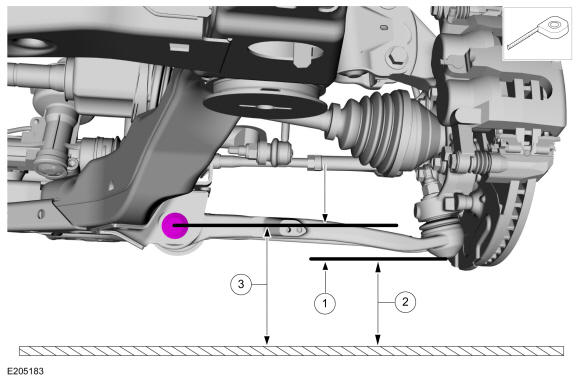

Ride height = 3-2.
- 2.
Measure the distance between the flat level surface and the center of the lower arm ball joint cap (measurement 2).
- 3.
Measure the distance between the flat level surface and the center of the lower arm inboard bolt (measurement 3).
- 1.
- 2.

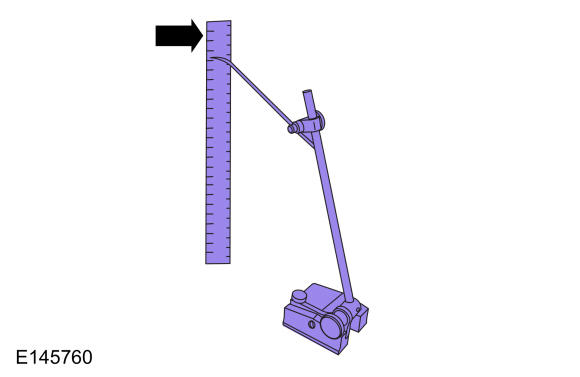

With the surface gauge positioned on a flat, level surface, record the measurement of the surface gauge position (measurement 2) and (measurement 3).
Check
NOTE:
Ride Height Measurement - Rear
NOTE:
Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.
- 1.
- 1.

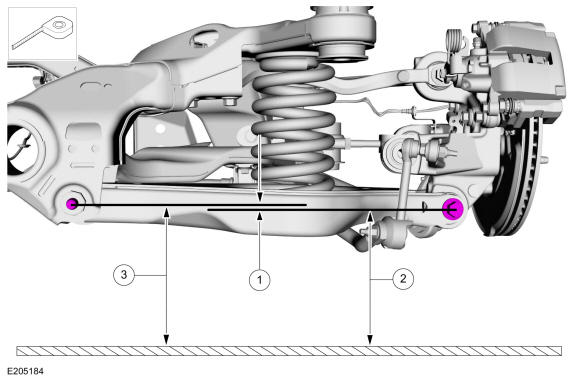

Ride height = 3-2.
- 2.
Measure the distance between the flat level surface and the center of the lower arm-to-wheel knuckle bolt (measurement 2).
- 3.
Measure the distance between the flat level surface and the center lower arm-to-subframe (measurement 3).
- 1.
