OEM Electrical Wiring Diagram Introduction: Introduction

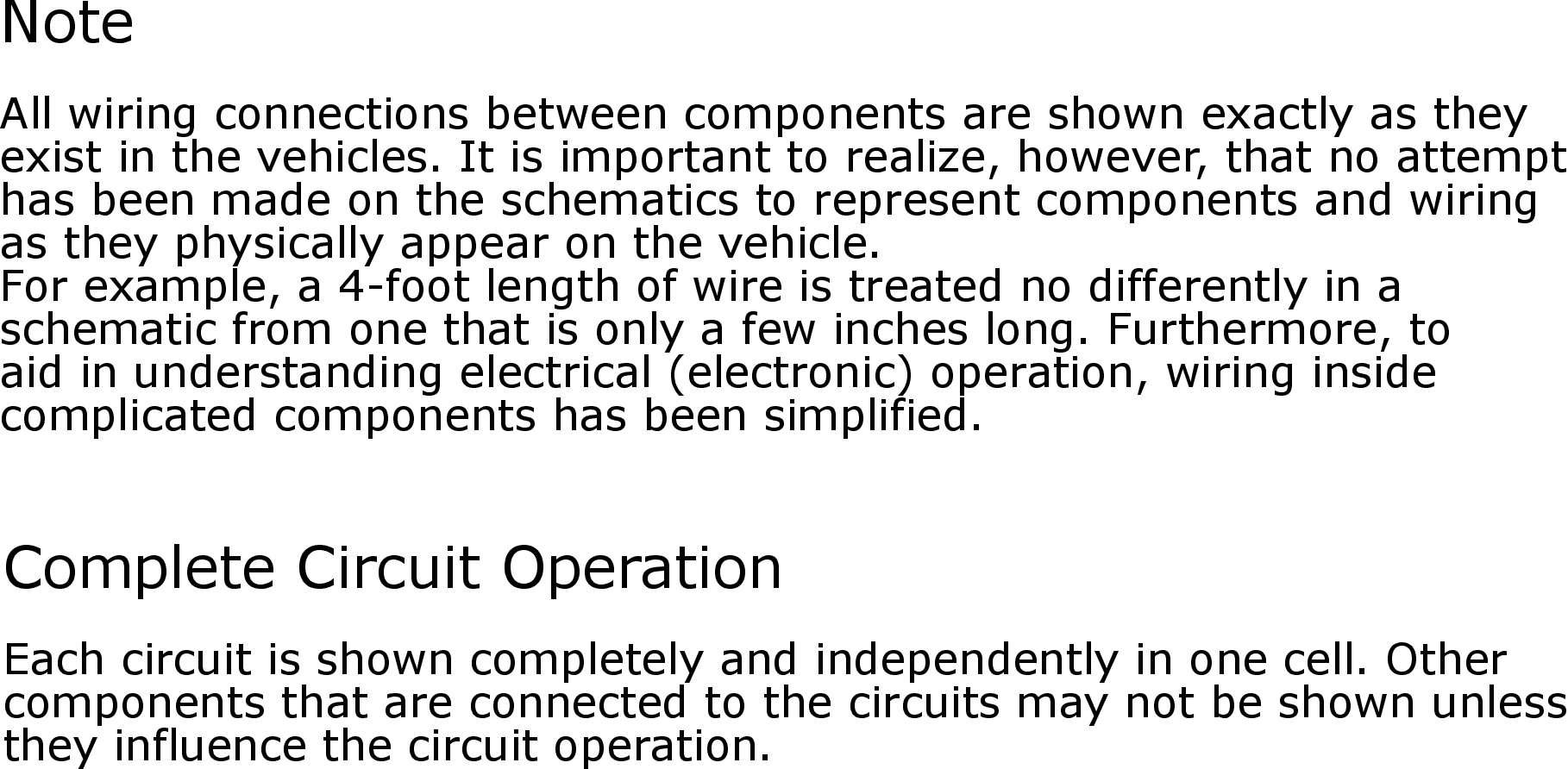

GFDW54866Courtesy of FORD MOTOR COMPANY

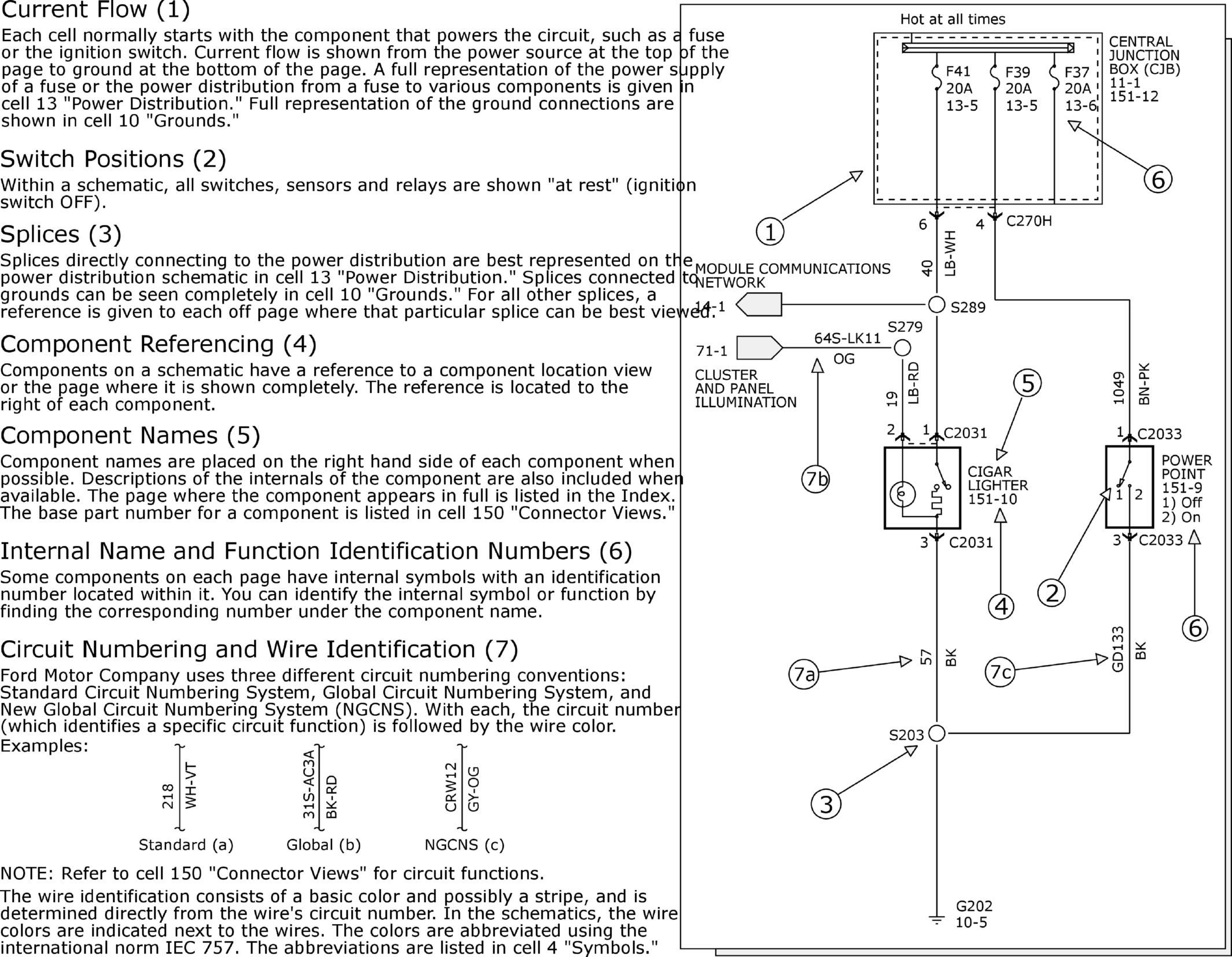

GFDW54867Courtesy of FORD MOTOR COMPANY

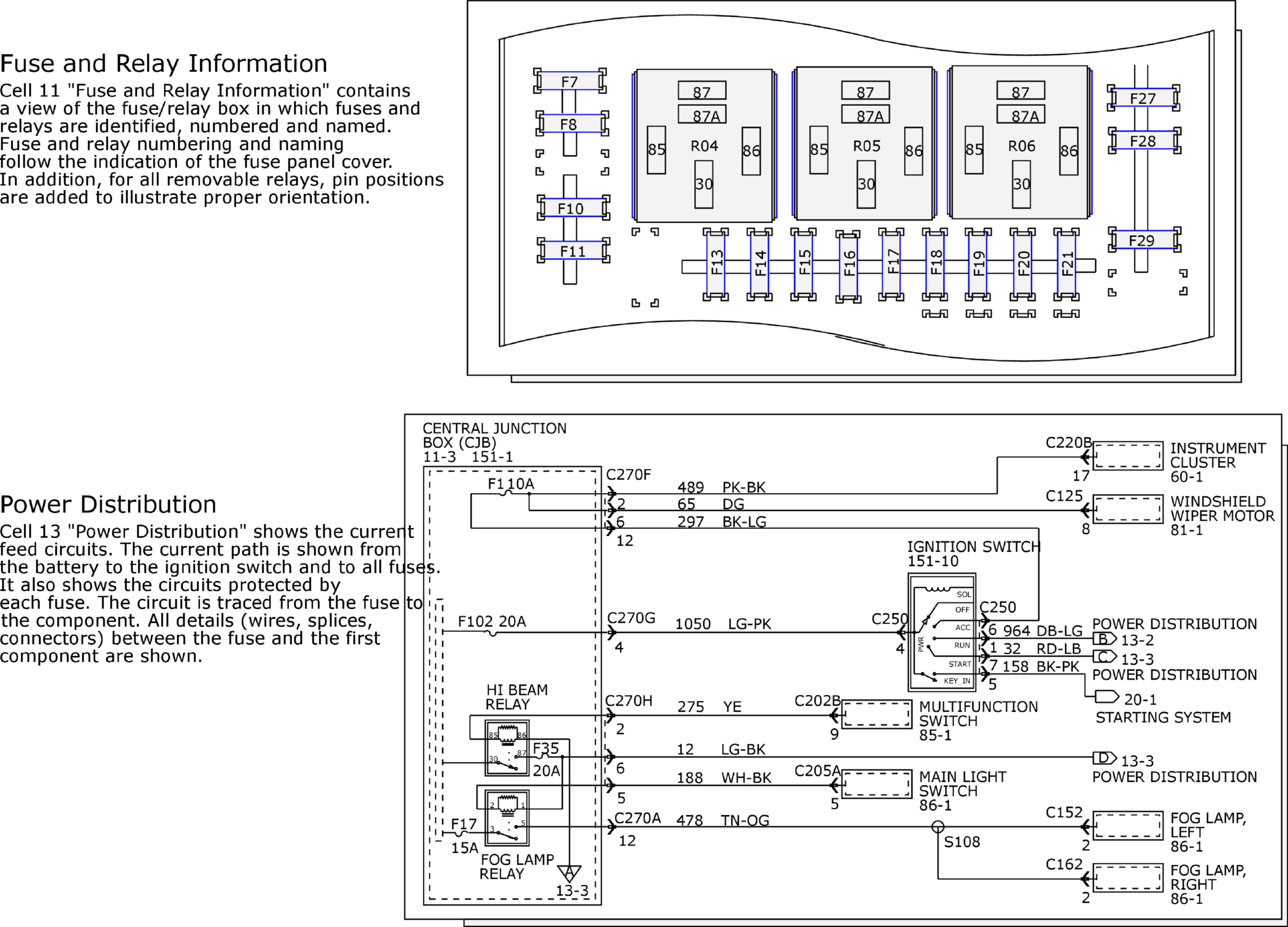

GFDW54868Courtesy of FORD MOTOR COMPANY

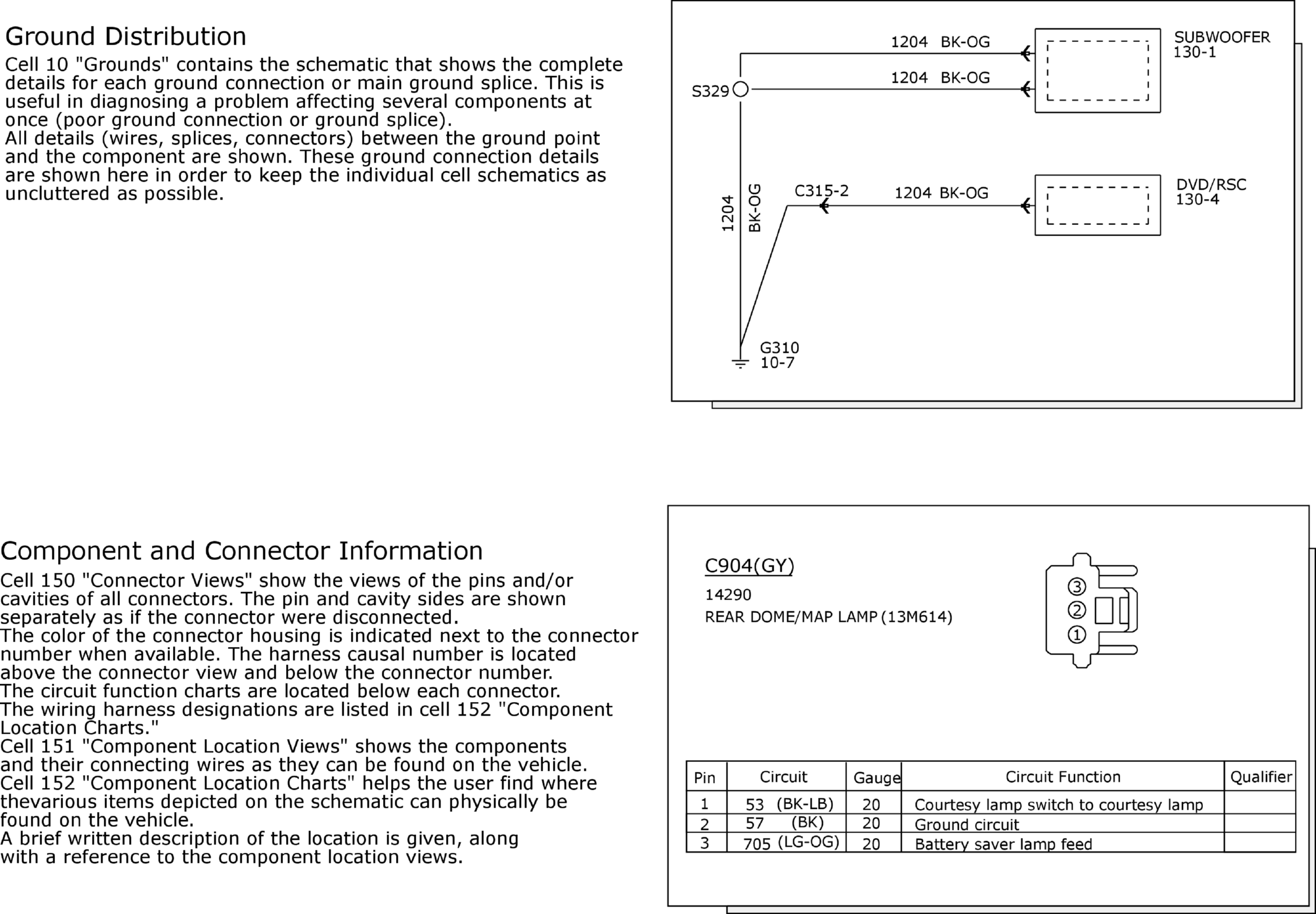

GFDW54869Courtesy of FORD MOTOR COMPANY

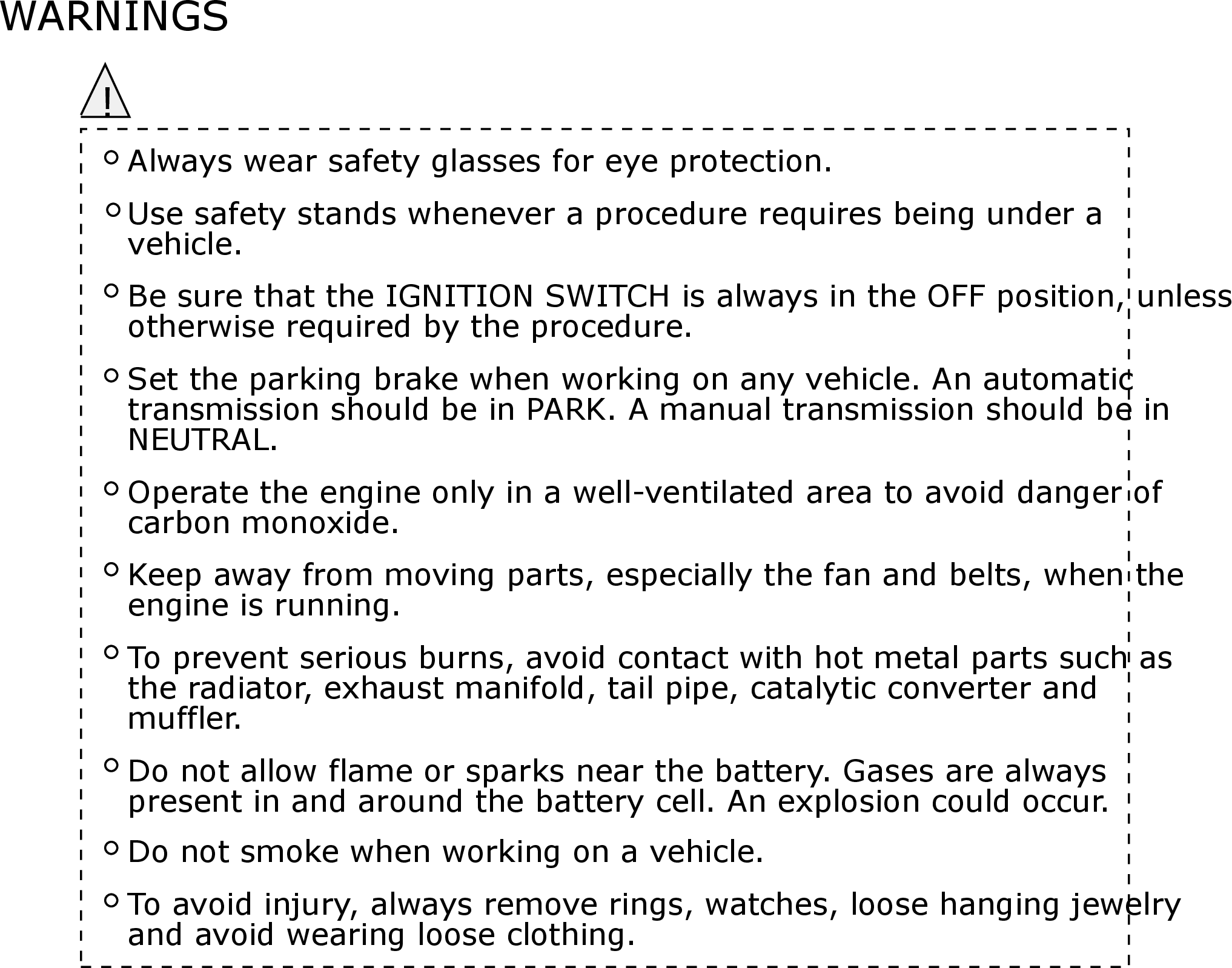

GFDW54870Courtesy of FORD MOTOR COMPANY
