Lighting and Siren Control Module: Removal
WARNING: This page is about a different car, the 2017 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.

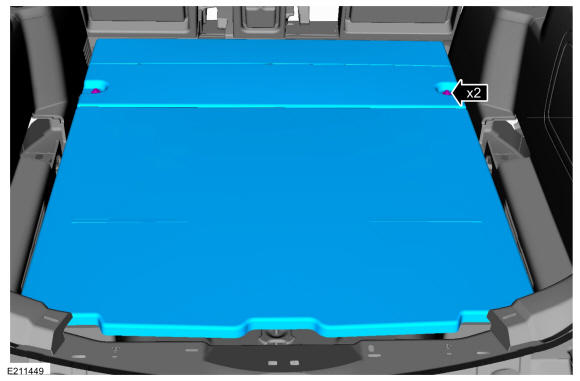

Remove the bolts and the loadspace floor panel.Torque
: 16 lb.ft (22 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 2.

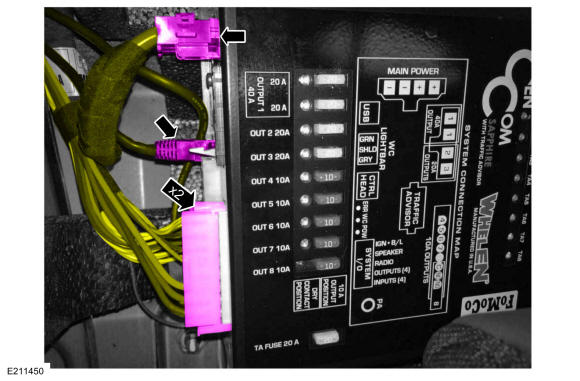

Disconnect the lighting and siren control module electrical connectors.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

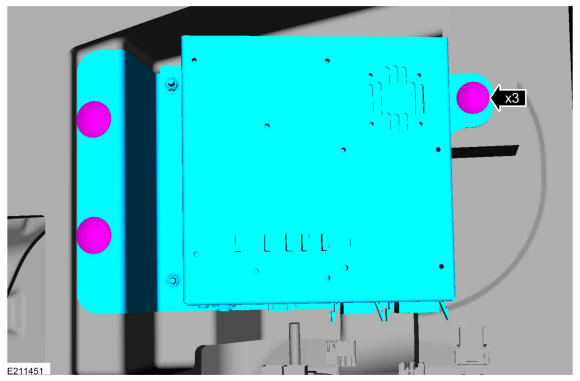

Remove the push pins and the lighting and siren control module and bracket assembly.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

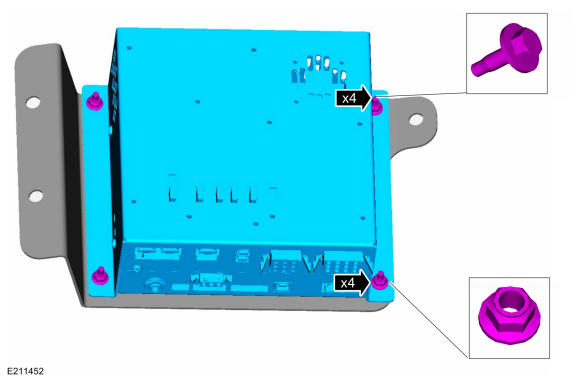

Remove the nuts and bolts and separate the lighting and siren control module from the bracket.Torque
: 71 lb.in (8 Nm)
 Courtesy of FORD MOTOR COMPANY
|
