Rear Gate Trunk Module (RGTM): Removal

WARNING: This page is about a different car, the 2017 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current RGTM installed. If the current RGTM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair. Using a diagnostic scan tool, begin the PMI process for the RGTM following the on-screen instructions.

Remove the LH D-pillar trim panel. REFER to: D-Pillar Trim Panel .

2.
1. 1.

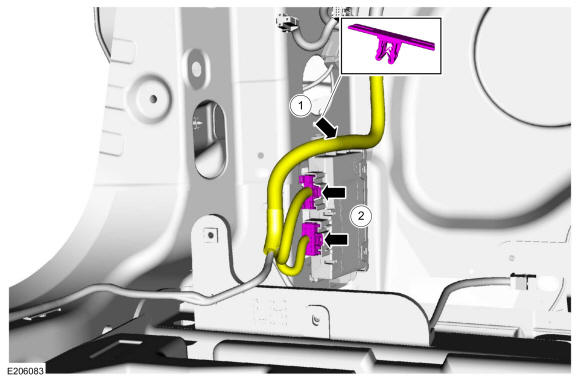

  Detach the retainer.
1. 2.

  Disconnect the electrical connectors and position aside the electrical harness.

Courtesy of FORD MOTOR COMPANY

3.

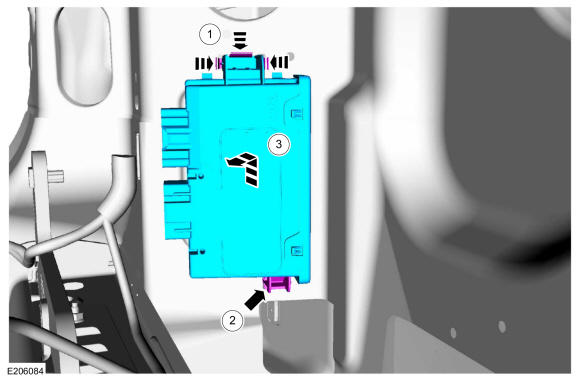

Remove the RGTM.
1. 1.

  Release the retaining clips.
1. 2.

  Release the tab.
1. 3.

  Remove the RGTM.

Courtesy of FORD MOTOR COMPANY
