Light Emitting Diode (LED) Control Module: Removal
WARNING: This page is about a different car, the 2019 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the headlamp assembly. Refer to: Headlamp Assembly .

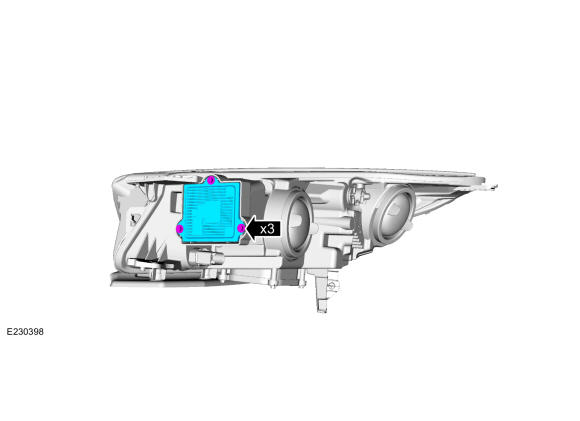

- Remove the screws, disconnect the electrical connector and remove the light emitting diode (LED) control module.
