Transfer Case Fluid Level Check

Materials

Check

• 1.

  With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

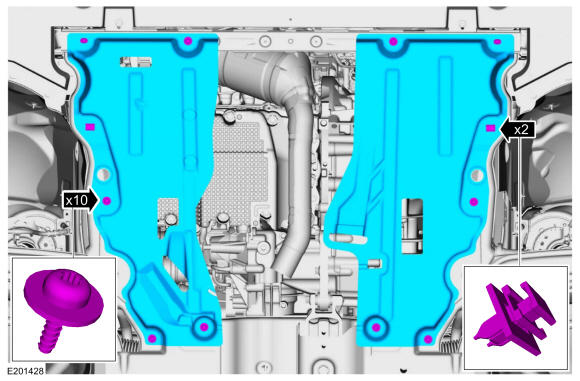

• 2.

  If equipped, remove the underbody shield.

Courtesy of FORD MOTOR COMPANY

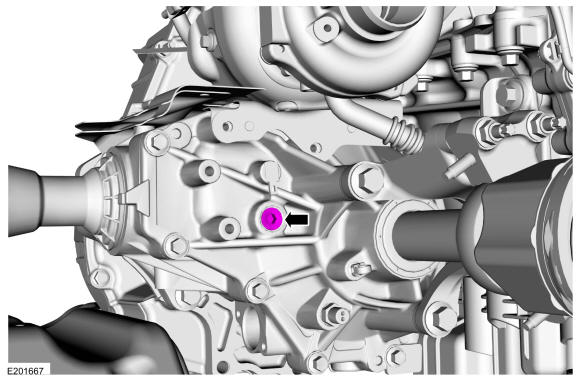

• 3.

  Remove the PTU fill plug.

Courtesy of FORD MOTOR COMPANY

• 4.


  NOTE: The fill capacity of the PTU is 23 fl oz (700 ml).

  Fill the PTU with clean fluid, level with the fill plug opening.

  Material: Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant (U.S.) / XY-75W140-QL (U.S.) (WSL-M2C192-A)

Courtesy of FORD MOTOR COMPANY

• 5.

  Install the PTU fill plug.

  Torque: 33 lb.ft (45 Nm)

Courtesy of FORD MOTOR COMPANY

• 6.

  If equipped, install the underbody shield.

Courtesy of FORD MOTOR COMPANY
