Steering Column: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the steering column shrouds. Refer to: Steering Column Shrouds .
- 2.NOTE: If equipped, make sure that the steering column lock is engaged.

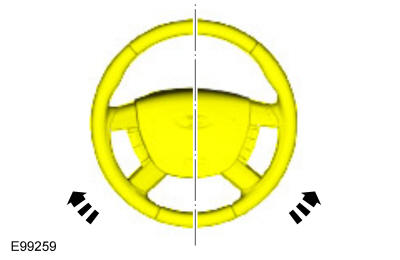

Make sure that the road wheels are in the straight ahead position.
- 3.NOTE: This step is only necessary when installing a new component.
Remove the steering wheel. Refer to: Steering Wheel .
- 4.NOTE: The steering column is designed to absorb energy in a crash and must be handled carefully. The energy-absorbing steering column shaft cannot be subjected to force or impact shocks. Follow the removal procedure instructions carefully to avoid damage.

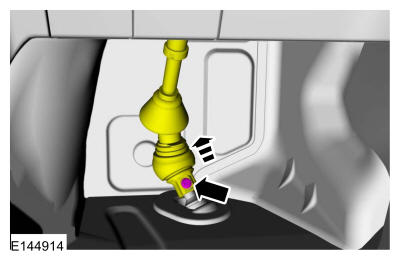

Remove and discard the bolt and position up the steering column shaft.
Torque: 21 lb.ft (28 Nm)
- 6.NOTE: The steering column is designed to absorb energy in a crash and must be handled carefully. The energy-absorbing steering column shaft cannot be subjected to force or impact shocks. Follow the removal procedure instructions carefully to avoid damage.

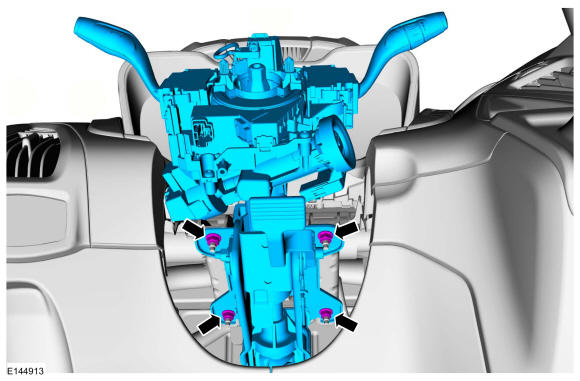

Remove and discard the nuts and remove the steering column.
Torque: 177 lb.in (20 Nm)
