Repair Procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative(-) battery terminal.
Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")
Remove the cover (A) after loosening screws.

Fig 1: Identifying Steering Wheel
Courtesy of HYUNDAI MOTOR AMERICA

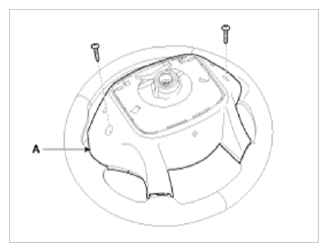

Fig 2: Identifying Cover Of Steering Wheel
Courtesy of HYUNDAI MOTOR AMERICA
Remove the hands free switch (A) after loosening screw and connector.

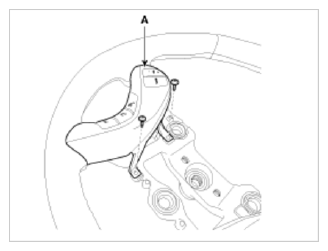

Fig 3: Identifying Hands Free Switch
Courtesy of HYUNDAI MOTOR AMERICA
