Repair procedures: Removal
WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.

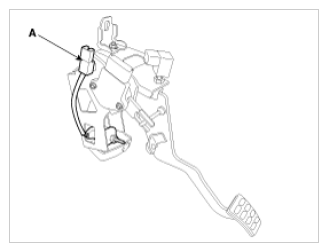

- Disconnect ignition lock switch connector (A).

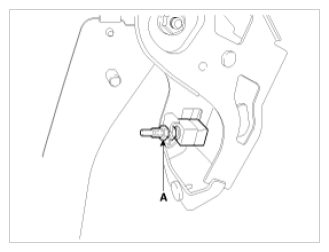

- Remove the ignition lock switch by loosening a nut (A).
