VC Codes

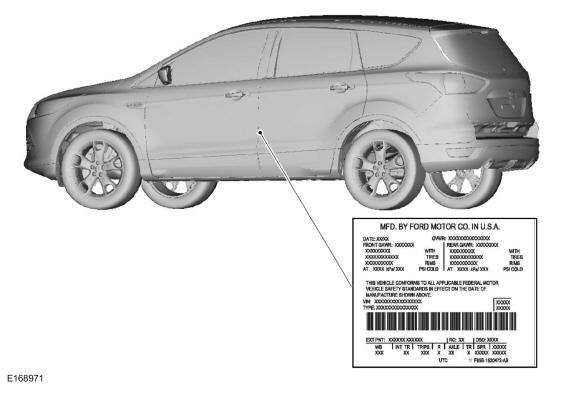

VC Label Locator
The VC label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes GVW and tire information. If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.

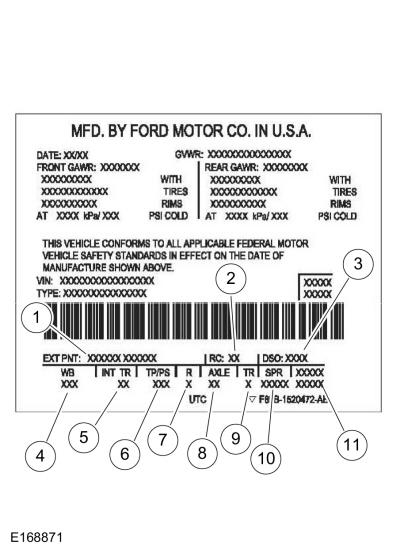

| Item | Description |
|---|---|
| 1 | Exterior paint code |
| 2 | Region code |
| 3 | DSO (District Special Order) code |
| 4 | Wheelbase code |
| 5 | Interior trim code |
| 6 | Tape/paint stripe code |
| 7 | Radio code |
| 8 | Axle code |
| 9 | Transmission code |
| 10 | Spring code |
| 11 | Powertrain calibration information |
Paint Code
Paint codes may be listed as a 2-part code. The first set of paint code numbers/letters indicate the vehicle primary body color. The second set of letters/numbers (if applicable) indicate a 2-tone or accent body color. All paint codes are a base coat/clear coat finish.
- Blank - No paint
- D7 - Sunset
- G1 - Shadow Black
- H8 - Electric Spice
- J4 - Deep Impact Blue
- J7 - Magnetic
- RR - Ruby Red (tinted clear coat)
- TY - Moondust Silver (Mexico only)
- UG - White Platinum (tri-coat)
- UX - Ingot Silver Metallic
- YZ - Oxford White
- Z2 - Frozen White (Mexico only)
Wheelbase
The following identifies the vehicle wheelbase:
- 105 - 2, 690 mm (105.9 in) wheelbase
Interior Trim Codes
Interior trim codes are listed as a 2-part code. The first digit listed indicates the seat and fabric style. The second digit listed indicates the interior trim color.
Interior Trim Type
- 7 - View cloth seats
- 8 - Torino leather seats
- C - Torino/Torino leather seats (Mexico only)
- D - Partial leather with cloth seats
- V - Prada/Lux cloth seats (Mexico only)
Interior Trim Color Codes
- B - Charcoal Black
- L - Medium Light Stone
Tape/Paint Stripe Codes
Tape and paint stripe codes do not apply.
Radio Codes
The following lists available radio codes:
- 1 - AM/ FM stereo, CD player and 6 speakers
- 2 - AM/ FM stereo with MYFORD® Touch, HD (high-definition), Sirius and navigation
- 3 - AM/ FM stereo, CD player, 6 speakers and SYNC
- 4 - AM/ FM stereo, CD player, 6 speakers, HD (high-definition), Sirius and SYNC
- 5 - AM/ FM stereo, MYFORD ® Touch, HD (high-definition), Sirius, 9 speakers
- 6 - AM/ FM stereo with MYFORD ® Touch, HD (high-definition), Sirius and navigation
- 7 - AM/ FM stereo with 10 speakers, MYFORD ® Touch, HD (high-definition), Sirius, SYNC
- 8 - AM/ FM stereo, SYNC, ICE Pack 28
- G - AM/ FM stereo, SYNC, ICE Pack 30
- M - AM/ FM stereo, SYNC, ICE Pack 31
- N - AM/ FM stereo, SYNC, ICE Pack 29
- 3 - AM/ FM stereo, ICE Pack 3 (Mexico only)
- B - AM/ FM stereo, ICE Pack 1 (Mexico only)
- S - AM/ FM stereo, ICE Pack 16 (Mexico only)
Axle Type
The following lists the available axle ratios and associated codes:
- 35 - 3.51 ratio
- 3A - 3.07 axle ratio
- 3C - 3.21 axle ratio
Transmission Codes
Available transmissions are as follows:
- 6 - 6-speed automatic (6F mid-range)
Spring Codes
Spring codes are listed as a 2-part code. The first 2 characters identify the RH and LH front springs. The third and fourth characters identify the RH and LH rear springs.
Front Springs
- BK - CV61-5310-BH (coil)
- BL - CV61-5310-BJ (coil)
- JJ - CV61-5310-MJ (coil)
- MK - CV61-5310-MH (coil)
- ML - CV61-5310-MJ (coil)
- MM - CV61-5310-MH (coil)
Rear Springs
- BM - CV61-5B669-BM (coil)
- BN - CV61-5B669-BN (coil)
- CM - CV61-5B669-CM (coil)
- PM - CV61-5B669-PM (coil)
- PN - CV61-5B669-PN (coil)
- RM - CV61-5B669-RM (coil)
