Steering Gear: Installation
- 1.

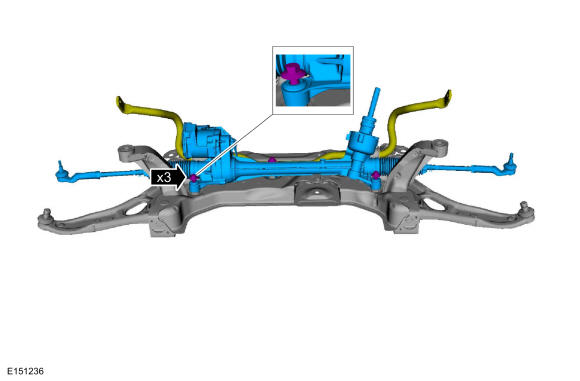

Install the steering gear, position the front stabilizer bar and install the new steering gear bolts finger tight.
- 3.

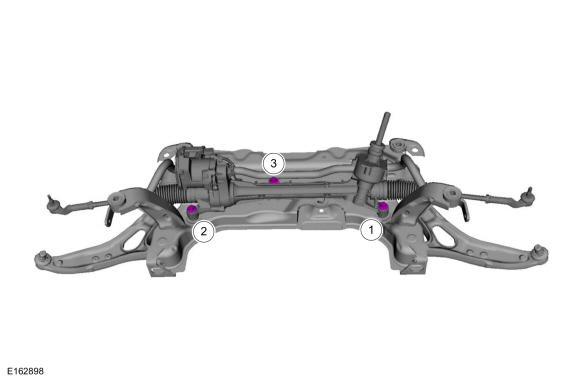

With all 3 bolts finger tightened, complete all 4 stages of the tightening sequence first on bolt 1, then bolt 2 then bolt 3 as shown below.- 1.
Tighten the steering gear bolt.Torque
Stage 1: 81 lb.ft (110 Nm)
Stage 2: Loosen: 360°
Stage 3: 41 lb.ft (56 Nm)
Stage 4: 180°
- 2.
Tighten the steering gear bolt.Torque
Stage 1: 81 lb.ft (110 Nm)
Stage 2: Loosen: 360°
Stage 3: 41 lb.ft (56 Nm)
Stage 4: 180°
- 3.
Tighten the steering gear bolt.Torque
Stage 1: 81 lb.ft (110 Nm)
Stage 2: Loosen: 360°
Stage 3: 41 lb.ft (56 Nm)
Stage 4: 180°
- 1.
- 4.
Install the front subframe. Refer to: Front Subframe - 5.
If a new steering gear was installed, download the PSCM configuration from the scan tool to the new PSCM.
