Axle Assembly: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the rear subframe. REFER to: Rear Subframe

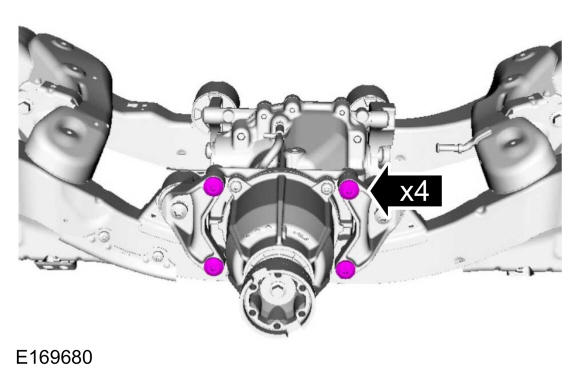

2.

Remove the front RDU mounting bolts. Use the General Equipment: Transmission Jack
Torque

: 66 lb.ft (90 Nm)

GFD48191

Courtesy of FORD MOTOR COMPANY

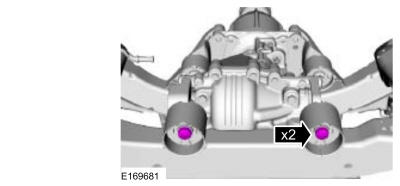

3.

Remove the rear RDU mounting bolts.
Torque

: 66 lb.ft (90 Nm)

GFD48192

Courtesy of FORD MOTOR COMPANY

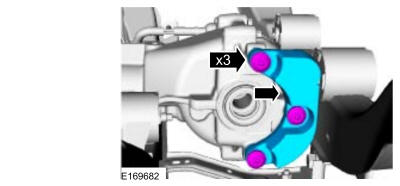

4.

Remove the RDU mounting bracket bolts and mounting bracket.
Torque

: 66 lb.ft (90 Nm)

GFD48193

Courtesy of FORD MOTOR COMPANY

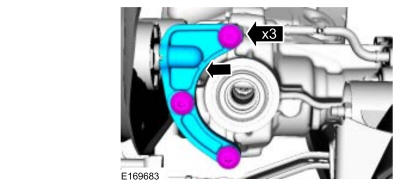

5.

Remove the RDU mounting bracket bolts and mounting bracket.
Torque

: 66 lb.ft (90 Nm)

GFD48194

Courtesy of FORD MOTOR COMPANY

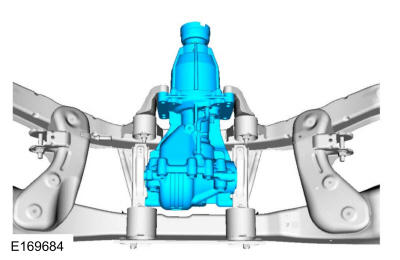

6.

Remove the RDU.

GFD48195

Courtesy of FORD MOTOR COMPANY
