Front Bumper Cover: Disassembly

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Refer to: Front Bumper Cover .

2.

NOTE: On both sides.

Remove the screws and the bracket.

GFD147261

Courtesy of FORD MOTOR COMPANY

3.

Release 26 tabs and remove the bumper bar bracket reinforcement.

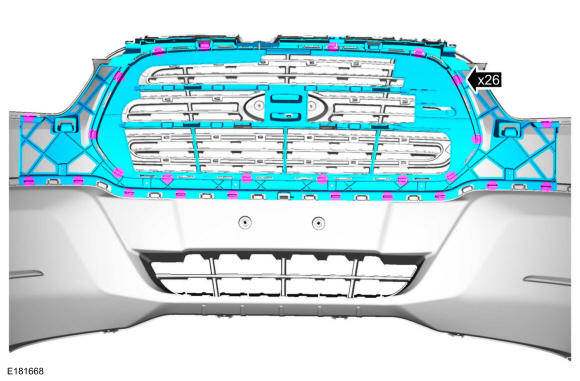

GFD147262

Courtesy of FORD MOTOR COMPANY

4.

Release 20 tabs and remove the radiator grille.

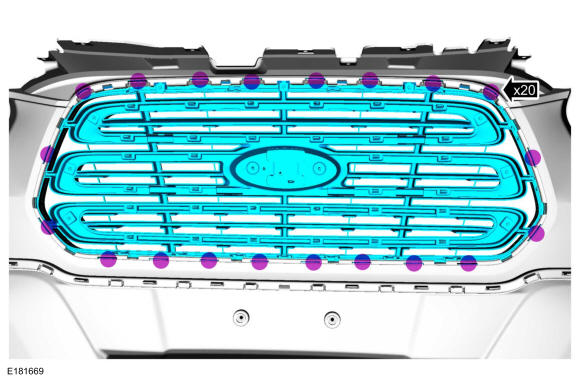

GFD147263

Courtesy of FORD MOTOR COMPANY

5.

Remove 2 nuts and the radiator grille emblem.

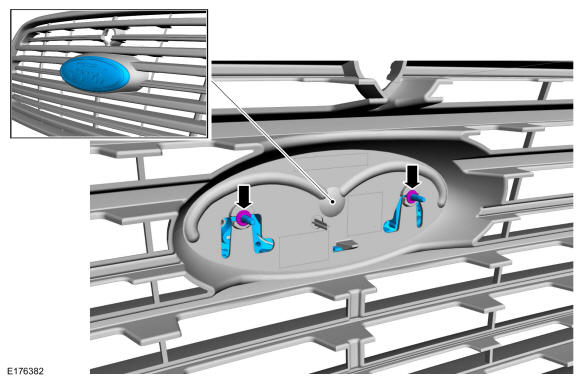

GFD147264

Courtesy of FORD MOTOR COMPANY

6.

Release 12 tabs and remove the lower bumper cover.

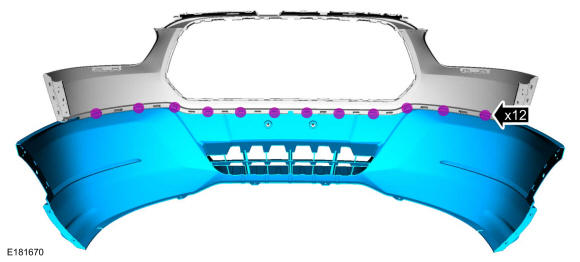

GFD147265

Courtesy of FORD MOTOR COMPANY

7.

NOTE: On both sides.

If required, remove the foam strip.

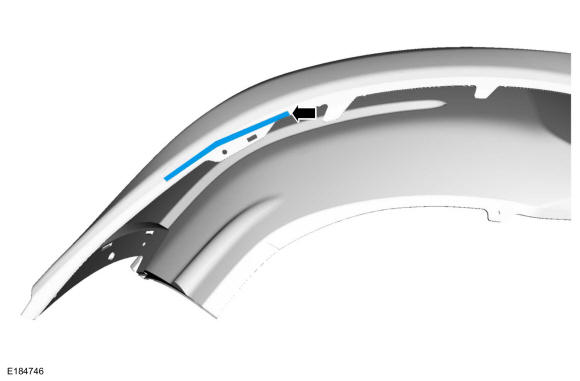

GFD147266

Courtesy of FORD MOTOR COMPANY
