Manual Climate Control System

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

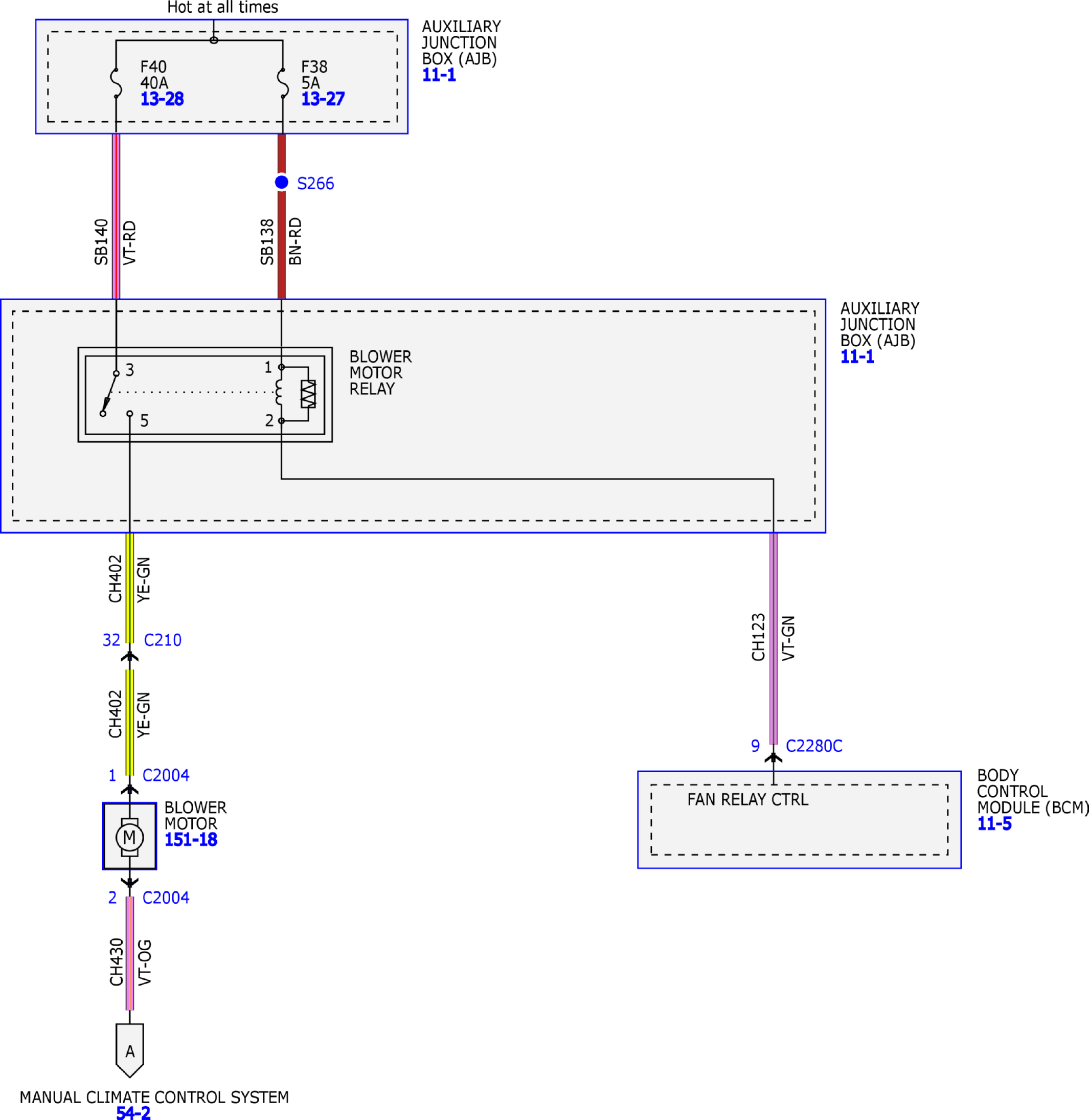

Fig 1: Manual Climate Control System Wiring Diagram (1 of 9)
GFDW61600Courtesy of FORD MOTOR COMPANY

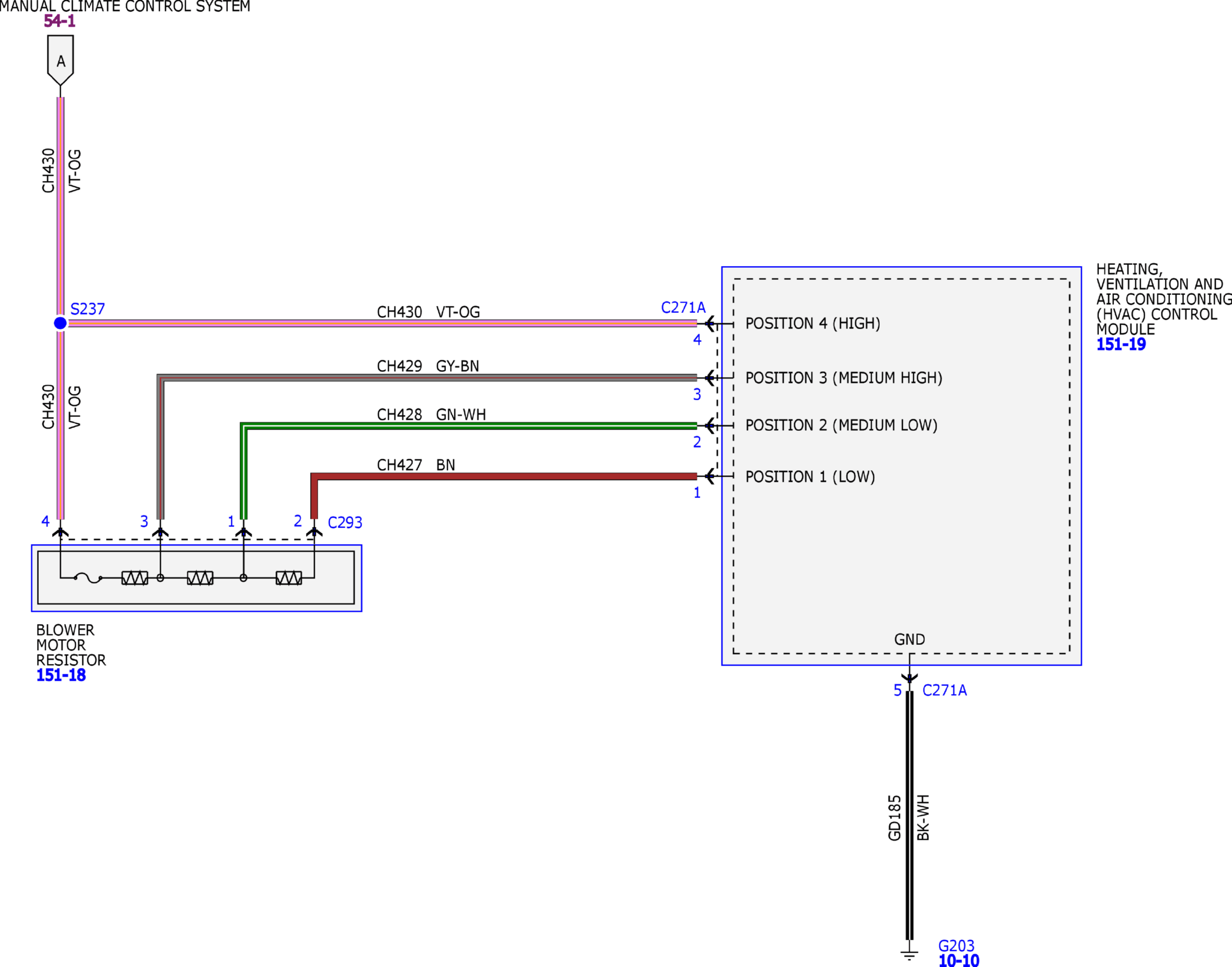

Fig 2: Manual Climate Control System Wiring Diagram (2 of 9)
GFDW61601Courtesy of FORD MOTOR COMPANY

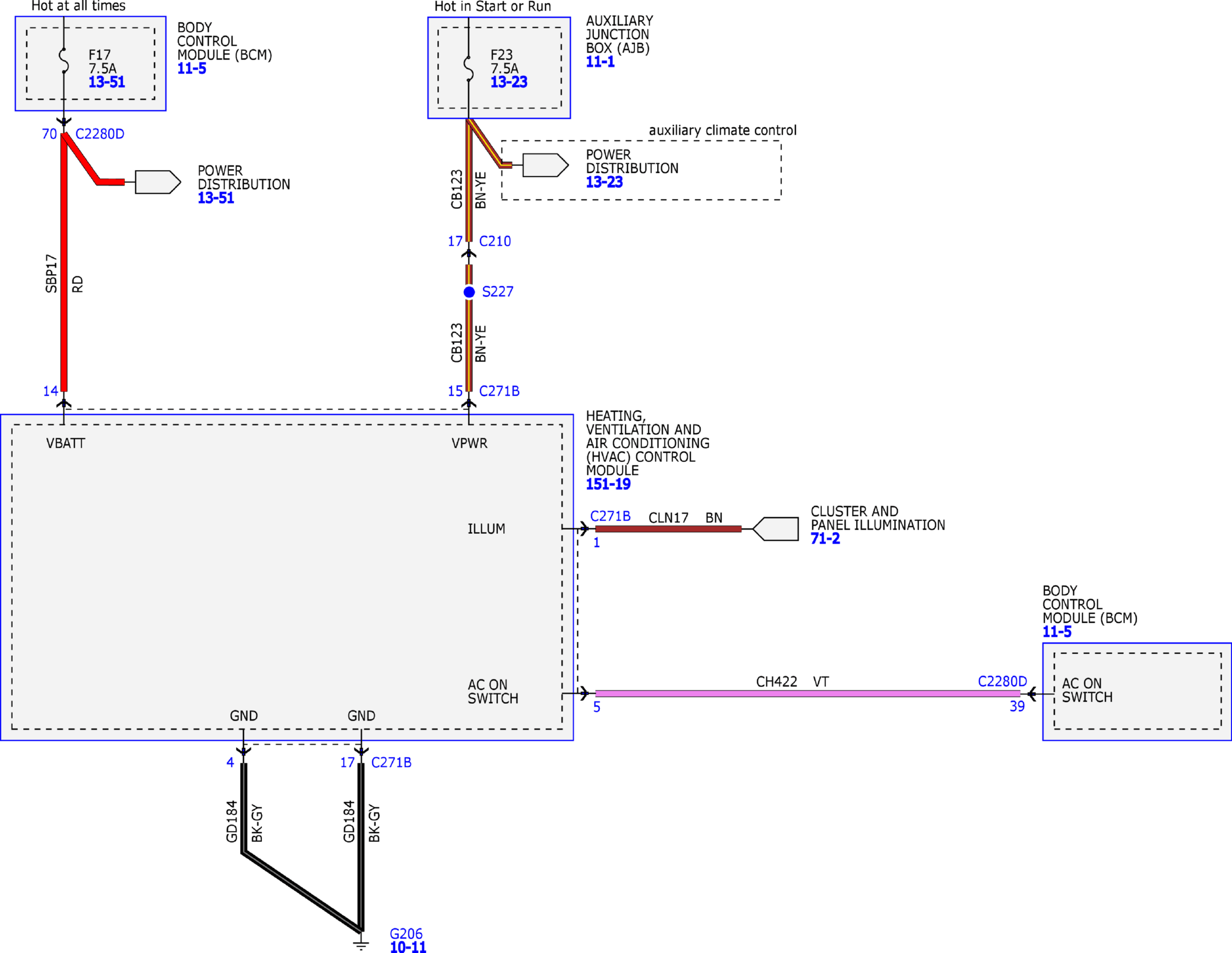

Fig 3: Manual Climate Control System Wiring Diagram (3 of 9)
GFDW61602Courtesy of FORD MOTOR COMPANY

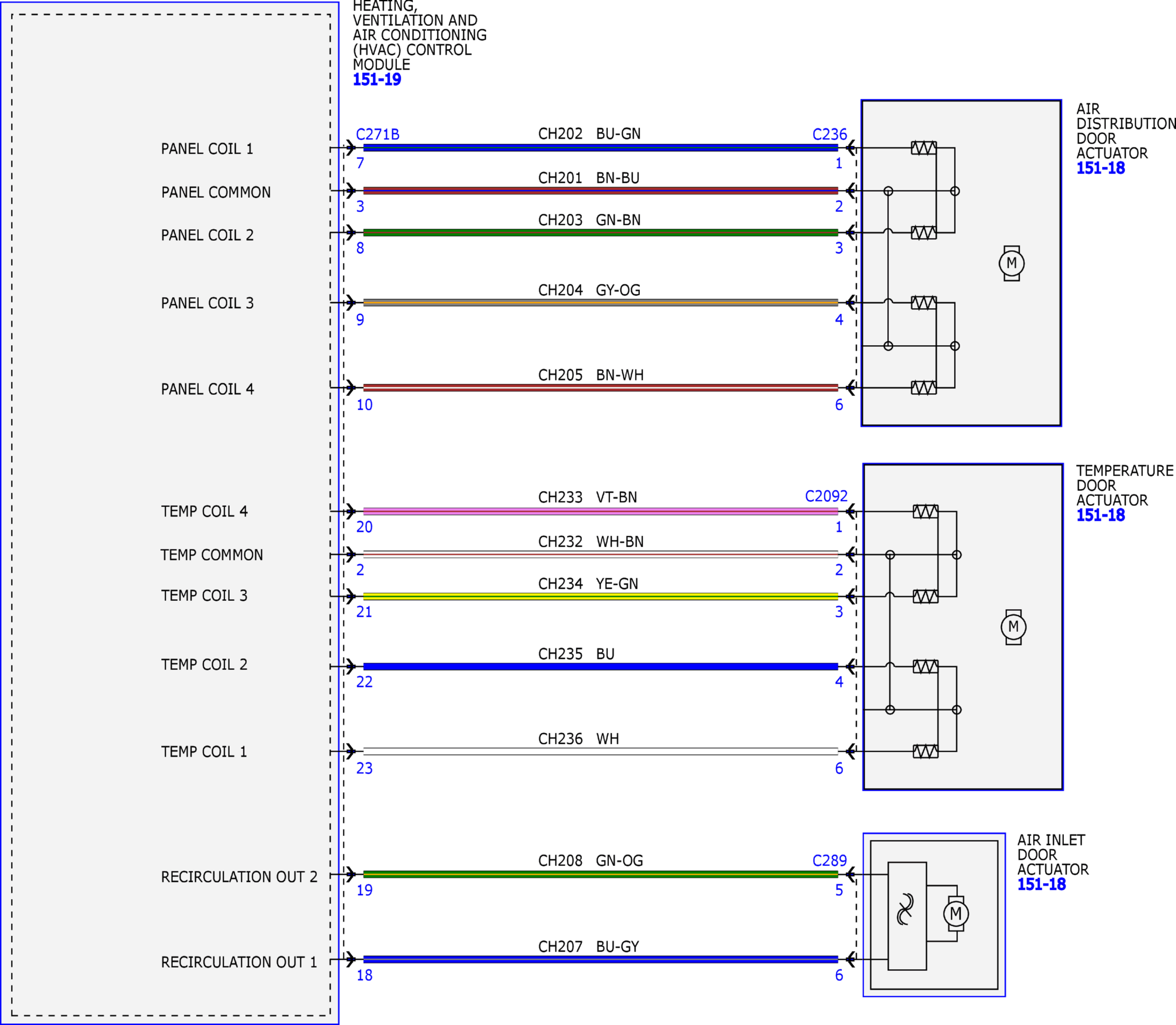

Fig 4: Manual Climate Control System Wiring Diagram (4 of 9)
GFDW61603Courtesy of FORD MOTOR COMPANY
Fig 5: Manual Climate Control System Wiring Diagram (5 of 9)
GFDW61604Courtesy of FORD MOTOR COMPANY

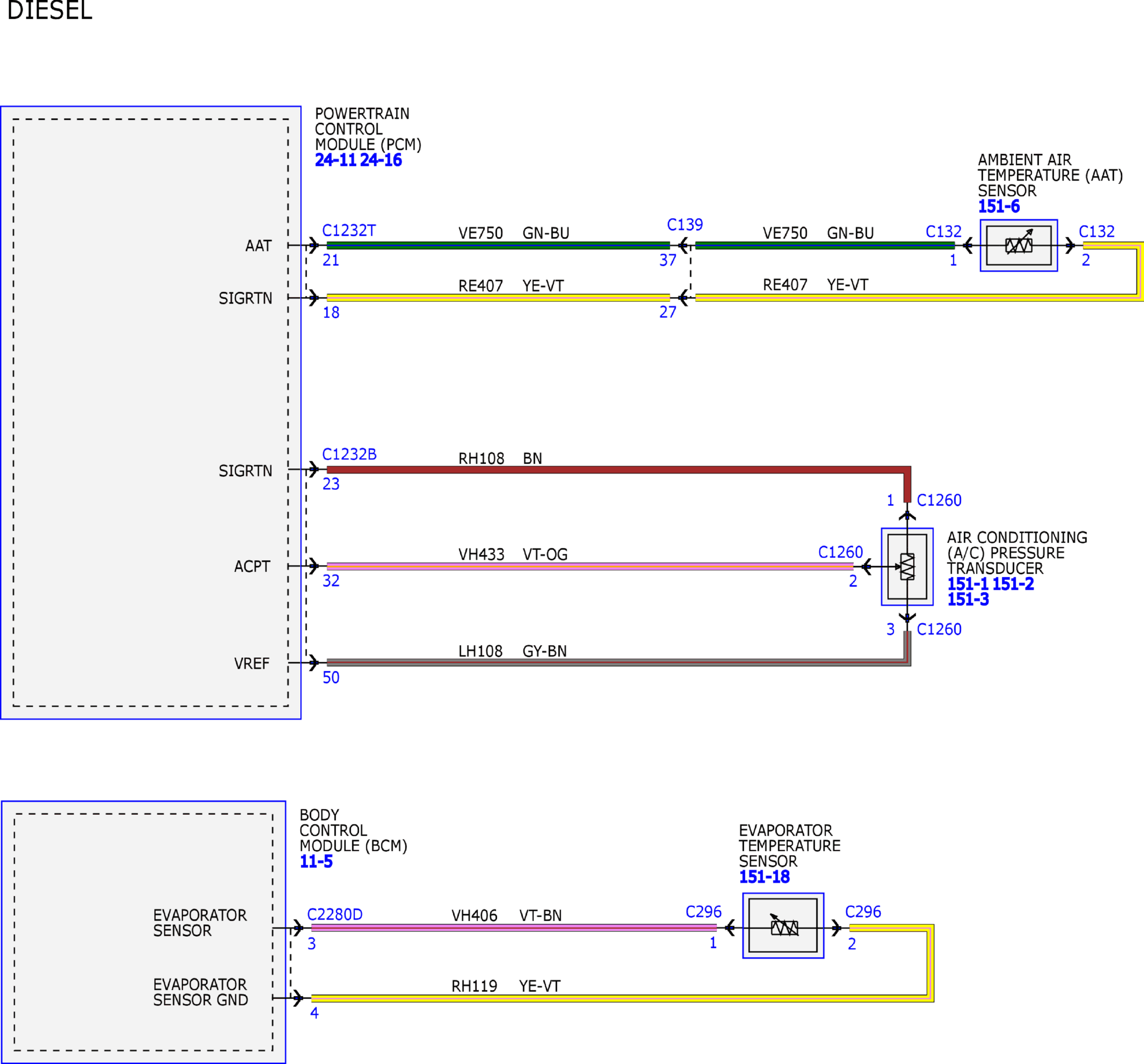

Fig 6: Manual Climate Control System Wiring Diagram (6 of 9)
GFDW61605Courtesy of FORD MOTOR COMPANY

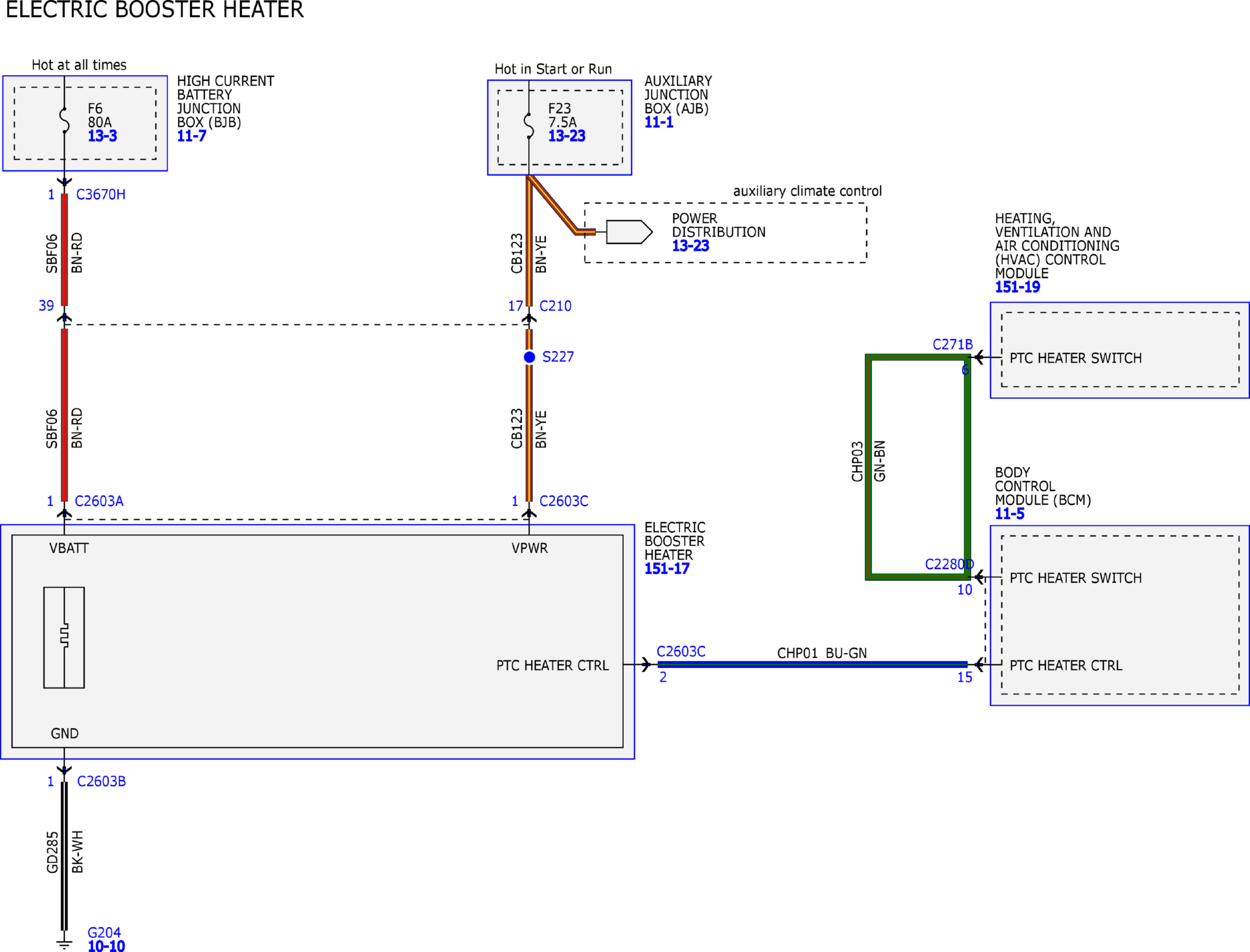

Fig 7: Manual Climate Control System Wiring Diagram (7 of 9)
GFDW61606Courtesy of FORD MOTOR COMPANY

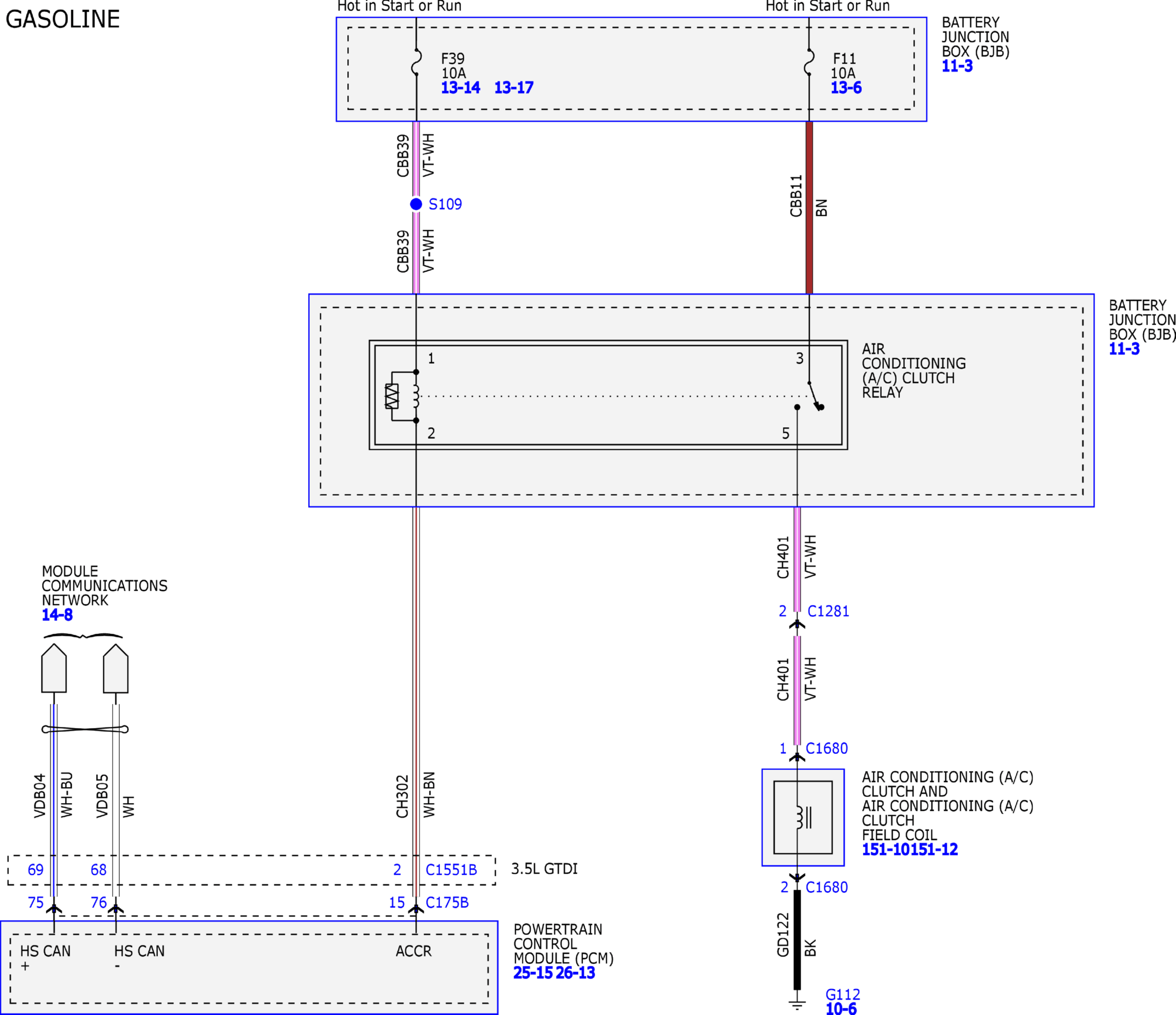

Fig 8: Manual Climate Control System Wiring Diagram (8 of 9)
GFDW61607Courtesy of FORD MOTOR COMPANY

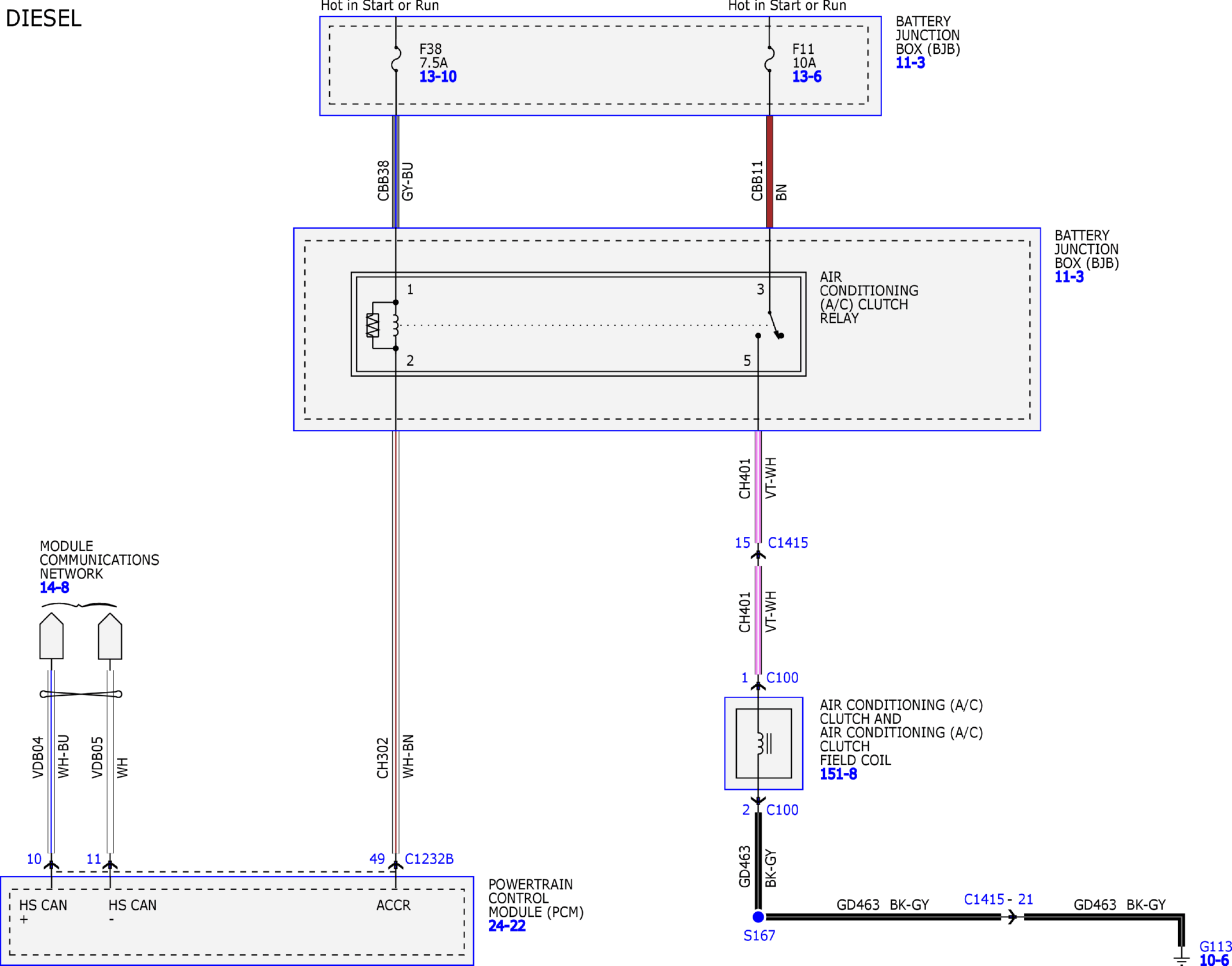

Fig 9: Manual Climate Control System Wiring Diagram (9 of 9)
GFDW61608Courtesy of FORD MOTOR COMPANY
