Battery Current Sensor: Installation
- 1.

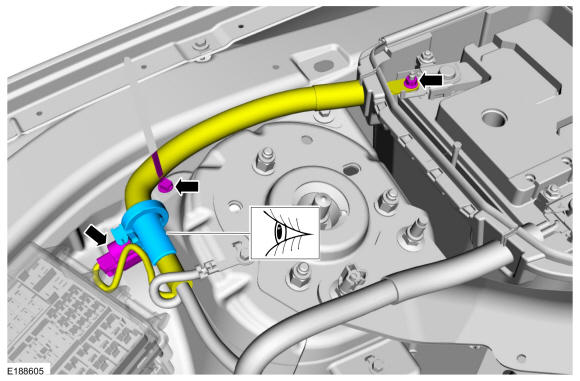

With the battery current sensor tape tab pointing away from the battery, position the battery current sensor to the index-mark on the battery cable and secure with electrical tape. Connect the battery current sensor electrical connector. Position the battery cable and install the wire retainer and nut.Torque
: 80 lb.in (9 Nm)
NOTE:
The battery current sensor must be installed in the proper position and orientation to function correctly.
