Transmission Case: Notes
SPECIAL TOOL DESCRIPTION
| Handle 205-153 (T80T-4000-W) |
|
| Installer, Ball Bearing 307-557 |
|
| Installer, Bushing 307-664 |
|
| Installer, Differential Seal 307-626 |
|
| Installer, Input Shaft Bearing 308-202 (T91T-7127-B) |
|
| Pilot, Transfer Gear Roller Bearing 307-541 |
|
| Remover, Detent 308-812 |
|
| Slide Hammer 100-001 (T50T-100-A) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC |
WSS-M2C200-D2 |
| Motorcraft® Threadlock 262 TA-26 |
WSK-M2G351-A6 |

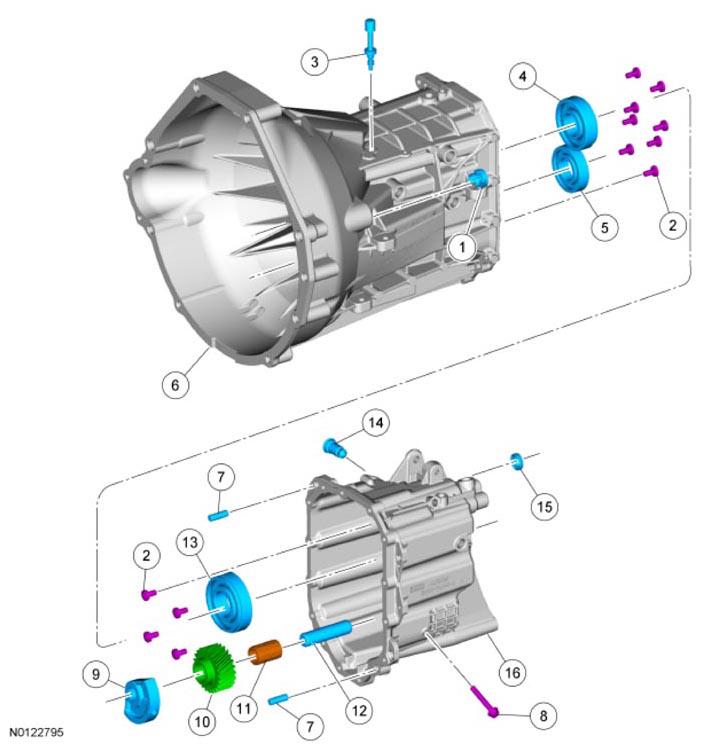

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Clutch slave cylinder tube retaining clip |
| 2 | 7A443 | Bearing retaining bolts |
| 3 | 7K341 | Transmission case vent tube |
| 4 | 7025 | Input shaft bearing |
| 5 | 7121 | Countershaft bearing |
| 6 | 7005 | Front transmission case (model dependent) |
| 7 | 7B362 | Dowel pin |
| 8 | 7A443 | Reverse idler gear bracket bolt |
| 9 | 7723 | Reverse idler gear bracket |
| 10 | 7141 | Reverse idler gear |
| 11 | 7143 | Reverse idler gear needle bearing |
| 12 | 7140 | Reverse idler gear shaft |
| 13 | 7065 | Output shaft bearing |
| 14 | 7M131 | Shift shaft detent |
| 15 | 7288 | Shift shaft seal |
| 16 | 7A039 | Rear transmission case (model dependent) |
