Disassembly And Assembly Of Subassemblies: Synchronizers: Disassembly

NOTE: Make a note of/mark the installed positions of the components before removal.

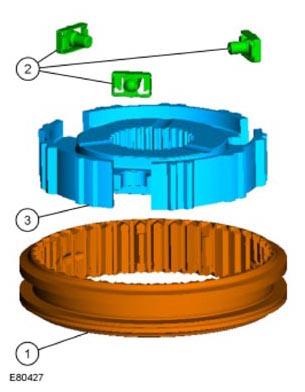

1. Synchronizer sleeve
2. Pressure pieces
3. Synchronizer hub
NOTE: 3rd/4th gear only.

NOTE: Make a note of/mark the installed positions of the components before removal.

NOTE: Make sure that the endstops do not drop off of the synchronizer sleeve during disassembly so that the correct installed position can be noted.

Remove the endstops from the synchronizer sleeve.
1. Endstops.
2. Synchronizer hub.
