Disassembly And Assembly Of Subassemblies: Synchronizers: Assembly

NOTE: 3rd/4th gear only.

Install the endstops In the synchronizer sleeve.
1. Use grease to hold the endstops to the synchronizer sleeve.
2. Install the synchronizer sleeve on the synchronizer hub.
NOTE: Make sure that the components are installed in their original positions.

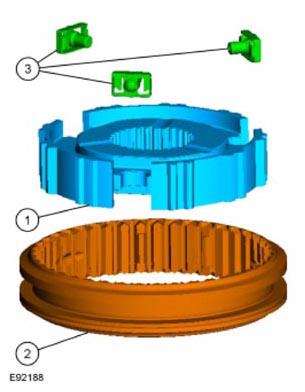

1. Synchronizer hub
2. Synchronizer sleeve
3. Pressure pieces
