Output Shaft: Notes
SPECIAL TOOL DESCRIPTION
| Puller, Bearing 205-D064 (D84L-1123-A) or equivalent |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC |
WSS-M2C200-D2 |

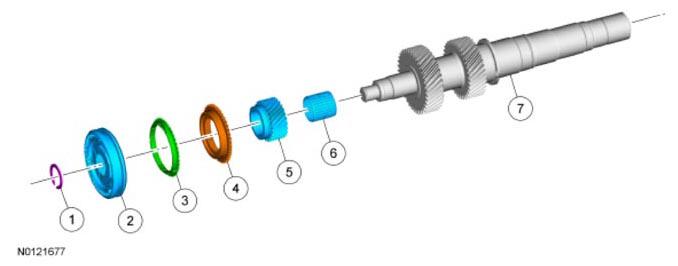

| Item | Part Number | Description |
|---|---|---|
| 1 | 7064 | 5th/6th gear synchronizer assembly snap ring |
| 2 | 7124 | 5th/6th gear synchronizer assembly |
| 3 | 7107 | 6th gear synchronizer ring |
| 4 | 7M000 | 6th gear synchronizer cone |
| 5 | 7J101 | 6th gear |
| 6 | 7M037 | 6th gear needle bearing |
| 7 | 7061 | Output shaft |
