Disassembly And Assembly Of Subassemblies: Countershaft: Notes
SPECIAL TOOL DESCRIPTION
| Handle 205-153 (T80T-4000-W) |
|
| Installer, Shift Rail Needle Bearing 308-130 (T87T-7025-DH) |
|
| Puller, Bearing 205-D064 (D84L-1123-A) or equivalent |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC |
WSS-M2C200-D2 |

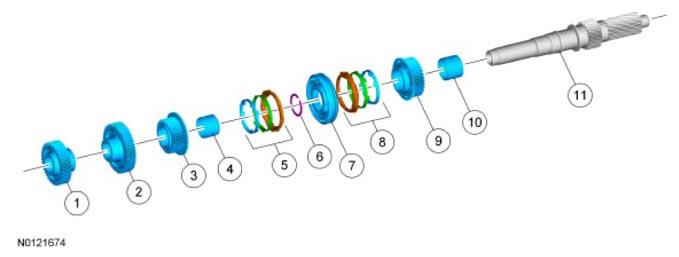

| Item | Part Number | Description |
|---|---|---|
| 1 | 7144 | 5th gear |
| 2 | 7146 | 6th gear |
| 3 | 7101 | 3rd gear |
| 4 | 7M037 | 3rd gear needle bearing |
| 5 | 7107 | 3rd gear synchronizer ring assembly |
| 6 | 7064 | 3rd/4th gear synchronizer assembly snap ring |
| 7 | 7124 | 3rd/4th gear synchronizer assembly |
| 8 | 7107 | 4th gear synchronizer ring assembly |
| 9 | 7112 | 4th gear |
| 10 | 7M037 | 4th gear needle bearing |
| 11 | 7113 | Countershaft |
