Fuel Lines: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
| Item | Part Number | Description |
|---|---|---|

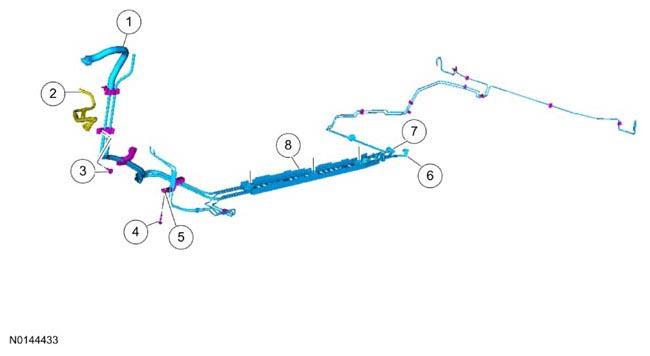

| 1 | - | Fuel tube (part of 9G700) (3.5L GTDI shown others similar) |
| 2 | 9J280 | Fuel rail jumper tube |
| 3 | W711158 | Fuel tube bundle retainer bolt |
| 4 | W707522 | Fuel tube bundle retainer bolt |
| 5 | W520832 | Fuel tube bundle nut |
| 6 | - | Vapor tube-to-EVAP canister quick connect coupling (part of 9G700) |
| 7 | - | Fuel tube-to-fuel tank jumper tube quick connect coupling (part of 9G700) |
| 8 | - | Fuel tube bundle shield (part of 9G700) |
