Liftgate Alignment

WARNING: This page is about a different car, the 2015 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

Liftgate Alignment

Inspection

1.

Check the liftgate to the body dimensions. REFER to: Body and Frame

Adjustment

1.

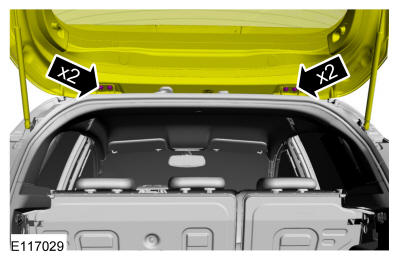

Loosen the bolts to permit movement of the liftgate. Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

2.

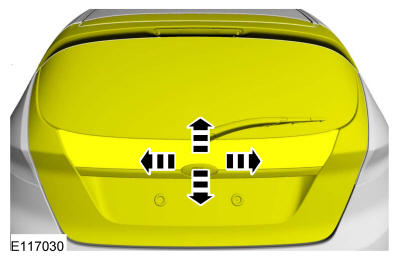

Adjust the liftgate to specification. REFER to: Body and Frame

Courtesy of FORD MOTOR COMPANY

3.

Tighten the bolts.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
