Hood Alignment

WARNING: This page is about a different car, the 2015 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

Hood Alignment

Base Part Number: 16000

Inspection

1.

Check the body to the hood dimensions. REFER to: Body and Frame

Adjustment

Right/Left and Fore/Aft

1.

Loosen the nuts to permit movement of the hood. Loosen: 2 turn(s)

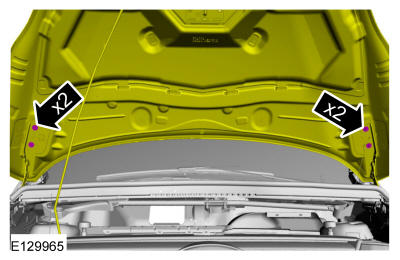

GFD55168

Courtesy of FORD MOTOR COMPANY

2.

Loosen the bolts. Loosen: 2 turn(s)

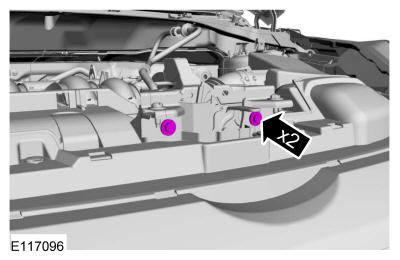

GFD55169

Courtesy of FORD MOTOR COMPANY

3.

Adjust the hood to specification. REFER to: Body and Frame

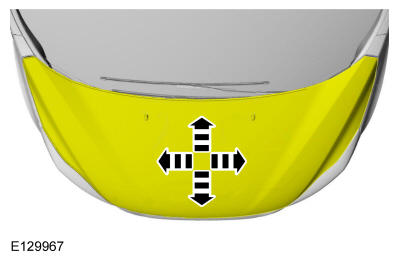

GFD55170

Courtesy of FORD MOTOR COMPANY

4.

Tighten the nuts.
Torque

: 106 lb.in (12 Nm)

GFD55168

Courtesy of FORD MOTOR COMPANY

5.

Tighten the bolts.
Torque

: 80 lb.in (9 Nm)

GFD55169

Courtesy of FORD MOTOR COMPANY

6.

Check the body to the hood dimensions. REFER to: Body and Frame

Up/Down

7.

Check the body to the hood dimensions. REFER to: Body and Frame

8.

On both sides. Loosen the bolts to permit movement of the hood. Loosen: 2 turn(s)

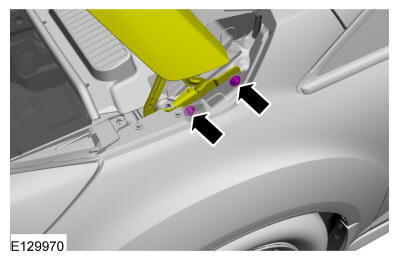

GFD55171

Courtesy of FORD MOTOR COMPANY

9.

Loosen the bolts. Loosen: 2 turn(s)

GFD55169

Courtesy of FORD MOTOR COMPANY

10.

Adjust the hood to specification. REFER to: Body and Frame

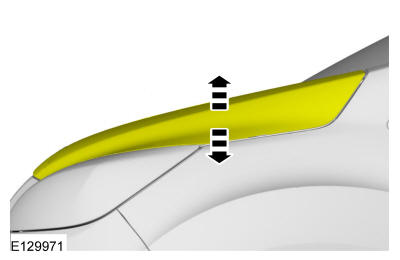

GFD55172

Courtesy of FORD MOTOR COMPANY

11.

On both sides. Tighten the bolts.
Torque

: 18 lb.ft (25 Nm)

GFD55171

Courtesy of FORD MOTOR COMPANY

12.

Tighten the bolts.
Torque

: 80 lb.in (9 Nm)

GFD55169

Courtesy of FORD MOTOR COMPANY

13.

Check the body to the hood dimensions. REFER to: Body and Frame
