Front Door Alignment

Base Part Number: 20124

Inspection

1.

Check the body to the front door dimensions. REFER to: Body and Frame

Adjustment

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

All alignments

1.

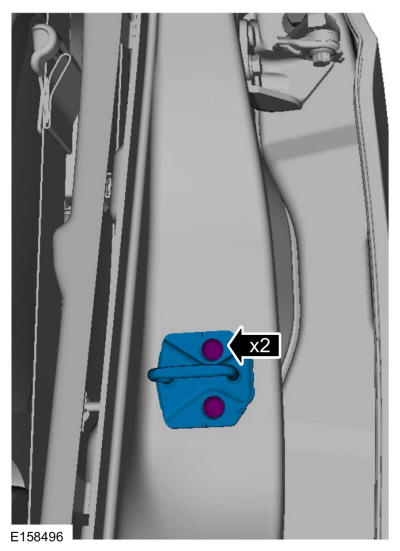

Remove the bolts and the striker assembly.

GFD55149

Courtesy of FORD MOTOR COMPANY

Front door in and out, up and down alignment

2.

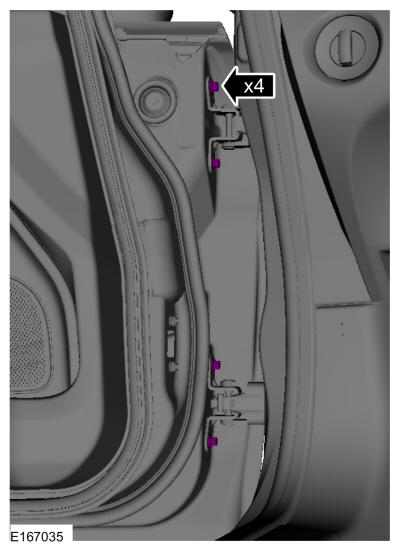

Loosen the bolts to permit movement of the door. Loosen: 2 turn(s)

GFD55150

Courtesy of FORD MOTOR COMPANY

3.

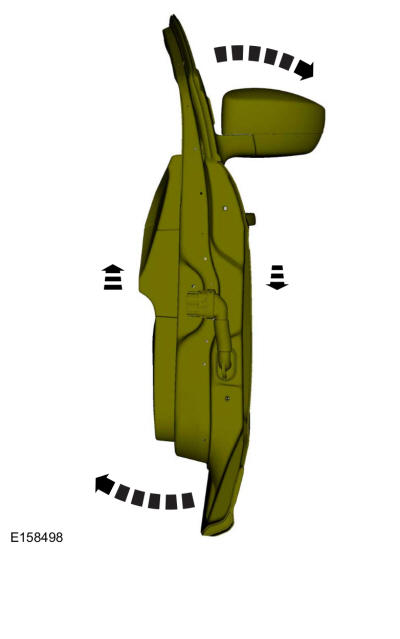

Adjust the door to specification. REFER to: Body and Frame

GFD55151

Courtesy of FORD MOTOR COMPANY

4.

Tighten the bolts.
Torque

: 18 lb.ft (24 Nm)

GFD55150

Courtesy of FORD MOTOR COMPANY

Front door fore, aft and tilt alignment

5.

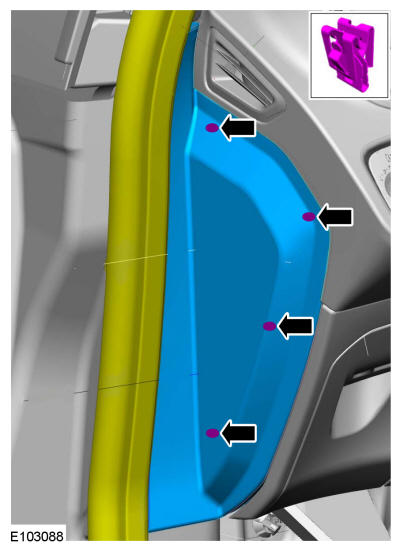

Position the front door weatherstrip aside, release the clips and remove the instrument finish panel.

GFD55152

Courtesy of FORD MOTOR COMPANY

6.

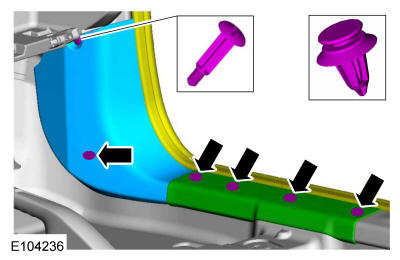

On passenger side: Position the front door weatherstrip aside, remove the push-pins, the scuff plate and the lower cowl trim panel.

GFD55012

Courtesy of FORD MOTOR COMPANY

7.

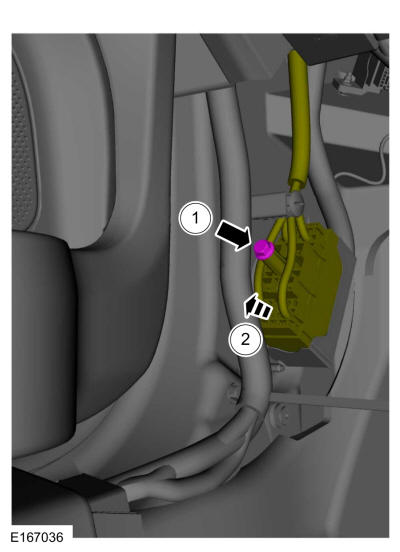

On driver side:
- 1.

  Remove the bolt.
- 2.

  Disconnect and position the electrical connector aside.

GFD55153

Courtesy of FORD MOTOR COMPANY

8.

Remove the driver knee airbag. REFER to: Driver Knee Airbag

9.

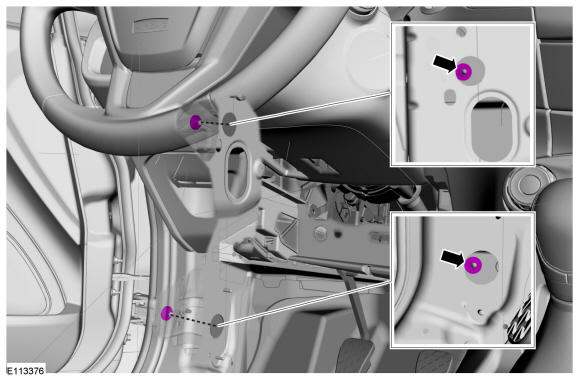

On driver side: Loosen the nuts. Loosen: 2 turn(s)

GFD55154

Courtesy of FORD MOTOR COMPANY

10.

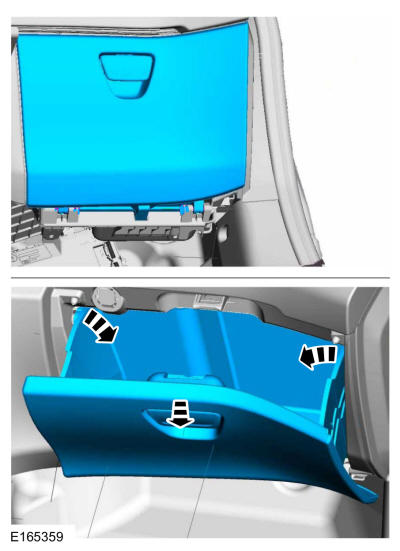

On passenger side: Release the retaining tabs and remove the glove compartment.

GFD54877

Courtesy of FORD MOTOR COMPANY

11.

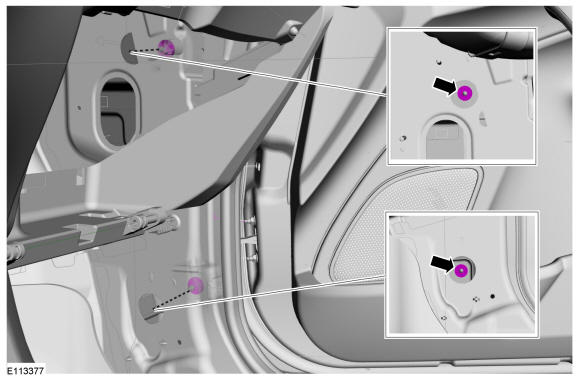

On passenger side: Loosen the nuts. Loosen: 2 turn(s)

GFD55155

Courtesy of FORD MOTOR COMPANY

12.

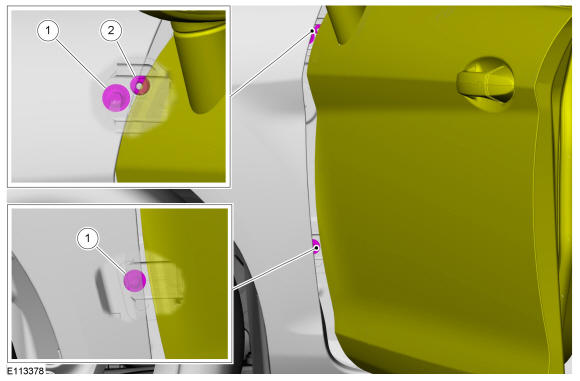

- 1.

  Loosen the bolts. Loosen: 2 turn(s)
- 2.

  If equipped. Loosen the nut. Loosen: 2 turn(s)

GFD55156

Courtesy of FORD MOTOR COMPANY

13.

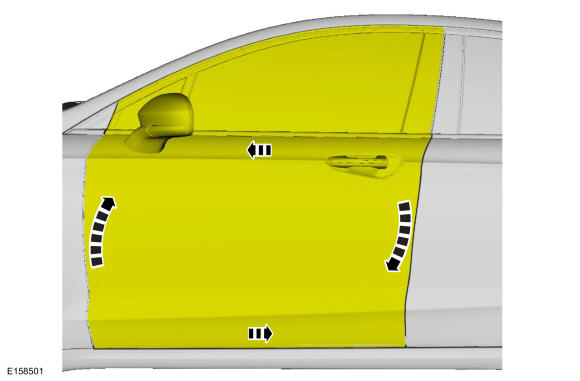

Adjust the door to specification. REFER to: Body and Frame

GFD55157

Courtesy of FORD MOTOR COMPANY

14.
- 1.

  Tighten the bolts.
  Torque

  : 18 lb.ft (25 Nm)
- 2.

  If equipped. Tighten the nut.
  Torque

  : 106 lb.in (12 Nm)

GFD55156

Courtesy of FORD MOTOR COMPANY

15.

On driver side: Tighten the nuts.
Torque

: 18 lb.ft (25 Nm)

GFD55154

Courtesy of FORD MOTOR COMPANY

16.

On passenger side: Tighten the nuts.
Torque

: 18 lb.ft (25 Nm)

GFD55155

Courtesy of FORD MOTOR COMPANY

All alignments

17.

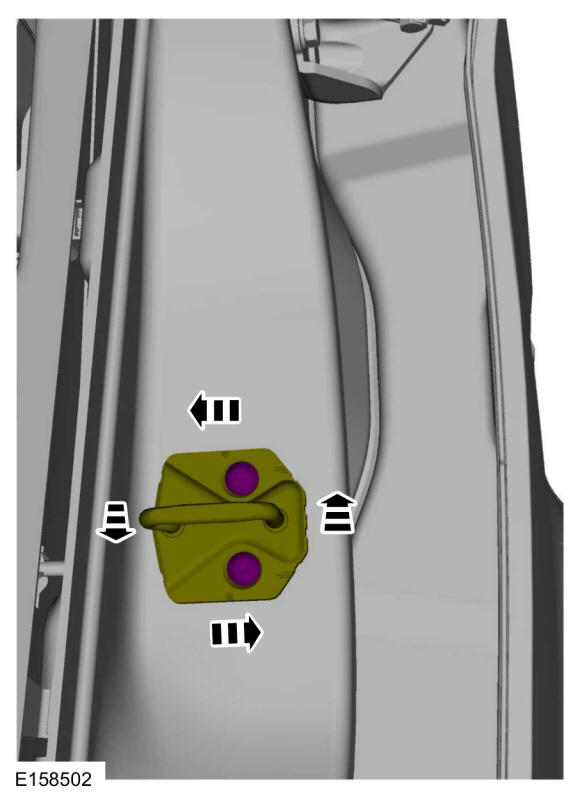

Loosen the bolts to permit movement of the striker assembly. Loosen: 2 turn(s)

GFD55158

Courtesy of FORD MOTOR COMPANY

18.

Tighten the bolts.
Torque

: 18 lb.ft (25 Nm)

GFD55149

Courtesy of FORD MOTOR COMPANY

19.

Check the body to the front door dimensions. REFER to: Body and Frame

20.

Install the removed components.
